Maytag LDG19CS

Model: LDG19CS

Save Part Not Listed?
product name

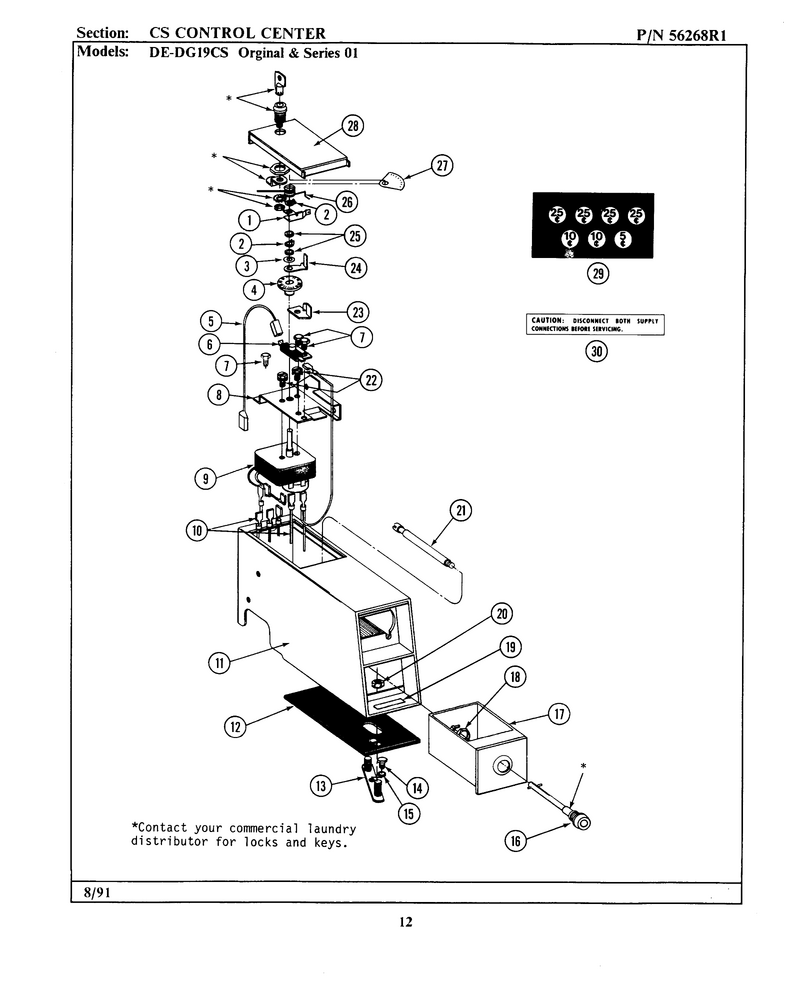

06 - Control Center

...
...
001
Return Lever WPL-Y312068
...
002
Lock Ring, Timer Shaft WPL-211790
...
003
Spring Washer WPL-312073
...
004
Ratchet, Timer WPL-NLA
...
005
Wire Assembly WPL-Y303707
...
006
Switch, Coin Slide WPL-Y301774
...
007
Screw WPL-WPW10139210
...
008
Timer Support Bracket WPL-312250
...
009
Timer Motor WPL-NLA
...
010
Main Wire Harness WPL-NLA
...
011
(alm) WPL-NLA
...
012
Gasket, Meter Case WPL-214660
...
013
Mtg. Strap----Na WPL-NLA
...
014
Screw WPL-WP90767
...
015
Washer WPL-910309
...
016
Spring Washer, Lock WPL-NLA
...
017
Coin Box (wht) WPL-205423
...
018
Nut WPL-W11395752
...
019
Instruction Label WPL-Y313439
...
020
Nut WPL-WP62739
...
021
Bolt- Lock WPL-WP213035
...
022
Screw WPL-211251
...
023
Stop, Actuator WPL-Y312069
...
024
Timer Actuator Lever WPL-Y313309
...
025
Washer WPL-410730
...
026
Return Spring, Actuator WPL-Y312071
...
027
Time Indicator Gage WPL-314073
...
028
Door, Access (wht) WPL-203188
...
029
Coinage Decal WPL-214648
...
030
Instruction Label WPL-Y313439

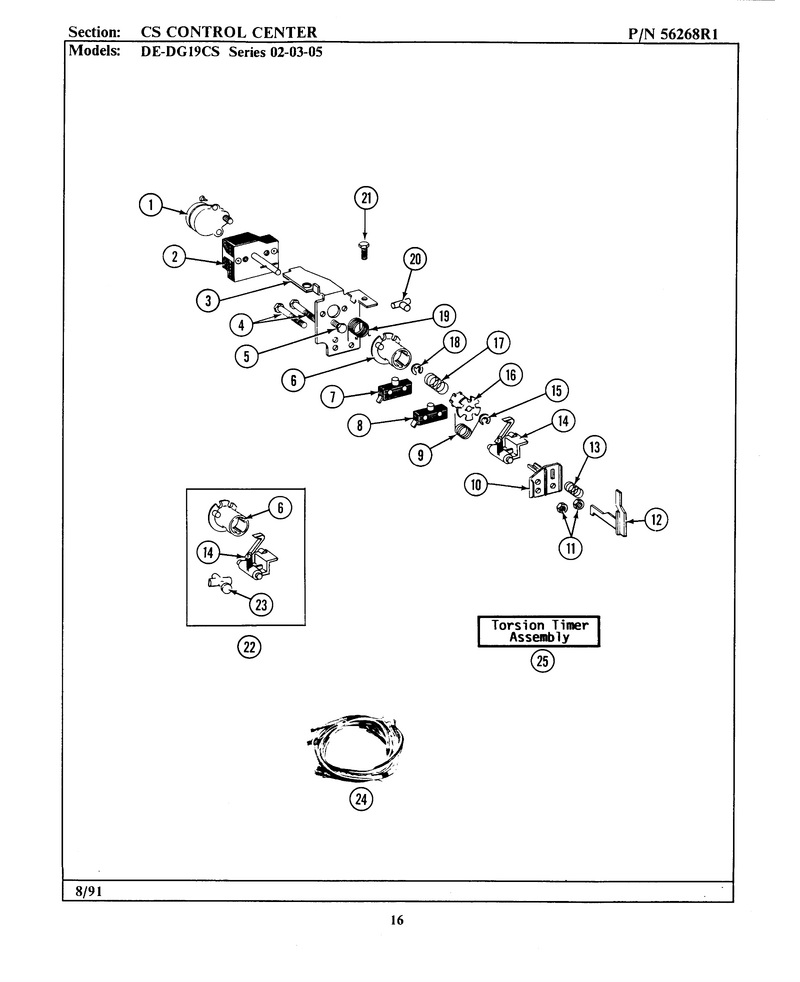

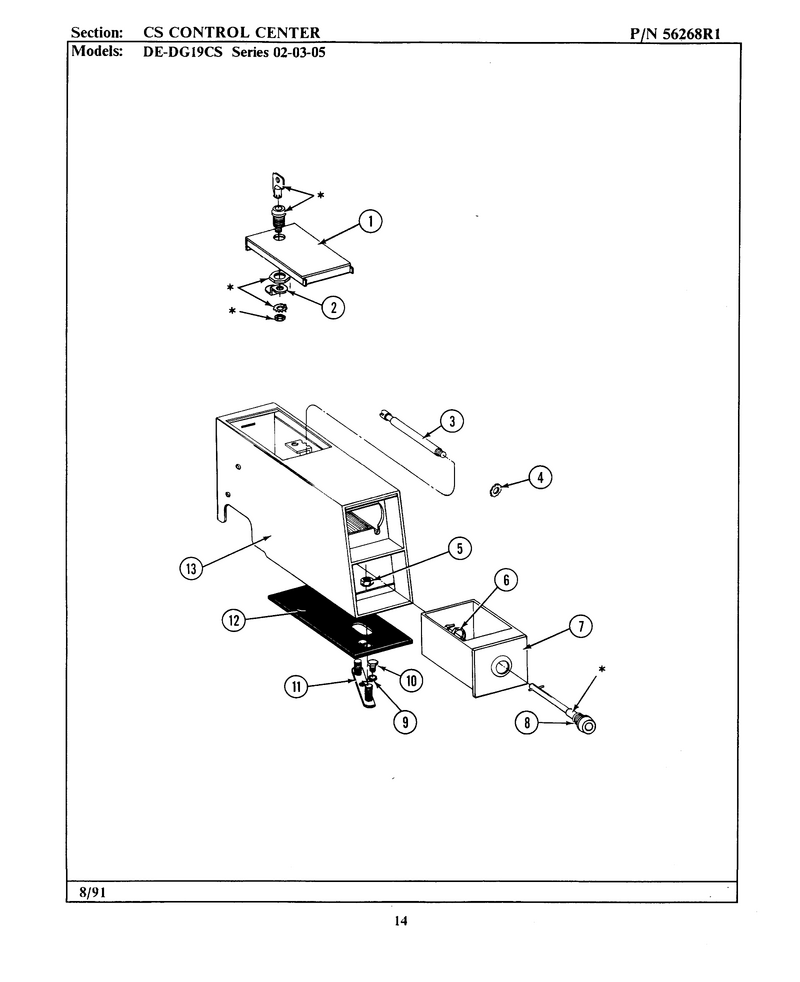

08 - Control Center (series 02)

...
...
001
Timer Motor WPL-305870
...
002
Timer (canada) WPL-305813
...
003
Timer Mounting Bracket WPL-314333
...
004
Screw WPL-315277
...
005
Screw WPL-WP488234
...
006
Index Whee WPL-WP314546
...
007
Switch WPL-WPY305799
...
008
Bypass Switch, Motor WPL-305798
...
009
Actuator Spring WPL-314332
...
010
Switch & Slider Bracket WPL-314339
...
011
Nut K WPL-M0282005
...
012
Slider WPL-33002968
...
013
Helical Spring ----N WPL-NLA
...
014
Actuator, Switch WPL-314548
...
015
Lock Ring, Timer Shaft WPL-211790
...
016
Driver, Index Wheel WPL-314330
...
017
Spring- Ti WPL-WP211065
...
018
Ring-E WPL-WP98392
...
019
Return Spring WPL-314331
...
020
Time Adjustment Peg WPL-314335
...
021
Screw WPL-WPW10139210
...
022
Torsion-Timer Kit WPL-306104
...
023
Actuator Kit WPL-Y308109
...
024
Main Wire Harness WPL-NLA
...
025
Timer WPL-WP305797

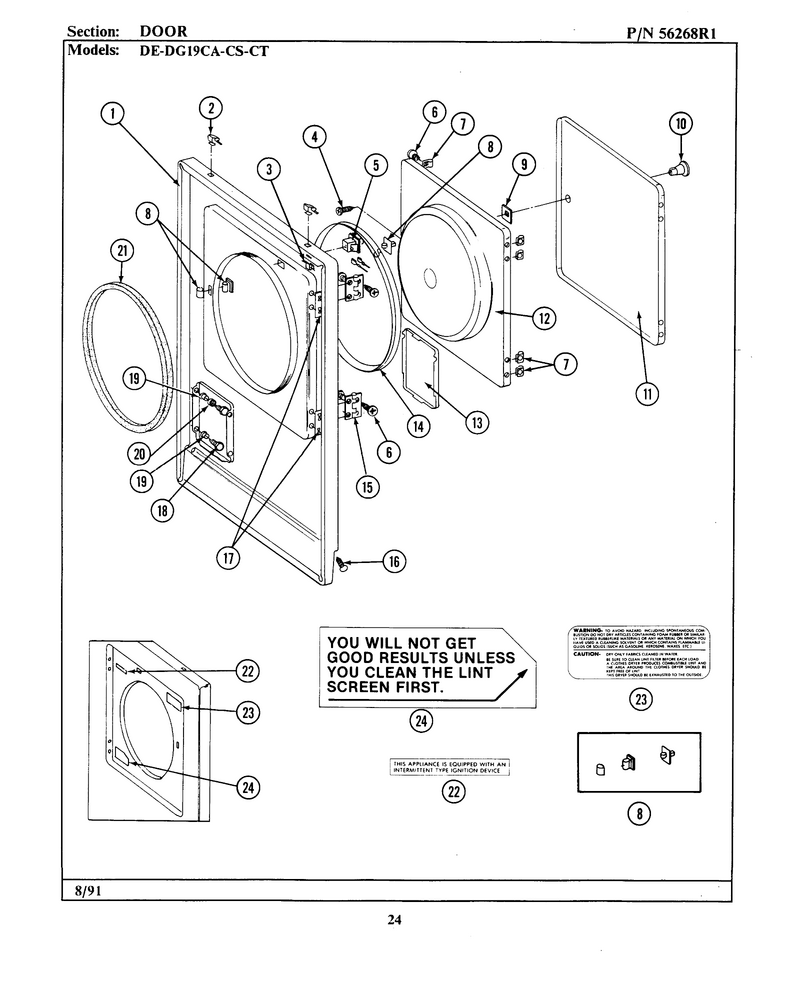

13 - Door

...
...
001
Front Panel (wht) WPL-NLA
...
002
Fastener- WPL-WP22001650
...
003
Clip, Wire Harness WPL-Y310376
...
004
Screw, Door Knob WPL-NLA
...
005
Switch-Dor WPL-W10169313
...
006
Screw WPL-Y314062
...
007
Clip, Door Liner (outer Pnl) WPL-Y313910
...
008
Door Latch Kit--W WPL-306436
...
009
Door Strike Retainer WPL-Y313911
...
010
Knob & Screw WPL-NLA
...
011
(alm) WPL-NLA
...
012
Inner Door W/knob WPL-NLA
...
013
Access Door (white) WPL-NLA
...
014
Door Seal WPL-314077
...
015
Door Hinge ----S WPL-Y304577
...
016
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
017
Twin Fastener WPL-Y313907
...
018
Screw WPL-212949
...
019
Bushing, Access Stud WPL-NLA
...
020
Sleeve-Access Panel Stud WPL-312369
...
021
Seal, Front Panel WPL-314286
...
022
Gas Ignition Label WPL-NLA
...
023
Instruction Label WPL-Y313927
...
024
Label, Lint Screen Instr. WPL-Y313340

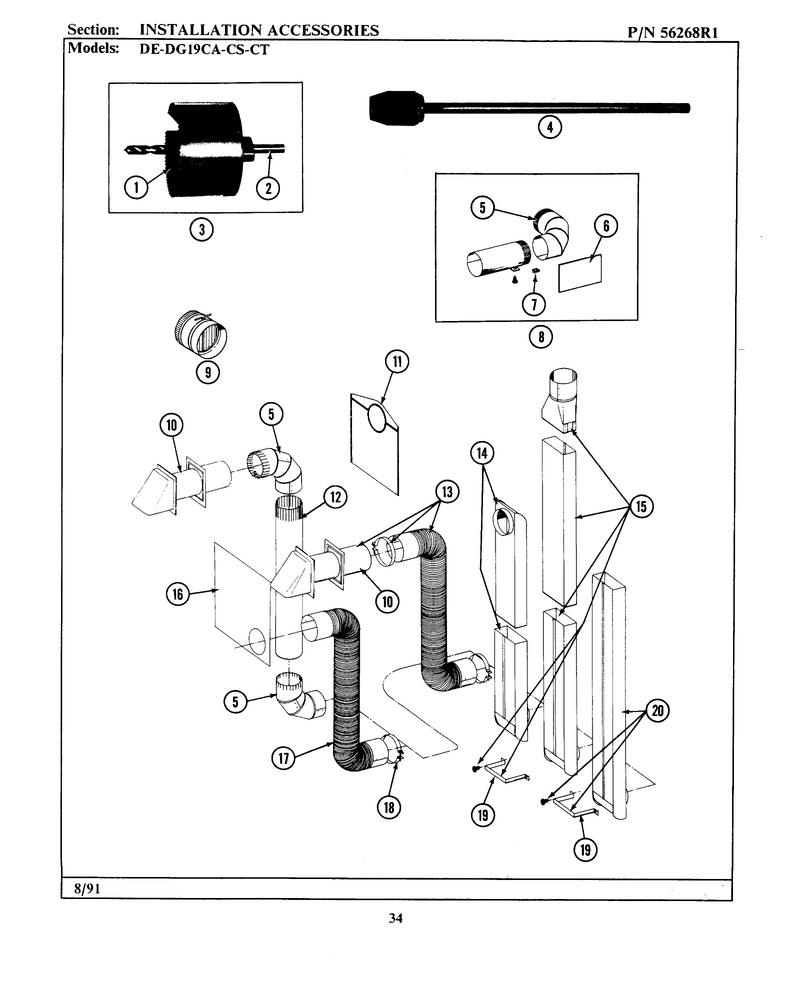

05 - Installation Accessories

...
...
001
Blade, Saw WPL-NLA
...
002
Replacement Drill WPL-NLA
...
003
Hole Saw W/drill Bit WPL-NLA
...
004
Extension Chuck, Drill WPL-NLA
...
005
Elbow, Venting (4``) WPL-Y059131
...
006
Insulation, Exhaust Duct Kit WPL-312302
...
007
Fastener, Exhaust Duct Kit WPL-213323
...
008
Screw WPL-WP90767
...
009
Damper, Back Draft WPL-NLA
...
010
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
011
Bag, Lint (dacron) WPL-311353
...
012
Pipe, Venting WPL-Y059130
...
013
Flexible Vent Kit WPL-Y059143
...
014
Vent Duct Assy. WPL-Y059135
...
015
Rectangular Vent Kit WPL-NLA
...
016
Plate, Alum. Window (15``x20``) WPL-Y059134
...
017
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
018
Clamp, Flexible Duct WPL-Y304630
...
019
Bracket, Exhaust Deflector WPL-NLA
...
020
Exhaust Deflector Kit WPL-NLA

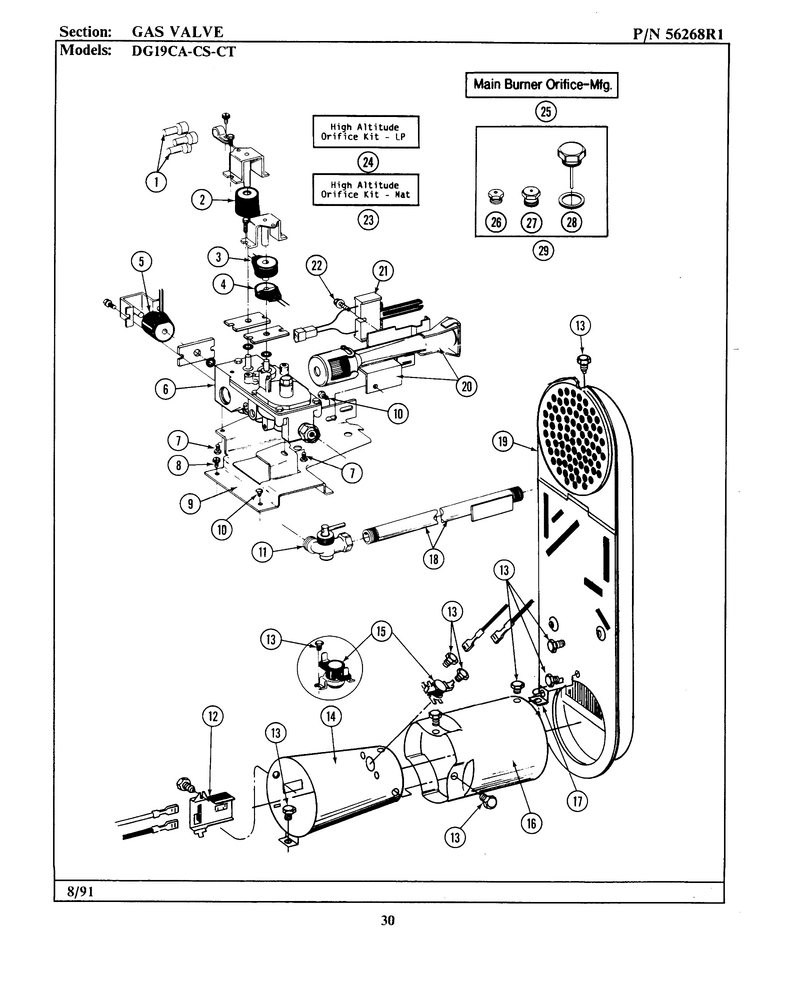

10 - Gas Valve

...
...
001
Closed Connector WPL-311546
...
002
Coil WPL-12001348
...
003
Coil WPL-WP305604
...
004
Coil WPL-WP305605
...
005
Side Coil WPL-Y304626
...
006
Gas Valve Assembly WPL-Y303777
...
007
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
008
Screw WPL-WPY313561
...
009
Gas Valve Bracket WPL-312929
...
010
Screw WPL-WP1163839
...
011
Shut-Off, Gas Valve WPL-Y303349
...
012
Sensor WPL-WP338906
...
013
Screw WPL-WP90767
...
014
Cone, Combustion WPL-Y303368
...
015
Thermostat WPL-WP305169
...
016
Cone, Extension (combustion) WPL-Y303841
...
017
Retainer, Heater Chamber WPL-Y312890
...
018
Pipe & Bracket Assy. WPL-Y303383
...
019
Inlet Duct Assembly (dg) WPL-Y303369
...
020
Burner Asy WPL-WP33002793
...
021
Ignitor WPL-4391996
...
022
Screw WPL-304971
...
023
Orifice Kit, Lp (high Alt.) WPL-NLA
...
024
Orifice Kit, Nat (high Alt.) WPL-NLA
...
025
Main Burner Orifice (mfg) WPL-NLA
...
026
Main Burner Orifice - Lpg WPL-NLA
...
027
Internal Orifice - Lpg WPL-NLA
...
028
Screw Assm - Blue Block Ope WPL-NLA
...
029
Conversion Kit-Nat. To Lpg WPL-Y303779

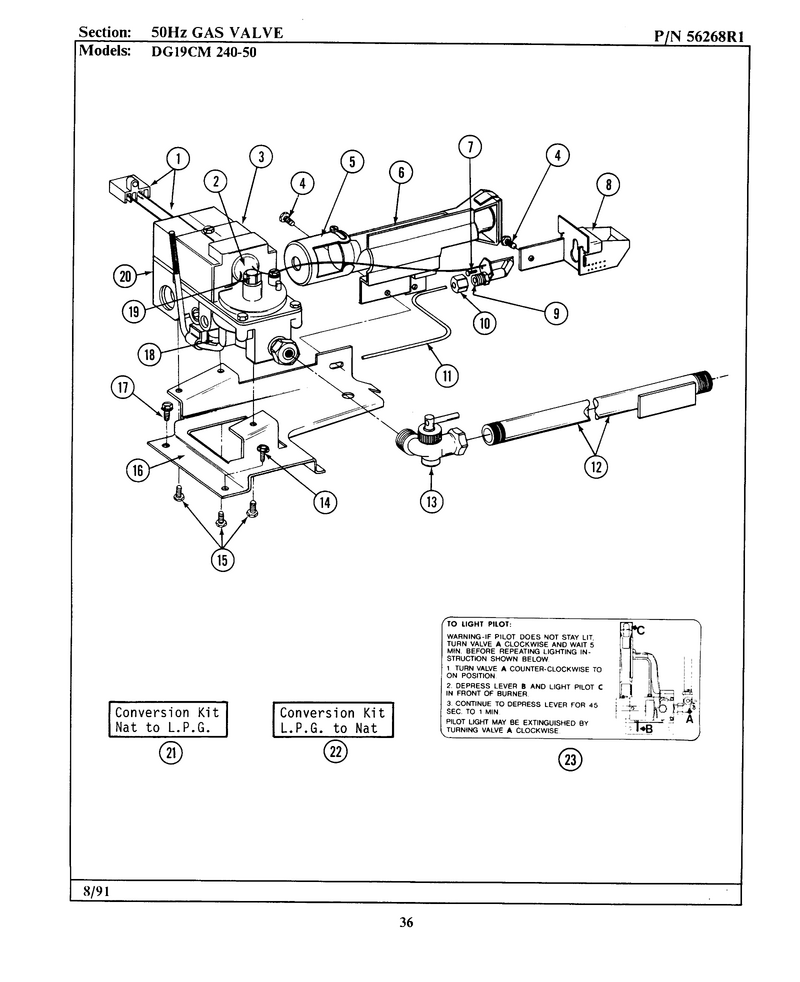

11 - 50hz Gas Valve

...
...
001
Main Burn. Solenoid (240-50) WPL-Y302813
...
002
Pilot W/pressure Switch WPL-NLA
...
003
Orifice, Main Burner WPL-NLA
...
004
Screw, No.10 X 3/8 WPL-Y014872
...
005
Air Shutter WPL-NLA
...
006
Burner Assembly WPL-Y304697
...
007
Screw WPL-Y311711
...
008
Pilot Shield Assembly WPL-NLA
...
009
Pilot Orifice (mfg.) WPL-NLA
...
010
Compression Nut WPL-310692
...
011
Pilot Tube WPL-Y312483
...
012
Pipe & Bracket Assy. WPL-Y303383
...
013
Shut-Off, Gas Valve WPL-Y303349
...
014
Screw WPL-WP1163839
...
015
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
016
Gas Control Bracket WPL-NLA
...
017
Screw, Hex Hd No.8 X 3/8 Inch WPL-NLA
...
018
Gasket, Pilot WPL-NLA
...
019
Screw Assembly, Leak Limit WPL-NLA
...
020
Gas Valve (240-50) WPL-Y304698
...
021
Conversion Kit (nat.to Lpg) WPL-NLA
...
022
Conversion Kit (lp To Nat.) WPL-301539
...
023
Gas Burner Instruct Label WPL-NLA

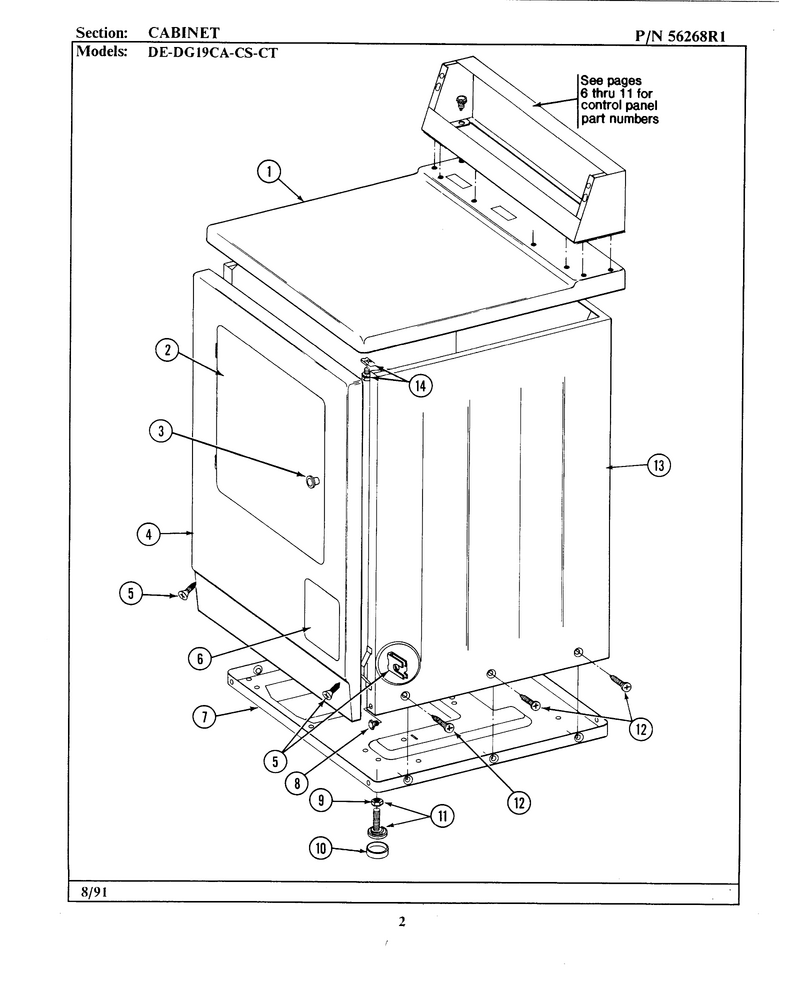

01 - Cabinet-Front

...
...
001
(alm) WPL-NLA
...
002
(alm) WPL-NLA
...
003
Knob & Screw WPL-NLA
...
004
Front Panel (wht) WPL-NLA
...
005
Screw & Fstner Assy (ft. Pnl) WPL-204439
...
006
Access Door (wht) WPL-NLA
...
007
Base Assy. WPL-Y303361
...
008
Screw WPL-WP1163839
...
009
Nut WPL-WP62739
...
010
Foot- Rubb WPL-WPY314137
...
011
Feet-Lvlng WPL-W10176519
...
012
Screw, Cabinet WPL-213007
...
013
Cabinet (wht) WPL-NLA
...
014
Screw & Fastener Asy. WPL-204445

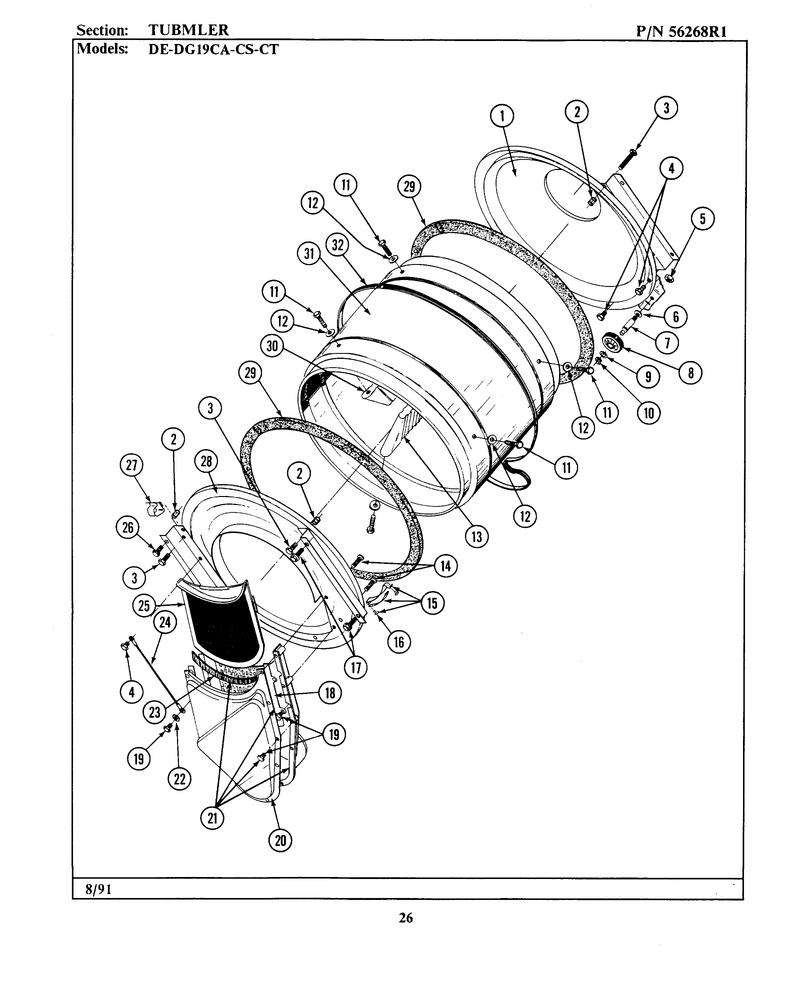

03 - Tumbler

...
...
001
Back, Tumbler (w/seal) WPL-33001106
...
002
Cover, Thread WPL-NLA
...
003
Screw WPL-NLA
...
004
Screw WPL-WP90767
...
005
Nut- Hex WPL-WP33001443
...
006
Washer WPL-WP312535
...
007
Shaft WPL-WP6-3129480
...
008
Drum Roller/washer Assy. WPL-12001541
...
009
Washer WPL-WP312535
...
010
Ring-Retnr WPL-WP9703438
...
011
Screw WPL-WPY310759
...
012
Washer WPL-WP314158
...
013
Baffle, Tall WPL-33001004
...
014
Screw WPL-WP33002917
...
015
Tumbler Bearing Kit ----W WPL-306508
...
016
Rivet WPL-WP210720
...
017
Screw WPL-WP1163839
...
018
Guide, Lint Screen WPL-Y313795
...
019
Screw WPL-WPW10116751
...
020
Outlet Duct - Outer Half WPL-Y312964
...
021
Outlet Duct & Grid WPL-306657
...
022
Washer WPL-310557
...
023
Lint Seal WPL-Y313796
...
024
Tickets (1000) 2-14146 WPL-NLA
...
025
Screen WPL-WP33001003
...
026
Screw WPL-WPY313561
...
027
Clip, Wire Harness WPL-Y310376
...
028
Tumbler Front----Na WPL-NLA
...
029
Seal- Tumb WPL-WP33313541
...
030
Tumbler Baffle - Short WPL-NLA
...
031
Tumbler WPL-305187
...
032
Belt WPL-WPY312959

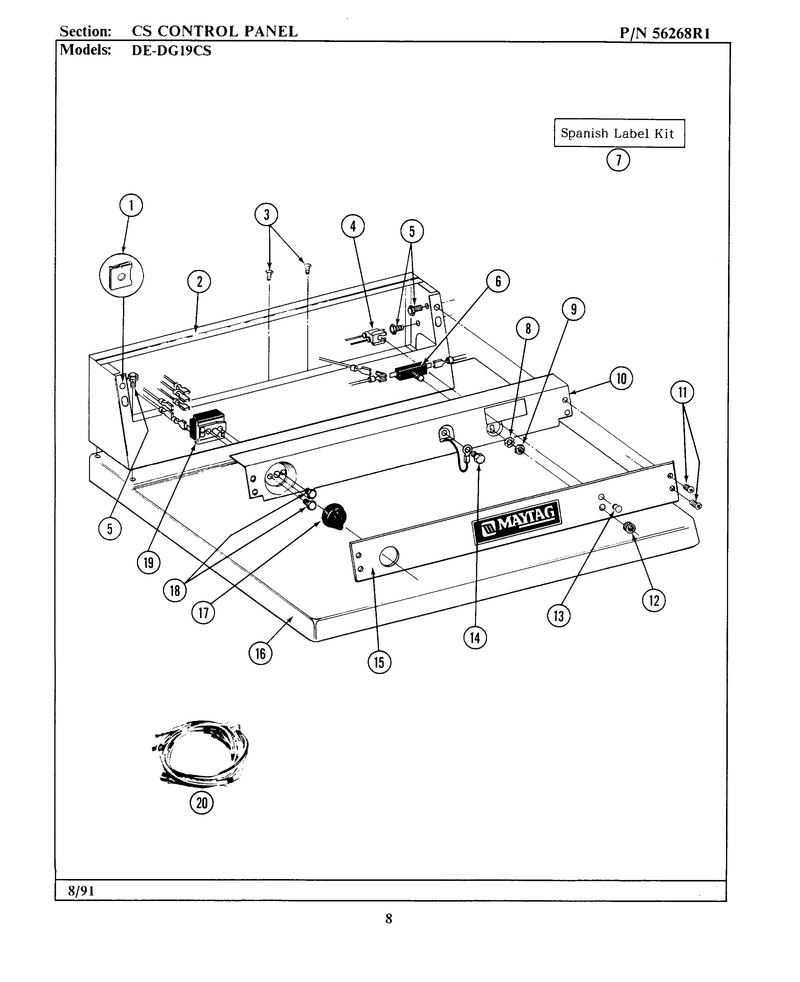

02 - Control Panel

...
...
001
Fastener WPL-215003
...
002
Console (wht) WPL-305213
...
003
Screw WPL-WP90767
...
004
Indicator Lamp WPL-Y305396
...
005
Screw WPL-WP90767
...
006
Start Switch W/nuts WPL-Y303204
...
007
Label Kit, Spanish WPL-NLA
...
008
Washer WPL-WPW10139799
...
009
Hex Nut On Switch WPL-Y312706
...
010
Back Up Plate (wht) WPL-NLA
...
012
Knurled Nu WPL-WPY312702
...
013
Lens, Control Panel WPL-213099
...
014
Screw WPL-WP489399
...
015
Control Panel WPL-NLA
...
016
(alm) WPL-NLA
...
017
Knob, Selector Switch WPL-205663
...
018
Screw WPL-WP488234
...
019
Selector Switch WPL-Y303420
...
020
Main Wire Harness WPL-NLA
...
314
Screw WPL-WP1163283

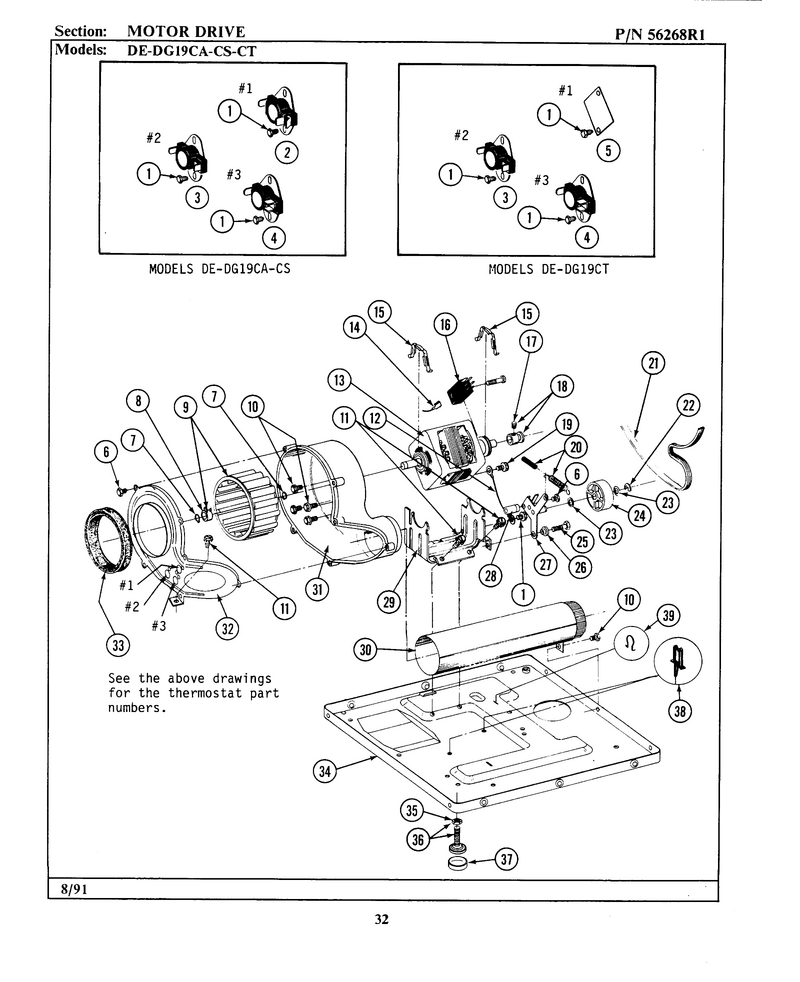

04 - Motor Drive

...
...
001
Screw WPL-WP90767
...
002
Thermostat, Permanent Press WPL-Y303225
...
003
Thrmst-Fix WPL-WP694674
...
004
Thermostat WPL-WP33303391
...
005
Part Not Used WPL-Y312853
...
006
Screw WPL-WPW10116751
...
007
Ring-Retnr WPL-WP9703438
...
008
Clamp WPL-WP312967
...
009
Blower Wheel Assembly & Clamp WPL-Y303836
...
010
Screw WPL-WP1163839
...
011
Screw WPL-WPY313561
...
012
Wire, Ground WPL-901220
...
013
Motor-Drve WPL-W10410999
...
014
Part Not Used WPL-NLA
...
015
Clip- Moto WPL-WPY015825
...
016
Switch, Motor Start WPL-NLA
...
017
Set Screw, Pulley WPL-Y053241
...
018
Pulley, Motor (w/set Screw) WPL-Y305185
...
019
Screw WPL-WP488234
...
020
Idler Spring Assembly WPL-Y303945
...
021
Belt WPL-WPY312959
...
022
Ring-E WPL-WP354987
...
023
Washer WPL-WPY312527
...
024
Pulley WPL-WP6-3037050
...
025
Screw WPL-WPY014874
...
026
Sleeve WPL-WP315772
...
027
Idler Arm WPL-WP6-3033630
...
028
Spacer WPL-WPW10116756
...
029
Support, Motor WPL-NLA
...
030
Exhaust Duct Assy. WPL-Y303442
...
031
Housing, Blower WPL-Y312893
...
032
Cover, Blower Housing WPL-Y313770
...
033
Seal- Blow WPL-WPY312901
...
034
Base Assy. WPL-Y303361
...
035
Nut WPL-WP62739
...
036
Feet-Lvlng WPL-W10176519
...
037
Foot- Rubb WPL-WPY314137
...
038
Retainer- WPL-W10116752
...
039
Spring, Wire Harness WPL-410490

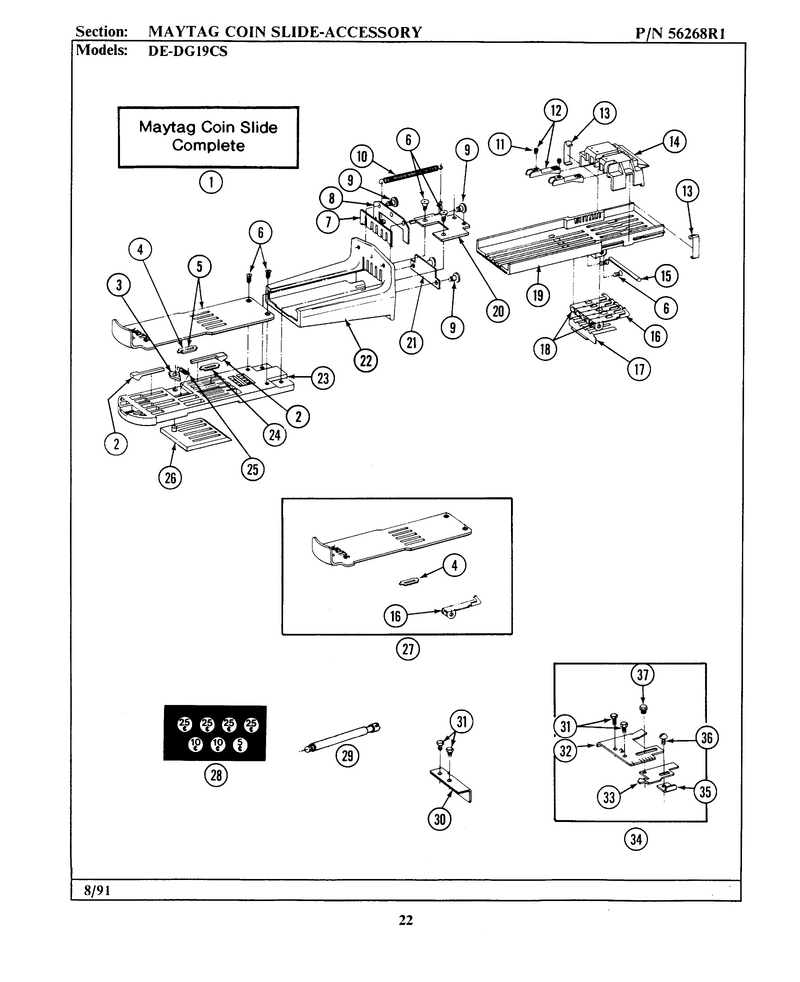

09 - Maytag Coin Slide-Accessory

...
...
001
Maytag Coin Slide WPL-NLA
...
002
Plug, Coin Opening WPL-NLA
...
003
Ratchet Arm WPL-214572
...
004
Nickel Insert WPL-NLA
...
005
Slide Plate W/nickel Insert WPL-NLA
...
006
Screw WPL-214597
...
007
Gate, Coin Opening WPL-214578
...
008
Retainer, Gate WPL-NLA
...
009
Stud, Coin Slide WPL-NLA
...
010
Return Spring WPL-214581
...
011
Set Screw, Gage WPL-NLA
...
012
Movable Coin Gage WPL-NLA
...
013
Spring Clip WPL-214589
...
014
Measuring Block Assembly WPL-NLA
...
015
Pin, Lower Gage Arm WPL-NLA
...
016
Lower Gage Arm WPL-NLA
...
017
Spring, Lower Gage Arm WPL-214596
...
018
Lower Gage Arm Assembly WPL-205343
...
019
Base Insert, Housing WPL-214594
...
020
End Bracket, Slide WPL-NLA
...
021
Retainer, Gage Spring WPL-NLA
...
022
Housing, Coin Slide WPL-214584
...
023
Slide Body WPL-NLA
...
024
Dime Insert WPL-NLA
...
025
Spring, Ratchet Arm WPL-214582
...
026
Stop Block Assembly WPL-205350
...
027
Slide Plate W/nickel Insert WPL-NLA
...
028
Coinage Decal WPL-214648
...
029
Bolt- Lock WPL-WP213035
...
030
Bracket, Coin Slide WPL-314334
...
031
Screw WPL-W11684507
...
032
Bracket, Slide WPL-Y312577
...
033
Slide Adjustment WPL-Y312578
...
034
Actuator Kit-Dryer Slides WPL-Y302924
...
035
Zero Slide Adjustment WPL-Y312576
...
036
Screw Adjustment Assembly WPL-NLA
...
037
Screw WPL-WP488234

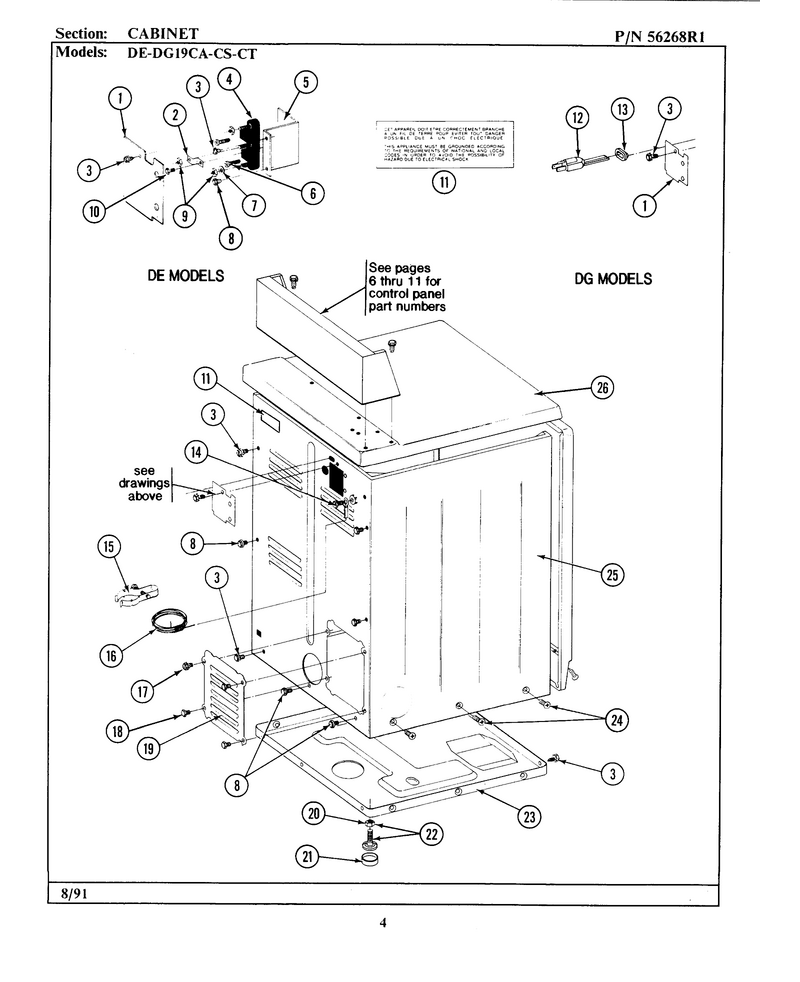

12 - Cabinet-Rear

...
...
001
Cover, Terminal WPL-Y312905
...
002
Part Not Used WPL-Y312184
...
003
Screw WPL-WPY313561
...
004
Part Not Used WPL-400008
...
005
Part Not Used WPL-Y312904
...
006
Screw WPL-W11164114
...
007
Washer- Te WPL-WPY311270
...
008
Screw WPL-WP1163839
...
009
Nut WPL-WP112432
...
010
Screw WPL-WP489483
...
011
Electical Instruct. Label WPL-214519
...
012
Power Cord WPL-302521
...
013
Cord Grommet WPL-211881
...
014
Screw & Washer Assy. WPL-NLA
...
015
Clamp, Ground (w/screw) WPL-301548
...
016
Wire WPL-WP311155
...
017
Screw WPL-WP90767
...
018
Screw WPL-WP90767
...
019
Cover, Access WPL-Y312951
...
020
Nut WPL-WP62739
...
021
Foot- Rubb WPL-WPY314137
...
022
Feet-Lvlng WPL-W10176519
...
023
Base Assy. WPL-Y303361
...
024
Screw, Cabinet WPL-213007
...
025
Cabinet (wht) WPL-NLA
...
026
(alm) WPL-NLA

07 - Control Center Case

...
...
001
(h. Wheat) WPL-203188M
...
002
Cam WPL-W11165684
...
003
Bolt- Lock WPL-WP213035
...
004
Lock Washer WPL-910181
...
005
Nut WPL-WP62739
...
006
Nut WPL-W11395752
...
007
Coin Box (wht) WPL-205423
...
008
Spring Washer, Lock WPL-NLA
...
009
Washer WPL-910309
...
010
Screw WPL-WP90767
...
011
Mtg. Strap----Na WPL-NLA
...
012
Gasket, Meter Case WPL-214660
...
013
Case, Coin Slide (wht) WPL-22001405

...
...
001
Screw, No.10 X 3/8 WPL-Y014872
...
002
Outer Case (wht) WPL-NLA
...
003
(alm) WPL-NLA
...
004
(h. Wheat) WPL-NLA
...
005
Retainer, Timer Knob WPL-211605
...
006
Timer (240-50) WPL-NLA
...
007
Motor 240-50 WPL-Y304656
...
008
Burner Assembly WPL-Y304697
...
009
Gas Valve (240-50) WPL-Y304698
...
010
Pilot Shield Assembly WPL-NLA
...
011
Combustion Cone WPL-NLA
...
012
Motor Pulley - 50 Cycle WPL-305186
...
013
Motor Pulley - 50 Cycle WPL-305186
...
014
Main Wire Harness (240-50) WPL-NLA
...
015
Pilot Lamp WPL-NLA
...
016
Timer 240-50 WPL-305812
...
017
Timer 240-50 WPL-305812
...
018
Compression Sleeve WPL-Y310693
...
019
Screw WPL-Y311711
...
020
Air Shutter WPL-NLA
...
021
Pilot Tube WPL-Y312483
...
022
Gas Control Bracket WPL-NLA
...
023
Gas Burner Instruct Label WPL-NLA
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
