Maytag LDE19CT

Model: LDE19CT

Save Part Not Listed?
product name

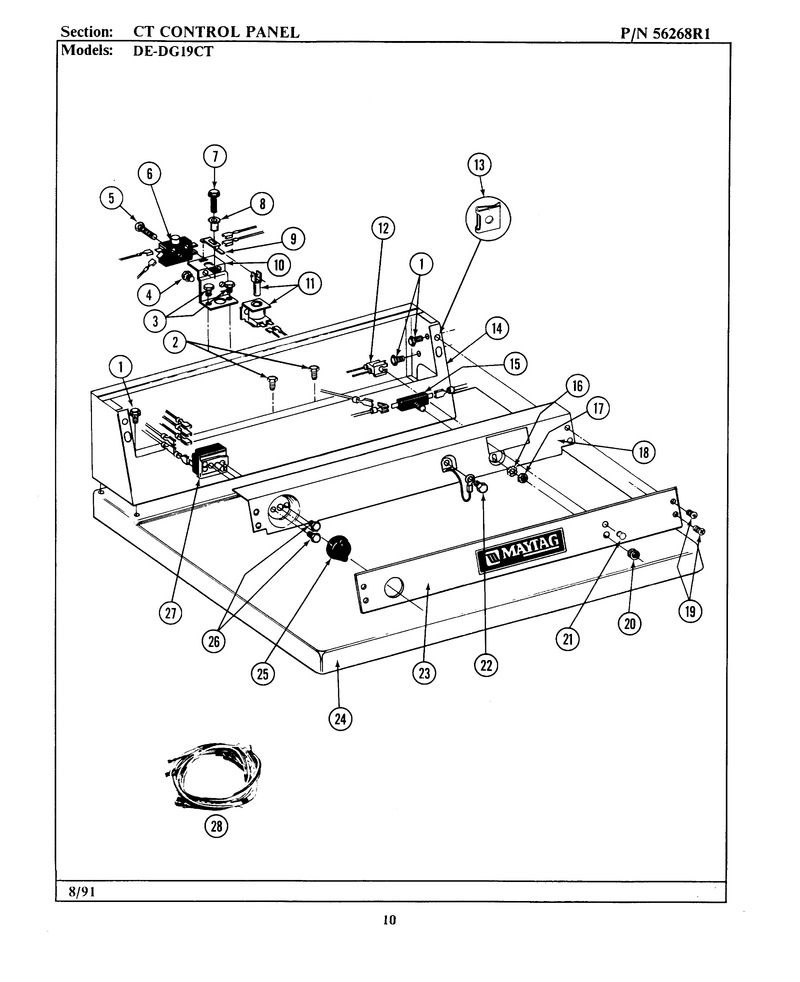

08 - Control Panel

...
...
001
Screw WPL-WP90767
...
002
Screw WPL-WP90767
...
003
Screw WPL-WP90767
...
004
Screw, No.6-32 X 1/4 Inch WPL-212951
...
005
Screw WPL-M0227520
...
006
Switch For Relay WPL-Y303787
...
007
Screw WPL-212949
...
008
Spacer For Advance Relay WPL-NLA
...
009
Spring Lever For Relay WPL-NLA
...
010
Relay Bracket WPL-NLA
...
011
Solenoid For Relay Assembly WPL-305393
...
012
Pilot Light WPL-NLA
...
013
Fastener WPL-215003
...
014
Console-Almond----Na WPL-NLA
...
015
Switch Assembly With Hex Nu WPL-Y303318
...
016
Washer WPL-WPW10139799
...
017
Hex Nut On Switch WPL-Y312706
...
018
Back Up Plate-Harvest Wheat WPL-NLA
...
019
Screw WPL-WP1163283
...
020
Knurled Nu WPL-WPY312702
...
021
Lens For Control Panel WPL-213099
...
022
Screw WPL-WP489399
...
023
Control Panel WPL-NLA
...
024
Top Cover-Almond WPL-NLA
...
025
Knob For Selector Switch WPL-205663
...
026
Screw WPL-WP488234
...
027
Selector Switch WPL-Y303420
...
028
Main Wire Harness WPL-NLA

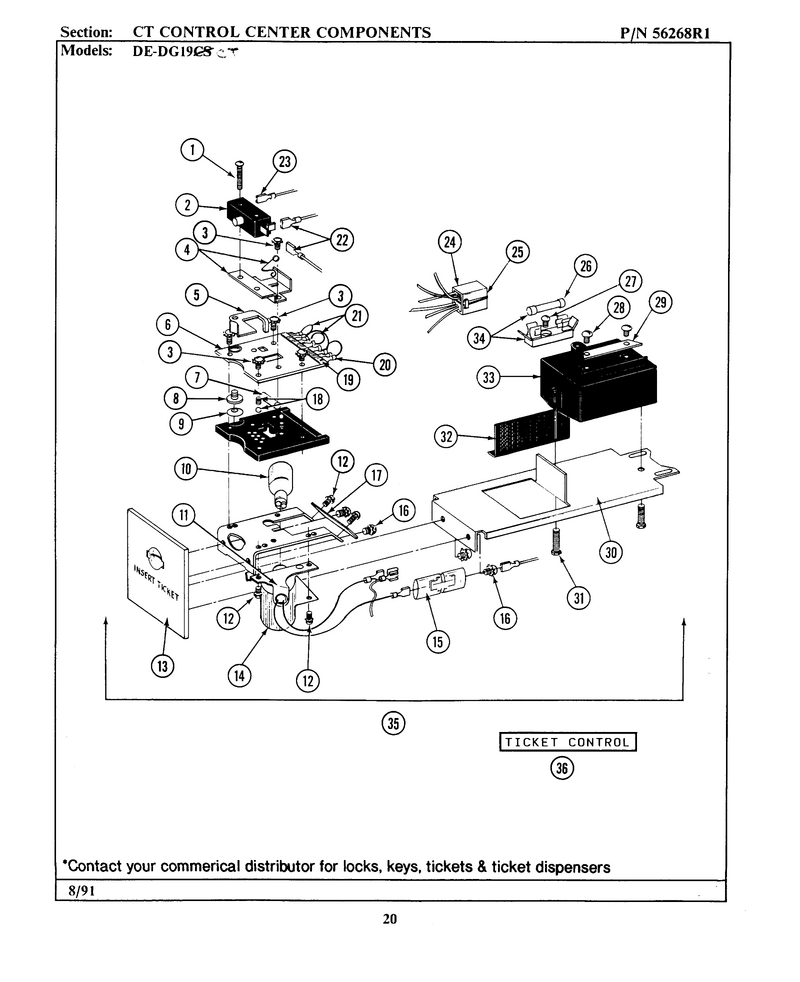

10 - Control Center Components

...
...
001
Screw WPL-NLA
...
002
Switch For Ticket Control WPL-204882
...
003
Sems Screw (no.4-40 X 1/2 Inc) WPL-NLA
...
004
Cam Plate Assembly WPL-204881
...
005
Switch Lever WPL-214218
...
006
Circuit Board WPL-212452
...
007
Roller For Cam WPL-214275
...
008
Adjustment Thumb Wheel WPL-214220
...
009
Spring Washer WPL-NLA
...
010
Bulb-Light WPL-WPA3167501
...
011
Lamp Socket With Bracket WPL-NLA
...
012
Screw, Shield To Control WPL-NLA
...
013
Front Plate F/ticket Contro WPL-NLA
...
014
Shield For Heat Lamp WPL-212533
...
015
Connector WPL-WP75614
...
016
Screw WPL-WP488234
...
017
Ticket Deflector WPL-NLA
...
018
Contact Ball Kit WPL-203140
...
019
Overlay For Circuit Board WPL-NLA
...
020
Spade (miniature) WPL-Y311550
...
021
Jumper Wire (black) WPL-NLA
...
022
Spade Connector WPL-NLA
...
023
Terminal WPL-WP248562
...
024
Harness For Ticket Control WPL-NLA
...
025
Pin For Plug WPL-NLA
...
026
Fuse WPL-WP22001555
...
027
Screw (no.6 X 1/4 Inch) WPL-NLA
...
028
Screw WPL-Y311711
...
029
Idler Sq. WPL-WFR311612
...
030
Bracket For Ticket Assembly WPL-NLA
...
031
Screw WPL-WP90767
...
032
Shield WPL-NLA
...
033
Control As WPL-22003292
...
034
Fuse Block With Fuse WPL-NLA
...
035
Ticket Receiver Assembly WPL-NLA
...
036
Ticket Control WPL-202509

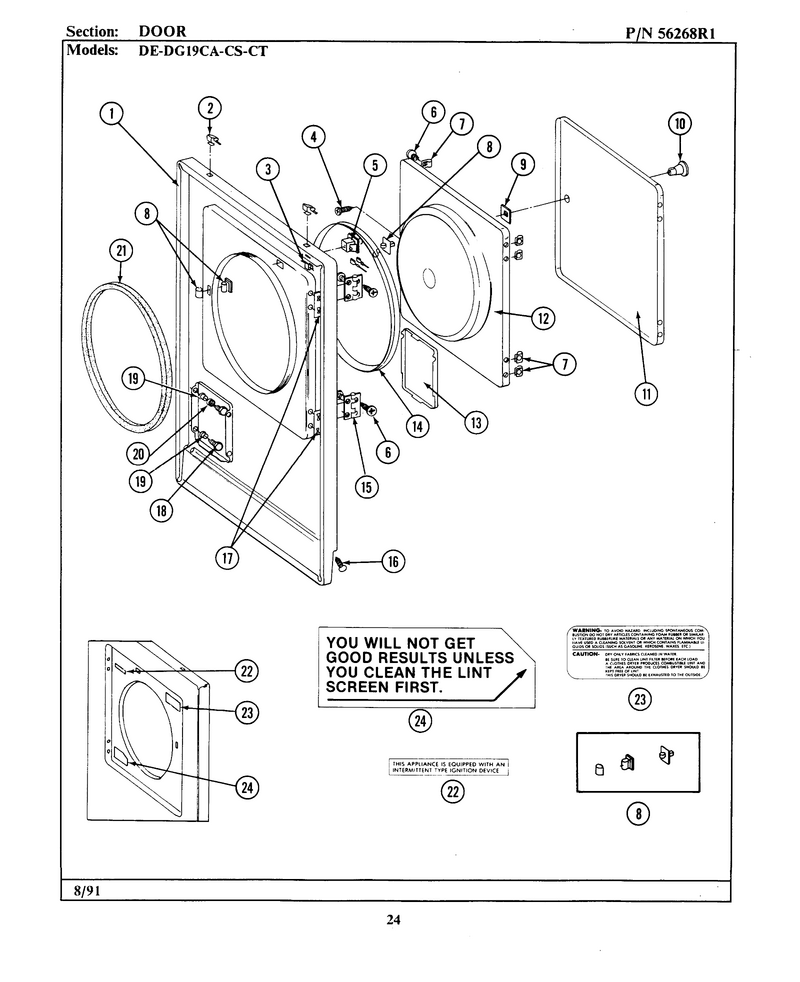

03 - Door

...
...
001
Front Panel-White WPL-NLA
...
002
Fastener- WPL-WP22001650
...
003
Clip, Wire Harness WPL-Y310376
...
004
Screw For Door Knob----Na WPL-NLA
...
005
Switch-Dor WPL-W10169313
...
006
Screw WPL-Y314062
...
007
Clip, Door Liner To Outer Pnl WPL-Y313910
...
008
Door Latch Kit--W WPL-306436
...
009
Door Strike Retainer WPL-Y313911
...
010
Knob And Screw WPL-NLA
...
011
Door-Almond WPL-NLA
...
012
Inner Door With Knob WPL-NLA
...
013
Part Not Used WPL-NLA
...
014
Door Seal WPL-314077
...
015
Door Hinge ----S WPL-Y304577
...
016
Screw & Fstner Assy(frt.panel) WPL-204439
...
017
Twin Fastener WPL-Y313907
...
018
Screw WPL-212949
...
019
Bushing For Access Stud WPL-NLA
...
020
Sleeve-Access Panel Stud WPL-312369
...
021
Seal For Front Panel WPL-314286
...
022
Gas Ignition Label WPL-NLA
...
023
Instruction Label WPL-Y313927
...
024
Label, Lint Screen Instruction WPL-Y313340

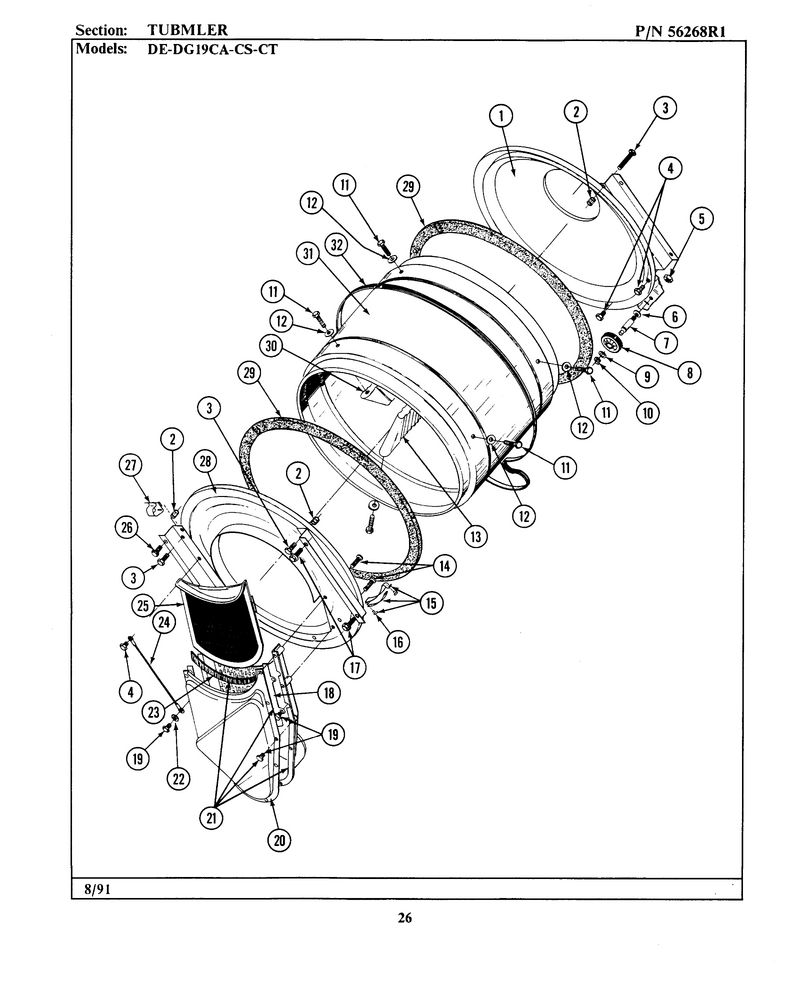

04 - Tumbler

...
...
001
Back, Tumbler (w/seal) WPL-33001106
...
002
Cover, Thread WPL-NLA
...
003
Screw WPL-NLA
...
004
Screw WPL-WP90767
...
005
Nut- Hex WPL-WP33001443
...
006
Washer WPL-WP312535
...
007
Shaft WPL-WP6-3129480
...
008
Drum Roller/washer Assy. WPL-12001541
...
009
Washer WPL-WP312535
...
010
Ring-Retnr WPL-WP9703438
...
011
Screw WPL-WPY310759
...
012
Washer WPL-WP314158
...
013
Baffle, Tall WPL-33001004
...
014
Screw WPL-WP33002917
...
015
Tumbler Bearing Kit ----W WPL-306508
...
016
Rivet WPL-WP210720
...
017
Screw WPL-WP1163839
...
018
Guide For Lint Screen WPL-Y313795
...
019
Screw WPL-WPW10116751
...
020
Outlet Duct - Outer Half WPL-Y312964
...
021
Outlet Duct & Grid WPL-306657
...
022
Washer WPL-310557
...
023
Lint Seal WPL-Y313796
...
024
Tickets (1000) 2-14146 WPL-NLA
...
025
Screen WPL-WP33001003
...
026
Screw WPL-WPY313561
...
027
Clip, Wire Harness WPL-Y310376
...
028
Tumbler Front----Na WPL-NLA
...
029
Rubber Adh WPL-WPY055978
...
030
Tumbler Baffle - Short WPL-NLA
...
031
Tumbler WPL-305187
...
032
Belt WPL-WPY312959

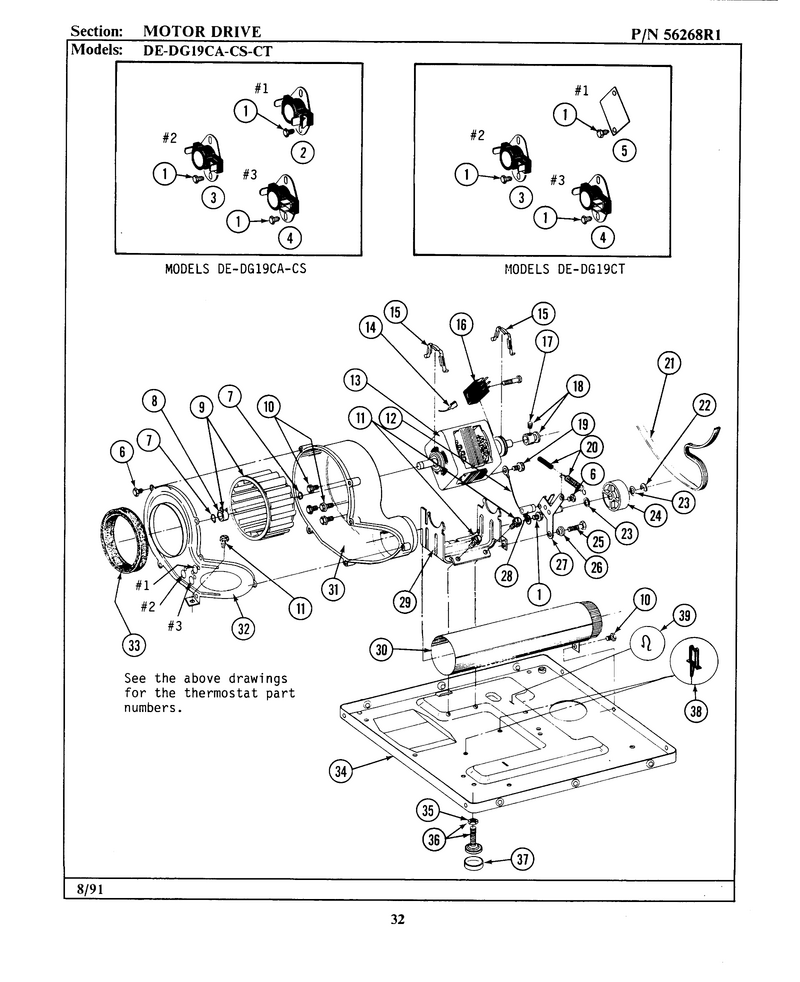

06 - Motor Drive

...
...
001
Screw WPL-WP90767
...
002
Thermostat, Permanent Press WPL-Y303225
...
003
Thrmst-Fix WPL-WP694674
...
004
Thermostat WPL-WP33303391
...
005
Part Not Used WPL-Y312853
...
006
Screw WPL-WPW10116751
...
007
Ring-Retnr WPL-WP9703438
...
008
Clamp WPL-WP312967
...
009
Blower Wheel Assembly & Clamp WPL-Y303836
...
010
Screw WPL-WP1163839
...
011
Screw WPL-WPY313561
...
012
Wire, Ground WPL-901220
...
013
Motor-Drve WPL-W10410999
...
014
Wire WPL-NLA
...
015
Clip- Moto WPL-WPY015825
...
016
Switch, Motor Start WPL-NLA
...
017
Set Screw, Pulley WPL-Y053241
...
018
Pulley, Motor (w/set Screw) WPL-Y305185
...
019
Screw WPL-WP488234
...
020
Idler Spring Assembly WPL-Y303945
...
021
Belt WPL-WPY312959
...
022
Ring-E WPL-WP354987
...
023
Washer WPL-WPY312527
...
024
Pulley WPL-WP6-3037050
...
025
Screw WPL-WPY014874
...
026
Sleeve WPL-WP315772
...
027
Idler Arm WPL-WP6-3033630
...
028
Spacer WPL-WPW10116756
...
029
Support, Motor WPL-NLA
...
030
Exhaust Duct Assy. WPL-Y303442
...
031
Housing, Blower WPL-Y312893
...
032
Cover For Blower Housing WPL-Y313770
...
033
Seal- Blow WPL-WPY312901
...
034
Base Assy. WPL-Y303361
...
035
Nut WPL-WP62739
...
036
Feet-Lvlng WPL-W10176519
...
037
Foot- Rubb WPL-WPY314137
...
038
Retainer- WPL-W10116752
...
039
Spring, Wire Harness WPL-410490

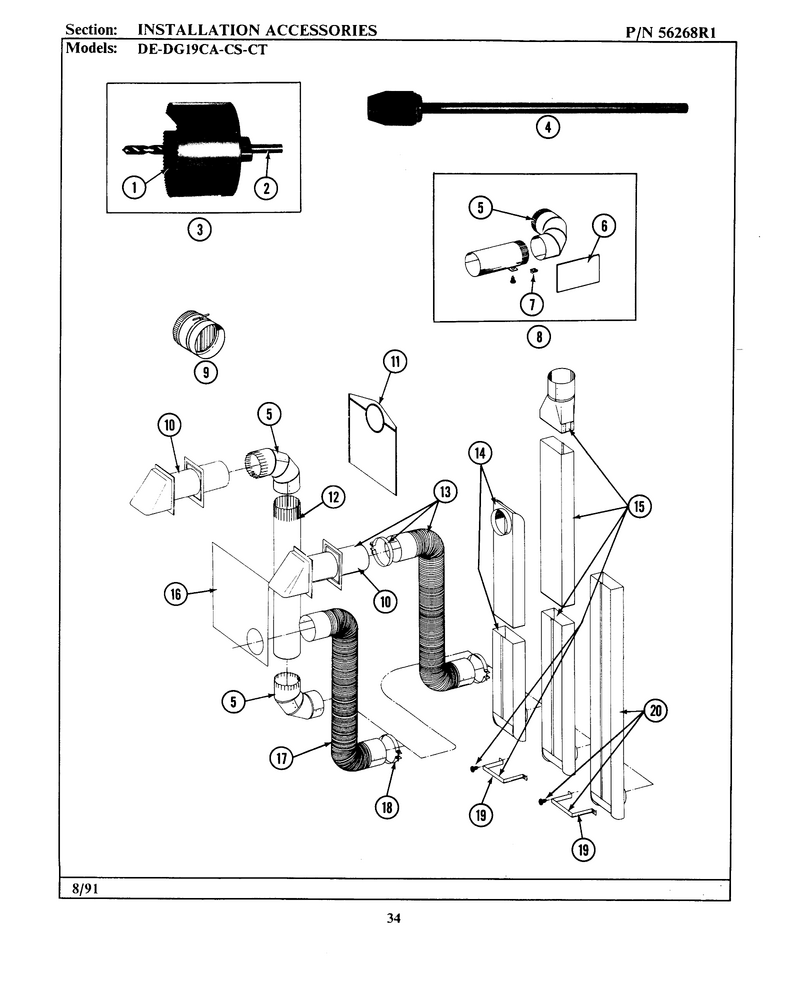

07 - Installation Accessories

...
...
001
Blade, Saw WPL-NLA
...
002
Replacement Drill WPL-NLA
...
003
Hole Saw W/drill Bit WPL-NLA
...
004
Extension Chuck, Drill WPL-NLA
...
005
Elbow, Venting (4``) WPL-Y059131
...
006
Insulation, Exhaust Duct Kit WPL-312302
...
007
Fastener, Exhaust Duct Kit WPL-213323
...
008
Screw WPL-WP90767
...
009
Damper, Back Draft WPL-NLA
...
010
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
011
Bag, Lint (dacron) WPL-311353
...
012
Pipe, Venting WPL-Y059130
...
013
Flexible Vent Kit WPL-Y059143
...
014
Vent Duct Assy. WPL-Y059135
...
015
Rectangular Vent Kit WPL-NLA
...
016
Plate, Alum. Window (15``x20``) WPL-Y059134
...
017
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
018
Clamp, Flexible Duct WPL-Y304630
...
019
Bracket, Exhaust Deflector WPL-NLA
...
020
Exhaust Deflector Kit WPL-NLA

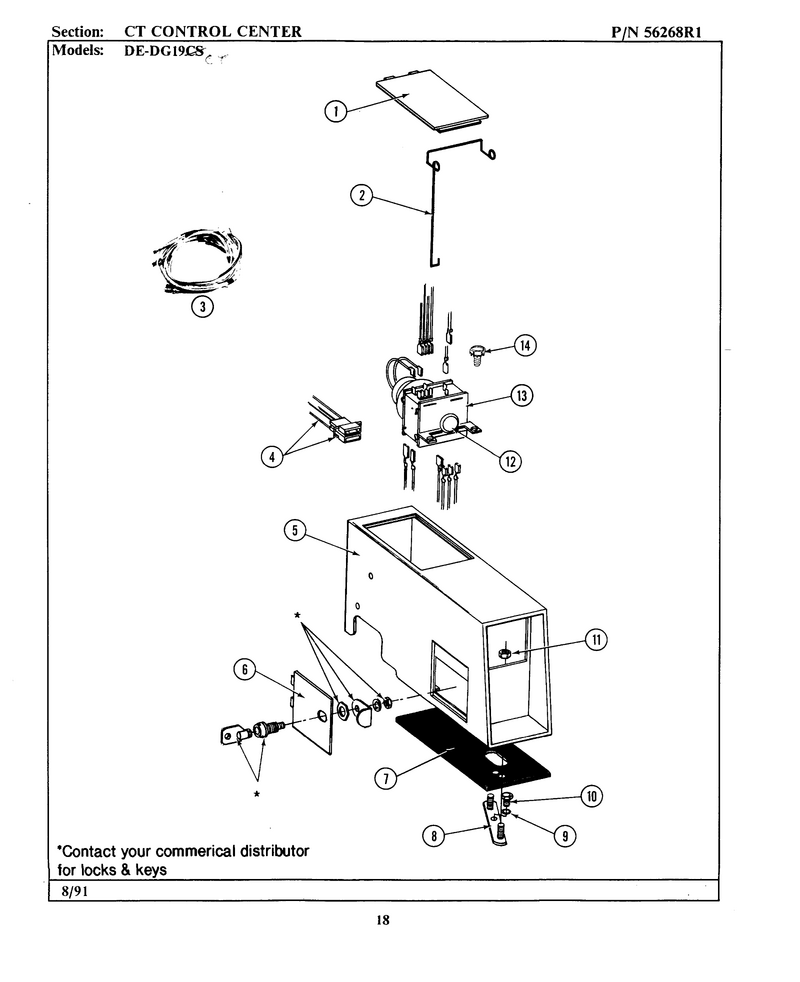

09 - Control Center

...
...
001
Access Door (white) WPL-NLA
...
002
Latch For Access Door WPL-214878
...
003
Main Wire Harness WPL-NLA
...
004
Harness For Ticket Control WPL-NLA
...
005
Outer Case-Harvest Wheat WPL-NLA
...
006
Access Door (white) WPL-NLA
...
007
Gasket, Meter Case WPL-214660
...
008
Mtg. Strap----Na WPL-NLA
...
009
Washer WPL-910309
...
010
Screw WPL-WP90767
...
011
Nut WPL-WP62739
...
012
Knob For Timer WPL-213089
...
013
Timer With Knob And Pin WPL-Y303801
...
014
Screw WPL-WP90767

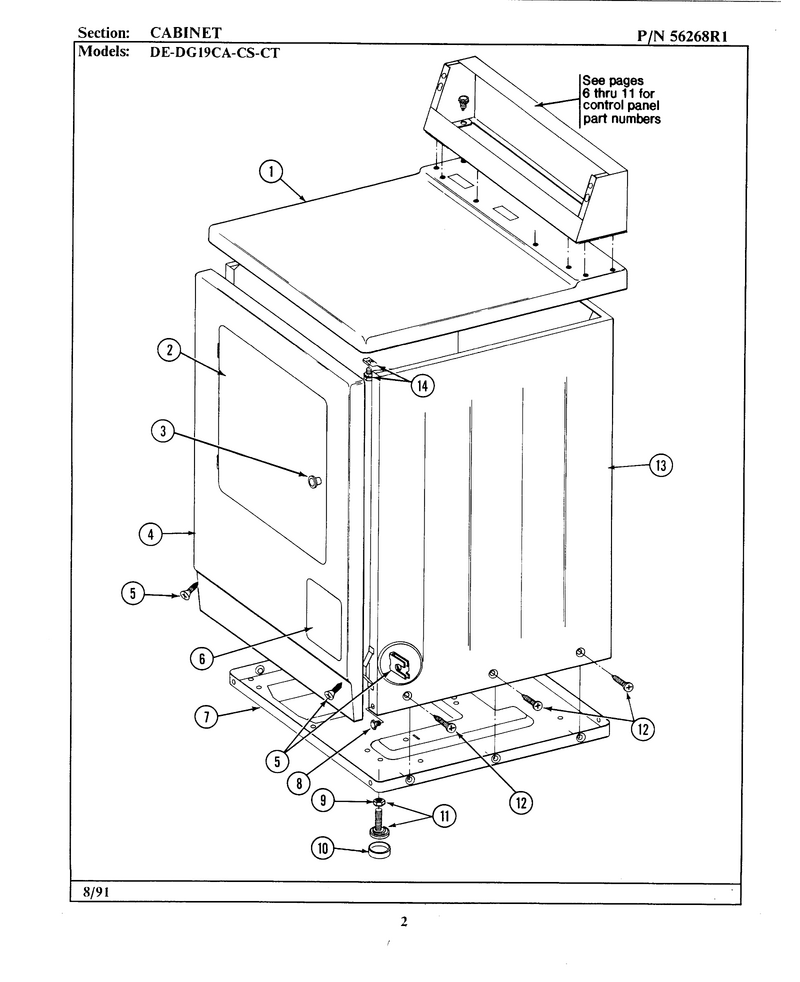

01 - Cabinet-Front

...
...
001
Top Cover-Almond WPL-NLA
...
002
Door WPL-Y306668
...
003
Knob And Screw WPL-NLA
...
004
Front Panel-White WPL-NLA
...
005
Screw & Fstner Assy(frt.panel) WPL-204439
...
006
Part Not Used WPL-NLA
...
007
Base Assy. WPL-Y303361
...
008
Screw WPL-WP1163839
...
009
Nut WPL-WP62739
...
010
Foot- Rubb WPL-WPY314137
...
011
Feet-Lvlng WPL-W10176519
...
012
Screw, Cabinet WPL-213007
...
013
Cabinet-White WPL-NLA
...
014
Screw & Fastener Asy. WPL-204445

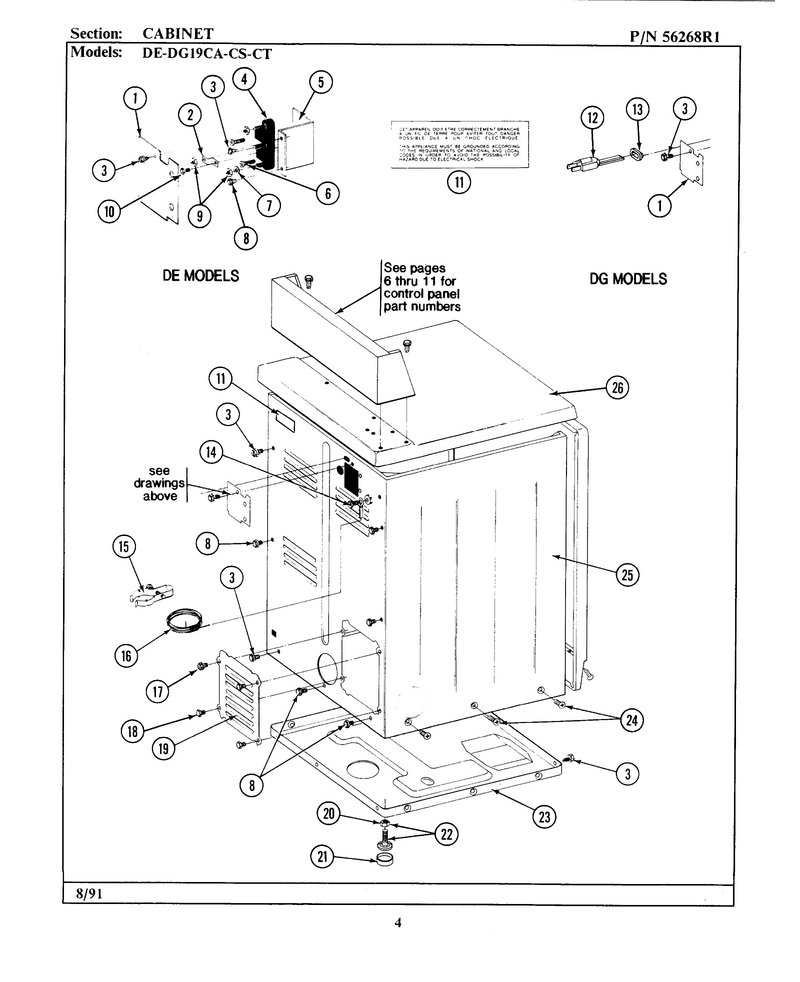

02 - Cabinet-Rear

...
...
001
Cover, Terminal WPL-Y312905
...
002
Strap, Ground WPL-Y312184
...
003
Screw WPL-WPY313561
...
004
Block, Terminal WPL-400008
...
005
Bracket, Terminal Block WPL-Y312904
...
006
Screw WPL-W11164114
...
007
Washer- Te WPL-WPY311270
...
008
Screw WPL-WP1163839
...
009
Nut WPL-WP112432
...
010
Screw WPL-WP489483
...
011
Part Not Used WPL-214519
...
012
Part Not Used WPL-302521
...
013
Part Not Used WPL-211881
...
014
Screw & Washer Assy. WPL-NLA
...
015
Clamp, Ground (w/screw) WPL-301548
...
016
Wire WPL-WP311155
...
017
Screw WPL-WP90767
...
018
Screw WPL-WP90767
...
019
Cover, Access WPL-Y312951
...
020
Nut WPL-WP62739
...
021
Foot- Rubb WPL-WPY314137
...
022
Feet-Lvlng WPL-W10176519
...
023
Base Assy. WPL-Y303361
...
024
Screw, Cabinet WPL-213007
...
025
Cabinet-White WPL-NLA
...
026
Top Cover-Almond WPL-NLA

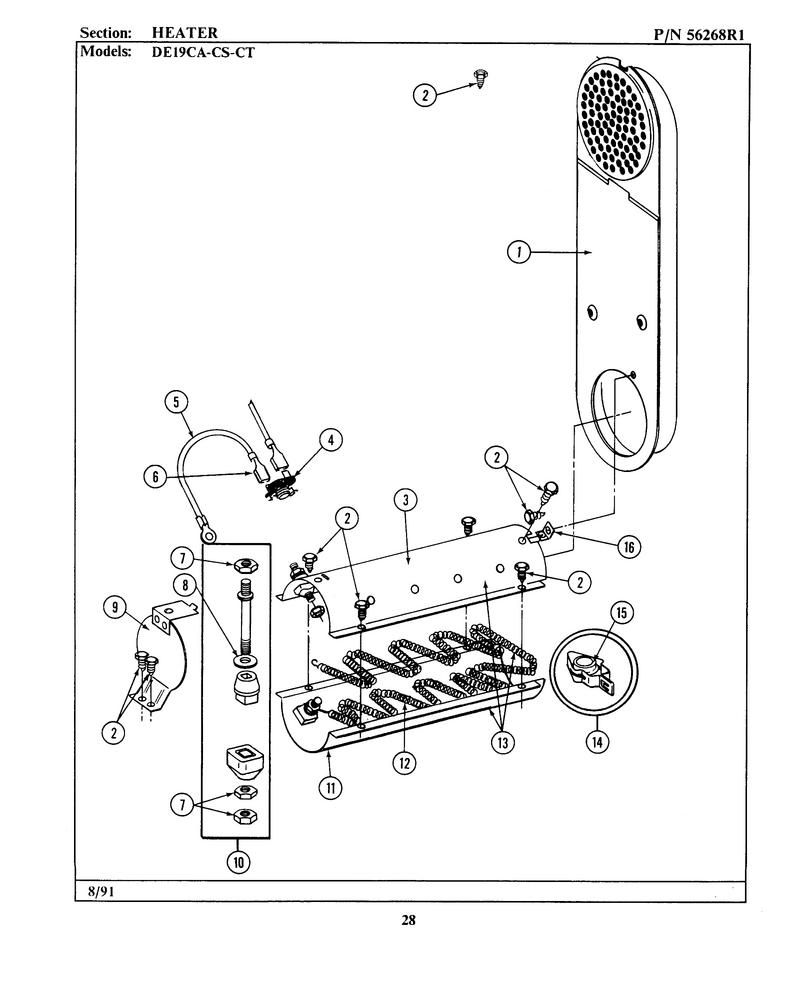

05 - Heater

...
...
001
Inlet Duct Assembly - De WPL-Y303362
...
002
Screw WPL-WP90767
...
003
Heater Chamber, Top WPL-Y313575
...
004
Hi-Limit T WPL-WP303896
...
005
Harns-Wire WPL-WPY304693
...
006
Wire Terminal WPL-210745
...
007
Nut WPL-WP112432
...
008
Washer- 7 WPL-WP311093
...
009
Heater Shield WPL-304124
...
010
Terminal Insulator Assembly WPL-Y304596
...
011
Heater Chamber, Bottom WPL-Y313576
...
012
Element WPL-W10116793
...
013
Heater Assembly Complete WPL-Y303856
...
014
Clip And I WPL-WPY303881
...
015
Insulator For Heater Elemen WPL-Y313270
...
016
Retainer, Heater Chamber WPL-Y312890
