Maytag HX40NQRT

Model: HX40NQRT

Save Part Not Listed?
product name

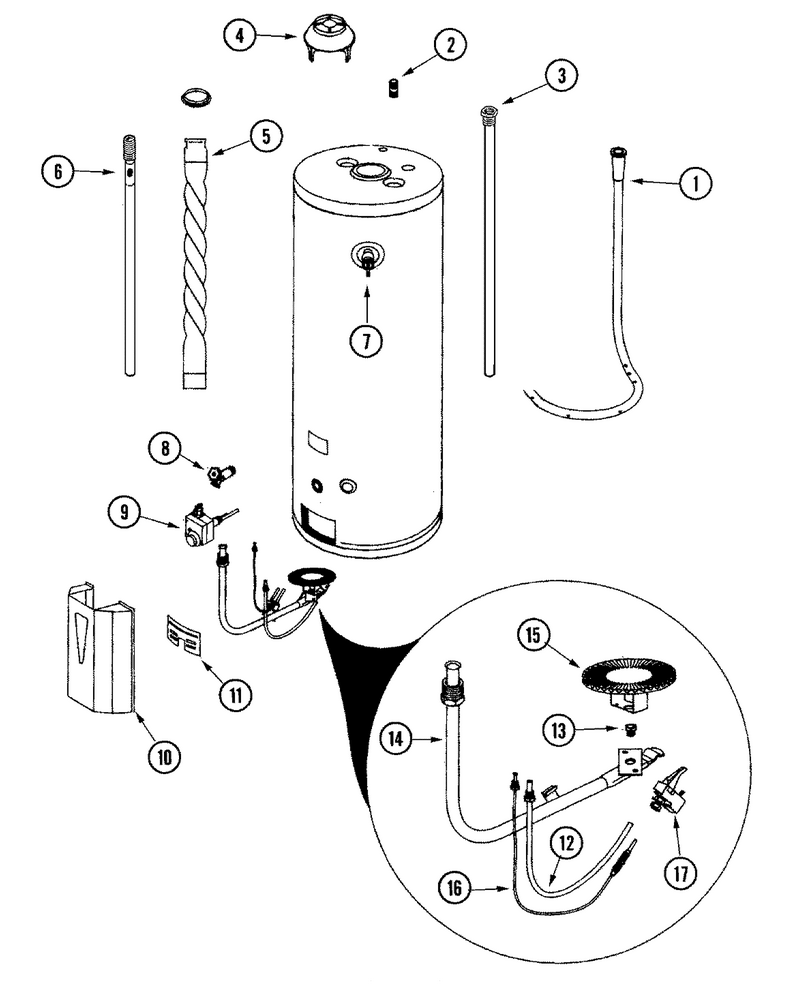

01 - Body

...
...
1
Tube, Dip WPL-66001260
...
2
Nipple (cold Inlet) WPL-66001375
...
3
Rod, Anode (primary) WPL-66001020
...
4
Door, Outer WPL-66001186
...
5
Baffle, Flue WPL-9003061
...
6
Rod, Anode (secondary) WPL-66001373
...
7
Valve, Temperature/relief WPL-66001079
...
8
Valve, Drain (1 1/4`` Short) WPL-66001016
...
9
Valve, Gas Control (nat) WPL-66001003
...
10
Door, Outer WPL-66001190
...
11
Door, Inner WPL-66001029
...
12
Tubing, Pilot (w/fittings) WPL-66001275
...
13
Orifice, Burner (no.30) WPL-Y0230124
...
14
Manifold WPL-9002615
...
15
Burner WPL-66001027
...
16
Thermocouple WPL-9002318
...
17
Pilot (nat) WPL-9000284
...
18
Manual, Use & Care WPL-66001138
