Maytag HRE3940S

Model: HRE3940S

Save Part Not Listed?
product name

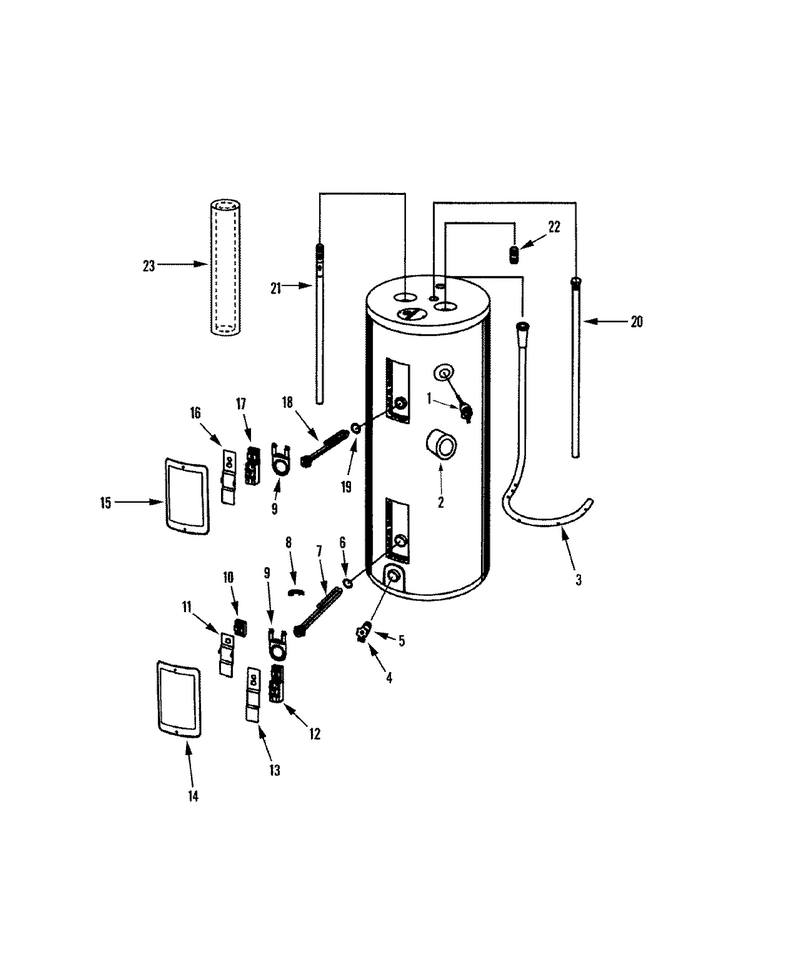

01 - Body

...
...
1
Valve, T & P Relief WPL-66001700
...
2
Insulation, T & P WPL-66001709
...
3
Tube, Dip WPL-66001728
...
4
Valve, Drain (2`` Long) WPL-66001015
...
5
Washer, Drain Valve WPL-66001021
...
6
Gasket, Element WPL-66001053
...
7
Elem Htg 5500w 1`` Nps Sif WPL-66001107
...
8
Buss Bar Kit WPL-66001055
...
9
Bracket, Thermostat WPL-66001054
...
12
Thermostat, Lower (w/hi-Limit) WPL-66001008
...
13
Cover, Terminal (lwr-3 Wire) WPL-66001272
...
14
Panel, Access WPL-66001703
...
15
Panel, Access WPL-66001703
...
16
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
17
Thermostat, Upper (w/hi Limit) WPL-66001009
...
18
Elem Htg 3800w 1`` Nps Sif WPL-66001106
...
19
Gasket, Element WPL-66001053
...
20
Rod, Anode WPL-66001725
...
21
Sec. Anode/nipple W/heat Trap WPL-66001720
...
22
Nipple (w/heat Traps) WPL-66001705
...
23
Insulation, Pipe WPL-66001708
...
24
Manual, Use & Care WPL-66001711
