Maytag HRE31250T

Model: HRE31250T

Save Part Not Listed?
product name

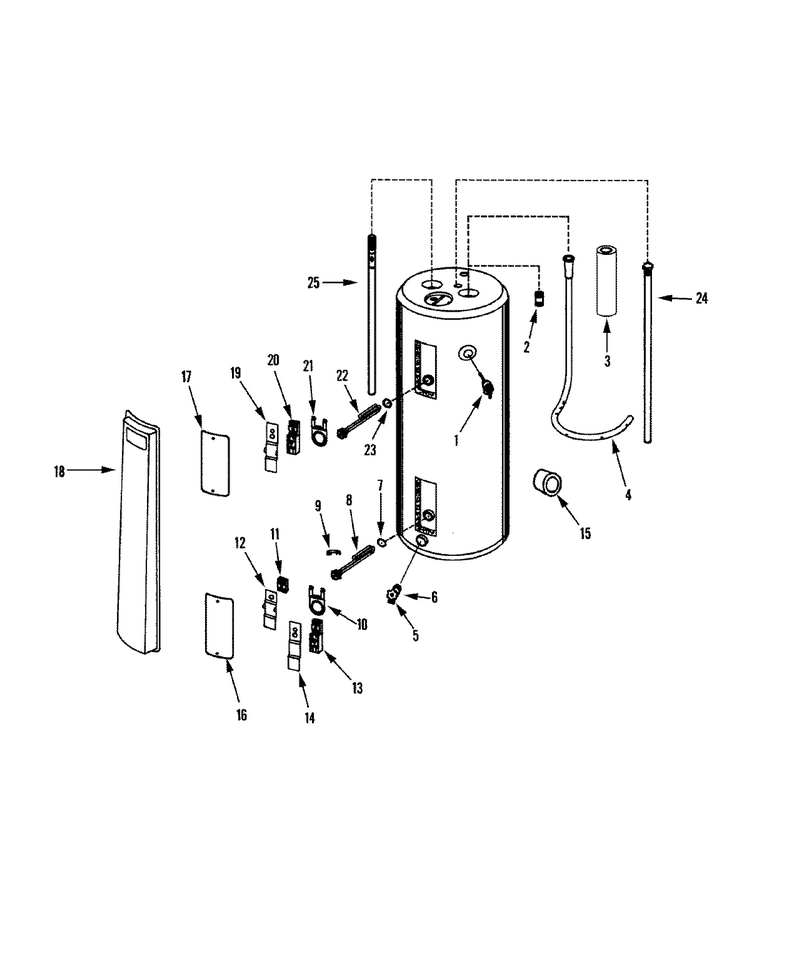

01 - Body

...
...
1
Valve, Temp/pressure Relief WPL-66001010
...
2
Nipple (w/heat Traps) WPL-66001745
...
3
Insulation, Pipe WPL-66001708
...
4
Tube, Dip WPL-66001702
...
5
Valve, Drain (3`` Amodel) WPL-66001747
...
6
Washer, Drain Valve WPL-66001021
...
7
Gasket, Element WPL-66001053
...
8
Elem Htg 5500w 1`` Nps Sif WPL-66001107
...
9
Buss Bar Kit WPL-66001055
...
10
Bracket, Thermostat WPL-66001054
...
13
Thermostat, Lower (w/hi-Limit) WPL-66001008
...
14
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
15
Insulation, T & P WPL-66001709
...
16
Panel, Access WPL-66001703
...
17
Panel, Access WPL-66001703
...
18
Panel WPL-66001061
...
19
Cover, Terminal WPL-66001056
...
20
Thermostat, Upper (w/hi Limit) WPL-66001009
...
21
Bracket, Thermostat WPL-66001054
...
22
Elem Htg 3800w 1`` Nps Sif WPL-66001106
...
23
Gasket, Element WPL-66001053
...
24
Anode WPL-66001727
...
25
Nipple (w/heat Trap) WPL-66001739
...
26
Manual, Use & Care WPL-66001713
