Maytag HR650HBRS

Model: HR650HBRS

Save Part Not Listed?
product name

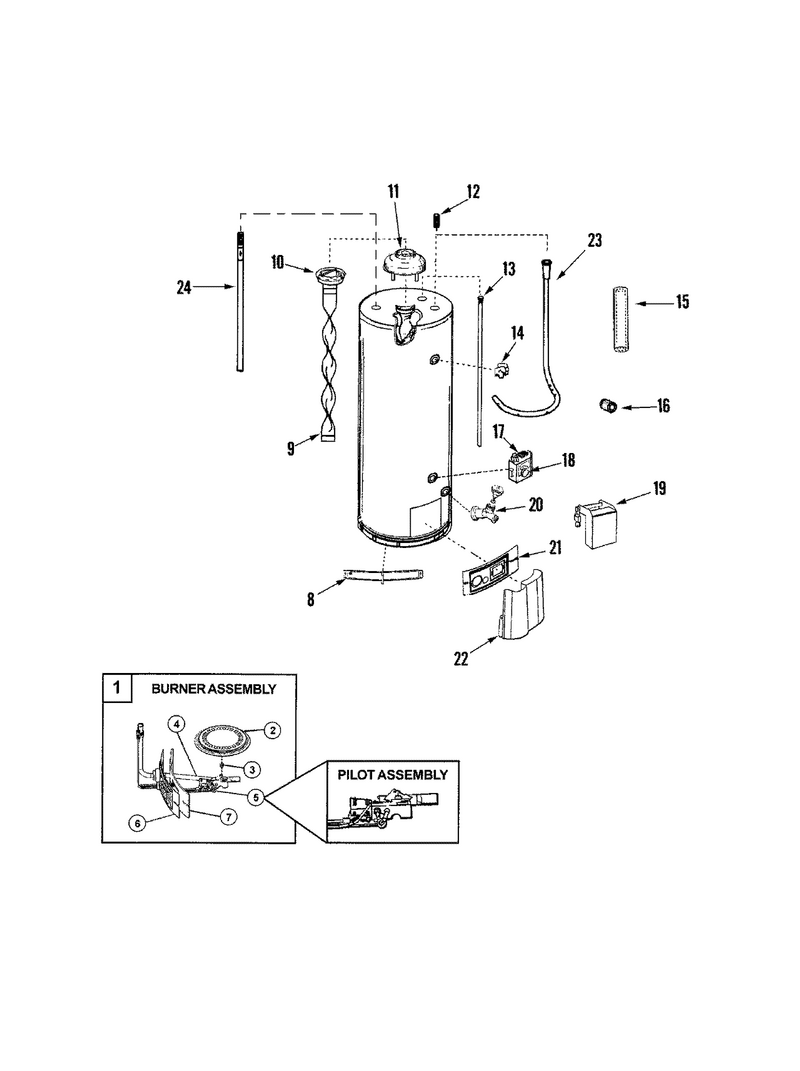

01 - Body

...
...
1
Burner Assembly WPL-66001772
...
2
Head, Burner WPL-66001494
...
3
Orifice, Burner (no.52) WPL-66001604
...
4
Tube, Burner WPL-66001767
...
5
Pilot Assembly WPL-66001822
...
6
Door, Inner WPL-66001498
...
7
Gasket, Inner Door WPL-66001500
...
8
Screen, Air Intake WPL-66001764
...
9
Baffle, Flue WPL-66001769
...
10
Restrictor, Flue WPL-66001513
...
11
Hood, Draft WPL-66001502
...
12
Nipple (w/heat Traps) WPL-66001705
...
13
Rod, Anode WPL-66001725
...
14
Valve, T & P Relief WPL-66001700
...
15
Insulation, Pipe WPL-66001708
...
16
Insulation, T & P WPL-66001709
...
17
Igniter, Piezo (w/bracket) WPL-66001507
...
18
Valve, Gas Control (lp) WPL-66001823
...
19
Shield, Thermostat WPL-66001667
...
20
Washer, Drain Valve WPL-66001021
...
21
Viewport Assembly WPL-66001509
...
22
Door, Outer WPL-66001506
...
23
Tube, Dip WPL-66001768
...
24
Manual, Use & Care WPL-66001816
