Maytag HR640SJRS

Model: HR640SJRS

Save Part Not Listed?
product name

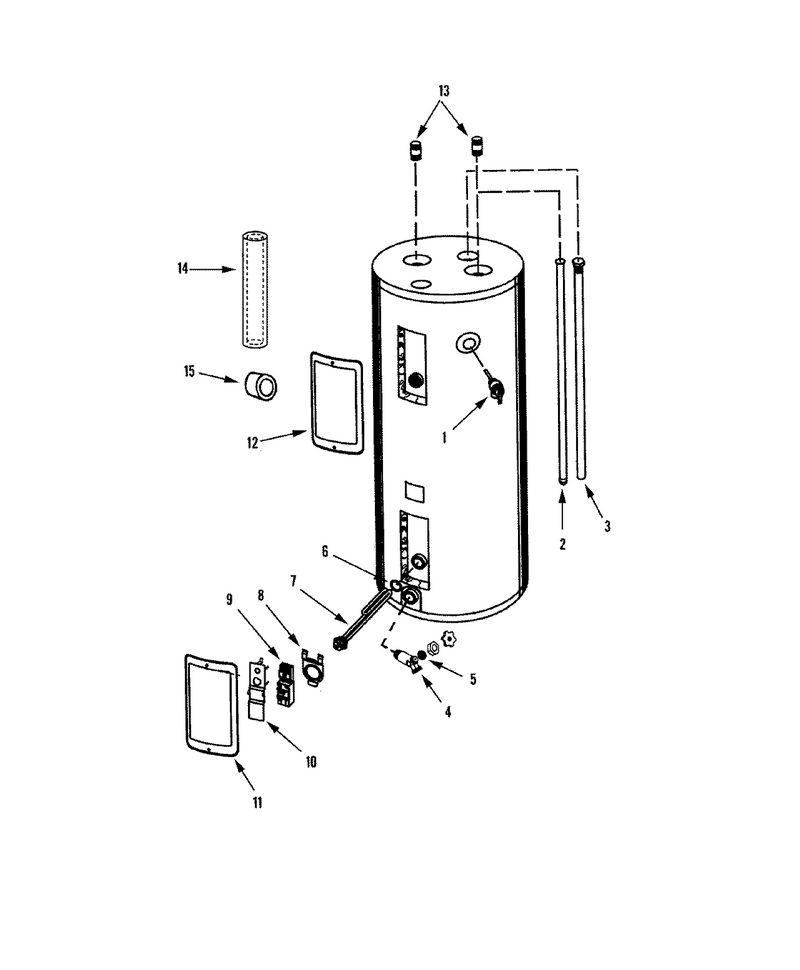

01 - Body

...
...
1
Valve, T & P Relief WPL-66001700
...
2
Tube, Dip WPL-66001304
...
3
Rod, Anode (primary) WPL-66001729
...
4
Valve, Drain WPL-66001246
...
5
Washer, Drain Valve WPL-66001021
...
6
Gasket, Element WPL-66001053
...
7
Element WPL-66001182
...
8
Bracket, Thermostat WPL-66001054
...
9
Thermostat, Hi-Limit WPL-66001202
...
10
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
11
Panel, Access WPL-66001703
...
12
Panel, Access WPL-66001703
...
13
Nipple (w/heat Traps) WPL-66001705
...
14
Insulation, Pipe WPL-66001708
...
15
Insulation, T & P WPL-66001709
...
16
Manual, Use & Care WPL-66001710
