Maytag HR640DJRT

Model: HR640DJRT

Save Part Not Listed?
product name

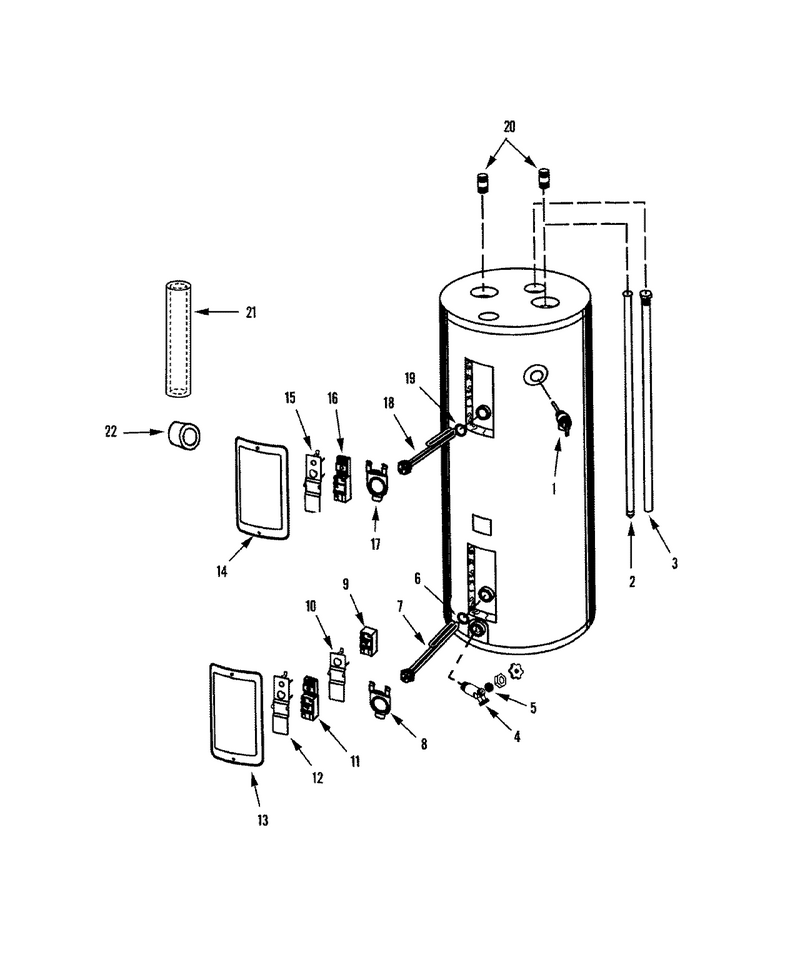

01 - Body

...
...
1
Valve, T & P Relief WPL-66001700
...
2
Tube, Dip WPL-66001309
...
3
Rod, Anode (primary) WPL-66001250
...
4
Valve, Drain WPL-66001246
...
5
Washer, Drain Valve WPL-66001021
...
6
Gasket, Element WPL-66001053
...
7
Element WPL-66001182
...
8
Bracket, Thermostat WPL-66001054
...
9
Thermostat (2-Pole) WPL-66001201
...
10
Cover, Terminal (lwr) WPL-66001268
...
11
Thermostat, Hi-Limit WPL-66001202
...
12
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
13
Panel, Access WPL-66001703
...
14
Panel, Access WPL-66001703
...
15
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
16
Thermostat, Hi-Limit WPL-66001254
...
17
Bracket, Thermostat WPL-66001054
...
18
Element WPL-66001182
...
19
Gasket, Element WPL-66001053
...
20
Nipple (w/heat Traps) WPL-66001705
...
21
Insulation, Pipe WPL-66001708
...
22
Insulation, T & P WPL-66001709
...
23
Manual, Use & Care WPL-66001710
