Maytag HP51275Q

Model: HP51275Q

Save Part Not Listed?
product name

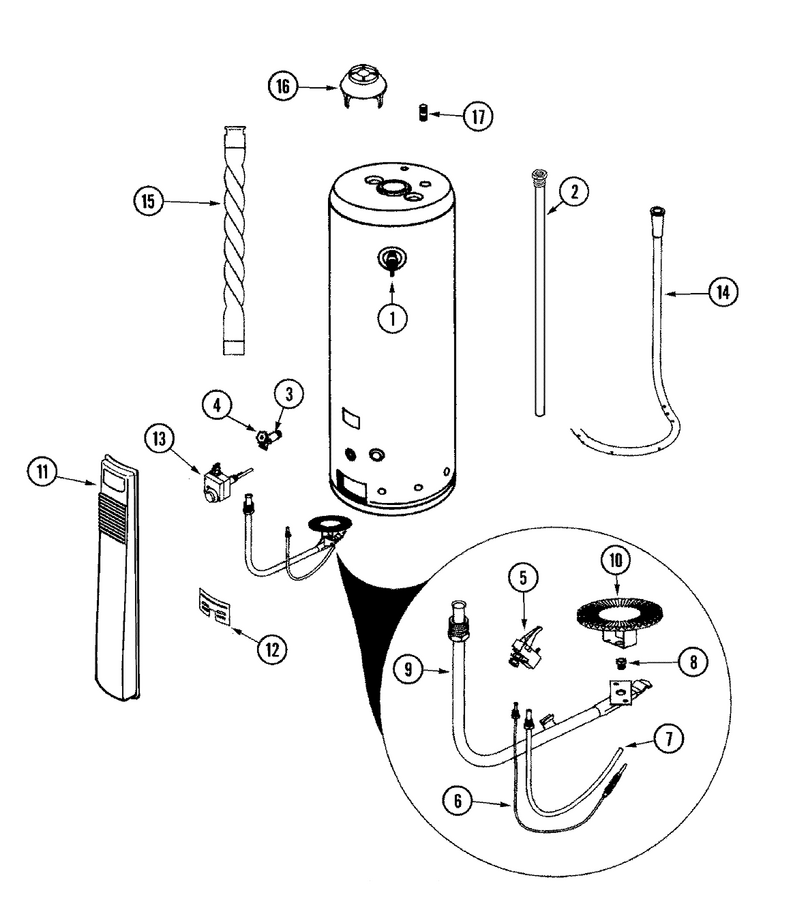

01 - Body

...
...
1
Valve, Temperature/relief WPL-66001079
...
2
Rod, Anode (primary) WPL-66001020
...
3
Valve, Drain (2`` Long) WPL-66001015
...
4
Washer, Drain Valve WPL-66001021
...
5
Pilot (lp) WPL-66001141
...
6
24` Snap-F WPL-66001878
...
7
Tubing, Pilot W/fittings WPL-66001142
...
8
Orifice, Burner (no.43) WPL-66001177
...
9
Manifold WPL-66001144
...
10
Burner WPL-66001145
...
11
Door (outer) WPL-66001028
...
12
Door, Inner WPL-66001146
...
13
Valve, Gas Control (lp) WPL-66001004
...
14
Tube, Dip WPL-66001030
...
15
Baffle, Flue WPL-66001147
...
16
Hood, Draft WPL-66001051
...
17
Nipples, Inlet WPL-66001148
...
18
Manual, Use & Care WPL-66001100
