product name

Maytag HP4X40X960

Model: HP4X40X960

Save Part Not Listed?
product name

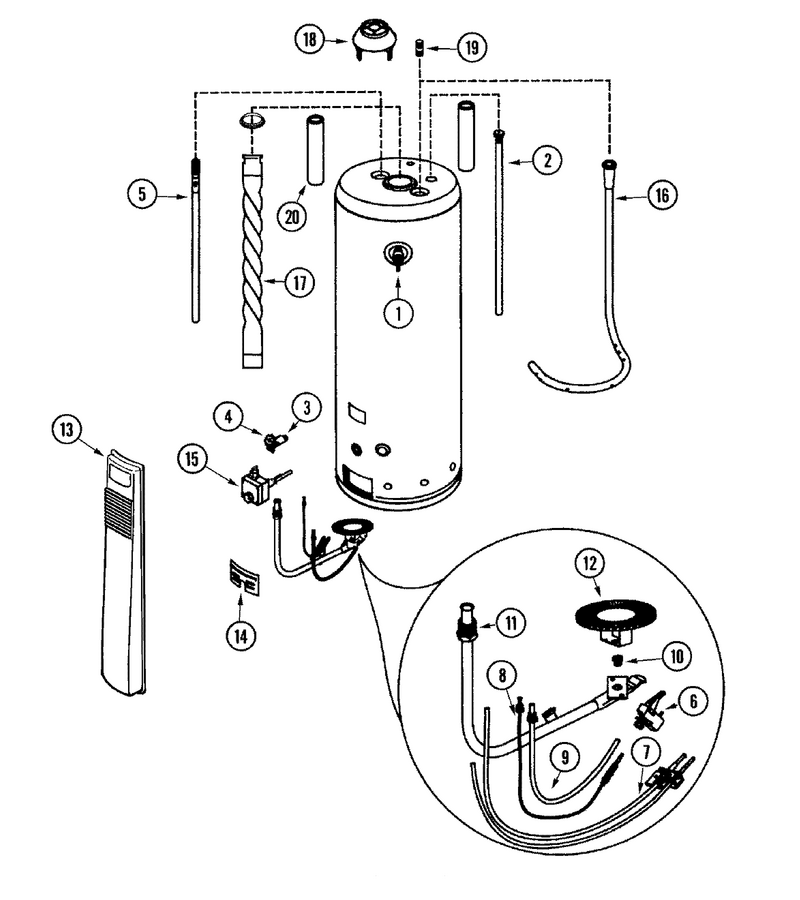

01 - Body

...
...
1
Valve, Temp/pressure Relief WPL-66001010
...
2
Rod, Anode (primary) WPL-66001020
...
3
Valve, Drain (2`` Long) WPL-66001015
...
4
Washer, Drain Valve WPL-66001021
...
5
Rod, Secondary Anode WPL-66001022
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Pilot/tubing & Thermocouple WPL-66001036
...
8
24` Snap-F WPL-66001878
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Orifice, Burner (no.49) WPL-66001040
...
11
Manifold WPL-66001042
...
12
Burner WPL-66001027
...
13
Door (outer) WPL-66001028
...
14
Door, Inner WPL-66001029
...
15
Valve, Gas Control (lp) WPL-66001004
...
16
Tube, Dip WPL-66001030
...
17
Baffle, Flue WPL-66001043
...
18
Hood, Draft WPL-66001032
...
19
Trap, Cold Water Inlet WPL-66001033
...
20
Insulation, Pipe (2 Ea) WPL-66001034
...
21
Manual, Use & Care (10-Yr Warr WPL-66001018
