Maytag HN51275P

Model: HN51275P

Save Part Not Listed?
product name

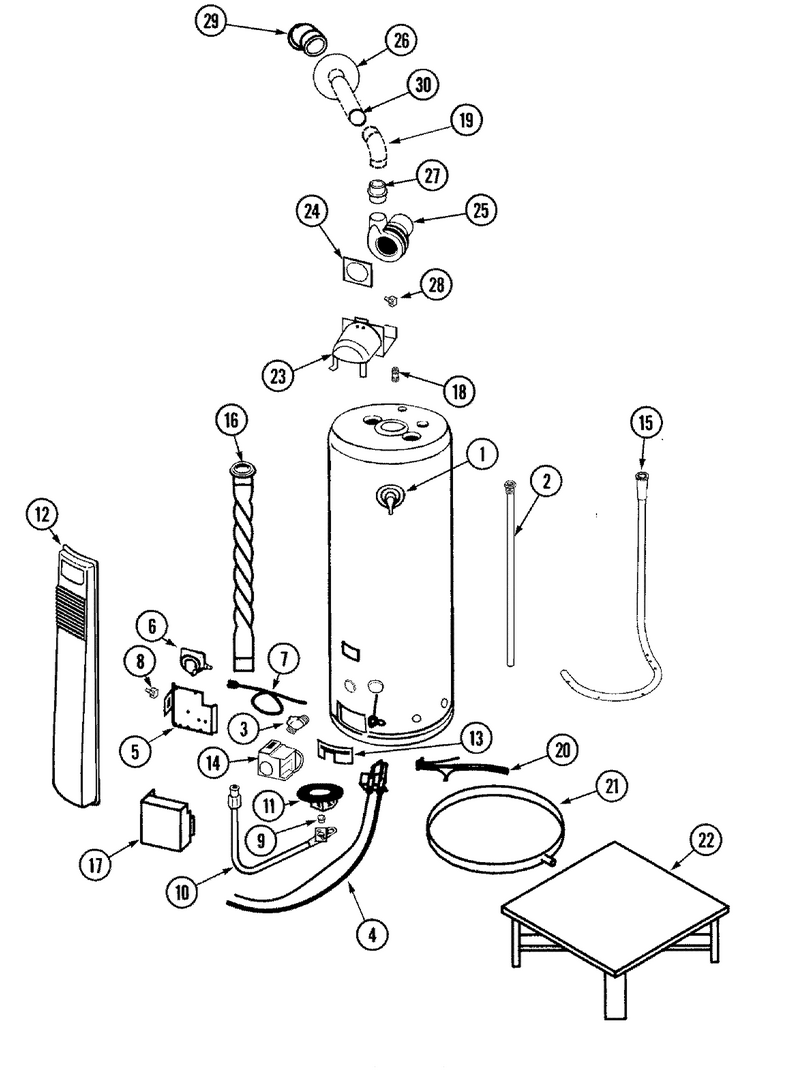

01 - Body

...
...
1
Valve, Temp/pressure Relief WPL-66001010
...
2
Rod, Anode (primary) WPL-66001020
...
3
Valve, Drain (2`` Long) WPL-66001015
...
4
Igniter WPL-9002518
...
5
Bracket, Mounting WPL-9002512
...
6
Switch, Pressure WPL-9001976
...
7
Cord, Power WPL-9003095
...
8
Switch, On/off WPL-9001773
...
9
Orifice, Burner (no.27) WPL-66001168
...
10
Manifold WPL-9002461
...
11
Burner WPL-66001145
...
12
Door, Outer WPL-66001316
...
13
Door, Inner WPL-66001029
...
14
Valve, Gas Control (nat) WPL-66001081
...
15
Tube, Dip WPL-66001030
...
16
Baffle- Fl WPL-66001350
...
17
Cover, Junction Box WPL-66001317
...
18
Nipples, Inlet WPL-66001148
...
19
Elbow (90 Degree) WPL-66001265
...
20
Harness, Wire WPL-9002982
...
21
Pan, Drain (28``) WPL-66001012
...
22
Stand, Water Heater WPL-66001243
...
23
Draft Hood WPL-66001352
...
24
Gasket, Blower WPL-66001291
...
25
Blower WPL-9002507
...
26
Collar, Wall WPL-66001262
...
27
Adapter, Vent-Blower WPL-66001289
...
28
Switch, Venting WPL-9002678
...
29
Terminal, Vent (3`` Abs) WPL-9002120
...
30
Pipe, Vent (5`) WPL-66001264
...
31
Tank, Expansion (2 Gal.) WPL-66001013
...
32
Manual, Use & Care WPL-66001134
