Maytag HN4X50Q960

Model: HN4X50Q960

Save Part Not Listed?

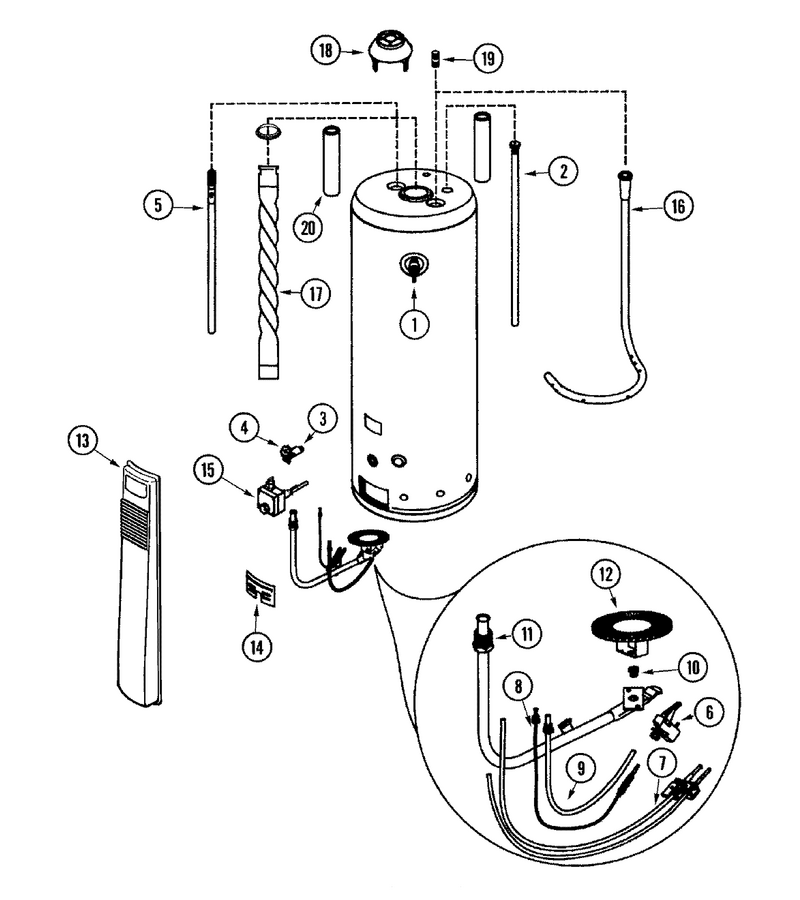

product name

01 - Body

...
...
1
Valve, Temp/pressure Relief WPL-66001010
...
2
Rod, Anode (primary) WPL-66001020
...
3
Valve, Drain (2`` Long) WPL-66001015
...
4
Washer, Drain Valve WPL-66001021
...
5
Rod, Secondary Anode WPL-66001022
...
6
Pilot (nat) WPL-66001023
...
8
24` Snap-F WPL-66001878
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Orifice, Burner (no.30) WPL-66001046
...
11
Manifold WPL-66001037
...
12
Burner WPL-66001027
...
13
Door (outer) WPL-66001028
...
14
Door, Inner WPL-66001029
...
15
Valve, Gas Control (nat) WPL-66001003
...
17
Baffle, Flue WPL-66001049
...
18
Hood, Draft WPL-66001051
...
19
Trap, Cold Water Inlet WPL-66001033
...
20
Insulation, Pipe (2 Ea) WPL-66001034
...
21
Manual, Use & Care (10-Yr Warr WPL-66001018
