Maytag HN4975S

Model: HN4975S

Save Part Not Listed?
product name

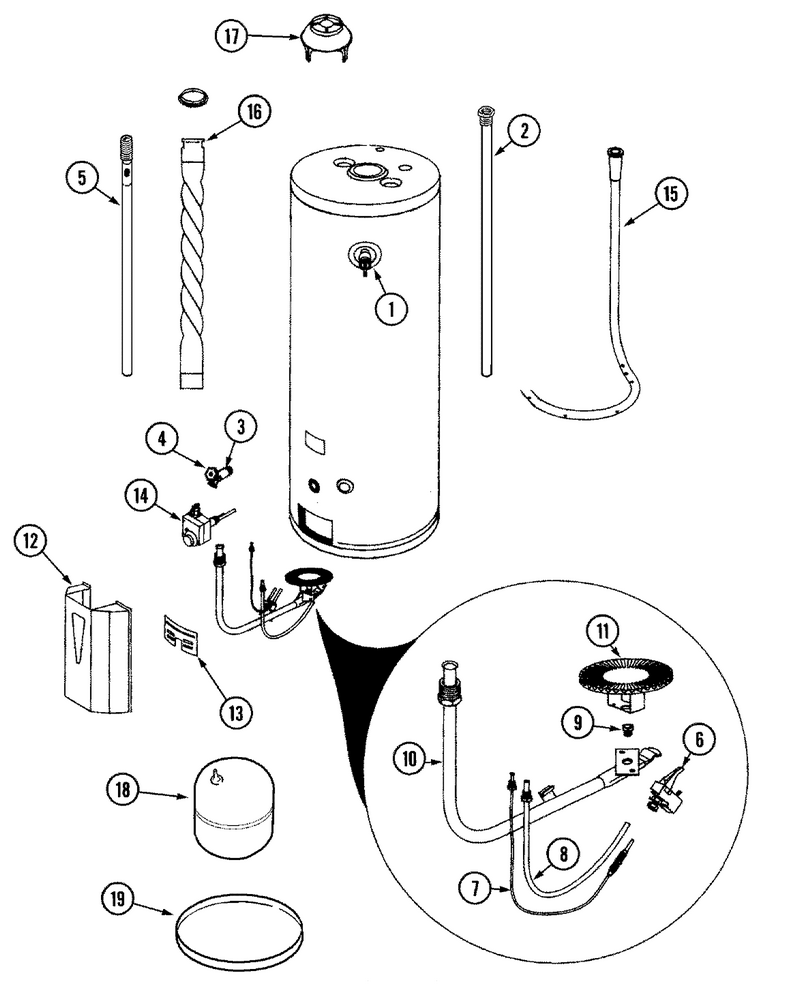

01 - Body

...
...
1
Valve, Temperature/relief WPL-66001079
...
2
Rod, Anode (primary) WPL-66001020
...
3
Valve, Drain-5/8`` Shank WPL-66001080
...
4
Washer, Drain Valve WPL-66001021
...
5
Not Required Part Or See Note WPL-W10124350
...
6
Pilot (nat) WPL-9000285
...
7
24` Snap-F WPL-66001878
...
8
Tubing, Pilot (w/fittings) WPL-66001024
...
9
Orifice, Burner (no.23) WPL-66001169
...
10
Manifold WPL-9002621
...
11
Burner WPL-66001334
...
12
Door, Outer WPL-66001190
...
13
Door, Inner WPL-66001029
...
14
Valve, Gas Control (nat) WPL-66001077
...
15
Tube, Dip WPL-66001263
...
16
Baffle, Flue WPL-9002652
...
17
Hood, Draft WPL-66001051
...
18
Tank, Expansion (5 Gal.) WPL-66001014
...
19
Manual, Use & Care WPL-66001149
