product name

Maytag HN4930T

Model: HN4930T

Save Part Not Listed?
product name

01 - Body

...
...
1
Valve, Temperature/relief WPL-66001079
...
2
Rod, Anode (primary) WPL-66001020
...
3
Valve, Drain-5/8`` Shank WPL-66001080
...
4
Washer, Drain Valve WPL-66001021
...
5
Rod, Anode (secondary) WPL-66001217
...
6
Pilot (nat) WPL-66001023
...
7
24` Snap-F WPL-66001878
...
8
Tubing, Pilot (w/fittings) WPL-66001024
...
9
Orifice, Burner (no.33) WPL-Y0230120
...
10
Manifold WPL-9002613
...
11
Burner WPL-66001027
...
12
Door, Outer WPL-66001190
...
13
Door, Inner WPL-66001029
...
14
Thermostat,nat Gas To 40k WPL-66001076
...
15
Tube, Dip WPL-66001030
...
16
Baffle, Flue WPL-9002490
...
17
Hood, Draft WPL-66001032
...
18
Tank, Expansion (2 Gal.) WPL-66001013
...
19
Manual, Use & Care WPL-66001149

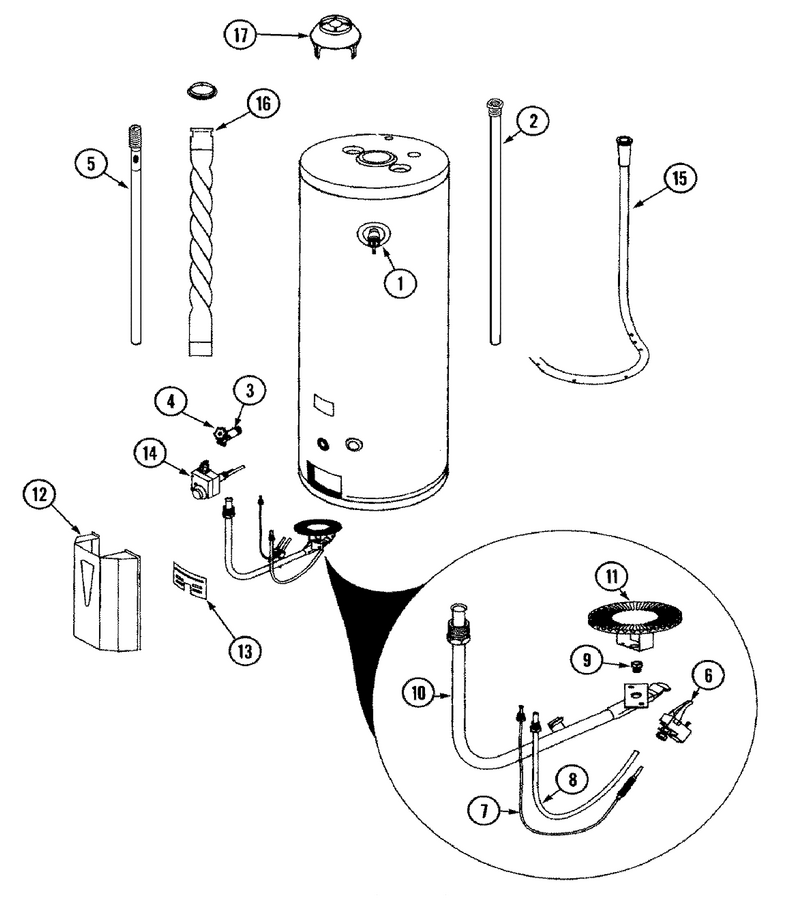

Schematic Image Zoomed
