Maytag HJ675NRVET

Model: HJ675NRVET

Save Part Not Listed?
product name

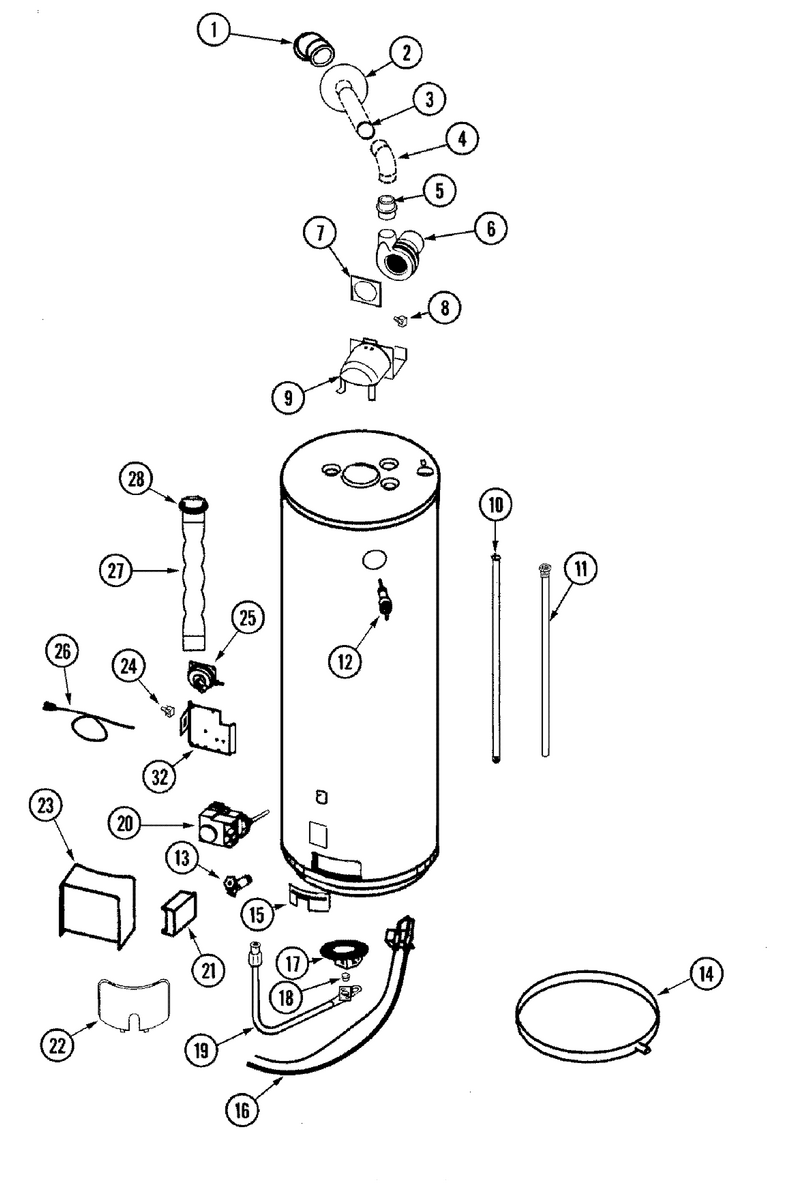

01 - Body

...
...
1
Terminal, Vent (3`` Abs) WPL-9002120
...
2
Collar, Wall WPL-66001262
...
3
Pipe, Vent (5`) WPL-66001264
...
4
Elbow (90 Degree) WPL-66001265
...
5
Adapter, Vent-Blower WPL-66001289
...
6
Blower WPL-9002507
...
7
Gasket, Blower WPL-66001291
...
8
Switch, Venting WPL-9002678
...
9
Draft Hood WPL-66001352
...
10
Tube, Dip WPL-66001306
...
11
Rod, Anode WPL-66001189
...
12
Valve, Temperature/relief WPL-9000728
...
13
Washer, Drain Valve WPL-66001021
...
14
Pan, Drain (28``) WPL-66001012
...
15
Door, Inner WPL-66001146
...
16
Igniter WPL-9002518
...
17
Burner WPL-66001185
...
18
Orifice, Burner (no.27) WPL-66001168
...
19
Manifold WPL-9002461
...
20
Valve, Gas Control (nat) WPL-66001081
...
21
Cover, Thermostat WPL-66001302
...
22
Cover, Manifold WPL-66001200
...
23
Cover, Air Pressure Switch WPL-66001258
...
24
Switch, On/off WPL-9001773
...
25
Switch, Air Pressure WPL-9002511
...
26
Cord, Power WPL-9003095
...
27
Baffle- Fl WPL-66001350
...
28
Collar, Baffle Adapter WPL-66001195
...
29
Manual, Use & Care WPL-66001120
