Maytag HJ6522JRS

Model: HJ6522JRS

Save Part Not Listed?
product name

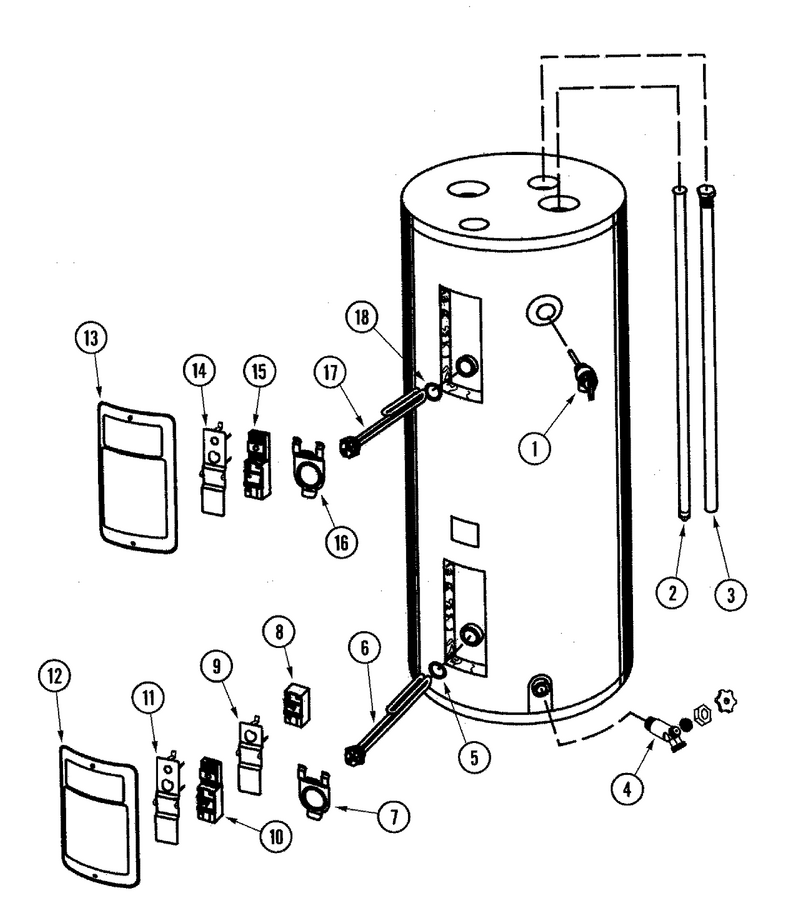

01 - Body

...
...
1
Valve, Temp/pressure Relief WPL-66001010
...
2
Tube, Dip WPL-66001307
...
3
Rod, Anode (primary) WPL-66001249
...
4
Washer, Drain Valve WPL-66001021
...
5
Gasket, Element WPL-66001053
...
6
Element WPL-9000092
...
7
Bracket, Thermostat WPL-66001054
...
8
Thermostat (2-Pole) WPL-9000507
...
9
Cover, Terminal (lwr) WPL-66001268
...
10
Thermostat, Hi-Limit WPL-9000509
...
11
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
12
Panel, Access WPL-66001199
...
13
Panel, Access WPL-66001199
...
14
Cover, Terminal (lwr Thr Wire) WPL-66001064
...
15
Thermostat (hi-Limit) WPL-9001954
...
16
Bracket, Thermostat WPL-66001054
...
17
Element WPL-9000092
...
18
Gasket, Element WPL-66001053
...
19
Manual, Use & Care WPL-66001441
