Maytag HJ640POVIT

Model: HJ640POVIT

Save Part Not Listed?
product name

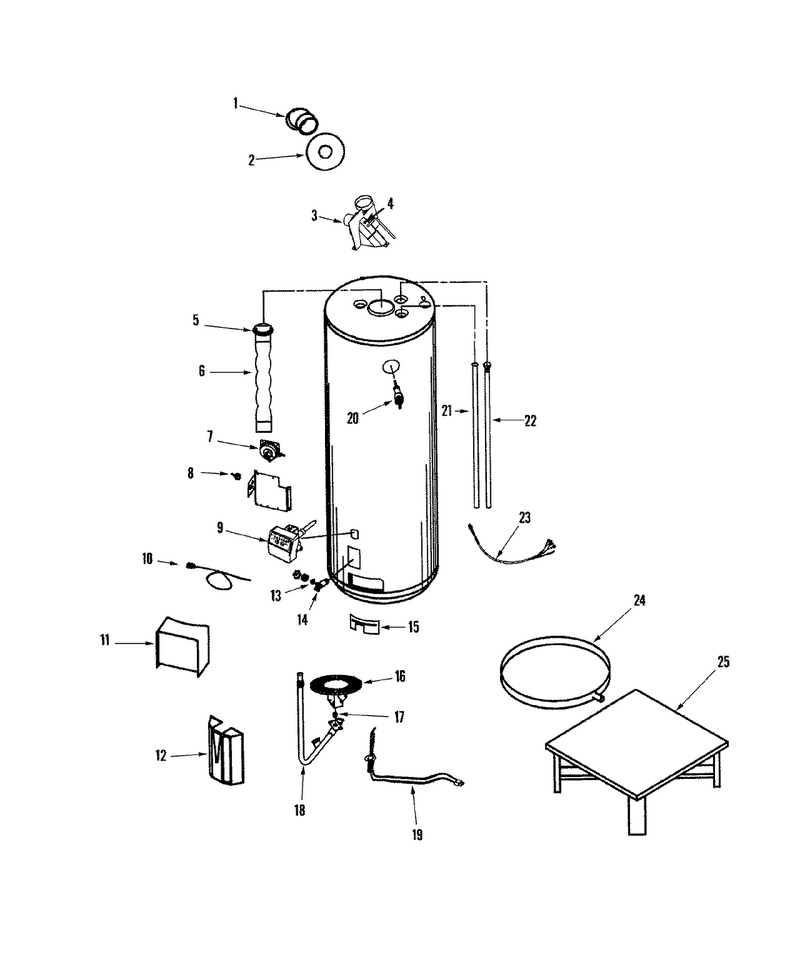

01 - Body

...
...
1
Terminal, Vent (3`` Pvc) WPL-66001255
...
2
Collar, Wall WPL-66001262
...
3
Blower/draft Hood Assembly WPL-66001366
...
4
Switch, Reset WPL-66001367
...
5
Collar, Baffle Adapter WPL-66001187
...
6
Baffle, Flue WPL-66001370
...
7
Switch, Air Pressure WPL-66001369
...
8
Switch, On/off WPL-66001247
...
9
Control, Gas (lp) WPL-66001656
...
10
Cord, Power WPL-66001372
...
11
Cover, Air Pressure Switch WPL-66001258
...
12
Door, Outer WPL-66001190
...
13
Washer, Drain Valve WPL-66001021
...
14
Valve, Drain (1 1/4`` Short) WPL-66001016
...
15
Door, Inner WPL-66001029
...
16
Burner WPL-66001027
...
17
Orifice, Burner (no.51) WPL-66001041
...
18
Manifold (lp) WPL-66001531
...
19
Ignitor, Hot Surface WPL-66001525
...
20
Valve, Temperature/relief WPL-66001079
...
21
Tube, Dip WPL-66001279
...
22
Rod, Anode WPL-66001189
...
23
Harness, Wiring WPL-66001526
...
24
Pan, Drain (22``) WPL-66001011
...
25
Stand, Water Heater WPL-66001243
...
26
Manual, Use & Care WPL-66001661
