Maytag HJ640POVET2

Model: HJ640POVET2

Save Part Not Listed?
product name

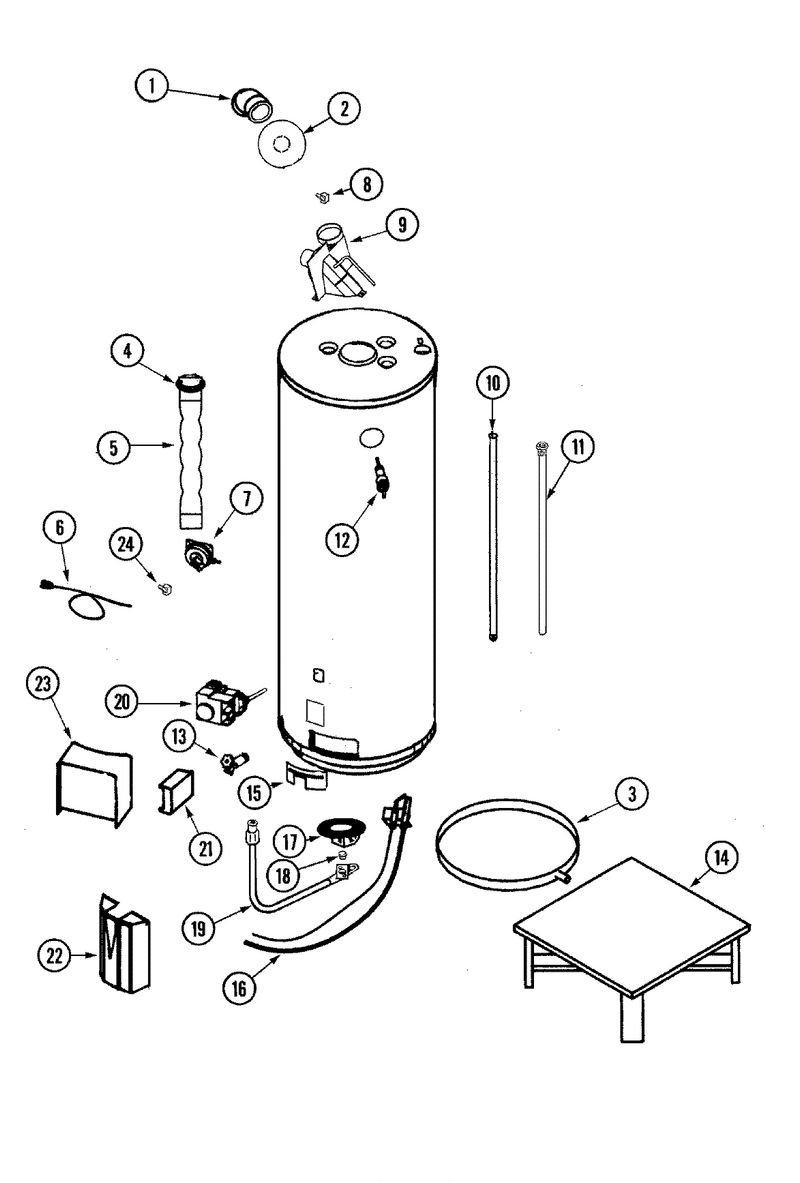

01 - Body

...
...
1
Terminal, Vent (3`` Pvc) WPL-66001255
...
2
Collar, Wall WPL-66001262
...
3
Pan, Drain (22``) WPL-66001011
...
4
Collar, Baffle Adapter WPL-66001187
...
5
Baffle, Flue WPL-66001370
...
6
Cord, Power WPL-9003095
...
7
Switch, Air Pressure WPL-9003090
...
8
Switch, Reset WPL-9003082
...
9
Blower/draft Hood Assembly WPL-9003081
...
10
Tube, Dip WPL-66001307
...
11
Rod, Anode WPL-66001189
...
12
Valve, Temperature/relief WPL-9000728
...
13
Washer, Drain Valve WPL-66001021
...
14
Stand, Water Heater WPL-66001243
...
15
Door, Inner WPL-66001029
...
16
Igniter WPL-9002518
...
17
Burner WPL-66001027
...
18
Orifice, Burner (no.50) WPL-Y0230225
...
19
Manifold WPL-66001318
...
20
Valve, Gas Control (lp) WPL-66001296
...
21
Cover, Thermostat WPL-66001302
...
22
Door, Outer WPL-66001190
...
23
Cover, Air Pressure Switch WPL-66001258
...
24
Switch, On/off WPL-9001773
...
25
Manual, Use & Care WPL-66001120
