Maytag HJ640PORT2

Model: HJ640PORT2

Save Part Not Listed?

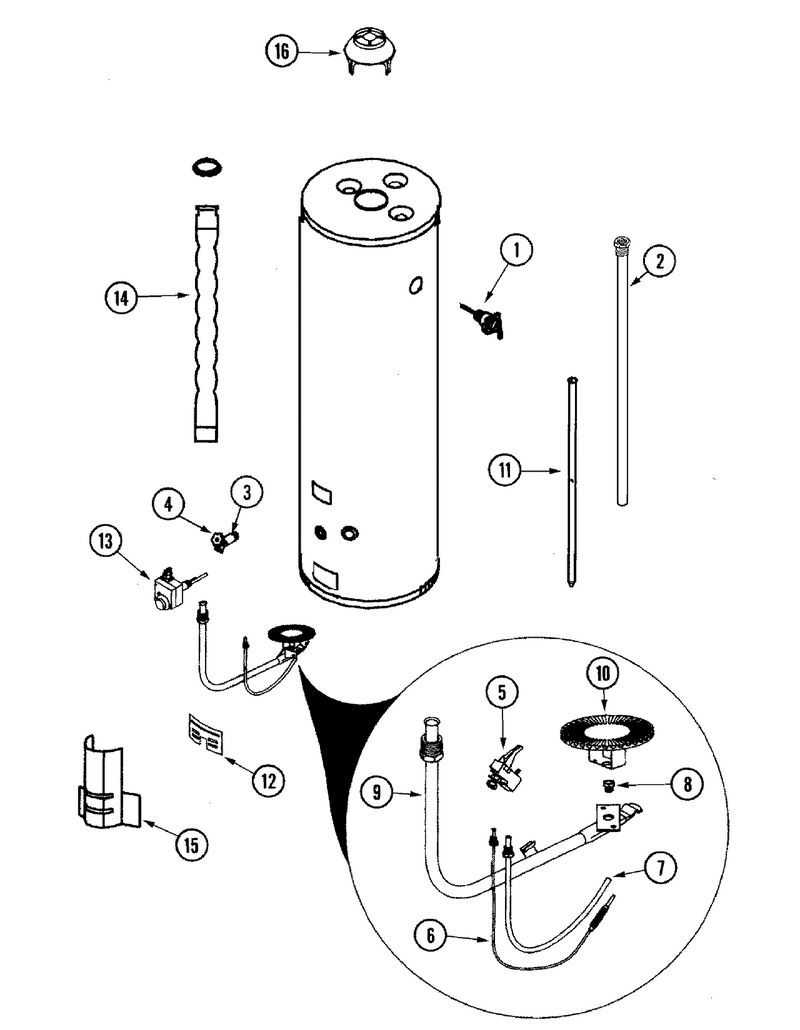

product name

01 - Body

...
...
1
Valve, Temperature/relief WPL-9000728
...
2
Rod, Anode WPL-66001189
...
3
Valve, Drain WPL-9000058
...
4
Washer, Drain Valve WPL-66001021
...
5
Pilot (lp) WPL-66001193
...
6
Thermocouple WPL-9000876
...
7
Tubing, Pilot (w/fittings) WPL-66001276
...
8
Orifice, Burner (no.53) WPL-66001170
...
9
Manifold WPL-9002618
...
10
Burner WPL-66001027
...
11
Tube, Dip WPL-66001307
...
12
Door, Inner WPL-66001029
...
13
Valve, Gas Control (lp) WPL-66001004
...
14
Baffle, Flue WPL-66001220
...
15
Door, Outer WPL-66001186
...
16
Hood, Draft WPL-66001184
...
17
Manual, Use & Care WPL-66001154
