Maytag HJ640NBDVT

Model: HJ640NBDVT

Save Part Not Listed?
product name

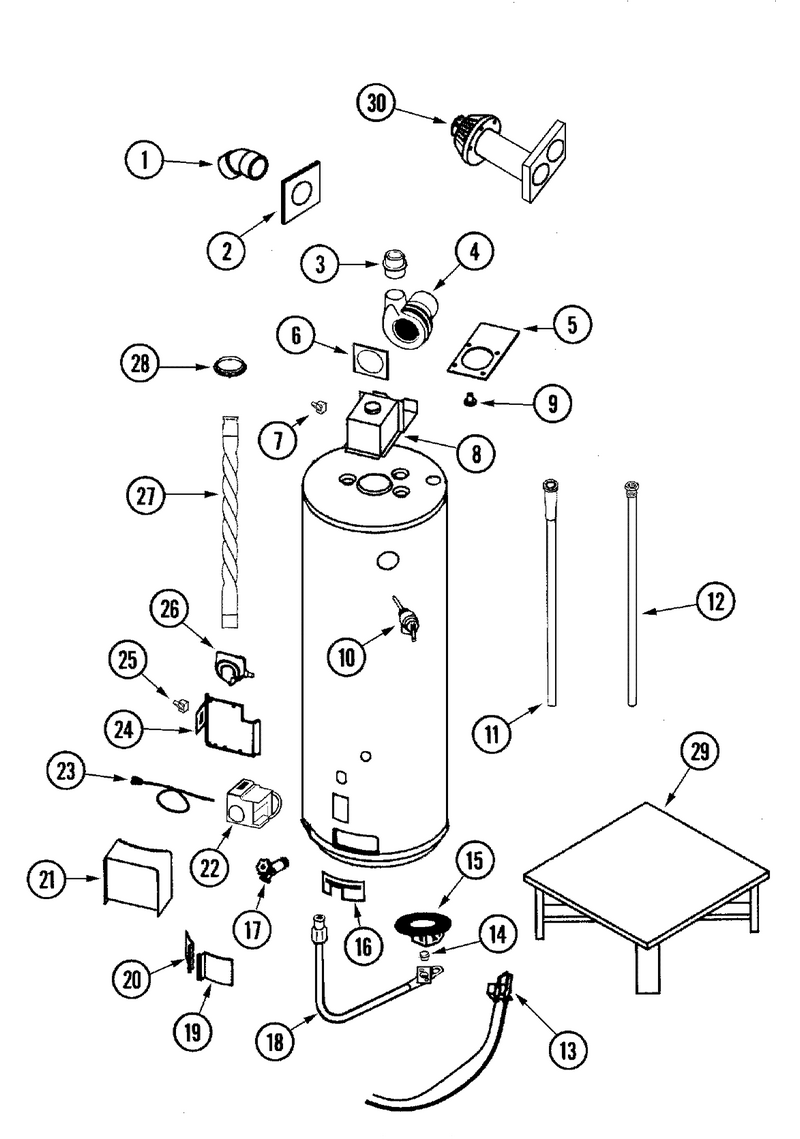

01 - Body

...
...
1
Terminal, Vent (3`` Pvc) WPL-66001255
...
2
Collar, Wall WPL-66001343
...
3
Adapter, Vent-Blower WPL-66001289
...
4
Blower WPL-9002507
...
5
Gasket, Flue Adapter WPL-66001312
...
6
Gasket, Blower WPL-66001291
...
7
Switch, Reset WPL-9001962
...
8
Vent Hood Assembly WPL-66001292
...
9
Gasket, Rubber (wiring) WPL-66001300
...
10
Valve, Temperature/relief WPL-9000728
...
11
Tube, Dip WPL-66001305
...
12
Rod, Anode WPL-66001157
...
13
Igniter WPL-9002518
...
14
Orifice, Burner (no.36) WPL-66001035
...
15
Burner WPL-66001027
...
16
Door, Inner WPL-66001029
...
17
Valve, Drain WPL-9000058
...
18
Manifold WPL-66001297
...
19
Clips, Access Door WPL-66001204
...
20
Door, Access (w/gasket)(lt) WPL-66001206
...
21
Cover, Pressure Switch WPL-66001314
...
22
Valve, Gas Control (nat) WPL-66001081
...
23
Cord, Power WPL-9003095
...
24
Bracket, Mounting WPL-9002512
...
25
Switch, On/off WPL-9001773
...
26
Switch, Air Pressure WPL-9002568
...
27
Flue Baffle Assembly WPL-66001293
...
28
Baffle Adapter Collar Assy WPL-66001315
...
29
Stand, Water Heater WPL-66001243
...
30
Horizontal Vent Kit WPL-66001344
...
31
Harness, Wire WPL-9002520
...
32
Manual, Use & Care WPL-66001119
