product name

Maytag HJ630NORT2

Model: HJ630NORT2

Save Part Not Listed?
product name

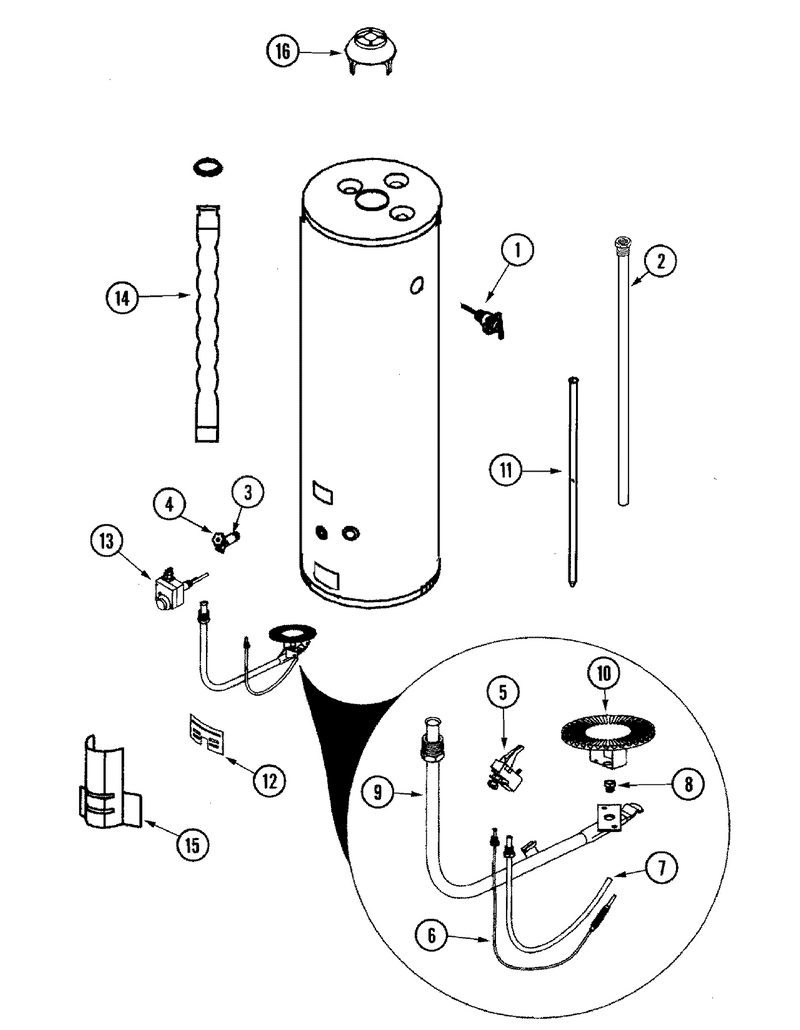

01 - Body

...
...
1
Valve, Temperature/relief WPL-9000728
...
2
Rod, Anode WPL-66001189
...
3
Valve, Drain WPL-9000058
...
4
Washer, Drain Valve WPL-66001021
...
5
Pilot (nat) WPL-66001023
...
6
Thermocouple WPL-9002318
...
7
Tubing, Pilot (w/fittings) WPL-66001275
...
8
Orifice, Burner (no.41) WPL-66001158
...
9
Manifold WPL-9002615
...
10
Burner WPL-66001027
...
11
Tube, Dip WPL-66001307
...
12
Door, Inner WPL-66001029
...
13
Valve, Gas Control (nat) WPL-9000249
...
14
Baffle, Flue WPL-66001285
...
15
Door, Outer WPL-66001186
...
16
Hood, Draft WPL-66001184
...
17
Manual, Use & Care WPL-66001154
Schematic Image Zoomed
