Maytag H675NRRS

Model: H675NRRS

Save Part Not Listed?
product name

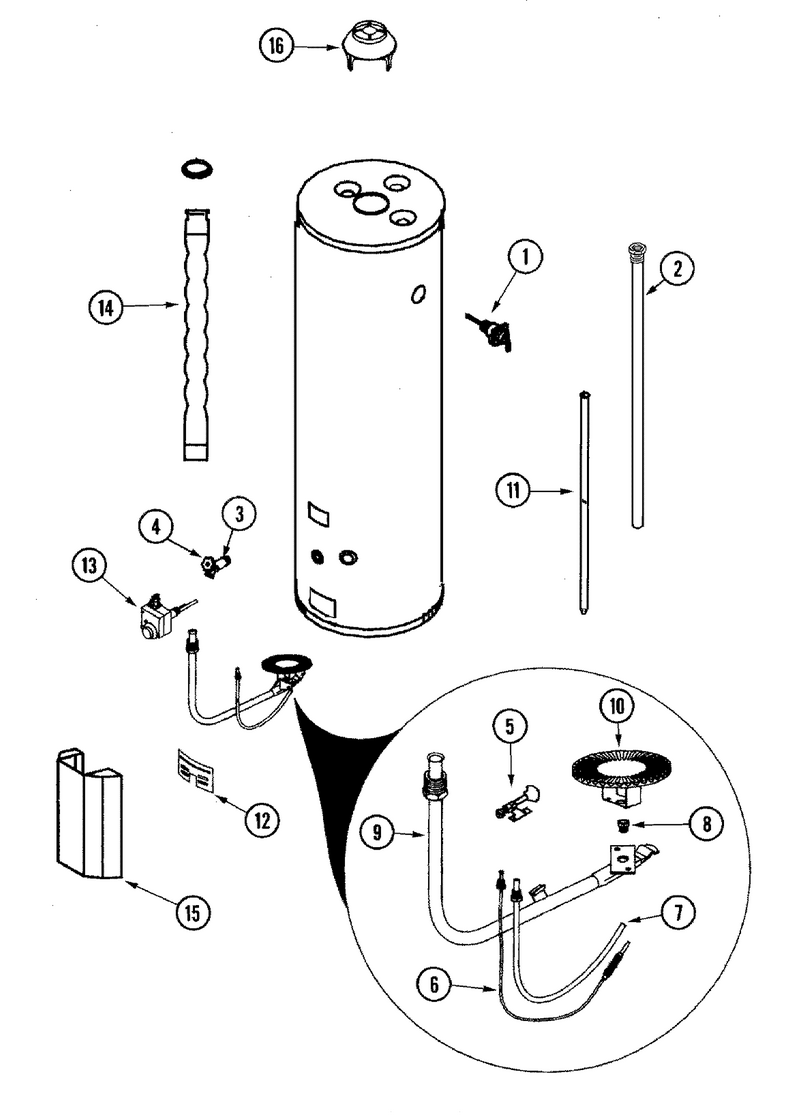

01 - Body

...
...
1
Valve, Temperature/relief WPL-66001079
...
2
Rod, Anode WPL-66001189
...
3
Valve, Drain (1 1/4`` Short) WPL-66001016
...
4
Washer, Drain Valve WPL-66001021
...
5
Pilot (nat) WPL-9000285
...
6
24` Snap-F WPL-66001878
...
7
Tubing, Pilot (w/fittings) WPL-66001024
...
8
Orifice, Burner (no.27) WPL-66001168
...
9
Manifold WPL-9003044
...
10
Burner (nat) WPL-66001359
...
11
Tube, Dip WPL-66001385
...
12
Door, Inner WPL-66001029
...
13
Valve, Gas Control (nat) WPL-66001077
...
14
Baffle, Flue WPL-9002652
...
15
Door, Outer WPL-66001190
...
16
Door, Outer WPL-66001186
...
17
Manual, Use & Care WPL-66001154
Schematic Image Zoomed
