product name

Maytag GDE24CA

Model: GDE24CA

Save Part Not Listed?
product name

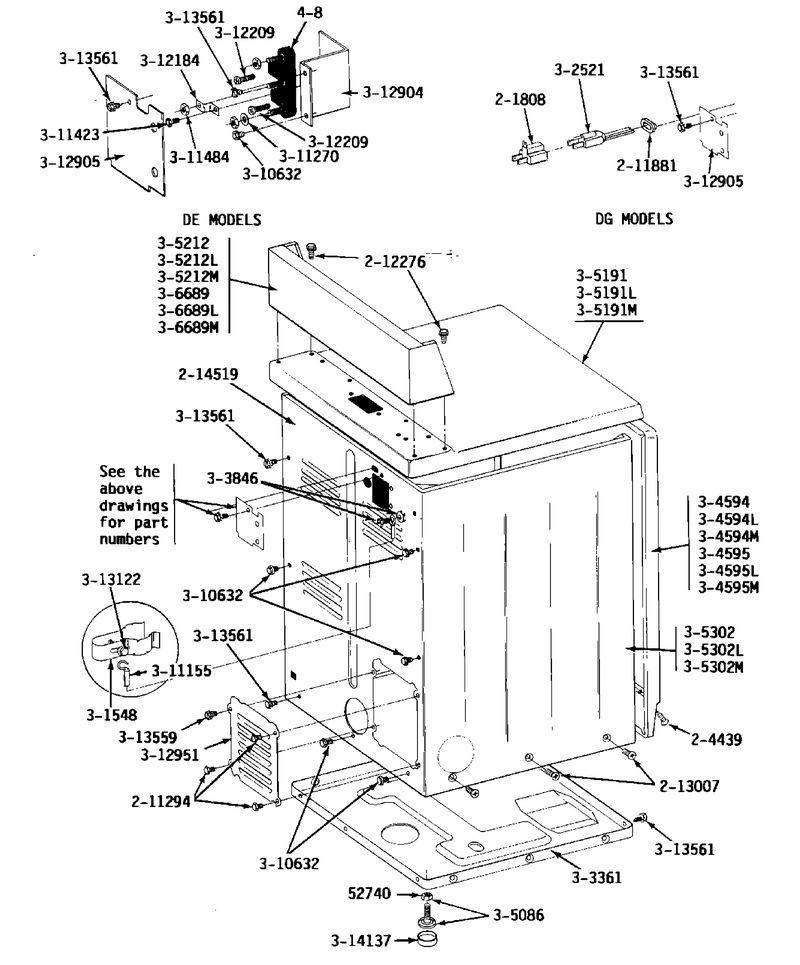

03 - Rear View

...
...
NI
Console-Harvest Wheat WPL-NLA
...
001
Nut WPL-WP62739
...
002
Converter WPL-Y201808
...
003
Screw & Fstner Assy(frt.panel) WPL-204439
...
004
Screw WPL-WP90767
...
006
Screw WPL-WP90767
...
007
Screw, Cabinet WPL-213007
...
008
Label, Electrical Instruction WPL-214519
...
009
Clamp, Ground (w/screw) WPL-301548
...
010
Power Cord WPL-302521
...
011
Base Assy. WPL-Y303361
...
019
Feet-Lvlng WPL-W10176519
...
021
(wht) WPL-307105
...
033
Screw WPL-WP1163839
...
034
Wire WPL-WP311155
...
035
Washer- Te WPL-WPY311270
...
036
Screw WPL-WP489483
...
037
Nut WPL-WP112432
...
038
Strap, Ground WPL-Y312184
...
039
Screw WPL-W11164114
...
040
Bracket, Terminal Block WPL-Y312904
...
041
Cover, Terminal WPL-Y312905
...
042
Cover, Access WPL-Y312951
...
043
Screw - Baffle To Tumbler WPL-313122
...
044
Screw WPL-WP90767
...
045
Screw WPL-WPY313561
...
046
Foot- Rubb WPL-WPY314137
...
047
Block, Terminal WPL-400008

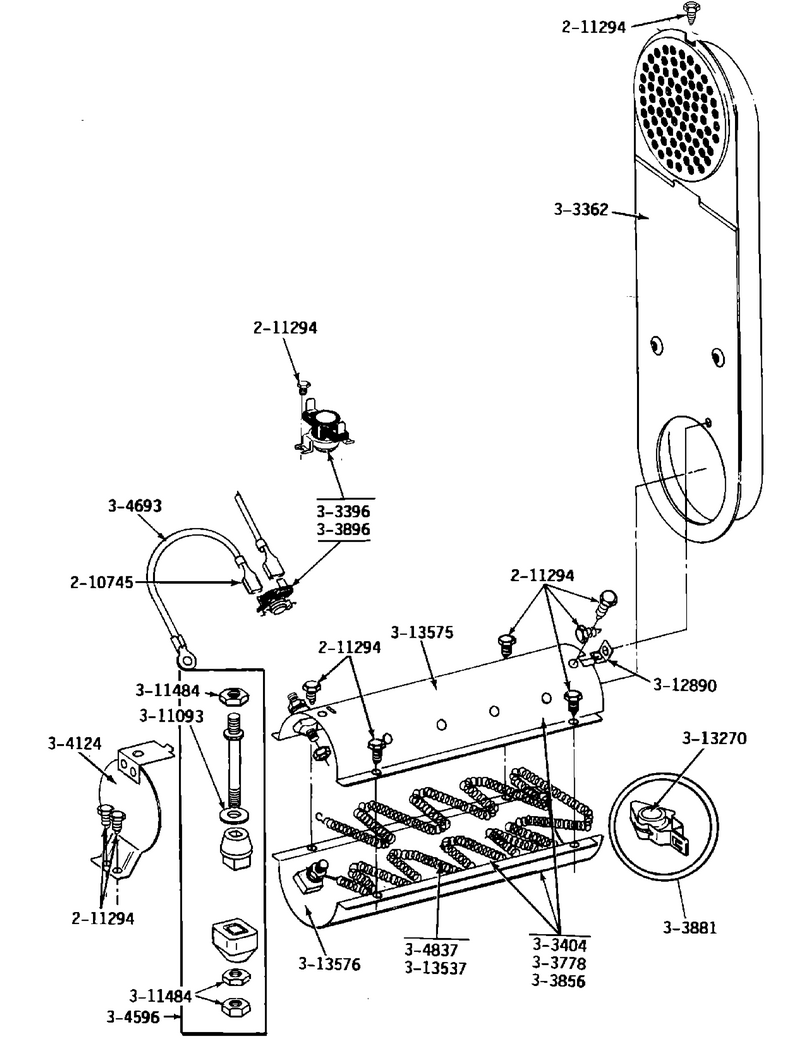

06 - Inlet Duct & Heater Assembly

...
...
001
Wire Terminal WPL-210745
...
002
Screw WPL-WP90767
...
003
Inlet Duct Assembly - De WPL-Y303362
...
004
Thrmst-Fix WPL-WP303396
...
005
Heater Asy WPL-WPY303404
...
006
Heater Asy WPL-WPY303778
...
007
Heater Assembly Complete WPL-Y303856
...
008
Clip And I WPL-WPY303881
...
009
Hi-Limit T WPL-WP303896
...
010
Heater Shield WPL-304124
...
011
Terminal Insulator Assembly WPL-Y304596
...
012
Harns-Wire WPL-WPY304693
...
013
Element WPL-W10116793
...
014
Washer- 7 WPL-WP311093
...
015
Nut WPL-WP112432
...
016
Retainer, Heater Chamber WPL-Y312890
...
017
Insulator For Heater Elemen WPL-Y313270
...
018
Heater Element 240 Volt WPL-Y313537
...
019
Heater Chamber, Top WPL-Y313575
...
020
Heater Chamber, Bottom WPL-Y313576

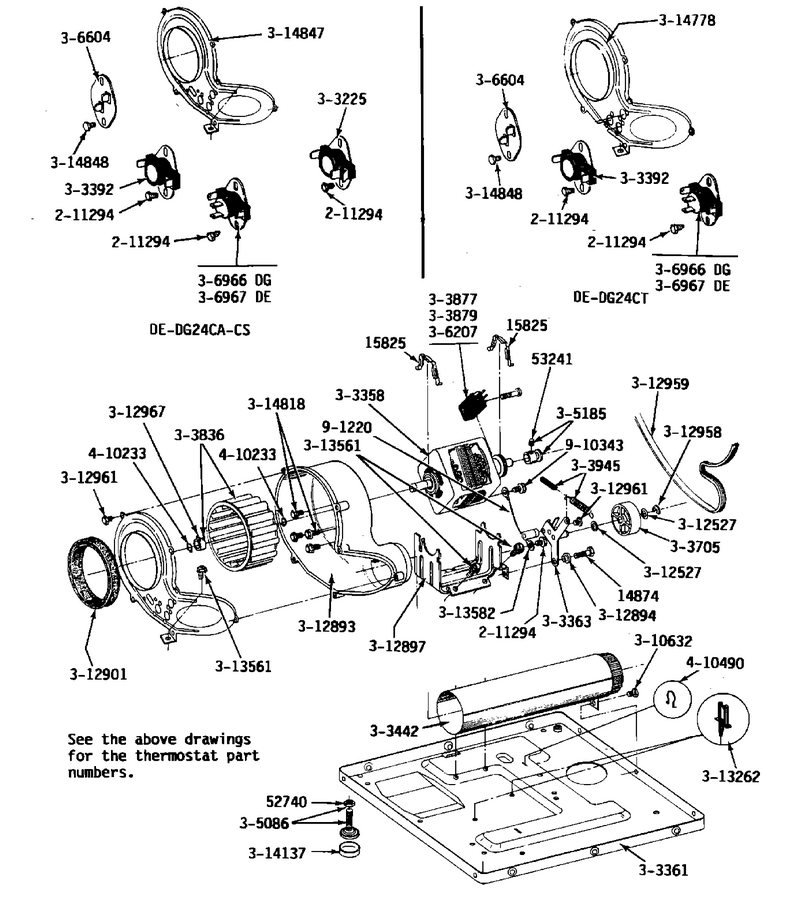

07 - Motor, Blower, Base Frame & Thermostats

...
...
NI
Wire WPL-NLA
...
001
Screw WPL-WPY014874
...
002
Clip- Moto WPL-WPY015825
...
003
Nut WPL-WP62739
...
004
Set Screw, Pulley WPL-Y053241
...
005
Screw WPL-WP90767
...
006
Thermostat, Permanent Press WPL-Y303225
...
007
Motor-Drve WPL-W10410999
...
008
Base Assy. WPL-Y303361
...
009
Idler Arm WPL-WP6-3033630
...
010
Thrmst-Fix WPL-WP694674
...
011
Exhaust Duct Assy. WPL-Y303442
...
012
Pulley WPL-WP6-3037050
...
013
Blower Wheel Assembly & Clamp WPL-Y303836
...
014
Switch, Motor WPL-Y303877
...
015
Switch, Motor Start-Prod. WPL-Y303879
...
016
Idler Spring Assembly WPL-Y303945
...
017
Feet-Lvlng WPL-W10176519
...
018
Pulley, Motor (w/set Screw) WPL-Y305185
...
021
Cut-Off- T WPL-WP306604
...
023
Thermostat WPL-WP306967
...
024
Screw WPL-WP1163839
...
025
Washer WPL-WPY312527
...
026
Housing, Blower WPL-Y312893
...
027
Sleeve WPL-WP315772
...
029
Seal- Blow WPL-WPY312901
...
030
Ring-E WPL-WP354987
...
031
Belt WPL-WPY312959
...
032
Screw WPL-WPW10116751
...
033
Clamp WPL-WP312967
...
034
Retainer- WPL-W10116752
...
035
Screw WPL-WPY313561
...
036
Spacer WPL-WPW10116756
...
037
Foot- Rubb WPL-WPY314137
...
038
Screw WPL-WP1163839
...
039
Cover, Blower Housing WPL-314847
...
041
Ring-Retnr WPL-WP9703438
...
042
Wire, Ground WPL-901220
...
043
Screw WPL-WP488234

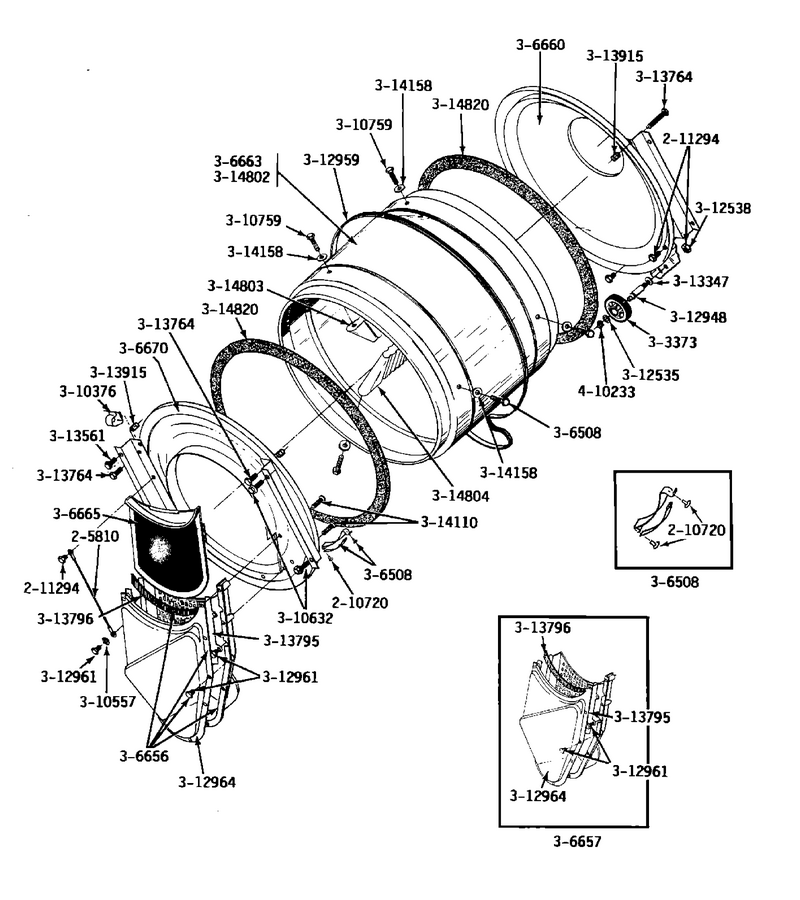

05 - Lint Screen, Tumbler (front & Back)

...
...
NI
Tumbler Front----Na WPL-NLA
...
001
Wire, Ground WPL-205810
...
002
Rivet WPL-WP210720
...
003
Screw WPL-WP90767
...
004
Drum Roller/washer Assy. WPL-12001541
...
005
Tumbler Bearing Kit ----W WPL-306508
...
006
Outlet Duct & Grid WPL-306657
...
007
Outlet Duct & Grid WPL-306657
...
008
Back, Tumbler (w/seal) WPL-33001106
...
009
Tumbler WPL-305187
...
010
Screen WPL-WP33001003
...
012
Clip, Wire Harness WPL-Y310376
...
013
Washer WPL-310557
...
014
Screw WPL-WP1163839
...
015
Screw WPL-WPY310759
...
016
Washer WPL-WP312535
...
017
Nut- Hex WPL-WP33001443
...
018
Shaft WPL-WP6-3129480
...
019
Belt WPL-WPY312959
...
020
Screw WPL-WPW10116751
...
021
Outlet Duct - Outer Half WPL-Y312964
...
022
Washer WPL-WP312535
...
023
Screw WPL-WPY313561
...
025
Guide For Lint Screen WPL-Y313795
...
026
Lint Seal WPL-Y313796
...
028
Screw WPL-WP33002917
...
029
Washer WPL-WP314158
...
030
Dryer Tumbler, W/o Baffles WPL-33001108
...
032
Baffle (short) WPL-314803
...
033
Baffle, Tall WPL-33001004
...
034
Seal- Tumb WPL-WP314820
...
035
Ring-Retnr WPL-WP9703438

...
...
NI
Pilot Shield Assembly WPL-NLA

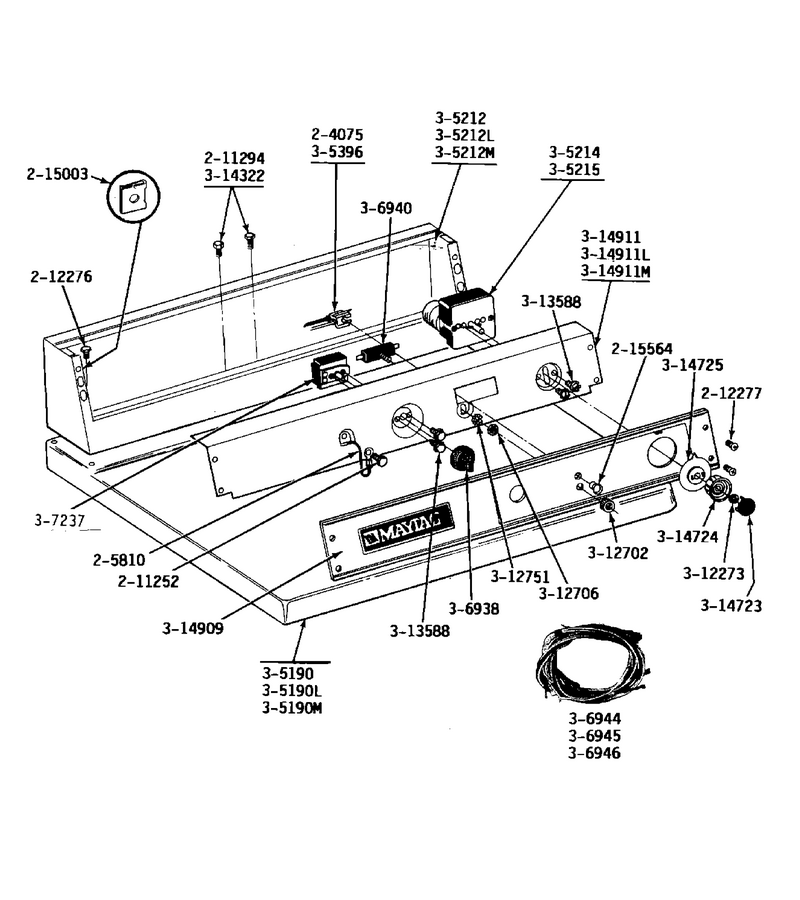

02 - Ca Control Panel

...
...
NI
Main Wire Harness - De WPL-NLA
...
001
Part Not Used WPL-204075
...
002
Wire, Ground WPL-205810
...
003
Screw WPL-WP489399
...
004
Screw WPL-WP90767
...
005
Screw WPL-WP90767
...
006
Screw WPL-WP1163283
...
007
Fastener WPL-215003
...
008
Lens- Indi WPL-WP215564
...
009
Top Cover Assy WPL-307104
...
015
Timer WPL-WP305214
...
016
Timer WPL-WP305214
...
017
Indicator Lamp WPL-Y305396
...
018
Knob, Selector Switch WPL-306938
...
019
Switch-Cyc WPL-WPW10327105
...
020
Switch-Pts WPL-WPW10149462
...
024
Nut, 1/4-28 X WPL-W10155650
...
025
Knurled Nu WPL-WPY312702
...
026
Hex Nut On Switch WPL-Y312706
...
027
Washer WPL-WPW10139799
...
028
Screw WPL-WP488234
...
029
Screw, No.8-32 X 3/8 Inch WPL-Y314322
...
030
Cap WPL-WPW10133501
...
031
Knob WPL-W11232017
...
032
Timer Dial Indicator WPL-314725
...
033
Panel, Control WPL-33001021

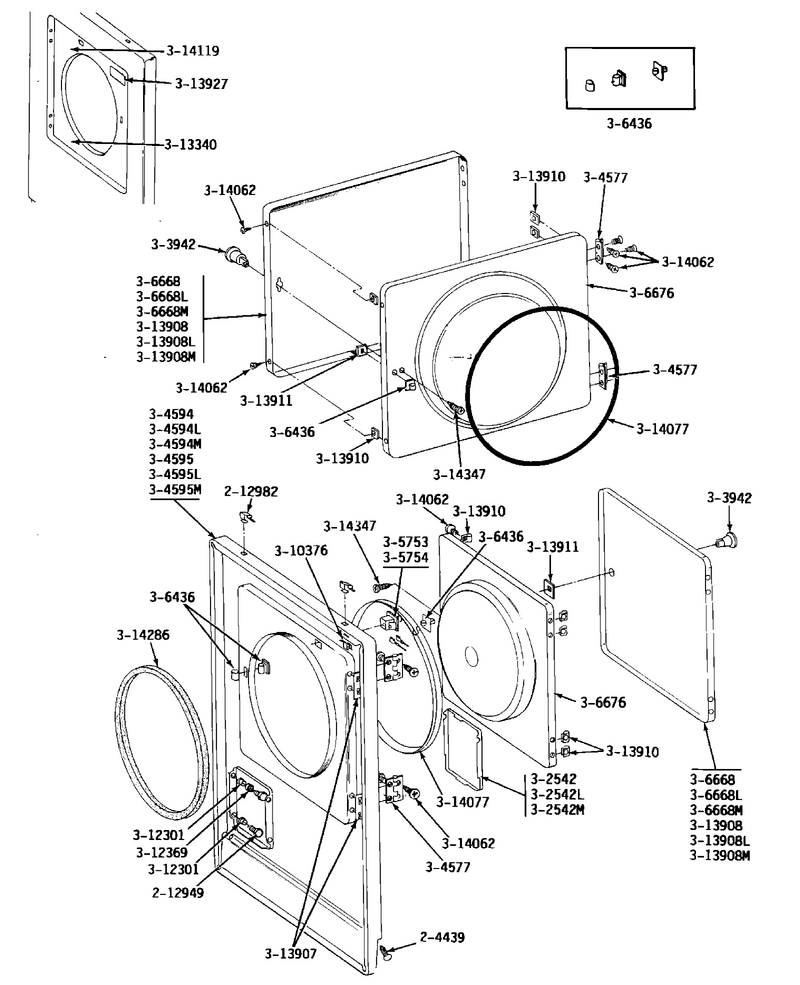

04 - Front Panel & Door Assembly

...
...
NI
Gas Ignition Label WPL-NLA
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
002
Screw WPL-212949
...
003
Fastener- WPL-WP22001650
...
011
Door Hinge ----S WPL-Y304577
...
012
Switch-Dor WPL-W10169313
...
014
Door Latch Kit--W WPL-306436
...
015
Door WPL-Y306668
...
019
Clip, Wire Harness WPL-Y310376
...
021
Sleeve-Access Panel Stud WPL-312369
...
022
Label, Lint Screen Instruction WPL-Y313340
...
023
Twin Fastener WPL-Y313907
...
024
Door Panel-White WPL-Y313908
...
027
Clip, Door Liner To Outer Pnl WPL-Y313910
...
028
Door Strike Retainer WPL-Y313911
...
029
Instruction Label WPL-Y313927
...
030
Screw WPL-Y314062
...
031
Door Seal WPL-314077
...
033
Seal For Front Panel WPL-314286

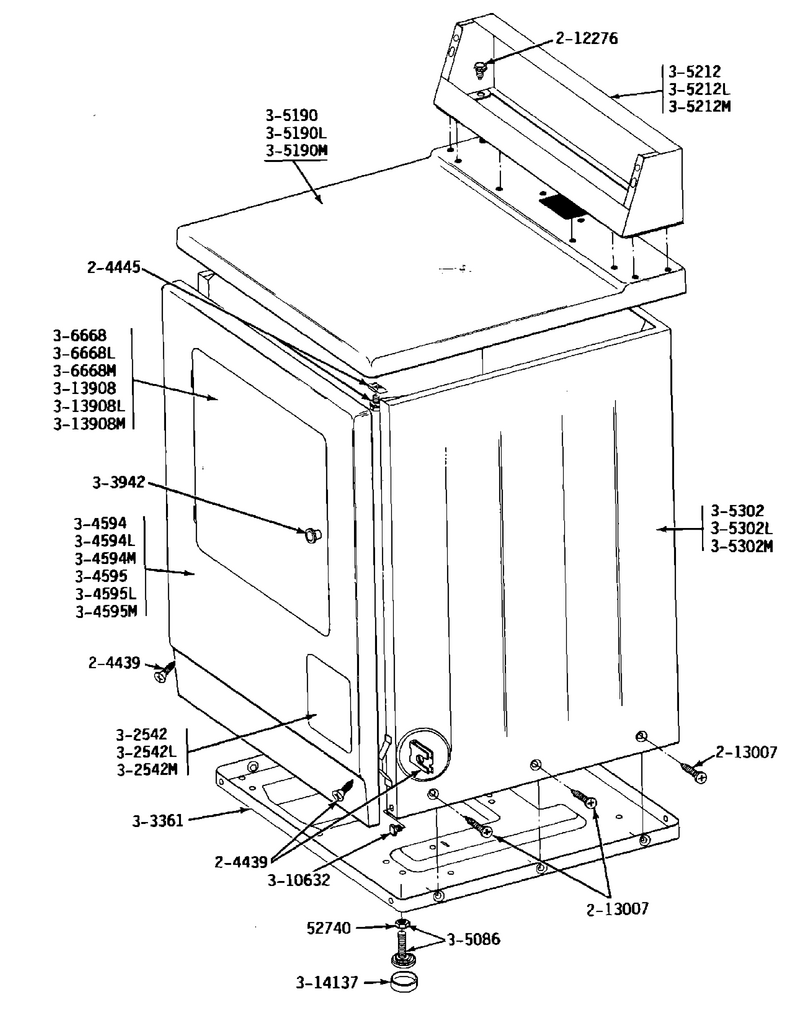

01 - Front View

...
...
NI
Door Panel-Almond WPL-NLA
...
001
Nut WPL-WP62739
...
002
Screw & Fstner Assy(frt.panel) WPL-204439
...
003
Screw & Fastener Asy. WPL-204445
...
004
Screw WPL-WP90767
...
005
Screw, Cabinet WPL-213007
...
009
Base Assy. WPL-Y303361
...
017
Feet-Lvlng WPL-W10176519
...
018
Top Cover Assy WPL-307104
...
027
Door WPL-Y306668
...
030
Screw WPL-WP1163839
...
031
Door Panel-White WPL-Y313908
...
034
Foot- Rubb WPL-WPY314137
