product name

Maytag GDE18CA

Model: GDE18CA

Save Part Not Listed?
product name

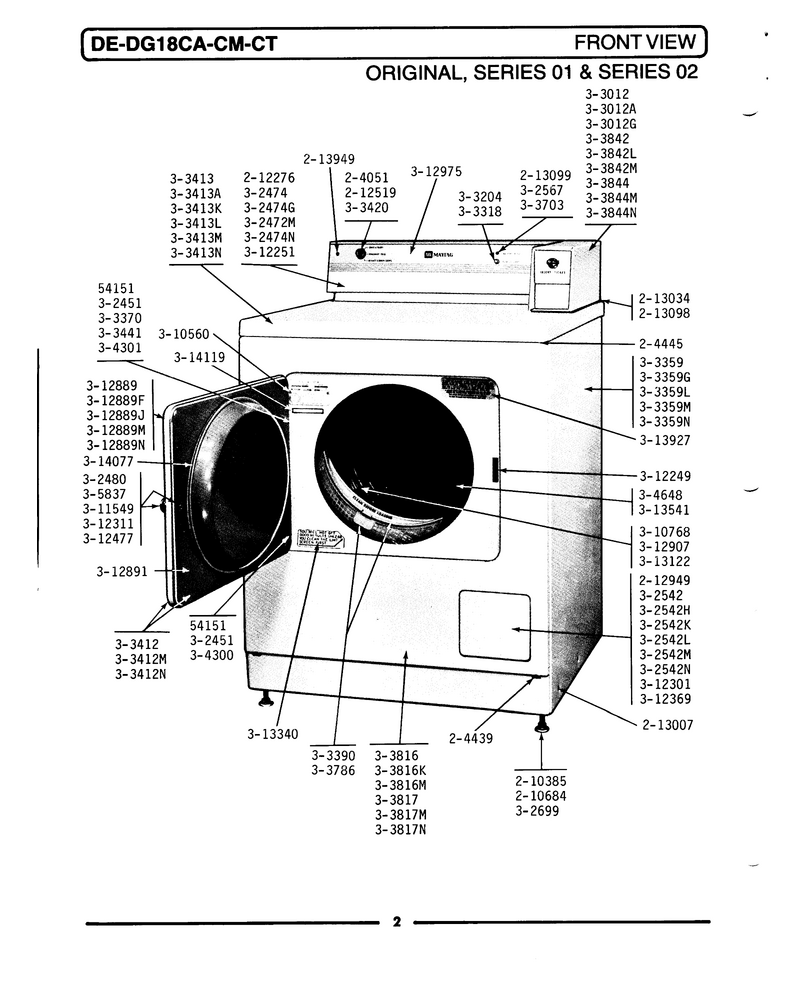

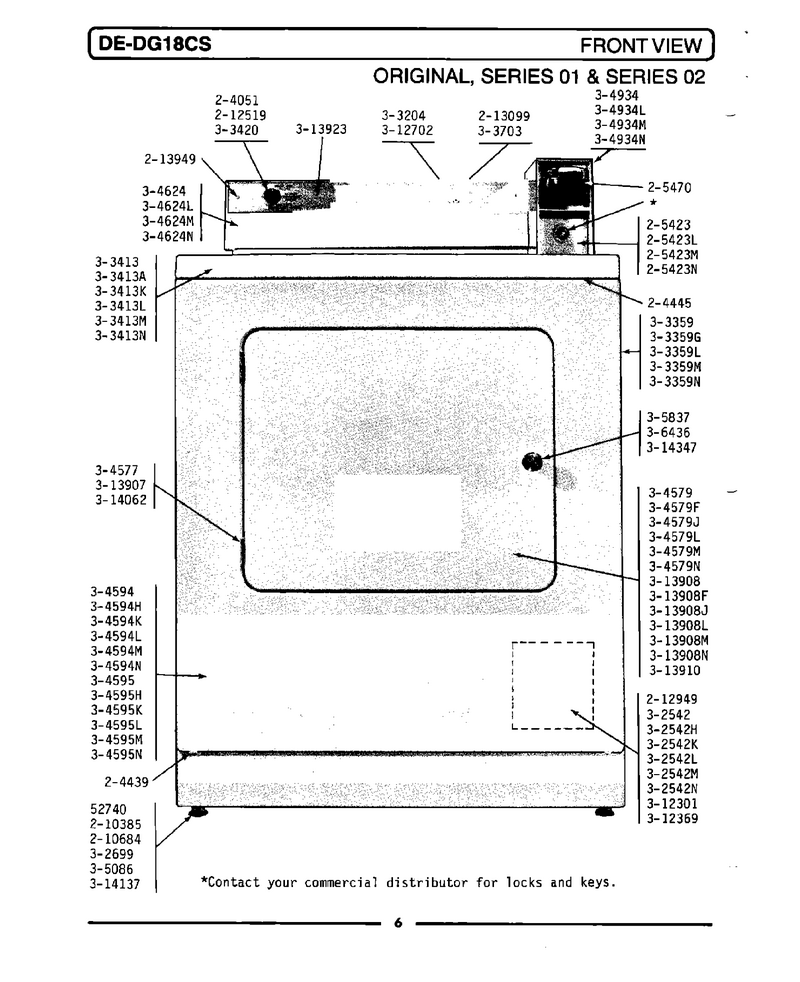

01 - Front View

...
...
001
Screw, No.4-40 X 1/4 WPL-NLA
...
002
Knob WPL-204051
...
003
Screw & Fstner Assy(frt.panel) WPL-204439
...
004
Screw & Fastener Asy. WPL-204445
...
005
Nut- Lock WPL-WP210385
...
006
Pad WPL-WP210684
...
007
Screw WPL-WP90767
...
008
Screw WPL-WP488234
...
009
Screw WPL-212949
...
010
Screw, Cabinet WPL-213007
...
011
Gasket Under Control Center WPL-NLA
...
012
Lens For Control Panel WPL-213099
...
013
Screw WPL-WP355214
...
014
Hinge Assembly----N WPL-NLA
...
015
Control Cover-White WPL-NLA
...
016
Control Cover-Harvest Wheat WPL-NLA
...
017
Latch WPL-NLA
...
018
Leg, Adjustable (w/nut) WPL-22003428
...
019
Control Center-White WPL-NLA
...
020
Start Switch With Nuts WPL-Y303204
...
021
Cabinet-White WPL-NLA
...
022
Cabinet-Almond WPL-NLA
...
023
Cabinet-Harvest Wheat WPL-NLA
...
024
Lint Screen With Retainer WPL-Y303786
...
025
Door Complete-White WPL-NLA
...
026
Door Complete-Harvest Wheat WPL-NLA
...
027
Top Cover-White WPL-NLA
...
028
Top Cover-Almond WPL-NLA
...
029
Top Cover-Harvest Wheat WPL-NLA
...
030
Selector Switch WPL-Y303420
...
031
Door Switch WPL-Y303441
...
032
Pilot Light WPL-Y303703
...
033
Lint Screen With Retainer WPL-Y303786
...
034
Front Panel-White WPL-NLA
...
035
Front Panel-Harvest Wheat WPL-NLA
...
036
Hinge - Lower WPL-NLA
...
037
Back, Tumbler (w/seal) WPL-33001106
...
038
Hinge - Upper WPL-NLA
...
039
Knob And Screw WPL-NLA
...
040
Wire Clip WPL-NLA
...
041
Seal- Tumb WPL-WP33313541
...
042
Washer WPL-NLA
...
043
Instruction Label WPL-Y313927
...
044
Door Panel-Havest Wheat WPL-NLA
...
045
Door Seal WPL-314077
...
046
Back For Control Panel WPL-NLA
...
047
Gas Ignition Label WPL-NLA
...
048
Door Liner - Inner Half WPL-Y312891
...
049
Screw----Na WPL-NLA
...
050
Tumbler Baffle WPL-Y312907
...
051
Screw WPL-WP74004005
...
052
Control Panel WPL-NLA
...
053
Magnetic Latch Retainer WPL-NLA
...
054
Screw - Baffle To Tumbler WPL-313122
...
055
Strike Plate WPL-NLA
...
056
Label, Lint Screen Instruction WPL-Y313340
...
057
Door Panel-White WPL-NLA

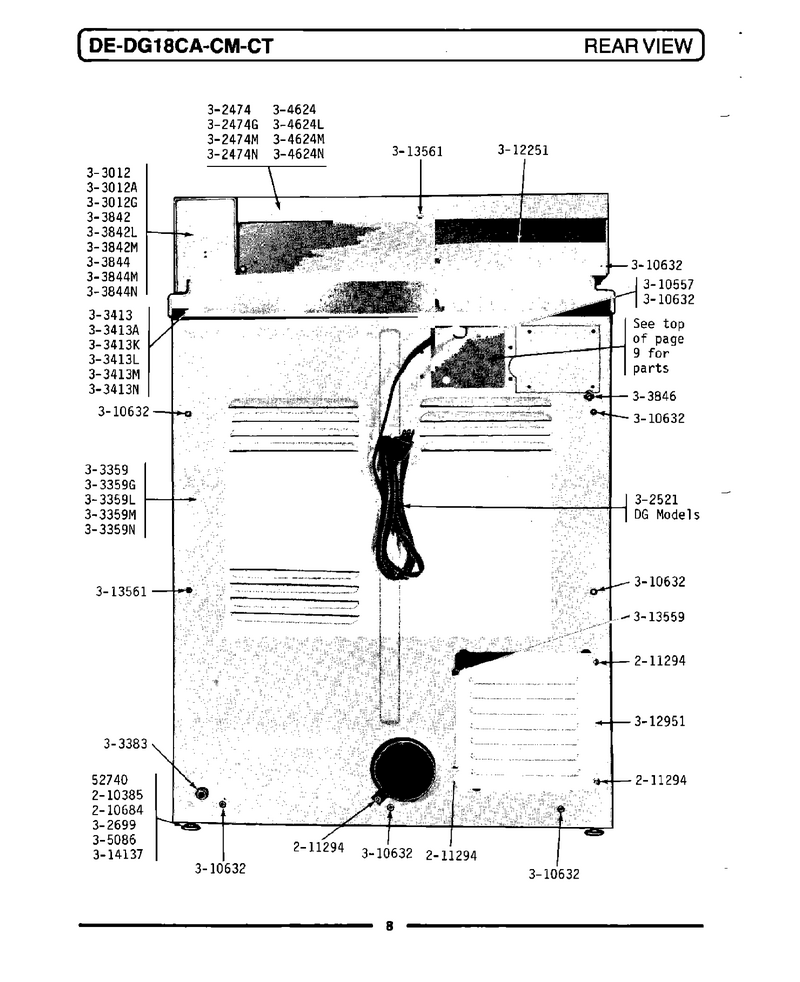

08 - Front Panel-Rear View

...
...
001
Screw, No.4-40 X 1/4 WPL-NLA
...
002
Rubber Adh WPL-WPY055978
...
003
Screw & Fstner Assy(frt.panel) WPL-204439
...
004
Fastener- WPL-WP22001650
...
005
Hinge Assembly----N WPL-NLA
...
006
Door Complete-White WPL-NLA
...
007
Door Complete-Harvest Wheat WPL-NLA
...
008
Front Panel-White WPL-NLA
...
009
Front Panel-Harvest Wheat WPL-NLA
...
010
Hinge - Lower WPL-Y304298
...
011
Hinge - Upper WPL-NLA
...
012
Hinge - Lower WPL-NLA
...
013
Hinge - Upper WPL-NLA
...
014
Screw WPL-WP74004005
...
015
Strike Plate WPL-NLA
...
016
Door Panel-White WPL-NLA
...
017
Door Panel-Harvest Wheat WPL-NLA
...
018
Door Liner - Inner Half WPL-Y312891
...
019
Label, Lint Screen Instruction WPL-Y313340
...
020
Instruction Label WPL-Y313927
...
021
Door Seal WPL-314077
...
022
Gas Ignition Label WPL-NLA
...
023
Seal For Front Panel WPL-314286

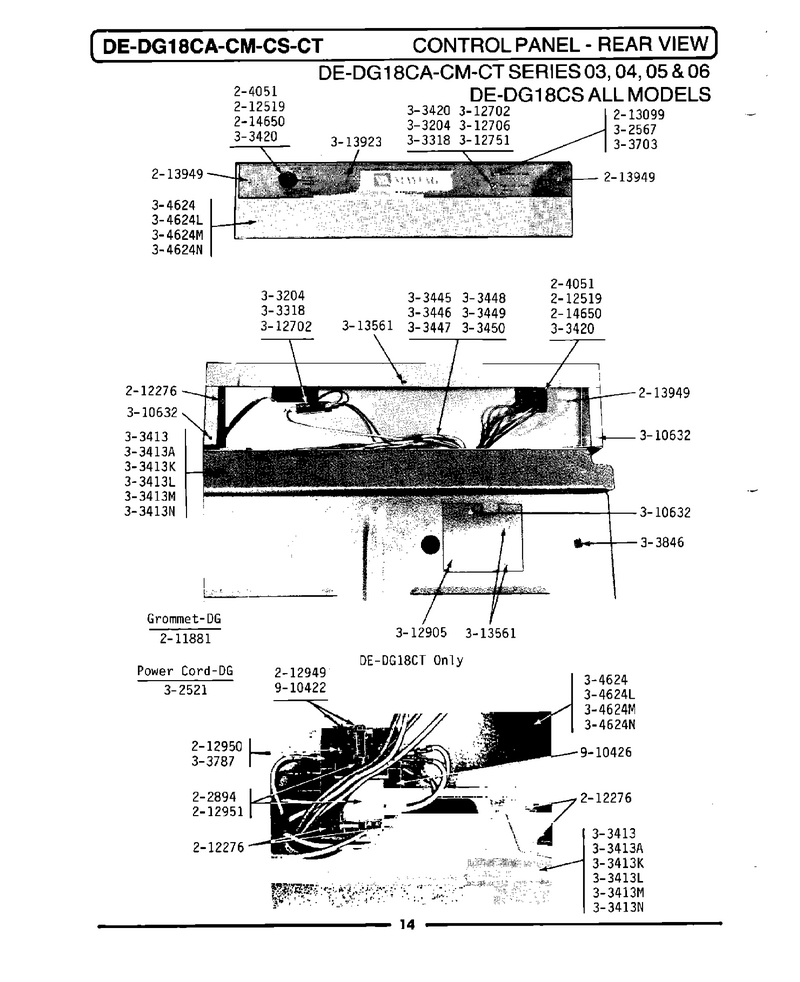

04 - Control Panel (series 00)

...
...
NI
Control Cover-White WPL-NLA
...
001
Knob WPL-204051
...
002
Screw WPL-WP90767
...
003
Screw WPL-WP488234
...
004
Screw WPL-212949
...
005
Screw WPL-M0227520
...
006
Screw, No.6-32 X 1/4 Inch WPL-212951
...
007
Lens For Control Panel WPL-213099
...
008
Screw WPL-WP355214
...
009
Screw For 2-4051 Knob WPL-214650
...
012
Start Switch With Nuts WPL-Y303204
...
018
Selector Switch WPL-Y303420
...
020
Pilot Light WPL-Y303703
...
022
Washer WPL-310557
...
023
Screw WPL-WP1163839
...
024
Screw WPL-WP489483
...
026
Knurled Nu WPL-WPY312702
...
027
Hex Nut On Switch WPL-Y312706
...
028
Washer WPL-WPW10139799
...
029
Cover, Terminal WPL-Y312905
...
031
Screw WPL-WPY313561
...
032
Cable Strap-Harness To Base WPL-910768

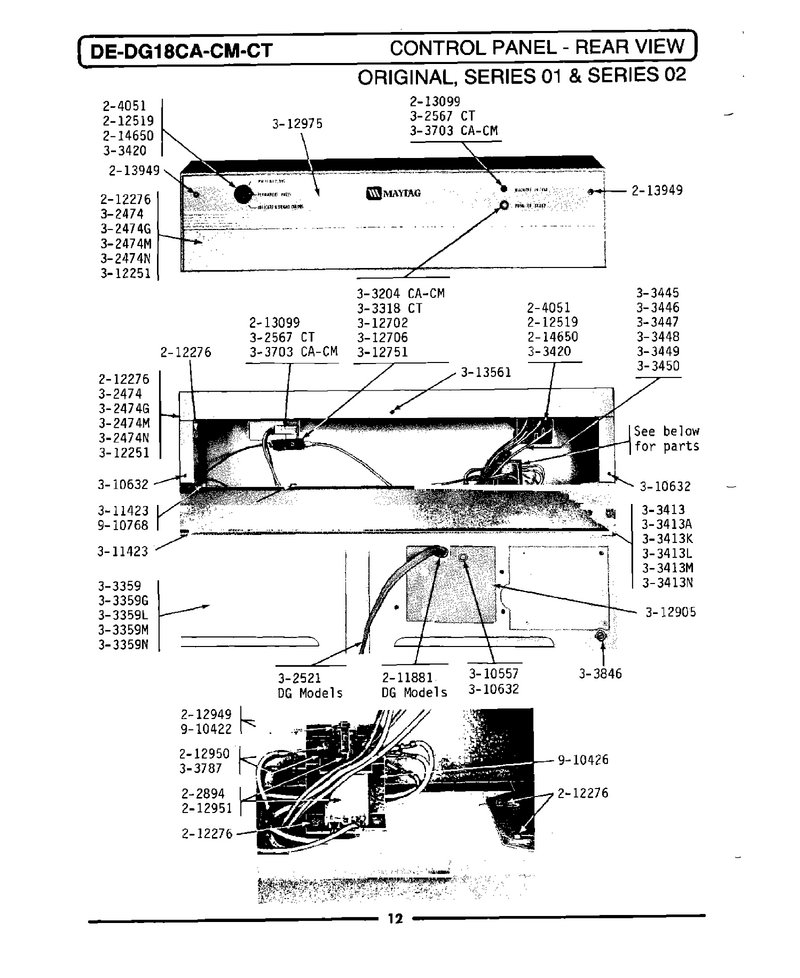

05 - Control Panel (series 03)

...
...
NI
Washer WPL-WPW10139799
...
001
Knob WPL-204051
...
002
Screw WPL-WP90767
...
003
Screw WPL-WP488234
...
004
Screw WPL-212949
...
005
Screw WPL-M0227520
...
006
Screw, No.6-32 X 1/4 Inch WPL-212951
...
007
Lens For Control Panel WPL-213099
...
008
Screw WPL-WP355214
...
009
Screw For 2-4051 Knob WPL-214650
...
010
Start Switch With Nuts WPL-Y303204
...
014
Selector Switch WPL-Y303420
...
022
Screw WPL-WP1163839
...
025
Knurled Nu WPL-WPY312702
...
028
Cover, Terminal WPL-Y312905
...
029
Screw WPL-WPY313561

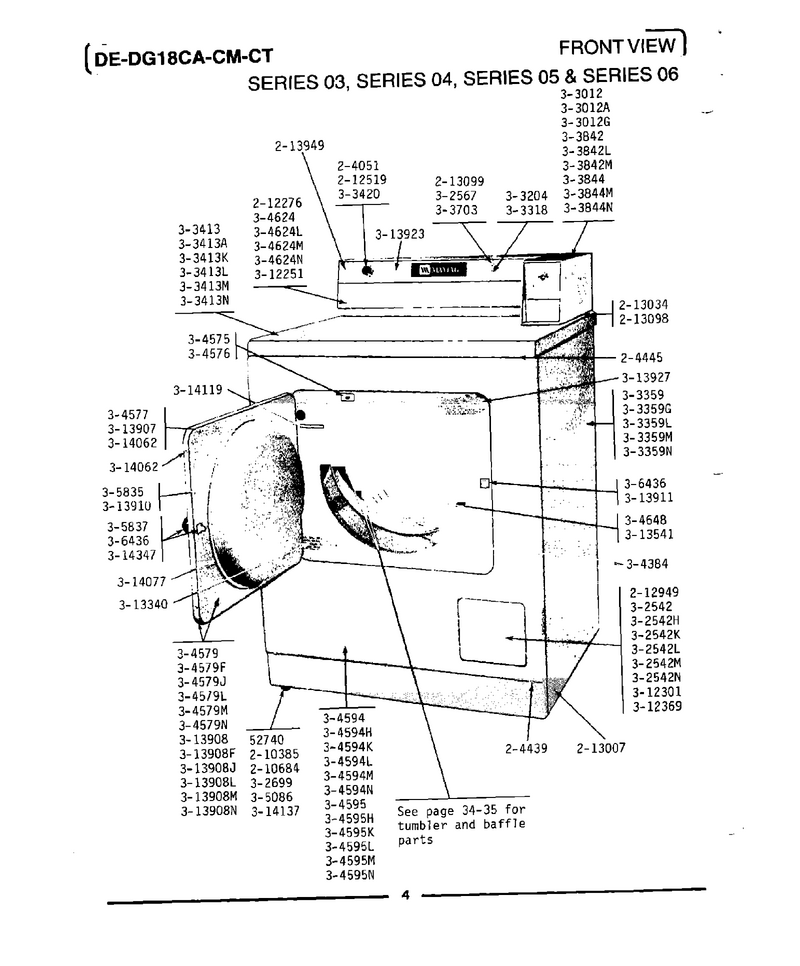

02 - Front View (series 03)

...
...
NI
Control Cover-White WPL-NLA
...
001
Nut WPL-WP62739
...
002
Knob WPL-204051
...
003
Screw & Fstner Assy(frt.panel) WPL-204439
...
004
Screw & Fastener Asy. WPL-204445
...
005
Nut- Lock WPL-WP210385
...
006
Pad WPL-WP210684
...
007
Screw WPL-WP90767
...
008
Screw WPL-WP488234
...
009
Screw WPL-212949
...
010
Screw, Cabinet WPL-213007
...
012
Lens For Control Panel WPL-213099
...
013
Screw WPL-WP355214
...
014
Leg, Adjustable (w/nut) WPL-22003428
...
016
Start Switch With Nuts WPL-Y303204
...
023
Selector Switch WPL-Y303420
...
024
Pilot Light WPL-Y303703
...
025
Screen WPL-WP33001003
...
026
Switch-Dor WPL-W10169313
...
027
Door Hinge ----S WPL-Y304577
...
028
Door WPL-Y306668
...
038
Back, Tumbler (w/seal) WPL-33001106
...
039
Feet-Lvlng WPL-W10176519
...
042
Door Latch Kit--W WPL-306436
...
044
Label, Lint Screen Instruction WPL-Y313340
...
045
Seal- Tumb WPL-WP33313541
...
046
Twin Fastener WPL-Y313907
...
047
Door Panel-White WPL-Y313908
...
050
Clip, Door Liner To Outer Pnl WPL-Y313910
...
051
Door Strike Retainer WPL-Y313911
...
053
Instruction Label WPL-Y313927
...
054
Screw WPL-Y314062
...
055
Door Seal WPL-314077
...
057
Foot- Rubb WPL-WPY314137

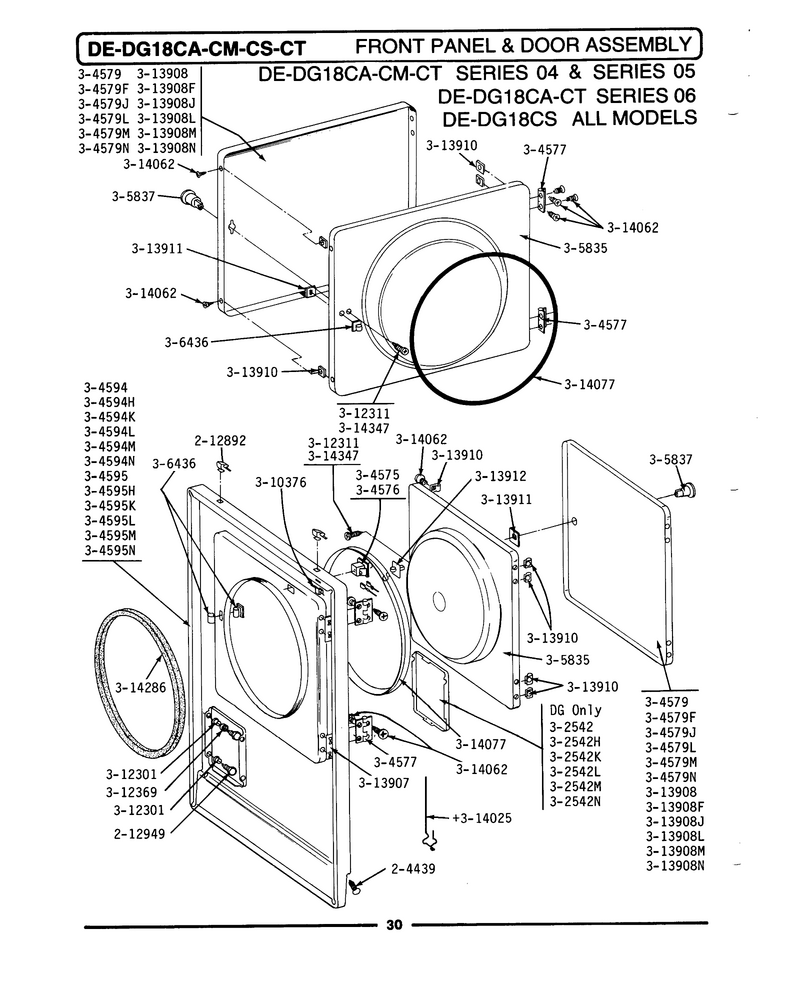

09 - Front Panel & Door Assy (series 04)

...
...
NI
Door Panel-Harvest Wheat WPL-NLA
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
003
Switch-Dor WPL-W10169313
...
004
Door Hinge ----S WPL-Y304577
...
013
Door Latch Kit--W WPL-306436
...
014
Clip, Wire Harness WPL-Y310376
...
017
Twin Fastener WPL-Y313907
...
018
Door Panel-White WPL-Y313908
...
021
Clip, Door Liner To Outer Pnl WPL-Y313910
...
022
Door Strike Retainer WPL-Y313911
...
024
Latch For Access Door WPL-Y314025
...
025
Screw WPL-Y314062
...
026
Door Seal WPL-314077
...
028
Seal For Front Panel WPL-314286

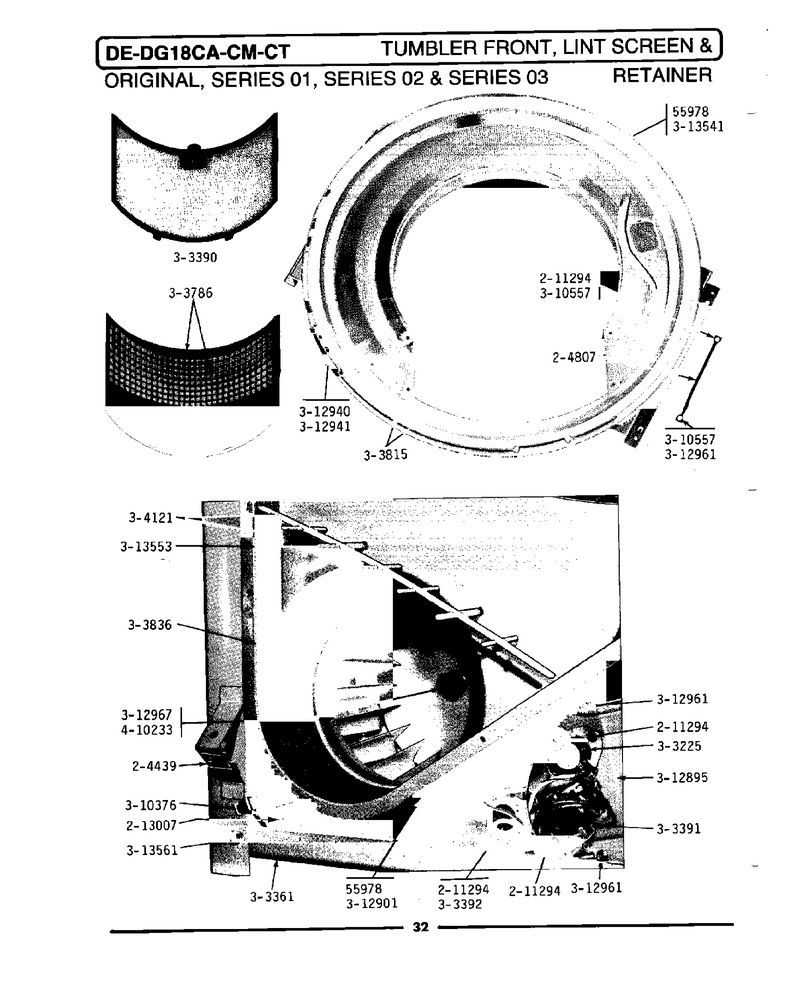

11 - Tumbler Front, Lint Screen & Retainer

...
...
NI
Lint Seal WPL-Y313796
...
001
Rubber Adh WPL-WPY055978
...
002
Screw & Fstner Assy(frt.panel) WPL-204439
...
003
Grnd.wire,supp.plte To Top Cvr WPL-204807
...
005
Screw WPL-WP90767
...
006
Screw, Cabinet WPL-213007
...
007
Thermostat, Permanent Press WPL-Y303225
...
008
Base Assy. WPL-Y303361
...
009
Lint Screen With Retainer WPL-Y303786
...
010
Thermostat WPL-WP33303391
...
011
Thrmst-Fix WPL-WP694674
...
012
Lint Screen With Retainer WPL-Y303786
...
013
Front- Tum WPL-33001231
...
014
Blower Wheel Assembly & Clamp WPL-Y303836
...
017
Clip, Wire Harness WPL-Y310376
...
018
Washer WPL-310557
...
019
Cover For Blower----Na WPL-Y312895
...
020
Seal- Blow WPL-WPY312901
...
021
Pad WPL-WP312940
...
022
Tumbler Bearing Kit WPL-306508
...
023
Screw WPL-WPW10116751
...
025
Clamp WPL-WP312967
...
026
Seal- Tumb WPL-WP33313541
...
028
Screw WPL-WPY313561
...
031
Ring-Retnr WPL-WP9703438

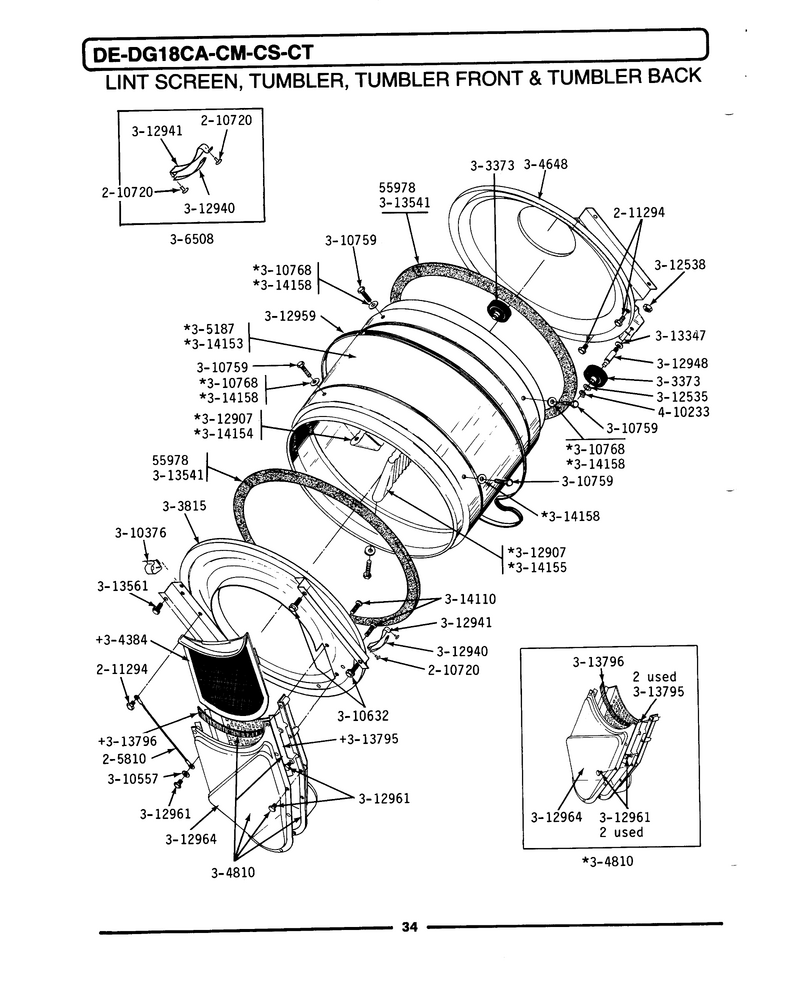

12 - Lint Screen, Tumbler (front & Back)

...
...
NI
Washer WPL-NLA
...
002
Rubber Adh WPL-WPY055978
...
003
Wire, Ground WPL-205810
...
004
Rivet WPL-WP210720
...
005
Screw WPL-WP90767
...
006
Drum Roller/washer Assy. WPL-12001541
...
007
Front- Tum WPL-33001231
...
009
Screen WPL-WP33001003
...
010
Back, Tumbler (w/seal) WPL-33001106
...
011
Outlet Duct & Grid WPL-306657
...
013
Tumbler WPL-305187
...
014
Tumbler Bearing Kit ----W WPL-306508
...
015
Clip, Wire Harness WPL-Y310376
...
016
Washer WPL-310557
...
017
Screw WPL-WP1163839
...
018
Screw WPL-WPY310759
...
020
Washer WPL-WP312535
...
021
Nut- Hex WPL-WP33001443
...
022
Tumbler Baffle WPL-Y312907
...
023
Pad WPL-WP312940
...
024
Tumbler Bearing Kit WPL-306508
...
025
Shaft WPL-WP6-3129480
...
026
Belt WPL-WPY312959
...
027
Screw WPL-WPW10116751
...
028
Outlet Duct - Outer Half WPL-Y312964
...
029
Washer WPL-WP312535
...
030
Seal- Tumb WPL-WP33313541
...
031
Screw WPL-WPY313561
...
032
Guide For Lint Screen WPL-Y313795
...
033
Lint Seal WPL-Y313796
...
034
Screw WPL-WP33002917
...
035
Dryer Tumbler, W/o Baffles WPL-33001108
...
036
Baffle, Tall WPL-33001004
...
037
Washer WPL-WP314158
...
038
Ring-Retnr WPL-WP9703438

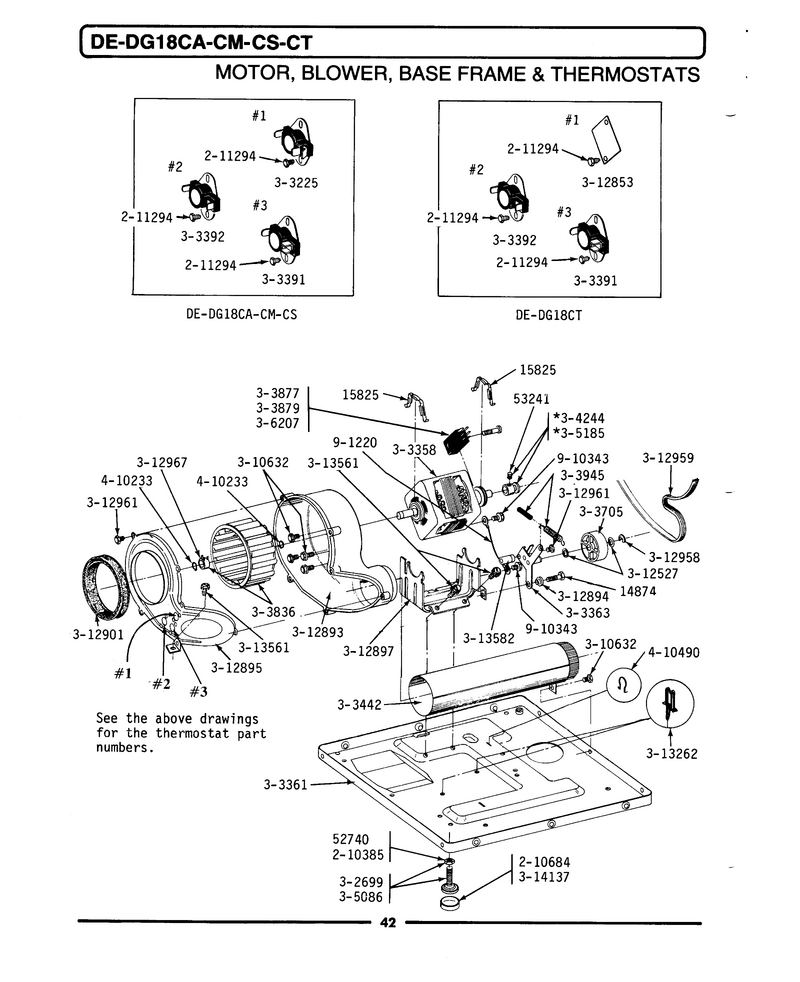

14 - Motor, Blower, Base Frame & Thermostats

...
...
NI
Switch, Motor Start-Prod. WPL-NLA
...
001
Screw WPL-WPY014874
...
002
Clip- Moto WPL-WPY015825
...
003
Nut WPL-WP62739
...
004
Set Screw, Pulley WPL-Y053241
...
005
Nut- Lock WPL-WP210385
...
006
Pad WPL-WP210684
...
007
Screw WPL-WP90767
...
008
Leg, Adjustable (w/nut) WPL-22003428
...
009
Thermostat, Permanent Press WPL-Y303225
...
010
Motor-Drve WPL-W10410999
...
011
Base Assy. WPL-Y303361
...
012
Idler Arm WPL-WP6-3033630
...
013
Thermostat WPL-WP33303391
...
014
Thrmst-Fix WPL-WP694674
...
015
Exhaust Duct Assy. WPL-Y303442
...
016
Pulley WPL-WP6-3037050
...
017
Blower Wheel Assembly & Clamp WPL-Y303836
...
018
Switch, Motor WPL-Y303877
...
019
Switch, Motor Start-Prod. WPL-Y303879
...
020
Idler Spring Assembly WPL-Y303945
...
021
Pulley-Mtr WPL-WP6-3042440
...
023
Feet-Lvlng WPL-W10176519
...
024
Pulley, Motor (w/set Screw) WPL-Y305185
...
026
Screw WPL-WP1163839
...
027
Washer WPL-WPY312527
...
028
Cover For Thermostat Openin WPL-Y312853
...
029
Housing, Blower WPL-Y312893
...
030
Sleeve WPL-WP315772
...
031
Cover For Blower----Na WPL-Y312895
...
033
Seal- Blow WPL-WPY312901
...
034
Ring-E WPL-WP354987
...
035
Belt WPL-WPY312959
...
036
Screw WPL-WPW10116751
...
037
Clamp WPL-WP312967
...
038
Retainer- WPL-W10116752
...
039
Screw WPL-WPY313561
...
040
Spacer WPL-WPW10116756
...
041
Foot- Rubb WPL-WPY314137
...
042
Ring-Retnr WPL-WP9703438
...
043
Spring, Wire Harness WPL-410490
...
044
Wire, Ground WPL-901220
...
045
Screw WPL-WP488234

06 - Ca Control Center

...
...
NI
Gasket Under Control Center WPL-NLA
...
007
Screw WPL-WP90767

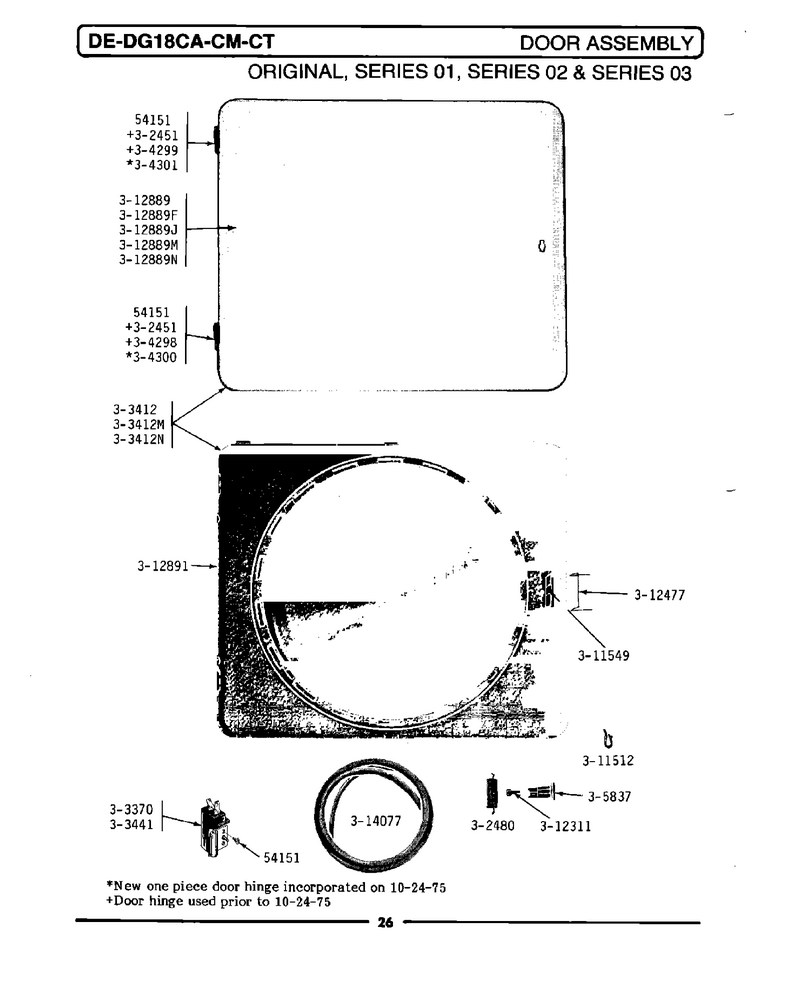

07 - D0or Assembly

...
...
001
Screw, No.4-40 X 1/4 WPL-NLA
...
002
Hinge Assembly----N WPL-NLA
...
003
Latch WPL-NLA
...
004
Door Switch WPL-Y303370
...
005
Door Complete-White WPL-NLA
...
006
Door Complete-Harvest Wheat WPL-NLA
...
007
Door Switch WPL-Y303441
...
008
Hinge - Lower WPL-Y304298
...
009
Hinge - Upper WPL-NLA
...
010
Hinge - Lower WPL-NLA
...
011
Panel Cover WPL-NLA
...
012
Knob And Screw WPL-NLA
...
013
Fastener WPL-NLA
...
014
Wire Clip WPL-NLA
...
015
Screw----Na WPL-NLA
...
016
Magnetic Latch Retainer WPL-NLA
...
017
Door Panel-White WPL-NLA
...
018
Door Panel-Harvest Wheat WPL-NLA
...
019
Door Liner - Inner Half WPL-Y312891
...
020
Door Seal WPL-314077

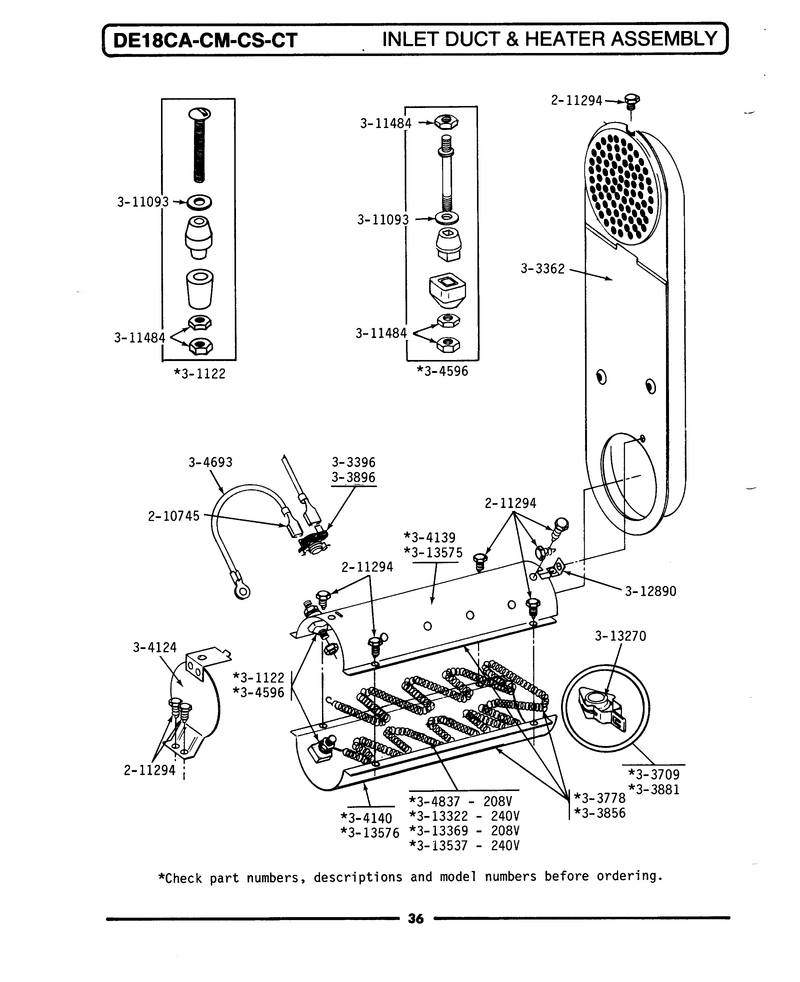

13 - Inlet Duct & Heater Assembly

...
...
NI
Heater Chamber - Bottom WPL-NLA
...
001
Wire Terminal WPL-210745
...
002
Screw WPL-WP90767
...
003
Terminal Insulator Assembly WPL-Y304596
...
004
Inlet Duct Assembly - De WPL-Y303362
...
005
Thrmst-Fix WPL-WP303396
...
006
Clip And Insulator Assembly WPL-303709
...
007
Heater Asy WPL-WPY303778
...
008
Heater Assembly Complete WPL-Y303856
...
009
Clip And I WPL-WPY303881
...
010
Hi-Limit T WPL-WP303896
...
011
Heater Shield WPL-304124
...
014
Terminal Insulator Assembly WPL-Y304596
...
015
Harns-Wire WPL-WPY304693
...
016
Element WPL-W10116793
...
017
Washer- 7 WPL-WP311093
...
018
Nut WPL-WP112432
...
019
Retainer, Heater Chamber WPL-Y312890
...
020
Insulator For Heater Elemen WPL-Y313270
...
021
Heater Element - De Models WPL-Y313322
...
023
Heater Element 240 Volt WPL-Y313537
...
024
Heater Chamber, Top WPL-Y313575
...
025
Heater Chamber, Bottom WPL-Y313576

03 - Rear View

...
...
NI
Cabinet-Harvest Wheat WPL-NLA
...
001
Nut WPL-WP62739
...
002
Nut- Lock WPL-WP210385
...
004
Screw WPL-WP90767
...
005
Grommet, Cord WPL-211881
...
008
Power Cord WPL-302521
...
009
Leg, Adjustable (w/nut) WPL-22003428
...
023
Feet-Lvlng WPL-W10176519
...
024
Washer WPL-310557
...
025
Screw WPL-WP1163839
...
027
Screw WPL-WP90767
...
028
Screw WPL-WPY313561
...
029
Foot- Rubb WPL-WPY314137

10 - Front Panel & Door Assy (series 06)

...
...
NI
Front Panel-White WPL-NLA
...
001
Screw & Fstner Assy(frt.panel) WPL-204439
...
003
Switch-Dor WPL-W10169313
...
004
Door Hinge ----S WPL-Y304577
...
005
Door WPL-Y306668
...
013
Door Latch Kit--W WPL-306436
...
014
Clip, Wire Harness WPL-Y310376
...
017
Twin Fastener WPL-Y313907
...
018
Door Panel-White WPL-Y313908
...
021
Clip, Door Liner To Outer Pnl WPL-Y313910
...
022
Door Strike Retainer WPL-Y313911
...
024
Latch For Access Door WPL-Y314025
...
025
Screw WPL-Y314062
...
026
Door Seal WPL-314077
...
028
Seal For Front Panel WPL-314286
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
