Maytag FC20

Model: FC20

Save Part Not Listed?
product name

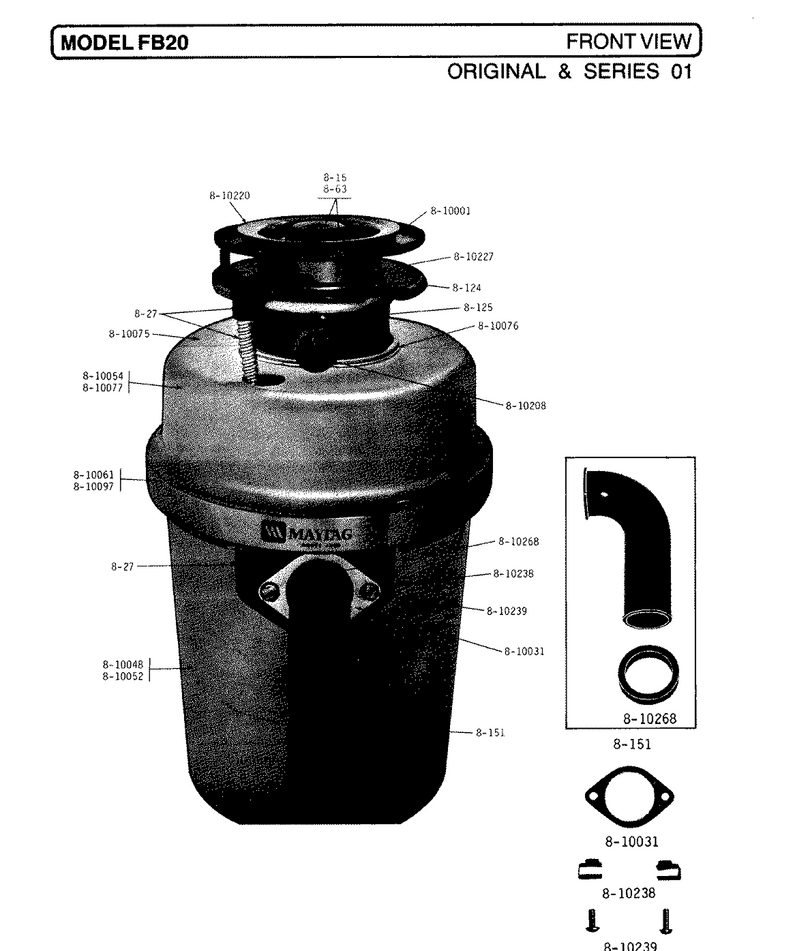

04 - Front View (fb20)

...
...
2
Auto-Start Lid Complete-Fb WPL-800015
...
3
Mounting Plate-Lower-W/clip WPL-800026
...
4
Auto-Start Sw & Conduit Ass WPL-800027
...
5
Grinding Chamber Assembly WPL-800053
...
6
Mounting Bolt Kit WPL-800060
...
7
Seal Kit For Auto-Start Lid WPL-800063
...
8
Mounting Plate With Bolts WPL-800077
...
9
Upper & Lower Mtg Plates WPL-800101
...
10
Lower Mounting Plate Assm WPL-800124
...
11
Grinding Chamber Assembly WPL-800125
...
12
Drain Elbow With Gasket WPL-800151
...
13
Sink Flange Kit WPL-800200
...
14
Gasket For Sink Flange WPL-810001
...
15
Mounting Plate-Upper WPL-810012
...
16
Mounting Plate-Drain Elbow WPL-810031
...
17

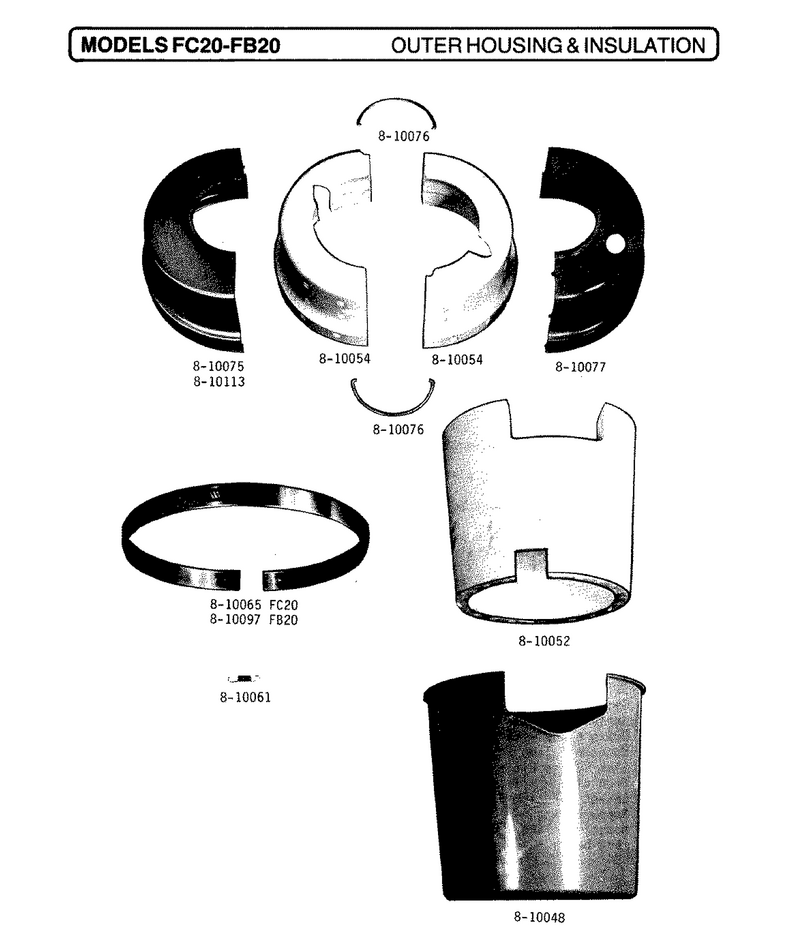

Lower Housing Fc & Fb20 WPL-810048
...
18
Insulation-Lower Housing WPL-810052
...
19
Top Insulation Half-Channel WPL-810054
...
20
Spring - Retainer WPL-810334
...
21
Top Half Cover W/o Hole WPL-810075
...
22
Spring Retainer-Top Housing WPL-810076
...
23
Top Housing Half WPL-810077
...
24
Housing Clamp WPL-810097
...
25
Plug For Upper Housing WPL-810208
...
26
Sink Flange WPL-810220
...
27
Mounting Bolt WPL-810227
...
28
Retainer WPL-810238
...
29
Screw WPL-810239
...
30
Gasket For Drain Elbow WPL-810268

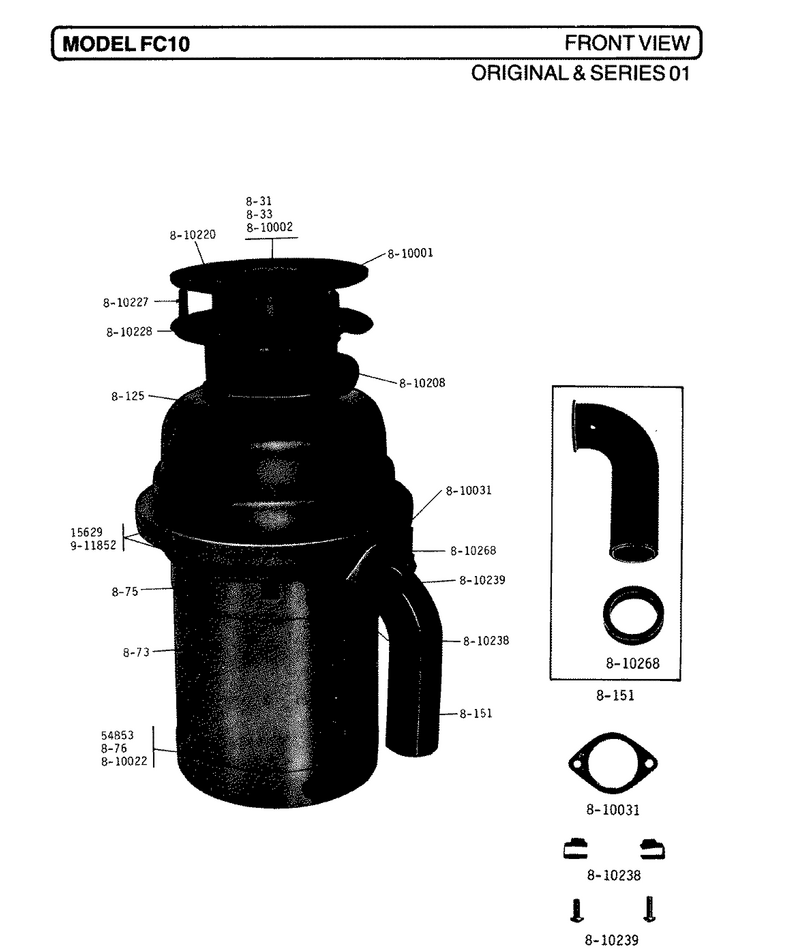

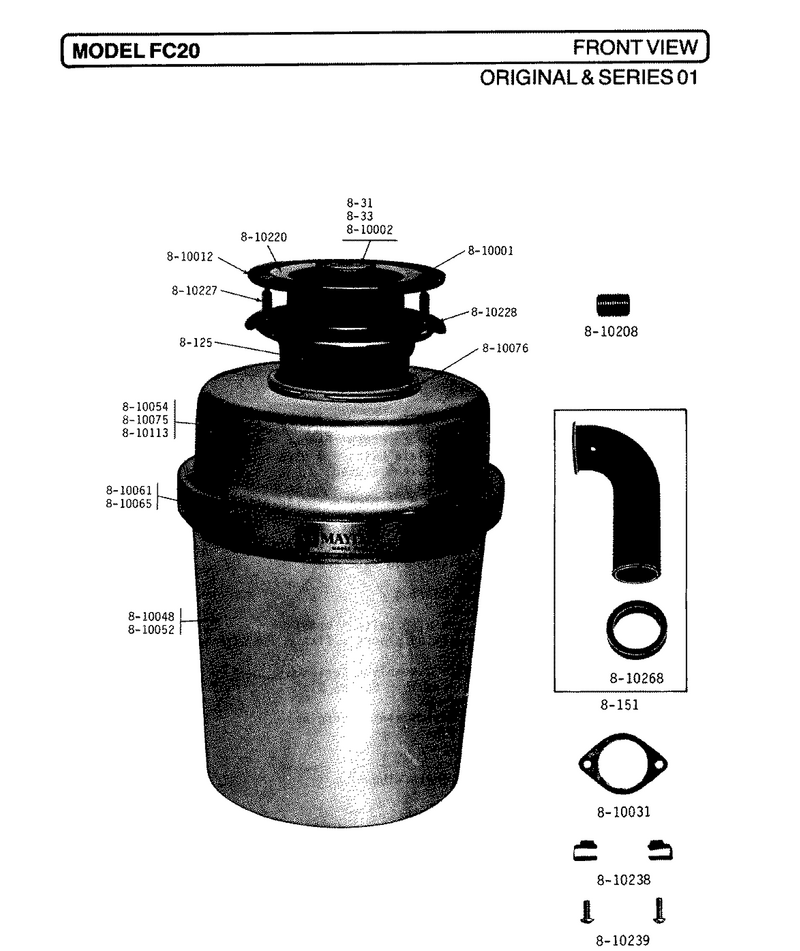

05 - Front View (fc10)

...
...
2
Nut WPL-Y052734
...
3
Lock Washer,thru-Bolt WPL-054853
...
4
Splash Shield W/support - F WPL-Y800031
...
5
Lid - Fc WPL-800033
...
6
Grinding Chamber Assembly WPL-800053
...
7
Mounting Bolt Kit WPL-800060
...
8
Stator With Relay WPL-800073
...
9
Drain Chamber With Bearing WPL-Y800075
...
10
End Bell With Screws WPL-800076
...
11
Mounting Plate With Bolts WPL-800077
...
12
Grinding Chamber Assembly WPL-800125
...
13
Drain Elbow With Gasket WPL-800151
...
14
Sink Flange Kit WPL-800200
...
15
Gasket For Sink Flange WPL-810001
...
16
Support Ring WPL-810002
...
17
Mounting Plate-Upper WPL-810012
...
18
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
19
Johnson Co WPL-WFR810030
...
20
Mounting Plate-Drain Elbow WPL-810031
...
21
Gasket, Stopper WPL-Y08300004
...
22
Plug For Upper Housing WPL-810208
...
23
Sink Flange WPL-810220
...
24
Mounting Bolt WPL-810227
...
25
Mounting Plate-Lower WPL-810228
...
26
Retainer WPL-810238
...
27
Screw WPL-810239
...
28
Gasket For Drain Elbow WPL-810268
...
29
Washer, Lock (brace) WPL-911852

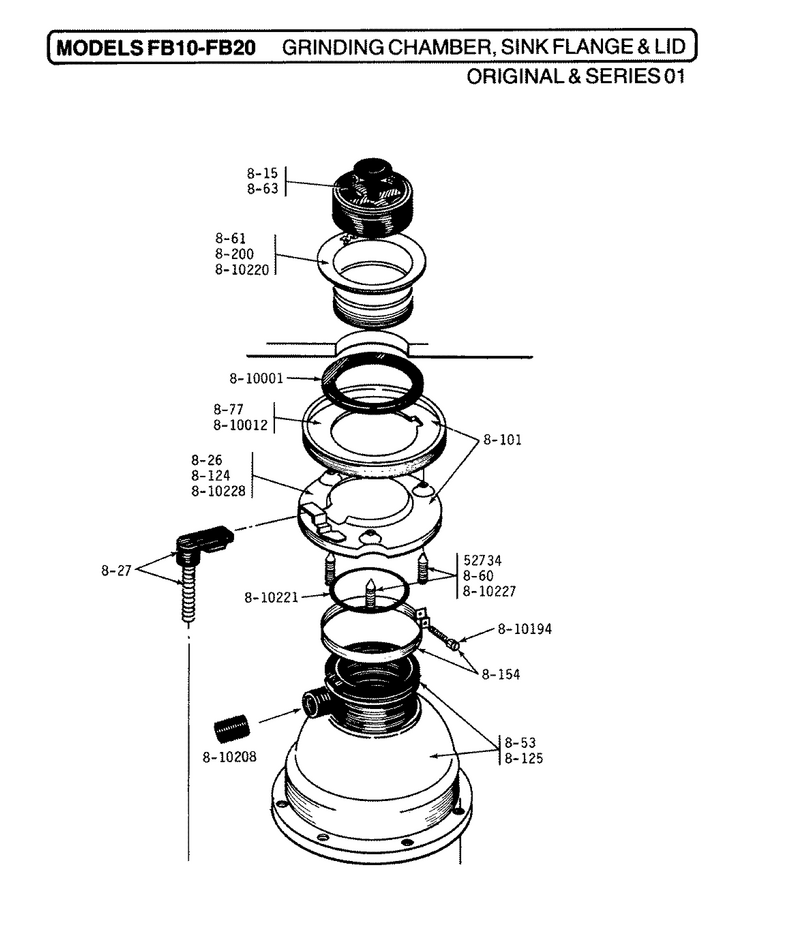

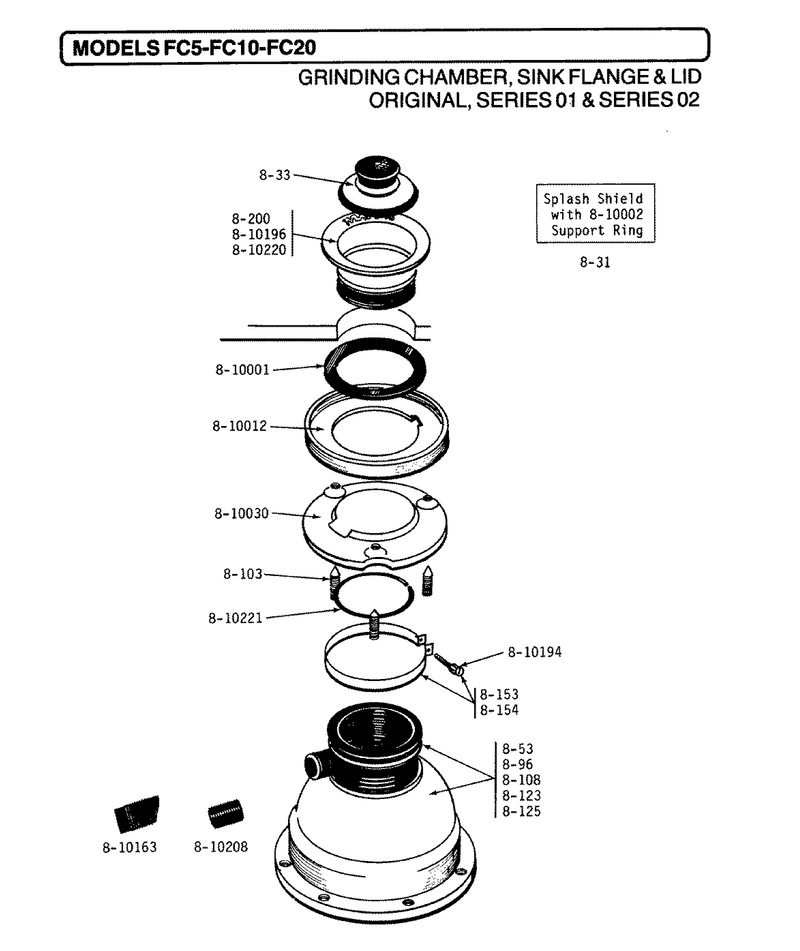

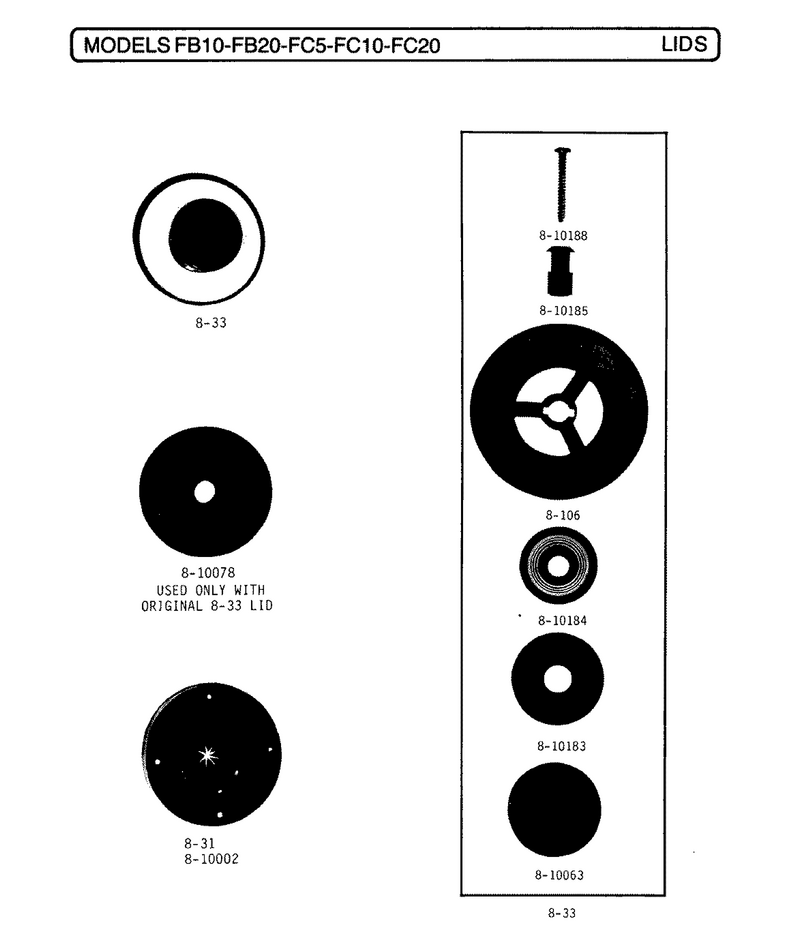

08 - Grinding Chamber, Sink Flange & Lid

...
...
2
Auto-Start Lid Complete-Fb WPL-800015
...
3
Mounting Plate-Lower-W/clip WPL-800026
...
4
Auto-Start Sw & Conduit Ass WPL-800027
...
5
Grinding Chamber Assembly WPL-800053
...
6
Mounting Bolt Kit WPL-800060
...
7
Sink Flange Kit WPL-800061
...
8
Seal Kit For Auto-Start Lid WPL-800063
...
9
Mounting Plate With Bolts WPL-800077
...
10
Upper & Lower Mtg Plates WPL-800101
...
11
Lower Mounting Plate Assm WPL-800124
...
12
Grinding Chamber Assembly WPL-800125
...
13
Mounting Clamp Kit WPL-800154
...
14
Sink Flange Kit WPL-800200
...
15
Gasket For Sink Flange WPL-810001
...
16
Mounting Plate-Upper WPL-810012
...
17
Screw WPL-810194
...
18
Plug For Upper Housing WPL-810208
...
19
Sink Flange WPL-810220
...
20
Retaining Ring WPL-810221
...
22
Mounting Bolt WPL-810227
...
23
Mounting Plate-Lower WPL-810228

06 - Front View (fc20)

...
...
1
Nut WPL-Y052734
...
2
Splash Shield W/support - F WPL-Y800031
...
3
Lid - Fc WPL-800033
...
4
Grinding Chamber Assembly WPL-800053
...
5
Mounting Bolt Kit WPL-800060
...
6
Mounting Plate With Bolts WPL-800077
...
7
Grinding Chamber Assembly WPL-800125
...
8
Drain Elbow With Gasket WPL-800151
...
9
Sink Flange Kit WPL-800200
...
10
Gasket For Sink Flange WPL-810001
...
11
Support Ring WPL-810002
...
12
Mounting Plate-Upper WPL-810012
...
13
Johnson Co WPL-WFR810030
...
14
Mounting Plate-Drain Elbow WPL-810031
...
15
Lower Housing Fc & Fb20 WPL-810048
...
16
Insulation-Lower Housing WPL-810052
...
17
Top Insulation Half-Channel WPL-810054
...
18
Spring - Retainer WPL-810334
...
19
Spring - Retainer WPL-810334
...
20
Housing Clamp WPL-810065
...
21
Top Half Cover W/o Hole WPL-810075
...
22
Spring Retainer-Top Housing WPL-810076
...
23
Gasket, Stopper WPL-Y08300004
...
24
Top Half Cover W/o Hole WPL-810113
...
25
Plug For Upper Housing WPL-810208
...
26
Sink Flange WPL-810220
...
27
Mounting Bolt WPL-810227
...
28
Mounting Plate-Lower WPL-810228
...
29
Retainer WPL-810238
...
30
Screw WPL-810239
...
31
Gasket For Drain Elbow WPL-810268

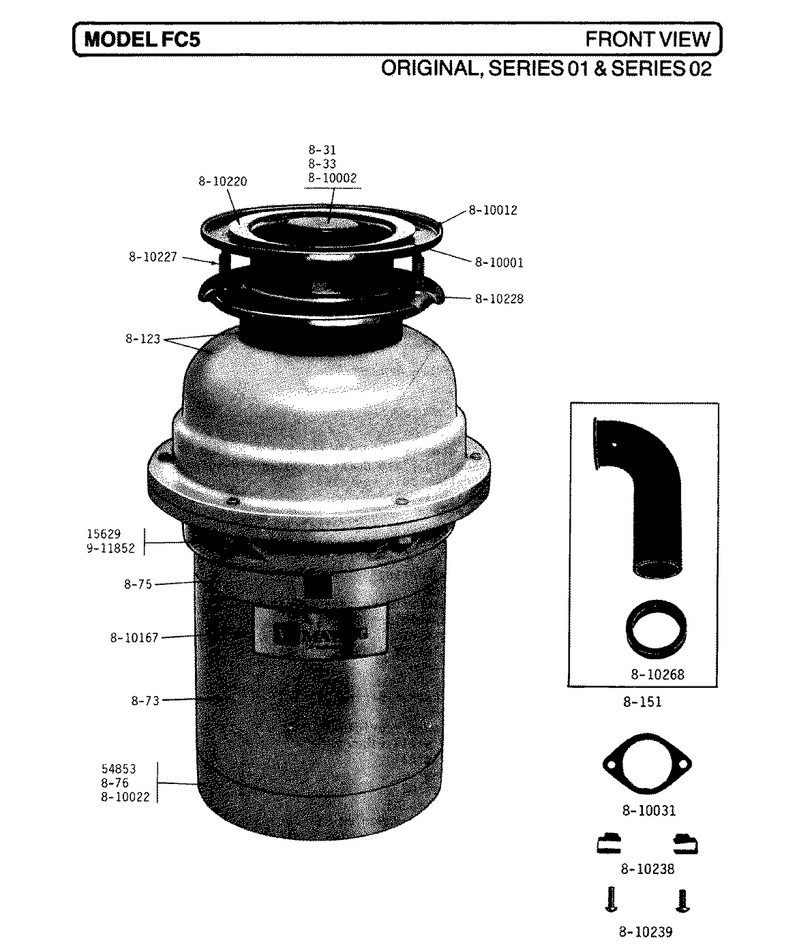

07 - Front View (fc5)

...
...
2
Nut WPL-Y052734
...
3
Lock Washer,thru-Bolt WPL-054853
...
4
Splash Shield W/support - F WPL-Y800031
...
5
Lid - Fc WPL-800033
...
6
Stator With Relay WPL-800073
...
7
Drain Chamber With Bearing WPL-Y800075
...
8
End Bell With Screws WPL-800076
...
9
Grinding Chamber WPL-800096
...
10
Mounting Bolt Kit WPL-800103
...
11
Grinding Chamber WPL-800108
...
12
Grinding Chamber Assembly WPL-800123
...
13
Drain Elbow With Gasket WPL-800151
...
14
Band Kit WPL-800153
...
15
Sink Flange Kit WPL-800200
...
16
Gasket For Sink Flange WPL-810001
...
17
Support Ring WPL-810002
...
18
Mounting Plate-Upper WPL-810012
...
19
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
20
Johnson Co WPL-WFR810030
...
21
Mounting Plate-Drain Elbow WPL-810031
...
22
Gasket, Stopper WPL-Y08300004
...
23
Plug For Housing Liner WPL-810163
...
24
Mounting Plate WPL-810164
...
25
Decal WPL-810167
...
26
Mounting Clamp WPL-810191
...
27
Screw WPL-810194
...
28
Mounting Bolt, 5/16 X 1-1/2 WPL-810195
...
29
Sink Flange WPL-810196
...
30
Lower Mounting Plate WPL-810197
...
31
Sink Flange WPL-810220
...
32
Retaining Ring WPL-810221
...
33
Mounting Bolt WPL-810227
...
34
Mounting Plate-Lower WPL-810228
...
35
Retainer WPL-810238
...
36
Screw WPL-810239
...
37
Gasket For Drain Elbow WPL-810268
...
38
Washer, Lock (brace) WPL-911852

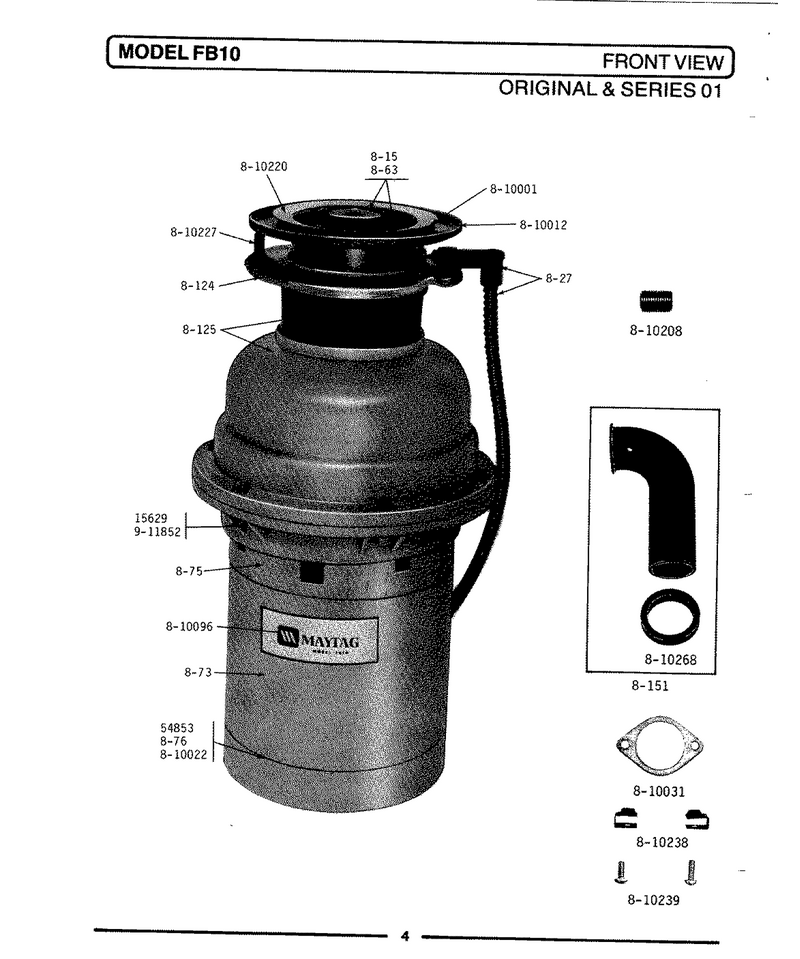

03 - Front View (fb10)

...
...
2
Nut WPL-Y052734
...
3
Lock Washer,thru-Bolt WPL-054853
...
4
Auto-Start Lid Complete-Fb WPL-800015
...
5
Mounting Plate-Lower-W/clip WPL-800026
...
6
Auto-Start Sw & Conduit Ass WPL-800027
...
7
Grinding Chamber Assembly WPL-800053
...
8
Mounting Bolt Kit WPL-800060
...
9
Seal Kit For Auto-Start Lid WPL-800063
...
10
Stator With Relay WPL-800073
...
11
Drain Chamber With Bearing WPL-Y800075
...
12
End Bell With Screws WPL-800076
...
13
Mounting Plate With Bolts WPL-800077
...
14
Upper & Lower Mtg Plates WPL-800101
...
15
Lower Mounting Plate Assm WPL-800124
...
16
Grinding Chamber Assembly WPL-800125
...
17
Drain Elbow With Gasket WPL-800151
...
18
Sink Flange Kit WPL-800200
...
19
Gasket For Sink Flange WPL-810001
...
20
Mounting Plate-Upper WPL-810012
...
21
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
22
Mounting Plate-Drain Elbow WPL-810031
...
23
Decal WPL-810096
...
24
Plug For Upper Housing WPL-810208
...
25
Sink Flange WPL-810220
...
26
Mounting Bolt WPL-810227
...
27
Retainer WPL-810238
...
28
Screw WPL-810239
...
29
Gasket For Drain Elbow WPL-810268
...
30
Washer, Lock (brace) WPL-911852

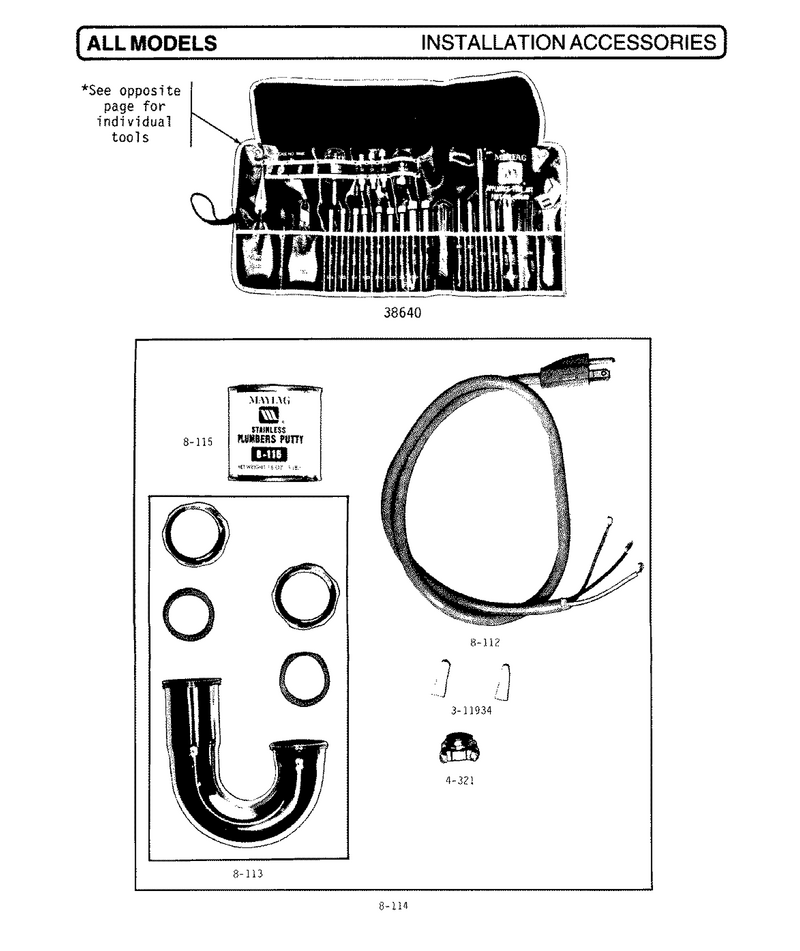

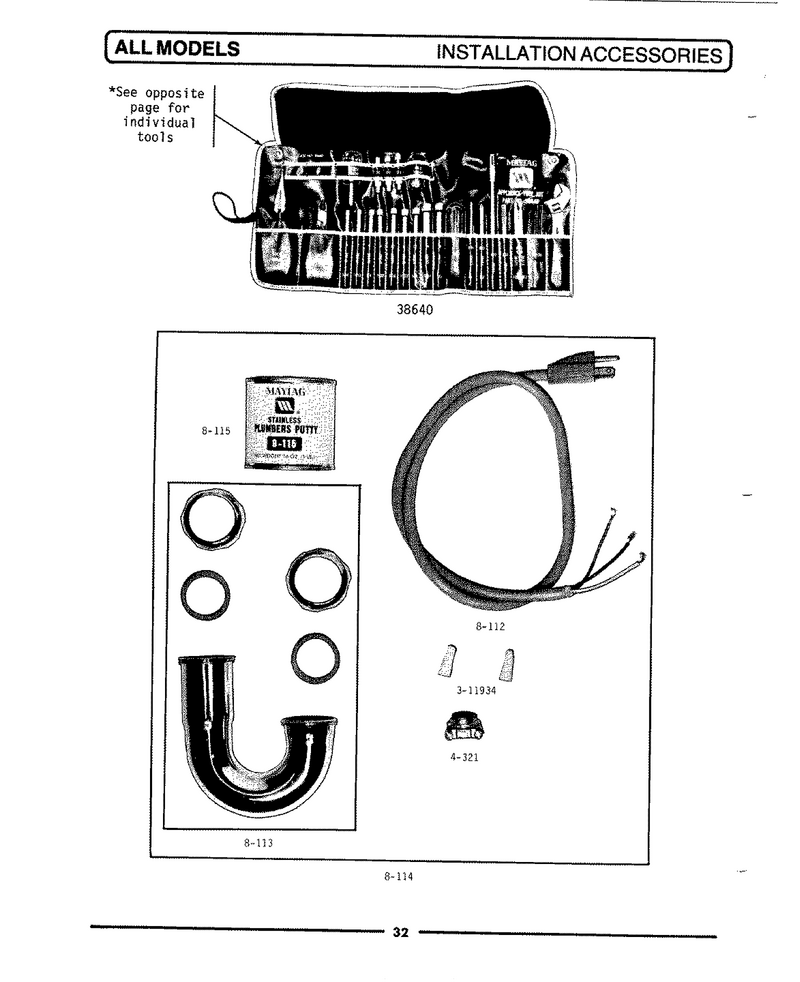

10 - Installation Accessories

...
...
1
Maytag Regular Driver Handl WPL-038569
...
2
1/4 Magnetic Nutdriver WPL-038570
...
3
5/16 Magnetic Nutdriver WPL-038571
...
4
1/8 Allen Driver WPL-038572
...
5
3/16 Allen Driver WPL-038573
...
6
No. 2 Pozi-Driv Bit WPL-038574
...
7
No. 3 Pozi-Driv Bit WPL-038575
...
8
Appliance Tool Kit WPL-038640
...
9
Needle Nose Pliers-6 Inch WPL-038641
...
10
Diagonal Cutters-5 Inch WPL-038642
...
11
Adjustable Wrench-6 Inch WPL-038643
...
12
Stubby Maytag Driver Handle WPL-038644
...
13
3/16 Nutdriver WPL-038645
...
14
7/32 Nutdriver WPL-038646
...
15
9/32 Nutdriver WPL-038647
...
16
11/32 Nutdriver WPL-038648
...
17
3/8 Nutdriver WPL-038649
...
18
7/16 Nutdriver WPL-038650
...
19
1/2 Nutdriver WPL-038651
...
20
No. 1 Phillips Blade WPL-038652
...
21
No. 2 Phillips Blade WPL-038653
...
22
1/4 Std Screwdriver Blade WPL-038654
...
23
Extension Shaft WPL-038655
...
24
1/4 Short Nutdriver WPL-038656
...
25
5/16 Short Nutdriver WPL-038657
...
26
3/8 Short Nutdriver WPL-038658
...
27
No. 2 Short Phillips Driver WPL-Y038659
...
28
Special Maytag Canvas Case WPL-038660
...
29
Installation Guide-Disposer WPL-Y056168
...
30
Clamp WPL-WP285655
...
31
Clamp WPL-WP616099
...
32
Wire Nut WPL-311934
...
33
Strain Relief, Power Cord (metallic) WPL-4396672
...
34
Drain Adapter Kit WPL-800093
...
35
Power Cord WPL-800112
...
36
J Bend With Nuts & Washers WPL-800113
...
37
Disposer Installation Kit WPL-800114
...
38
Plumbers Putty - 1 Lb Can WPL-800115
...
39
Brass Adapter WPL-810158
...
40
Drain Adapter Kit WPL-900434
...
41
Rubber Adapter WPL-910982

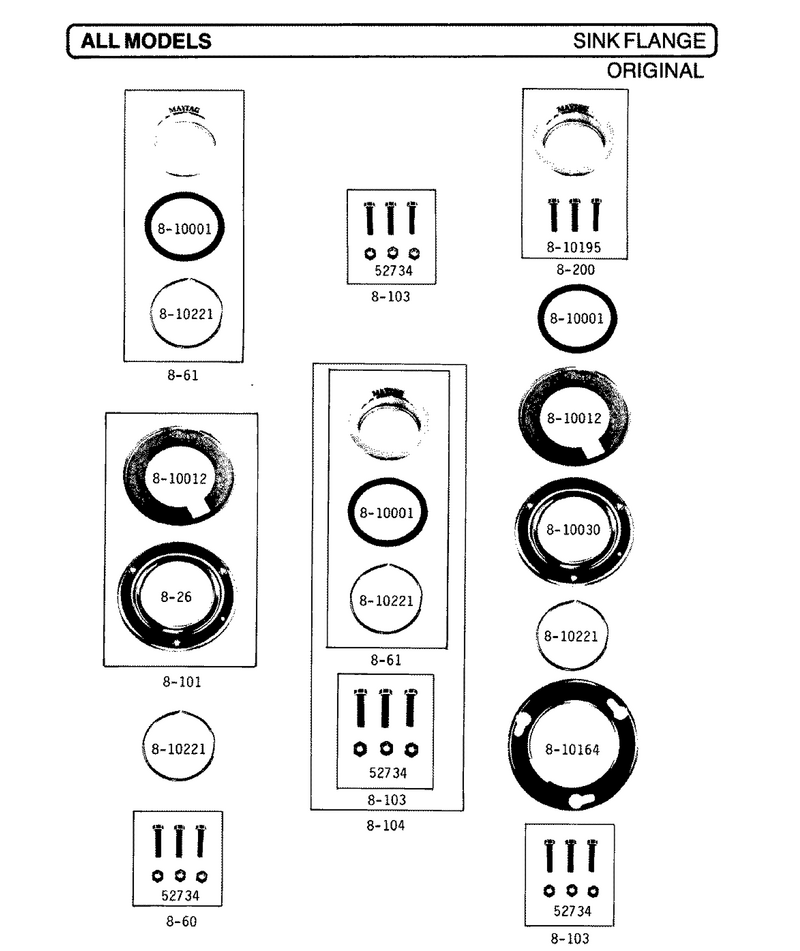

13 - Sink Flange

...
...
1
Nut WPL-Y052734
...
3
Mounting Bolt Kit WPL-800060
...
4
Sink Flange Kit WPL-800061
...
6
Mounting Bolt Kit WPL-800103
...
8
Sink Flange Kit WPL-800200
...
9
Gasket For Sink Flange WPL-810001
...
10
Mounting Plate-Upper WPL-810012
...
11
Johnson Co WPL-WFR810030
...
12
Mounting Plate WPL-810164
...
13
Mounting Bolt, 5/16 X 1-1/2 WPL-810195
...
14
Retaining Ring WPL-810221

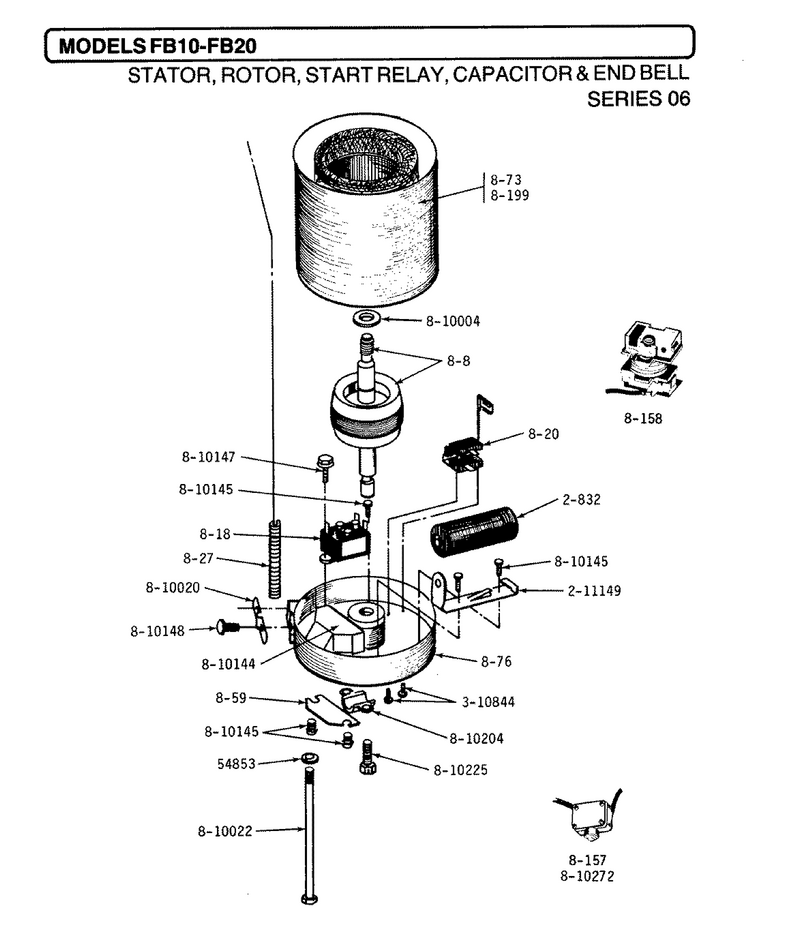

15 - Statr,rotor,relay,cptr,bell (fb10,fb20)

...
...
2
Capacitor WPL-Y200832
...
3
Clip, Capacitor WPL-211149
...
4
Screw WPL-WPW10068250
...
5
Rotor With Slinger WPL-800008
...
6
Relay For Auto-Start Sw-Fb WPL-800018
...
7
Relay - Start & Overload WPL-800020
...
8
Auto-Start Sw & Conduit Ass WPL-800027
...
9
Terminal Cover Plate & Scre WPL-800059
...
10
Stator With Relay WPL-800073
...
11
End Bell With Screws WPL-800076
...
12
Motor Protector-Batch WPL-Y800157
...
13
Start Relay WPL-800158
...
14
Stator With Relay WPL-800199
...
15
Oil Slinger, Bottom-Rubber WPL-810004
...
16
Clamp For Conduit WPL-810020
...
17
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
18
Wire Shield WPL-810144
...
19
Screw WPL-810145
...
20
Screw WPL-810147
...
21
Screw WPL-810148
...
22
Cable Clamp WPL-810204
...
23
Screw WPL-W11233072
...
24
Motor Protector Bracket WPL-810272

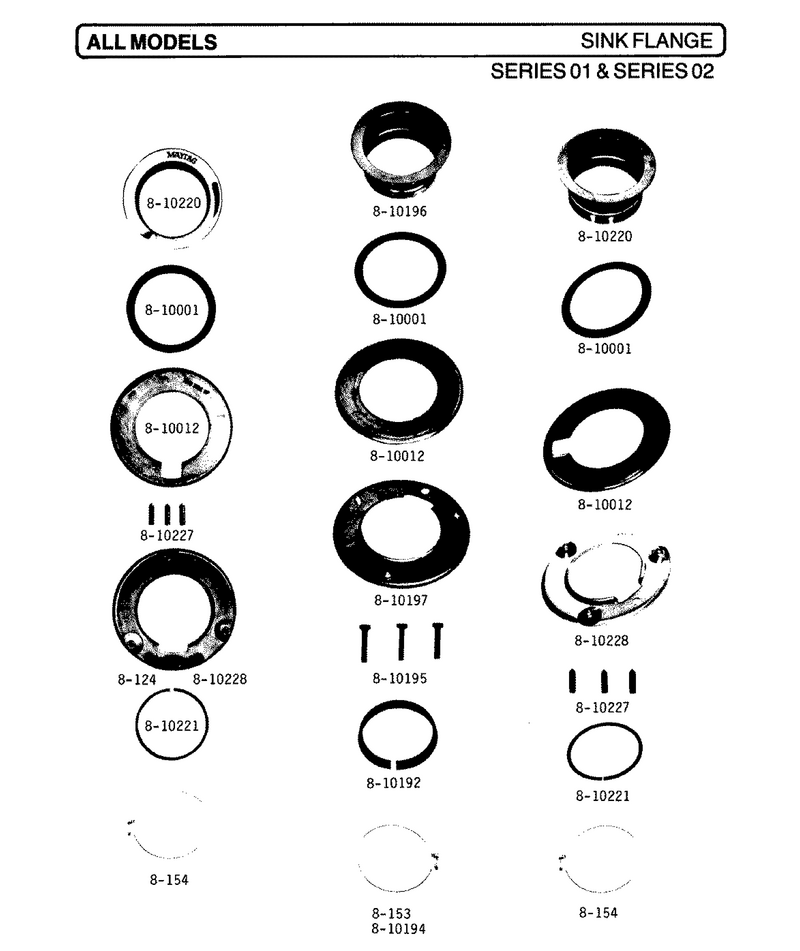

14 - Sink Flange (series 01)

...
...
2
Band Kit WPL-800153
...
3
Mounting Clamp Kit WPL-800154
...
4
Gasket For Sink Flange WPL-810001
...
5
Mounting Plate-Upper WPL-810012
...
6
Retaining Ring WPL-810192
...
7
Screw WPL-810194
...
9
Sink Flange WPL-810196
...
11
Sink Flange WPL-810220
...
12
Retaining Ring WPL-810221
...
13
Mounting Bolt WPL-810227
...
14
Mounting Plate-Lower WPL-810228

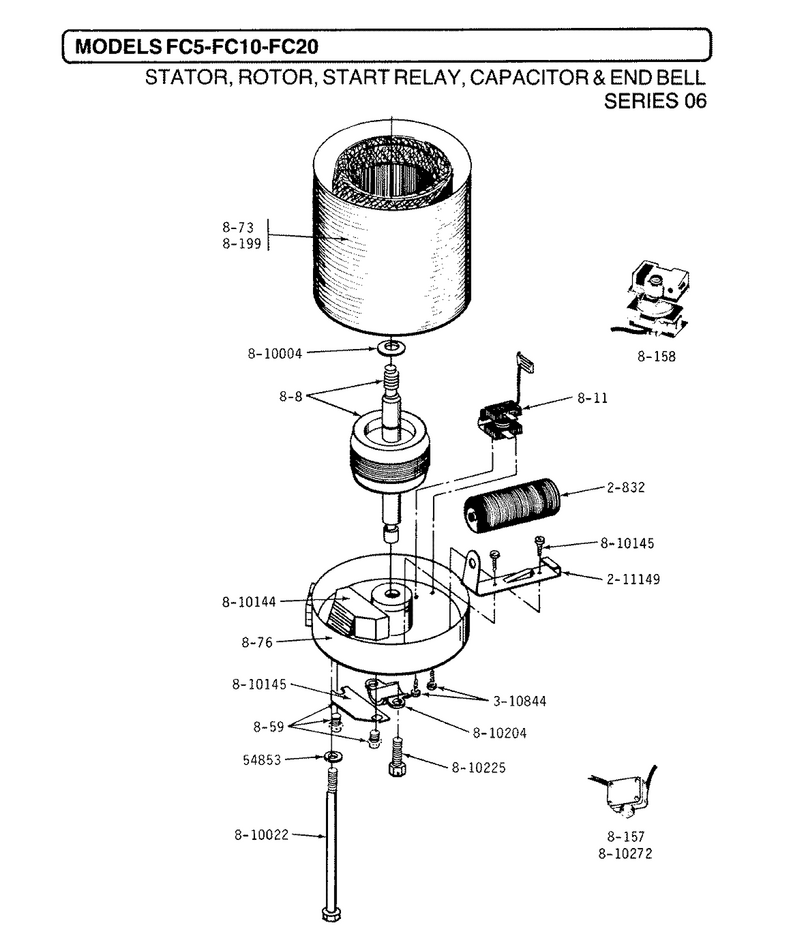

16 - Statr,rotor,relay,cptr,bell (fc5,10,20)

...
...
1
Lock Washer,thru-Bolt WPL-054853
...
2
Capacitor WPL-Y200832
...
3
Clip, Capacitor WPL-211149
...
4
Screw WPL-WPW10068250
...
5
Rotor With Slinger WPL-800008
...
6
Relay-Start & Overload WPL-800011
...
7
Terminal Cover Plate & Scre WPL-800059
...
8
Stator With Relay WPL-800073
...
9
End Bell With Screws WPL-800076
...
10
Motor Protector-Batch WPL-Y800157
...
11
Start Relay WPL-800158
...
12
Stator With Relay WPL-800199
...
13
Oil Slinger, Bottom-Rubber WPL-810004
...
14
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
15
Wire Shield WPL-810144
...
16
Screw WPL-810145
...
17
Cable Clamp WPL-810204
...
18
Screw WPL-W11233072
...
19
Motor Protector Bracket WPL-810272

02 - Electrical Components

...
...
1
Capacitor WPL-Y200832
...
2
Rotor With Slinger WPL-800008
...
3
Relay-Start & Overload WPL-800011
...
4
Relay For Auto-Start Sw-Fb WPL-800018
...
6
Auto-Start Sw & Conduit Ass WPL-800027
...
7
Motor Protector-Continuous WPL-800156
...
9
Start Relay WPL-800158
...
10
Start Relay - Canada WPL-800159
...
11
Stator With Relay WPL-800199
...
12
Oil Slinger, Bottom-Rubber WPL-810004
...
13
75v Dsi Bu WPL-WFR810047
...
14
Motor Protector Bracket WPL-810272

09 - Grinding Chamber, Sink Flange & Lid (01)

...
...
1
Splash Shield W/support - F WPL-Y800031
...
2
Lid - Fc WPL-800033
...
3
Grinding Chamber Assembly WPL-800053
...
5
Mounting Bolt Kit WPL-800103
...
8
Grinding Chamber Assembly WPL-800125
...
9
Band Kit WPL-800153
...
10
Mounting Clamp Kit WPL-800154
...
11
Sink Flange Kit WPL-800200
...
12
Gasket For Sink Flange WPL-810001
...
13
Support Ring WPL-810002
...
14
Mounting Plate-Upper WPL-810012
...
15
Johnson Co WPL-WFR810030
...
16
Plug For Housing Liner WPL-810163
...
17
Screw WPL-810194
...
19
Plug For Upper Housing WPL-810208
...
20
Sink Flange WPL-810220
...
21
Retaining Ring WPL-810221

11 - Lids

...
...
4
Splash Shield W/support - F WPL-Y800031
...
5
Lid - Fc WPL-800033
...
7
Lid - Less Knob WPL-800106
...
8
Support Ring WPL-810002
...
9
Knob For Lid WPL-810063
...
10
Gasket, Stopper WPL-Y08300004
...
11
Seal For Knob WPL-810183
...
12
Washer For Knob WPL-810184
...
13
Shaft WPL-810185
...
14
Screw For Shaft WPL-810188

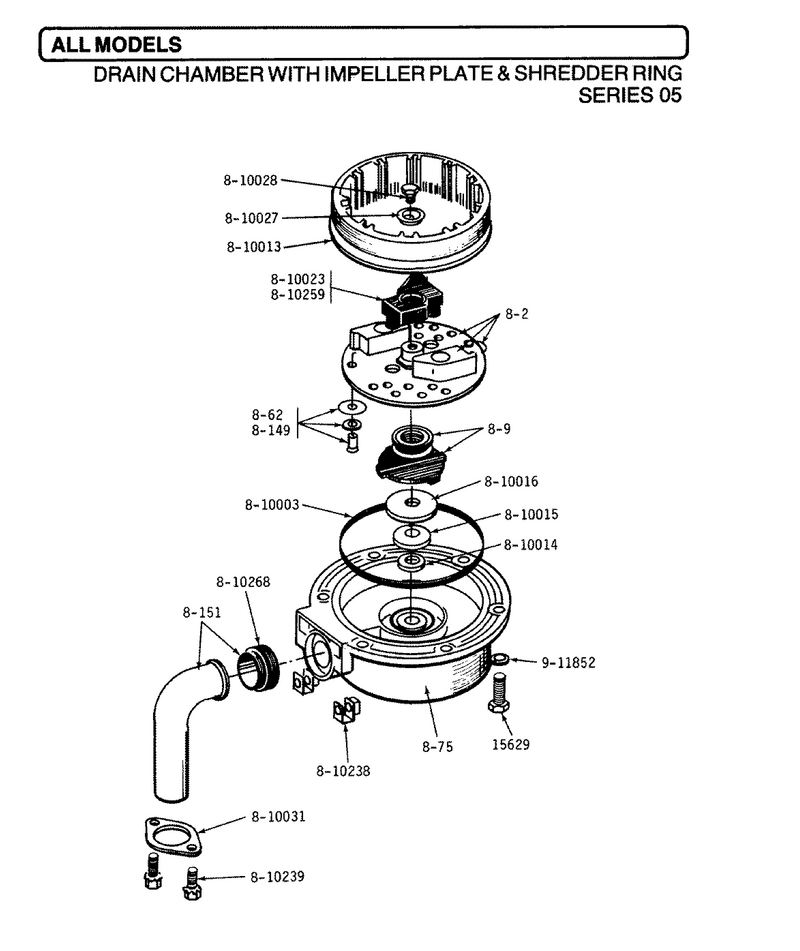

01 - Drain Chamber/impeller Plate & Shredder

...
...
1
Bolt, Grinding Chamber-Drai WPL-Y015629
...
2
Impeller Plate Complete WPL-Y800002
...
3
Boot Seal Complete WPL-800009
...
4
Undercutter Blades & Rivets WPL-800062
...
5
Drain Chamber With Bearing WPL-Y800075
...
6
Undercutter Knives & Rivets WPL-800149
...
7
Drain Elbow With Gasket WPL-800151
...
8
Gasket-Shredder Ring-Drain WPL-810003
...
9
Shredder Ring WPL-810013
...
10
Thrust Washer-Stainless Stl WPL-810014
...
11
Oil Slinger, Top-Stainless WPL-810015
...
12
Water Slinger-Stainless Stl WPL-810016
...
13
Cushion For Impeller Arms WPL-810023
...
14
Retaining Washer Ss-Cushion WPL-810027
...
15
Bolt-Ss-Cushion-Impeller Pl WPL-810028
...
16
Mounting Plate-Drain Elbow WPL-810031
...
17
Retainer WPL-810238
...
18
Screw WPL-810239
...
19
Cushion For Impeller Arms WPL-810259
...
20
Gasket For Drain Elbow WPL-810268
...
21
Washer, Lock (brace) WPL-911852

12 - Outer Housing & Insulation (fb20/fc20)

...
...
1
Lower Housing Fc & Fb20 WPL-810048
...
2
Insulation-Lower Housing WPL-810052
...
3
Top Insulation Half-Channel WPL-810054
...
4
Spring - Retainer WPL-810334
...
5
Housing Clamp WPL-810065
...
6
Top Half Cover W/o Hole WPL-810075
...
7
Spring Retainer-Top Housing WPL-810076
...
10
Top Half Cover W/o Hole WPL-810113
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
