Maytag FC11

Model: FC11

Save Part Not Listed?
product name

11 - Outer Housing & Insulation (fb21/fc21)

...
...
2
Top Insulation Half-Channel WPL-810054
...
3
Spring - Retainer WPL-810334
...
4
Spring Retainer-Top Housing WPL-810076
...
5
Cover, Bottom WPL-810306
...
6
Clamp Cover WPL-810307
...
7
Cover, Top Half WPL-810311
...
9
Cover Top Half WPL-810313

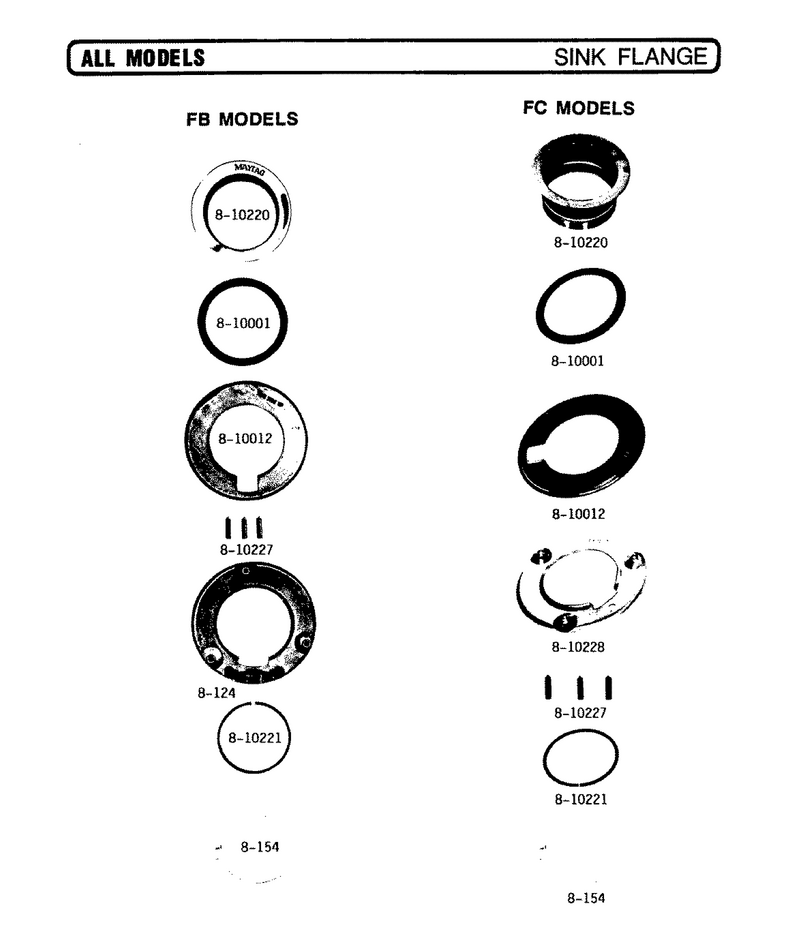

12 - Sink Flange

...
...
2
Mounting Clamp Kit WPL-800154
...
3
Gasket For Sink Flange WPL-810001
...
4
Mounting Plate-Upper WPL-810012
...
5
Sink Flange WPL-810220
...
6
Retaining Ring WPL-810221
...
7
Mounting Bolt WPL-810227
...
8
Mounting Plate-Lower WPL-810228

...
...
1
Maytag Regular Driver Handl WPL-038569
...
2
1/4 Magnetic Nutdriver WPL-038570
...
3
5/16 Magnetic Nutdriver WPL-038571
...
4
1/8 Allen Driver WPL-038572
...
5
3/16 Allen Driver WPL-038573
...
6
No. 2 Pozi-Driv Bit WPL-038574
...
7
No. 3 Pozi-Driv Bit WPL-038575
...
8

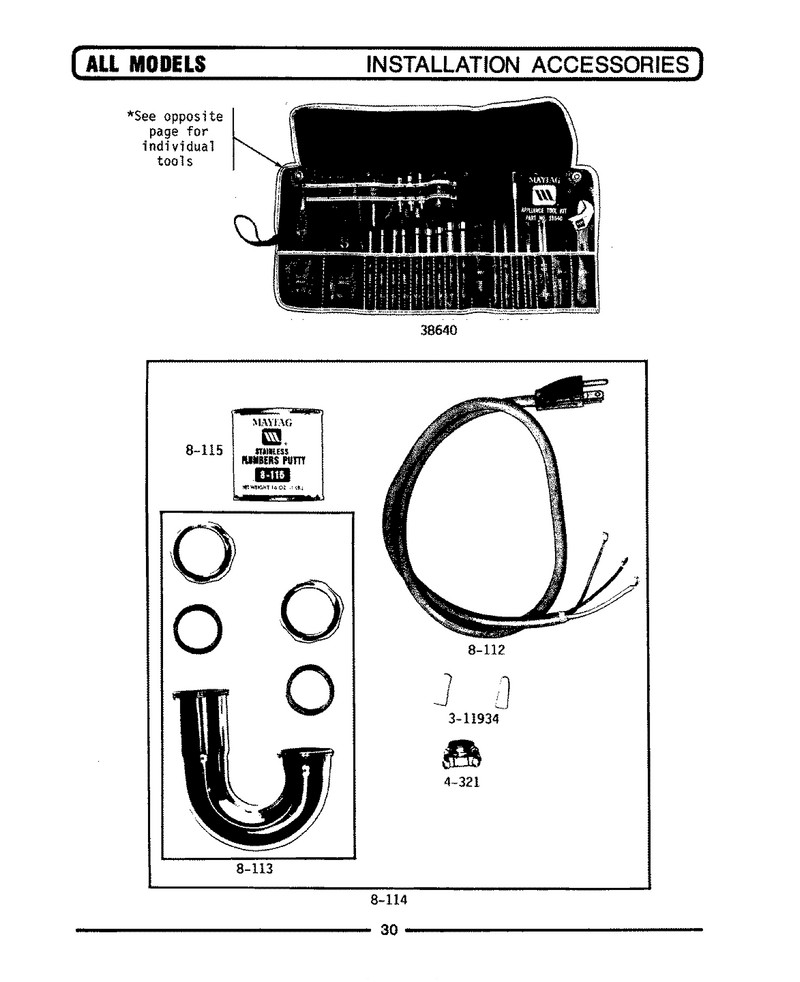

Appliance Tool Kit WPL-038640
...
9
Needle Nose Pliers-6 Inch WPL-038641
...
10
Diagonal Cutters-5 Inch WPL-038642
...
11
Adjustable Wrench-6 Inch WPL-038643
...
12
Stubby Maytag Driver Handle WPL-038644
...
13
3/16 Nutdriver WPL-038645
...
14
7/32 Nutdriver WPL-038646
...
15
9/32 Nutdriver WPL-038647
...
16
11/32 Nutdriver WPL-038648
...
17
3/8 Nutdriver WPL-038649
...
18
7/16 Nutdriver WPL-038650
...
19
1/2 Nutdriver WPL-038651
...
20
No. 1 Phillips Blade WPL-038652
...
21
No. 2 Phillips Blade WPL-038653
...
22
1/4 Std Screwdriver Blade WPL-038654
...
23
Extension Shaft WPL-038655
...
24
1/4 Short Nutdriver WPL-038656
...
25
5/16 Short Nutdriver WPL-038657
...
26
3/8 Short Nutdriver WPL-038658
...
27
No. 2 Short Phillips Driver WPL-Y038659
...
28
Special Maytag Canvas Case WPL-038660
...
29
Installation Guide-Disposer WPL-Y056168
...
30
Clamp WPL-WP285655
...
31
Clamp WPL-WP616099
...
32
Wire Nut WPL-311934
...
33
Strain Relief, Power Cord (metallic) WPL-4396672
...
34
Drain Adapter Kit WPL-800093
...
35
Power Cord WPL-800112
...
36
J Bend With Nuts & Washers WPL-800113
...
37
Disposer Installation Kit WPL-800114
...
38
Plumbers Putty - 1 Lb Can WPL-800115
...
39
Brass Adapter WPL-810158
...
40
Drain Adapter Kit WPL-900434
...
41
Rubber Adapter WPL-910982

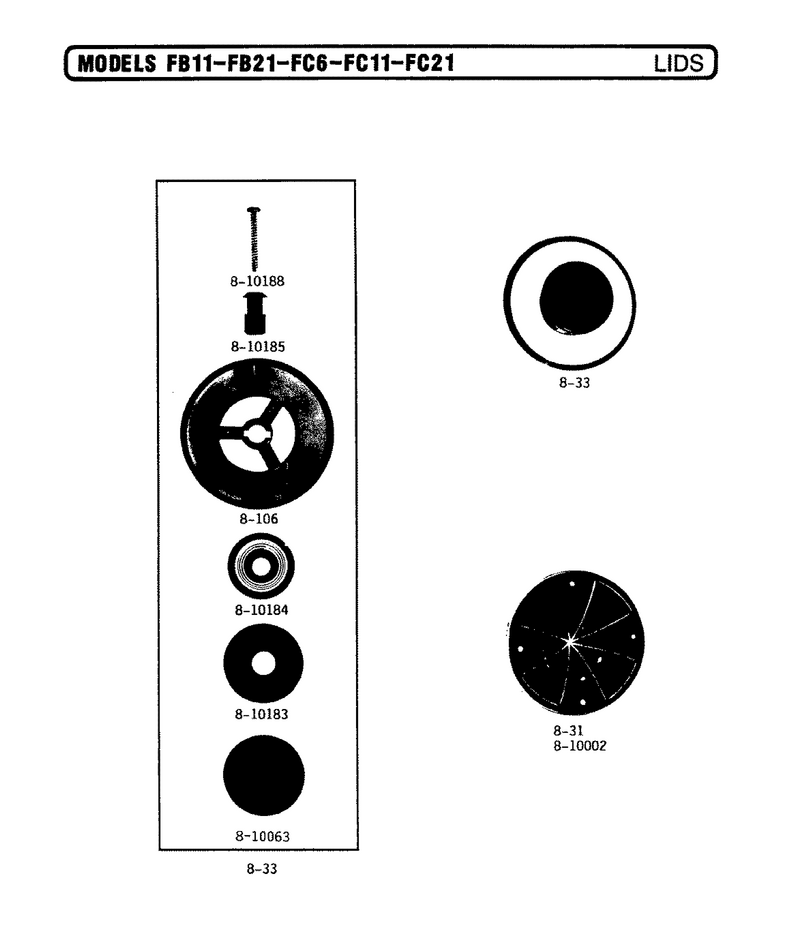

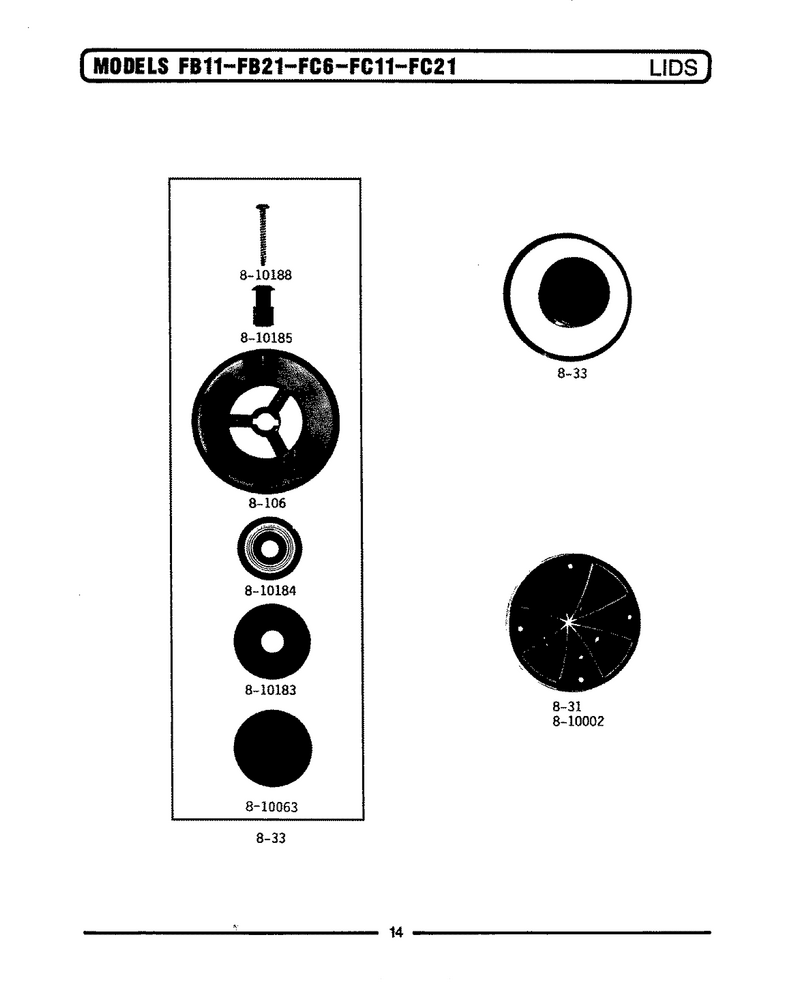

10 - Lids

...
...
4
Splash Shield W/support - F WPL-Y800031
...
5
Lid - Fc WPL-800033
...
7
Lid - Less Knob WPL-800106
...
8
Support Ring WPL-810002
...
9
Knob For Lid WPL-810063
...
10
Seal For Knob WPL-810183
...
11
Washer For Knob WPL-810184
...
12
Shaft WPL-810185
...
13
Screw For Shaft WPL-810188

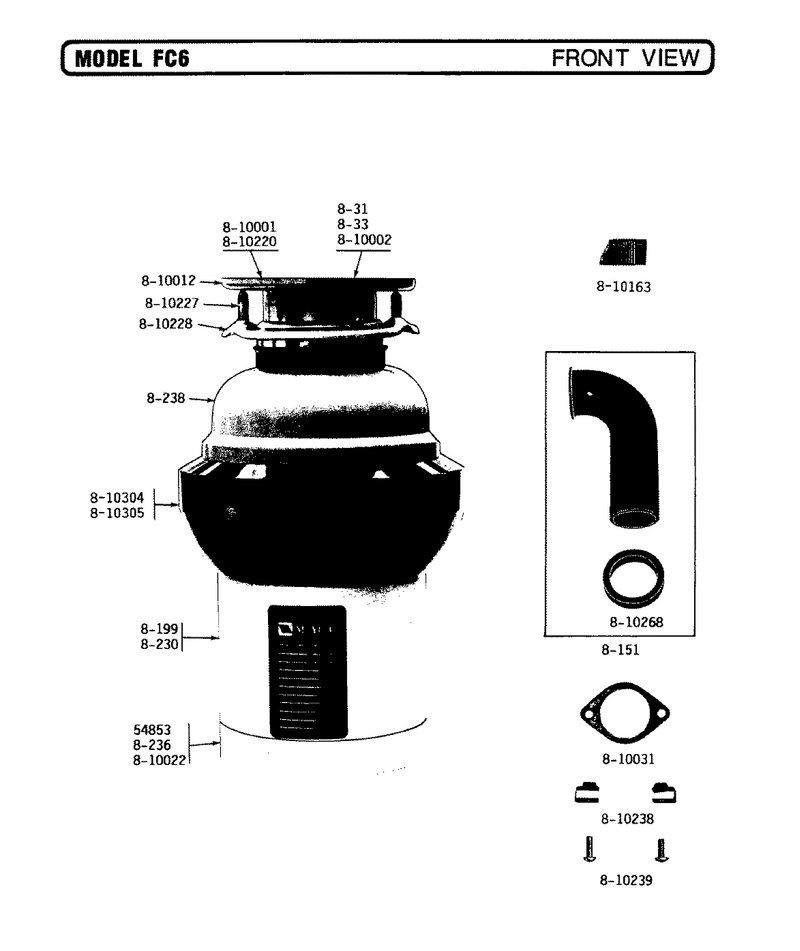

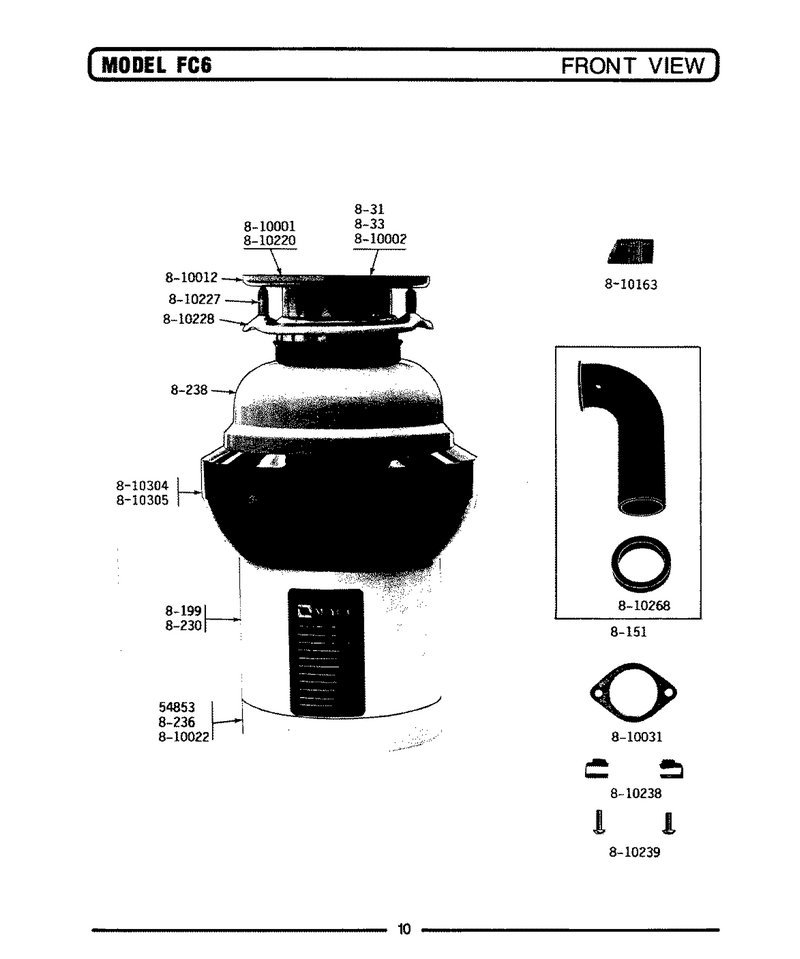

06 - Front View (fc6)

...
...
2
Splash Shield W/support - F WPL-Y800031
...
3
Lid - Fc WPL-800033
...
4
Drain Elbow With Gasket WPL-800151
...
5
Stator With Relay WPL-800199
...
6
Stator With Relay WPL-800230
...
7
Drain Chamber With Bearing WPL-Y800075
...
8
End Bell Kit WPL-800236
...
9
Housing Clamp WPL-800238
...
10
Gasket For Sink Flange WPL-810001
...
11
Support Ring WPL-810002
...
12
Mounting Plate-Upper WPL-810012
...
13
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
14
Mounting Plate-Drain Elbow WPL-810031
...
15
Plug For Housing Liner WPL-810163
...
16
Sink Flange WPL-810220
...
17
Retaining Ring WPL-810221
...
18
Mounting Bolt WPL-810227
...
19
Mounting Plate-Lower WPL-810228
...
20
Retainer WPL-810238
...
21
Screw WPL-810239
...
22
Gasket For Drain Elbow WPL-810268
...
23
Trim Band WPL-810304
...
24
Spring - Retainer WPL-810334

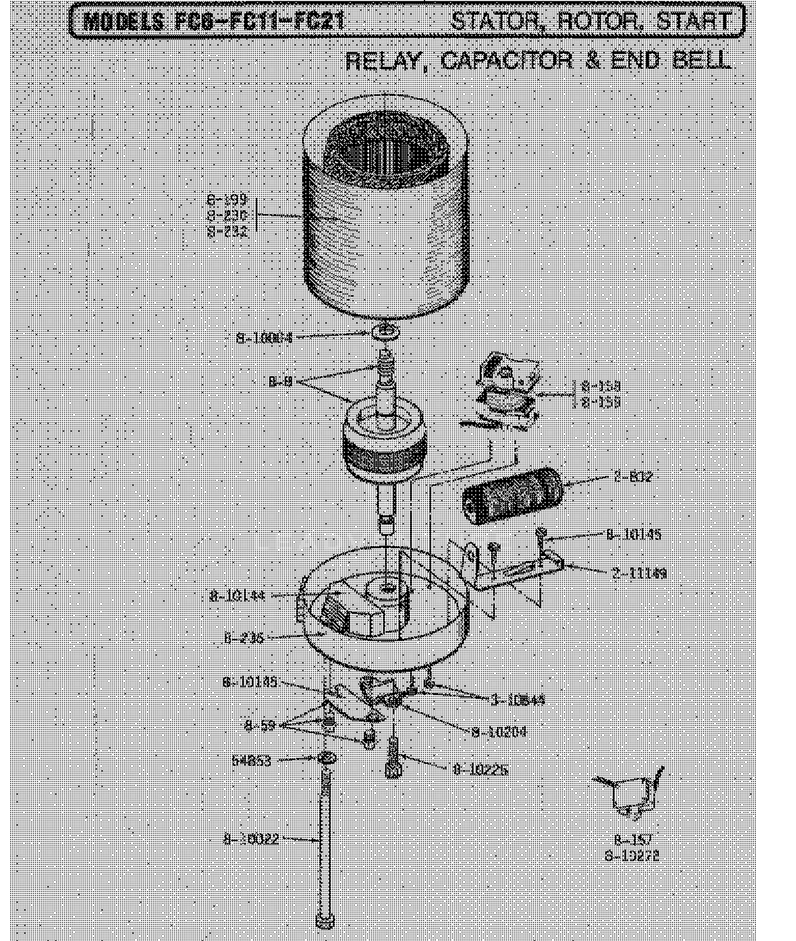

13 - Statr,rotor,relay,cptr,bell (fb11,fb21)

...
...
2
Capacitor WPL-Y200832
...
3
Clip, Capacitor WPL-211149
...
4
Screw WPL-WPW10068250
...
5
Rotor With Slinger WPL-800008
...
6
Relay For Auto-Start Sw-Fb WPL-800018
...
7
Auto-Start Sw & Conduit Ass WPL-800027
...
8
Terminal Cover Plate & Scre WPL-800059
...
9
Motor Protector-Batch WPL-Y800157
...
10
Start Relay WPL-800158
...
12
Stator With Relay WPL-800199
...
13
Stator With Relay WPL-800230
...
15
End Bell Kit WPL-800236
...
16
Oil Slinger, Bottom-Rubber WPL-810004
...
17
Clamp For Conduit WPL-810020
...
18
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
19
Wire Shield WPL-810144
...
20
Screw WPL-810145
...
21
Screw WPL-810147
...
22
Screw WPL-810148
...
23
Cable Clamp WPL-810204
...
24
Screw WPL-W11233072
...
25
Motor Protector Bracket WPL-810272

02 - Electrical Components

...
...
1
Capacitor WPL-Y200832
...
2
Rotor With Slinger WPL-800008
...
5
Motor Protector-Continuous WPL-800156
...
7
Start Relay WPL-800158
...
9
Stator With Relay WPL-800199
...
10
Oil Slinger, Bottom-Rubber WPL-810004
...
12
Motor Protector Bracket WPL-810272

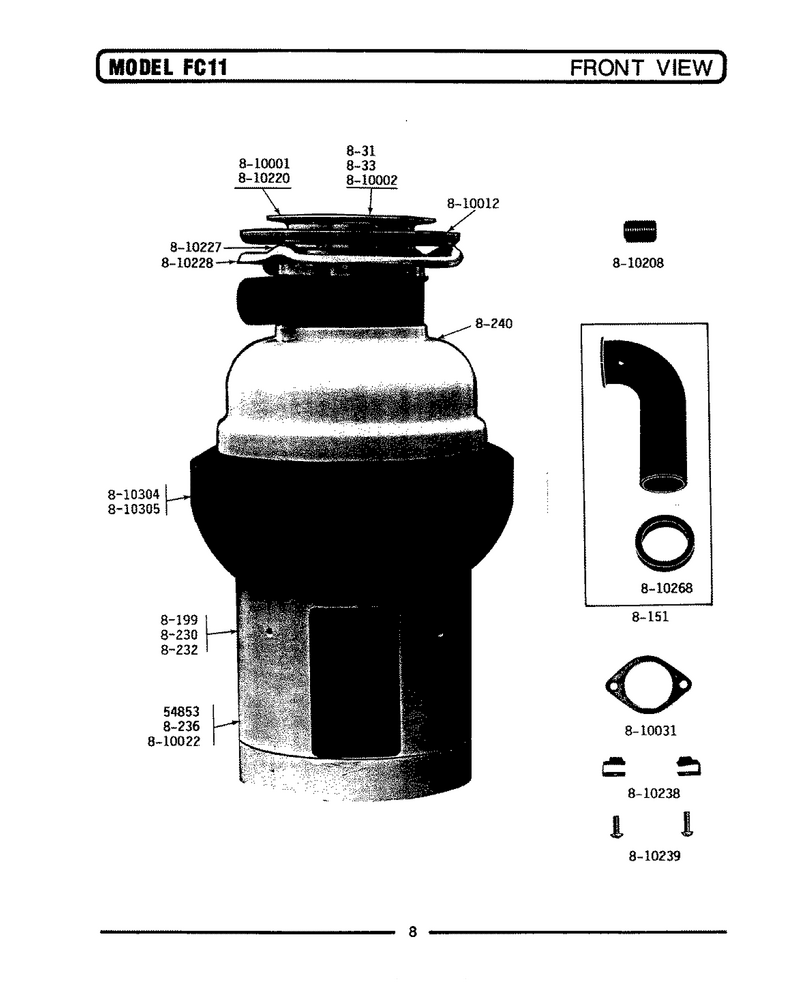

04 - Front View (fc11)

...
...
1
Lock Washer,thru-Bolt WPL-054853
...
2
Splash Shield W/support - F WPL-Y800031
...
3
Lid - Fc WPL-800033
...
4
Drain Elbow With Gasket WPL-800151
...
5
Stator With Relay WPL-800199
...
6
Stator With Relay WPL-800230
...
7
Stator Alm WPL-800232
...
8
Drain Chamber With Bearing WPL-Y800075
...
9
End Bell Kit WPL-800236
...
10
Housing Clamp WPL-800240
...
11
Gasket For Sink Flange WPL-810001
...
12
Support Ring WPL-810002
...
13
Mounting Plate-Upper WPL-810012
...
14
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
15
Mounting Plate-Drain Elbow WPL-810031
...
16
Plug For Upper Housing WPL-810208
...
17
Sink Flange WPL-810220
...
18
Mounting Bolt WPL-810227
...
19
Mounting Plate-Lower WPL-810228
...
20
Retainer WPL-810238
...
21
Screw WPL-810239
...
22
Gasket For Drain Elbow WPL-810268
...
23
Trim Band WPL-810304
...
24
Spring - Retainer WPL-810334

...
...
1
Bolt, Grinding Chamber-Drai WPL-Y015629
...
2
Impeller Plate Complete WPL-Y800002
...
3
Boot Seal Complete WPL-800009
...
4
Undercutter Knives & Rivets WPL-800149
...
5
Drain Elbow With Gasket WPL-800151
...
6
Drain Chamber With Bearing WPL-Y800075
...
7
Gasket-Shredder Ring-Drain WPL-810003
...
8
Shredder Ring WPL-810013
...
9
Thrust Washer-Stainless Stl WPL-810014
...
10
Oil Slinger, Top-Stainless WPL-810015
...
11
Water Slinger-Stainless Stl WPL-810016
...
12
Retaining Washer Ss-Cushion WPL-810027
...
13
Bolt-Ss-Cushion-Impeller Pl WPL-810028
...
14
Mounting Plate-Drain Elbow WPL-810031
...
15
Retainer WPL-810238
...
16
Screw WPL-810239
...
17
Cushion For Impeller Arms WPL-810259
...
18
Gasket For Drain Elbow WPL-810268
...
19
Washer, Lock (brace) WPL-911852

03 - Front View (fb11)

...
...
2
Auto-Start Lid Complete-Fb WPL-800015
...
3
Auto-Start Sw & Conduit Ass WPL-800027
...
4
Seal Kit For Auto-Start Lid WPL-800063
...
5
Lower Mounting Plate Assm WPL-800124
...
6
Drain Elbow With Gasket WPL-800151
...
7
Mounting Clamp Kit WPL-800154
...
8
Stator With Relay WPL-800199
...
9
Stator With Relay WPL-800230
...
10
Drain Chamber With Bearing WPL-Y800075
...
11
End Bell Kit WPL-800236
...
12
Housing Clamp WPL-800240
...
13
Gasket For Sink Flange WPL-810001
...
14
Mounting Plate-Upper WPL-810012
...
15
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
16
Mounting Plate-Drain Elbow WPL-810031
...
17
Plug For Upper Housing WPL-810208
...
18
Sink Flange WPL-810220
...
19
Mounting Bolt WPL-810227
...
20
Retainer WPL-810238
...
21
Screw WPL-810239
...
22
Gasket For Drain Elbow WPL-810268
...
23
Trim Band WPL-810304
...
24
Spring - Retainer WPL-810334

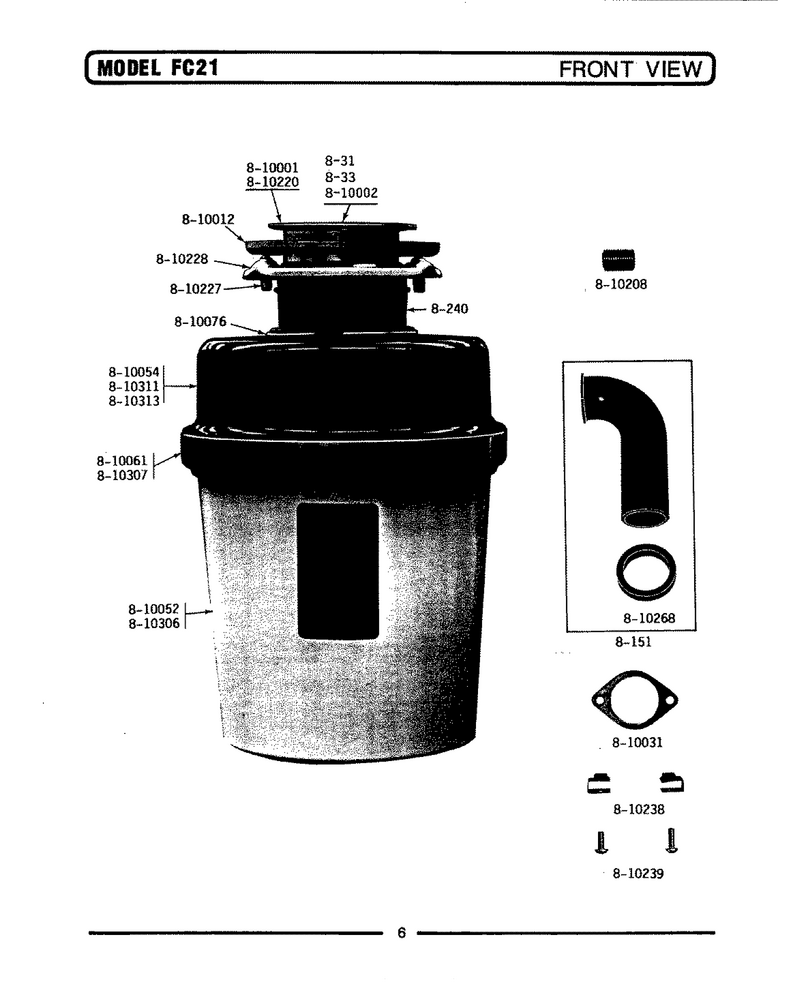

05 - Front View (fc21)

...
...
2
Lid - Fc WPL-800033
...
3
Drain Elbow With Gasket WPL-800151
...
4
Mounting Clamp Kit WPL-800154
...
5
Housing Clamp WPL-800240
...
6
Gasket For Sink Flange WPL-810001
...
7
Support Ring WPL-810002
...
8
Mounting Plate-Upper WPL-810012
...
9
Mounting Plate-Drain Elbow WPL-810031
...
10
Insulation-Lower Housing WPL-810052
...
11
Top Insulation Half-Channel WPL-810054
...
12
Spring - Retainer WPL-810334
...
13
Spring Retainer-Top Housing WPL-810076
...
14
Plug For Upper Housing WPL-810208
...
15
Sink Flange WPL-810220
...
16
Mounting Bolt WPL-810227
...
17
Mounting Plate-Lower WPL-810228
...
18
Retainer WPL-810238
...
19
Screw WPL-810239
...
20
Gasket For Drain Elbow WPL-810268
...
21
Cover, Bottom WPL-810306
...
22
Clamp Cover WPL-810307
...
23
Cover, Top Half WPL-810311
...
24
Cover Top Half WPL-810313

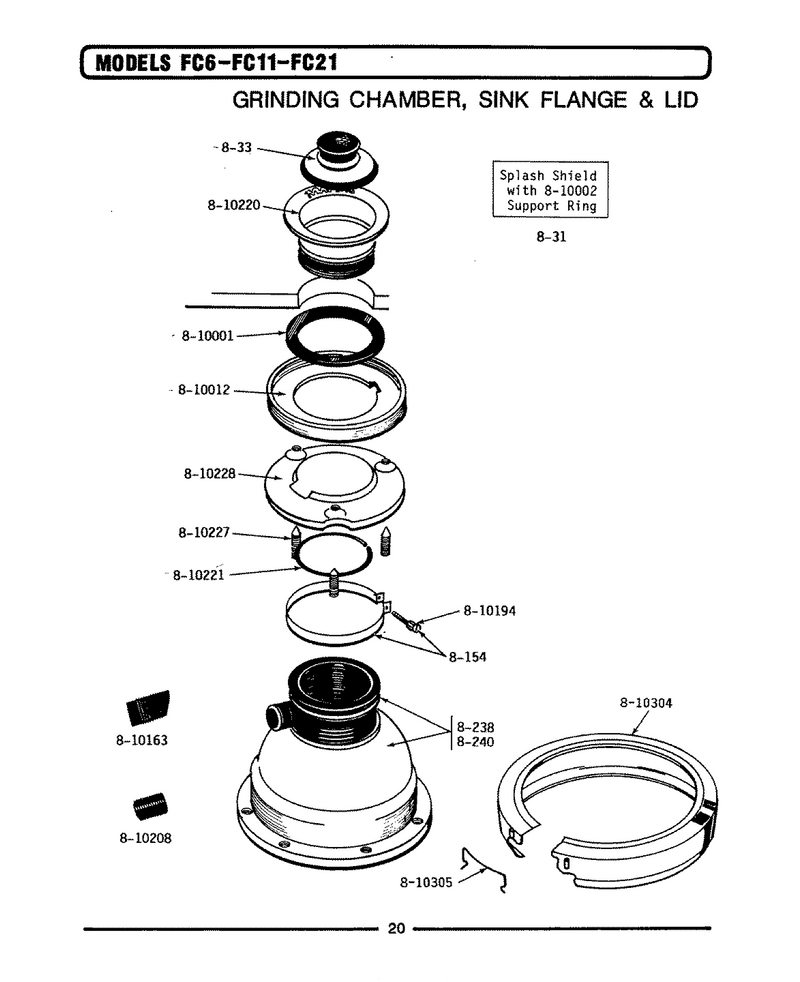

07 - Grinding Chamber,sink Flange (fb11,fb21)

...
...
2
Auto-Start Sw & Conduit Ass WPL-800027
...
3
Seal Kit For Auto-Start Lid WPL-800063
...
4
Lower Mounting Plate Assm WPL-800124
...
5
Mounting Clamp Kit WPL-800154
...
6
Housing Clamp WPL-800240
...
7
Gasket For Sink Flange WPL-810001
...
8
Mounting Plate-Upper WPL-810012
...
9
Plug For Upper Housing WPL-810208
...
10
Sink Flange WPL-810220
...
11
Retaining Ring WPL-810221
...
12
Mounting Bolt WPL-810227

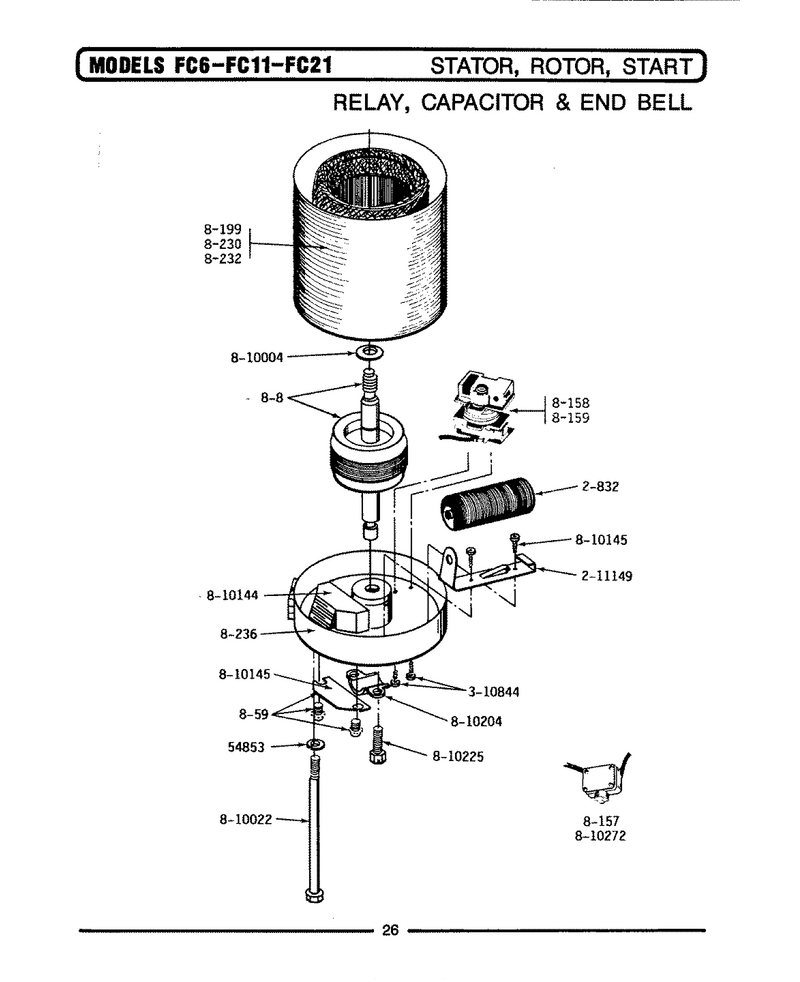

14 - Statr,rotor,relay,cptr,bell (fc6,11,21)

...
...
1
Lock Washer,thru-Bolt WPL-054853
...
2
Capacitor WPL-Y200832
...
3
Clip, Capacitor WPL-211149
...
4
Screw WPL-WPW10068250
...
5
Rotor With Slinger WPL-800008
...
6
Terminal Cover Plate & Scre WPL-800059
...
7
Motor Protector-Batch WPL-Y800157
...
8
Start Relay WPL-800158
...
10
Stator With Relay WPL-800199
...
11
Stator With Relay WPL-800230
...
13
End Bell Kit WPL-800236
...
14
Oil Slinger, Bottom-Rubber WPL-810004
...
15
Thru-Bolt-No.10-32 X 6 In WPL-810022
...
16
Wire Shield WPL-810144
...
17
Screw WPL-810145
...
18
Cable Clamp WPL-810204
...
19
Screw WPL-W11233072
...
20
Motor Protector Bracket WPL-810272

...
...
1
Splash Shield W/support - F WPL-Y800031
...
2
Lid - Fc WPL-800033
...
3
Mounting Clamp Kit WPL-800154
...
5
Housing Clamp WPL-800240
...
6
Gasket For Sink Flange WPL-810001
...
7
Support Ring WPL-810002
...
8
Mounting Plate-Upper WPL-810012
...
10
Screw WPL-810194
...
11
Plug For Upper Housing WPL-810208
...
12
Sink Flange WPL-810220
...
13
Retaining Ring WPL-810221
...
14
Mounting Bolt WPL-810227
...
15
Mounting Plate-Lower WPL-810228
...
16
Trim Band WPL-810304
...
17
Spring - Retainer WPL-810334
