Maytag FC1

Model: FC1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

02 - End Bell Assy. (fc1)

...
...
1
End Bell Assy Upper WPL-08300010
...
2
Gasket, Tailpipe WPL-Y752505
...
3
Tailpipe WPL-4211317
...
4
Flange, Tailpipe WPL-4211345
...
5
Screw WPL-Y752508
...
6
Flange, Tailpipe WPL-Y752523
...
7
Shaft Assy WPL-83001025
...
8
Actuator Assy WPL-4211322
...
9
Stater Assy WPL-08300011

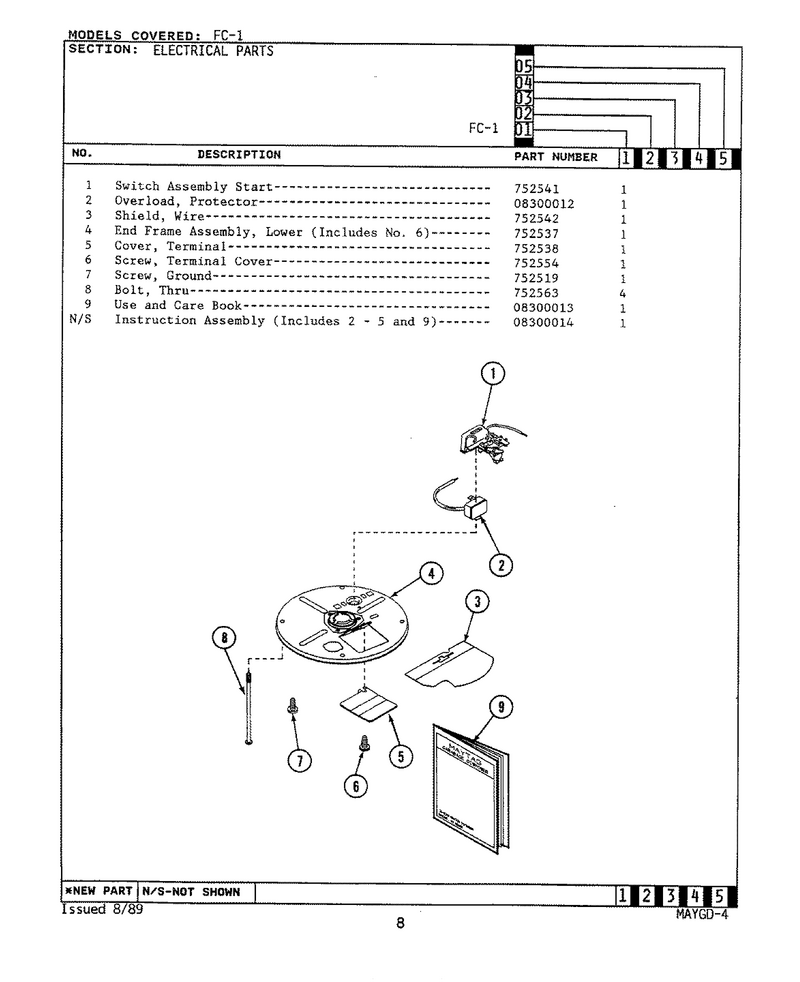

01 - Electrical Parts (fc1)

...
...
1
Switch Assembly, Start WPL-8174312
...
2
Overload WPL-08300012
...
3
Shield, Wire WPL-752542
...
4
End Frame Assy, Lower WPL-Y08300045
...
5
Cover, Terminal WPL-752538
...
6
Screw, Terminal Cover WPL-752554
...
7
Screw WPL-WPW10068250
...
8
Bolt, Thru WPL-752563
...
9
Instruction Assy WPL-08300014

04 - Installation Parts (fc1)

...
...
1
Stopper Assembly WPL-4211577
...
2
Gasket, Stopper WPL-Y08300004
...
3
Flange, Strainer WPL-08300002
...
4
Gasket, Fiber WPL-4211606
...
5
Flange, Backup WPL-Y752548
...
6
Flange, Mounting WPL-752546
...
7
Screw, Backup WPL-W10171103
...
8
Ring, Retaining WPL-Y752549
...
9
Gasket, Mounting WPL-4211615
...
10
Flange, Body WPL-Y752551
...
11
Trim Shell Assy WPL-08300015
...
12
Trim, Shell Assy WPL-08300005

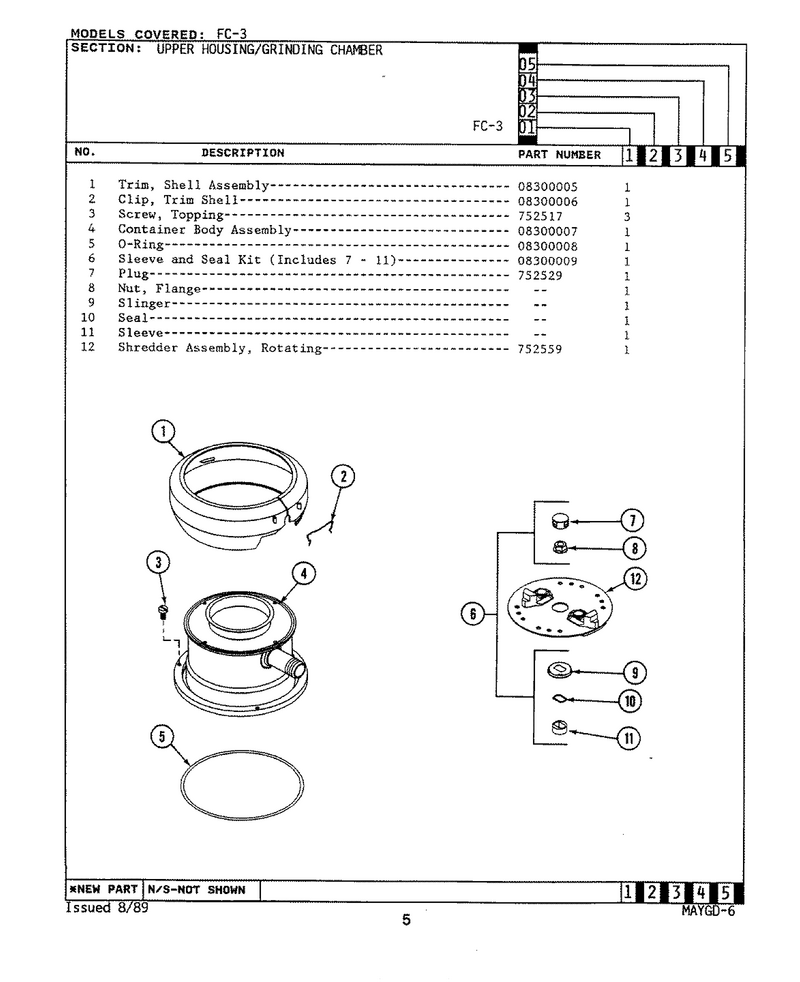

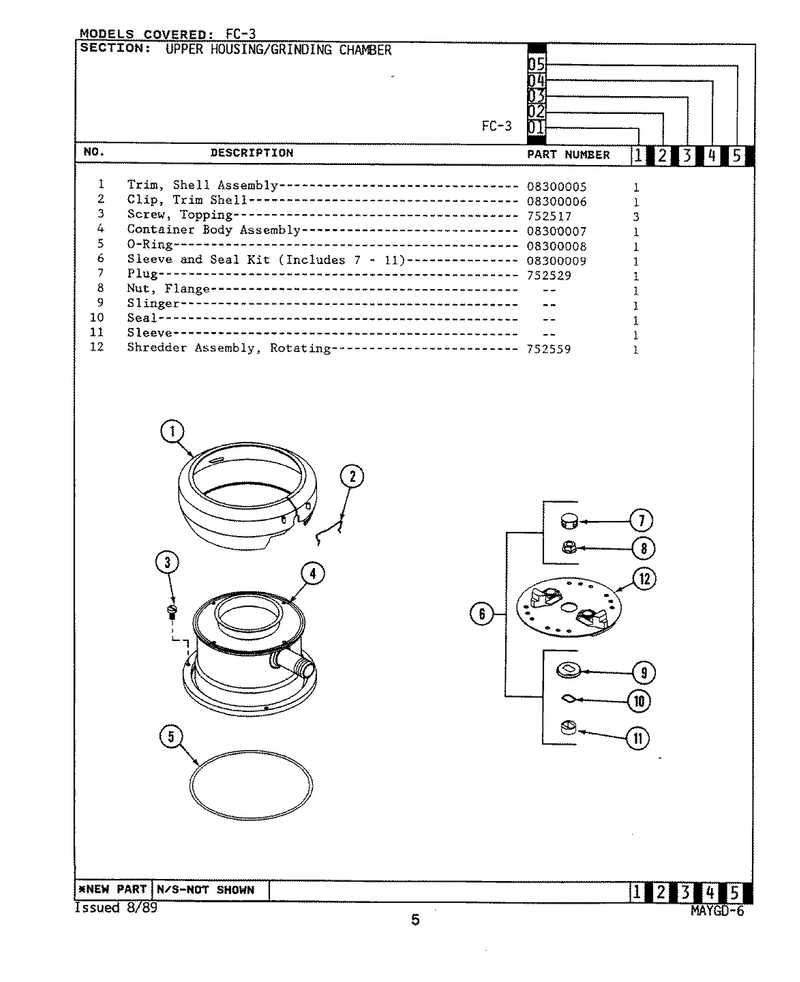

07 - Upper Housing/grinding Chamber (fc3)

...
...
2
Clip, Trim Shell WPL-08300006
...
3
Screw WPL-752517
...
4
Container Body Assy WPL-Y08300007
...
5
O-Ring WPL-Y08300008
...
6
Kit, Sleeve And Seal (includes Plug, Bolt, Washer, Slinger And Sleeve) WPL-4211578
...
7
Plug WPL-752529
...
8
Not Required Part Or See Note Nut, Flange WPL-W10124350
...
9
Not Required Part Or See Note Slinger WPL-W10124350
...
10
Not Required Part Or See Note Seal WPL-W10124350
...
11
Not Required Part Or See Note Sleeve WPL-W10124350
...
12
Shredder Assy., Rotating WPL-83001039

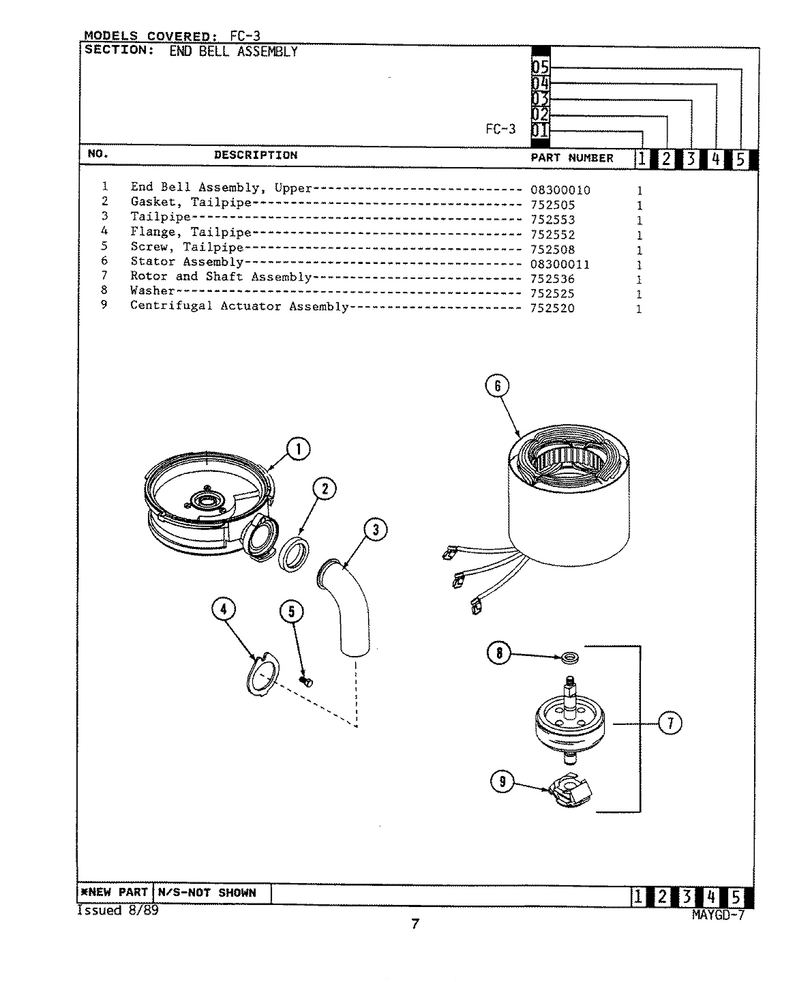

03 - End Bell Assy. (fc3)

...
...
2
Gasket, Tailpipe WPL-Y752505
...
3
Tailpipe WPL-4211317
...
4
Flange, Tailpipe WPL-4211345
...
5
Screw WPL-Y752508
...
6
Stater Assy WPL-08300011
...
7
Shaft Assy WPL-83001025
...
8
Washer, Thrust Rubber WPL-752525
...
9
Actuator Assy WPL-4211322

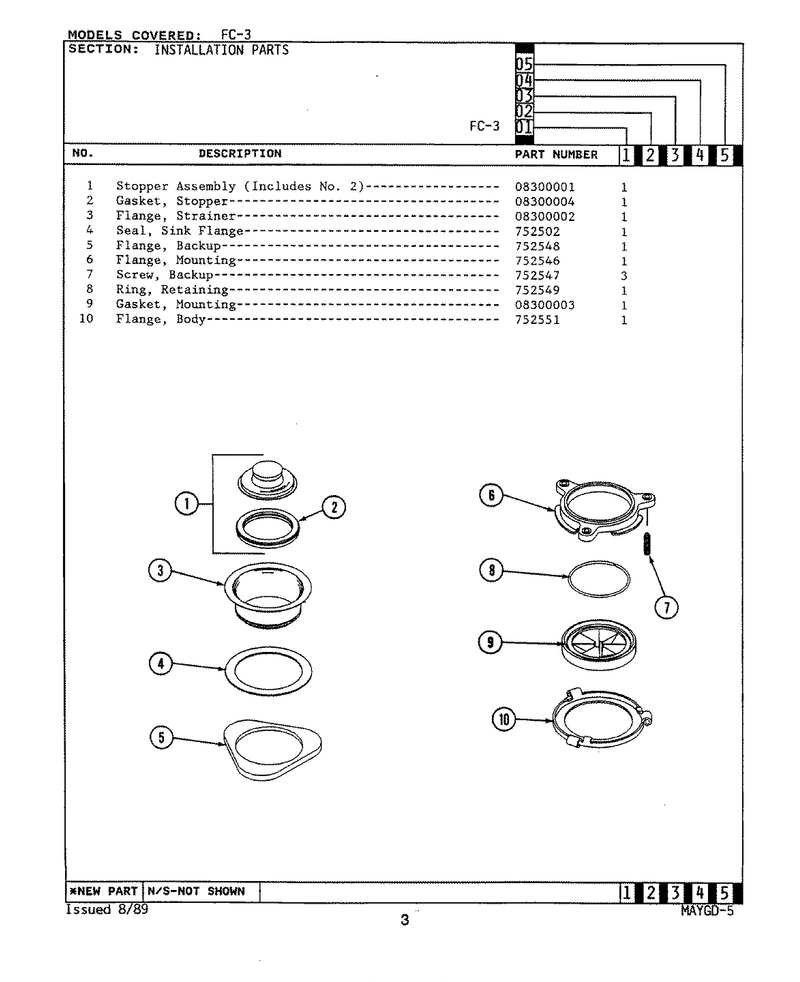

05 - Installation Parts (fc3)

...
...
2
Gasket, Stopper WPL-Y08300004
...
3
Flange, Strainer WPL-08300002
...
4
Gasket, Fiber WPL-4211606
...
5
Flange, Backup WPL-Y752548
...
6
Flange, Mounting WPL-752546
...
7
Screw, Backup WPL-W10171103
...
8
Ring, Retaining WPL-Y752549
...
9
Gasket WPL-WP4211334
...
10
Flange, Body WPL-Y752551

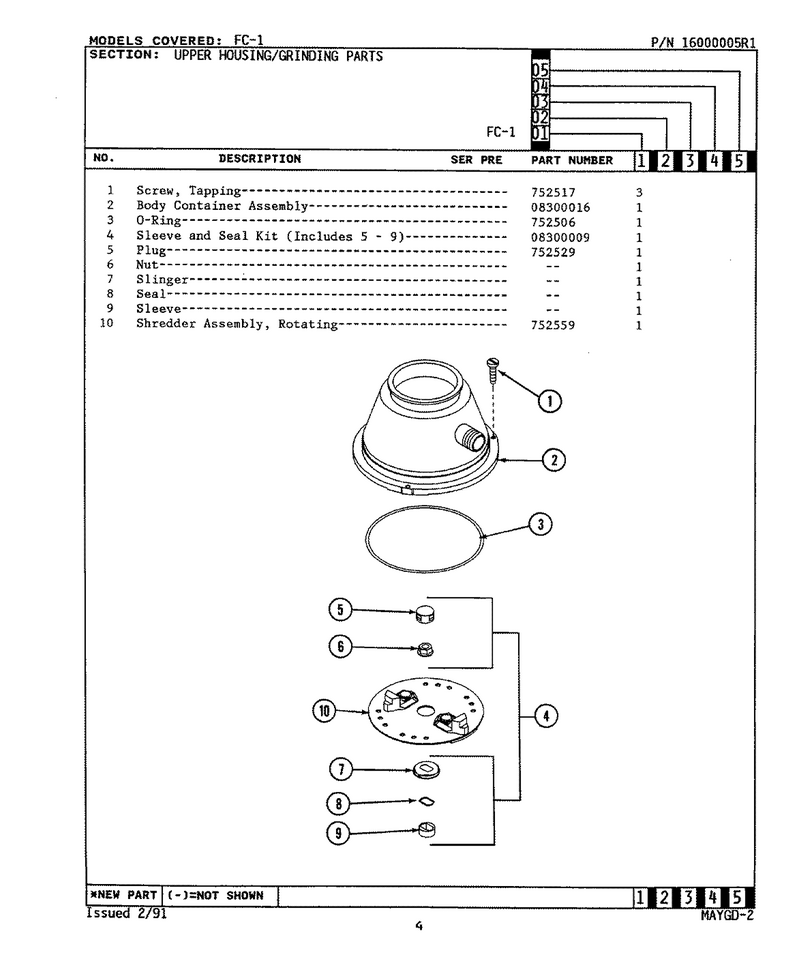

06 - Upper Housing/grinding (fc1)

...
...
1
Screw WPL-752517
...
2
Body, Container Assy WPL-Y08300047
...
3
O-Ring WPL-Y752506
...
4
Kit, Sleeve And Seal (includes Plug, Bolt, Washer, Slinger And Sleeve) WPL-4211578
...
5
Plug WPL-752529
...
6
Not Required Part Or See Note Nut WPL-W10124350
...
7
Not Required Part Or See Note Slinger WPL-W10124350
...
8
Not Required Part Or See Note Seal WPL-W10124350
...
9
Not Required Part Or See Note Sleeve WPL-W10124350
...
10
Shredder Assy., Rotating WPL-83001039
