Maytag DE590D

Model: DE590D

Save Part Not Listed?

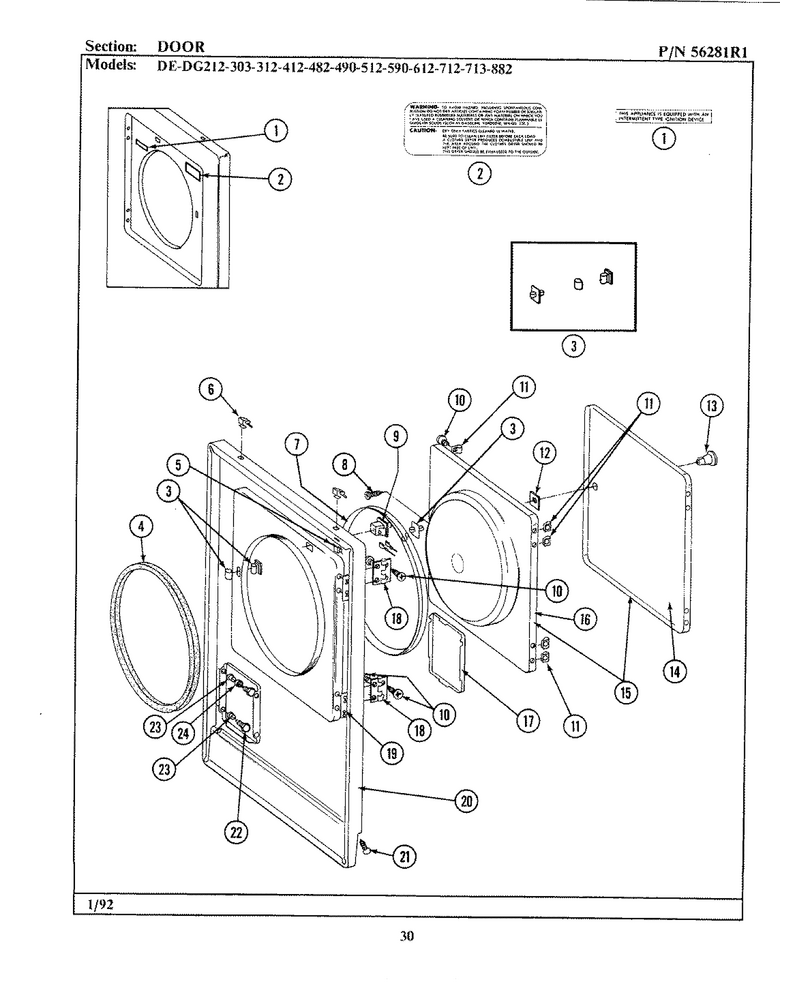

product name

01 - Door

...
...
2
Instruction Label WPL-Y313927
...
3
Door Latch Kit WPL-306436
...
4
Seal For Front Panel WPL-314286
...
5
Clip, Wire Harness WPL-Y310376
...
6
Fastener- WPL-WP22001650
...
7
Door Seal WPL-314077
...
8
Screw WPL-WP400021-1
...
9
Switch-Dor WPL-W10169313
...
10
Screw WPL-Y314062
...
11
Clip, Door Liner To Outer Pnl WPL-Y313910
...
12
Door Strike Retainer WPL-Y313911
...
13
Knob And Screw WPL-303942
...
16
Inner Door With Knob WPL-306676
...
18
Door Hinge WPL-Y304577
...
19
Twin Fastener WPL-Y313907
...
21
Screw & Fstner Assy(frt.panel) WPL-204439
