Maytag DE590

Model: DE590

Save Part Not Listed?
product name

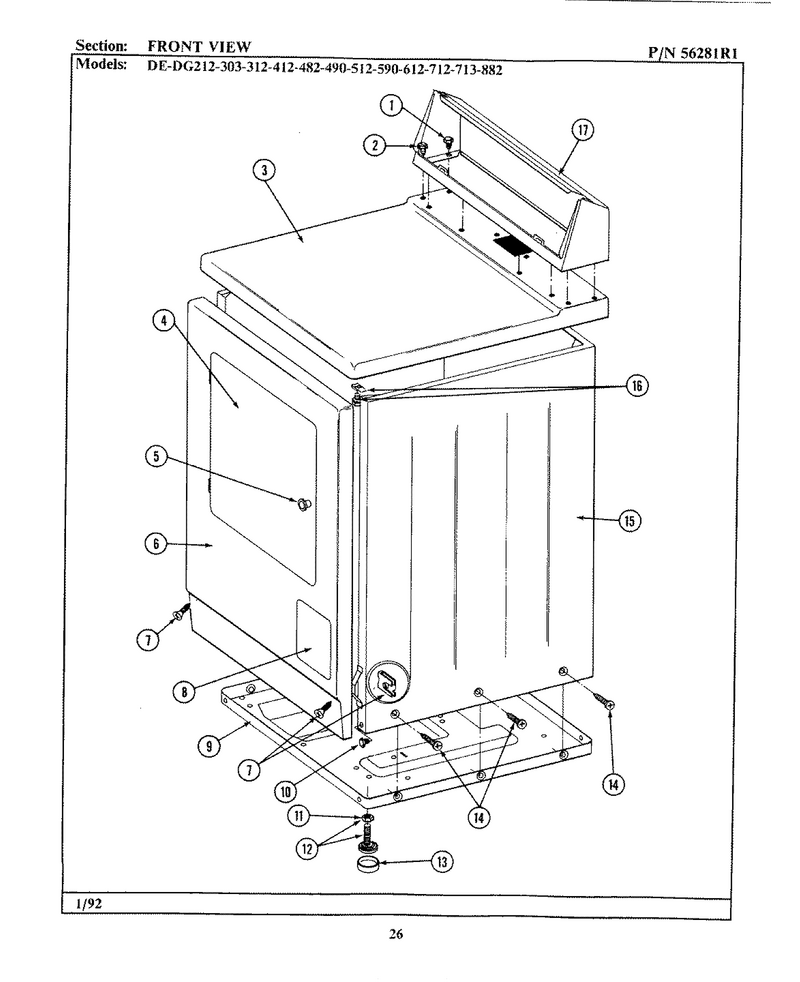

03 - Front View

...
...
1
Lock Washer WPL-211194
...
2
Screw WPL-WP90767
...
3
Top Cover Assy WPL-307104
...
4
Door WPL-Y306668
...
5
Knob And Screw WPL-303942
...
6
Dishrack WPL-W11169039
...
7
Screw & Fstner Assy(frt.panel) WPL-204439
...
9
Base Assy. WPL-Y303361
...
10
Screw WPL-WP1163839
...
11
Nut WPL-WP62739
...
12
Feet-Lvlng WPL-W10176519
...
13
Foot- Rubb WPL-WPY314137
...
14
Screw, Cabinet WPL-213007
...
15
Cabinet-White WPL-305302
...
16
Screw & Fastener Asy. WPL-204445
...
17
Console (wht) WPL-Y305193

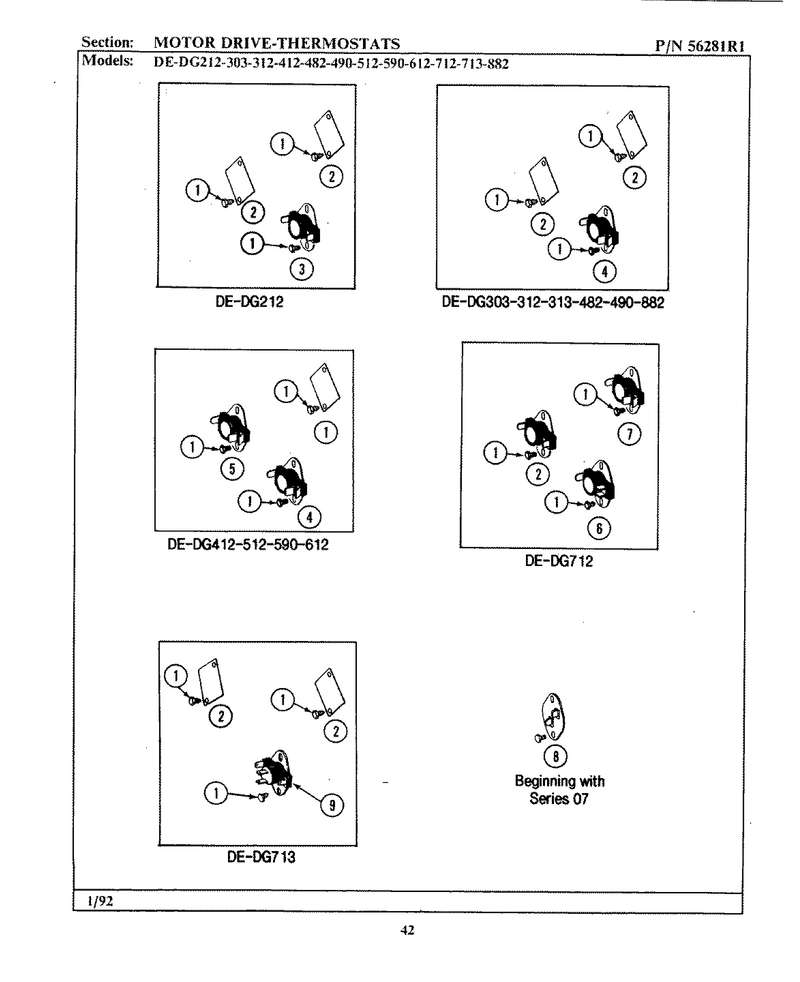

06 - Motor Drive-Thermostats

...
...
1
Screw WPL-WP90767
...
2
Cover For Thermostat Openin WPL-Y312853
...
4
Cycling Th WPL-WPY304475
...
5
Cycling Th WPL-WPY304474
...
8
Cut-Off- T WPL-WP306604

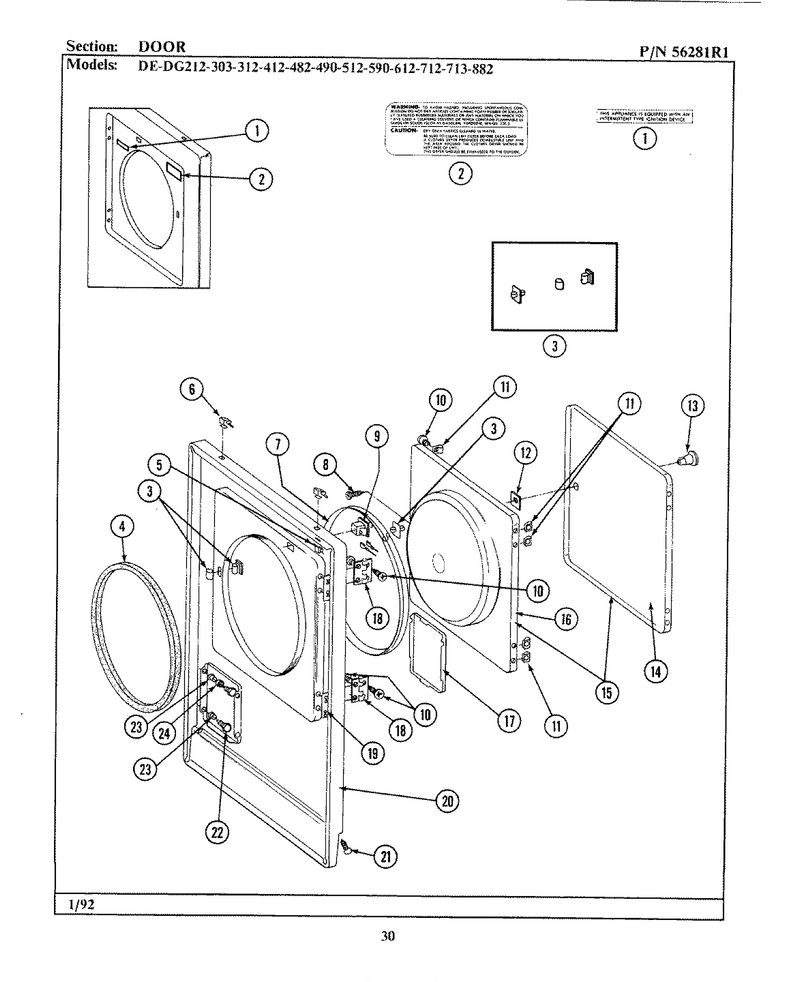

02 - Door

...
...
2
Instruction Label WPL-Y313927
...
3
Door Latch Kit WPL-306436
...
4
Seal For Front Panel WPL-314286
...
5
Clip, Wire Harness WPL-Y310376
...
6
Fastener- WPL-WP22001650
...
7
Door Seal WPL-314077
...
8
Screw WPL-WP400021-1
...
9
Switch-Dor WPL-W10169313
...
10
Screw WPL-Y314062
...
11
Clip, Door Liner To Outer Pnl WPL-Y313910
...
12
Door Strike Retainer WPL-Y313911
...
13
Knob And Screw WPL-303942
...
14
Door Panel-White WPL-Y313908
...
15
Door WPL-Y306668
...
16
Inner Door With Knob & Scre WPL-305835
...
18
Door Hinge WPL-Y304577
...
19
Twin Fastener WPL-Y313907
...
20
Dishrack WPL-W11169039
...
21
Screw & Fstner Assy(frt.panel) WPL-204439

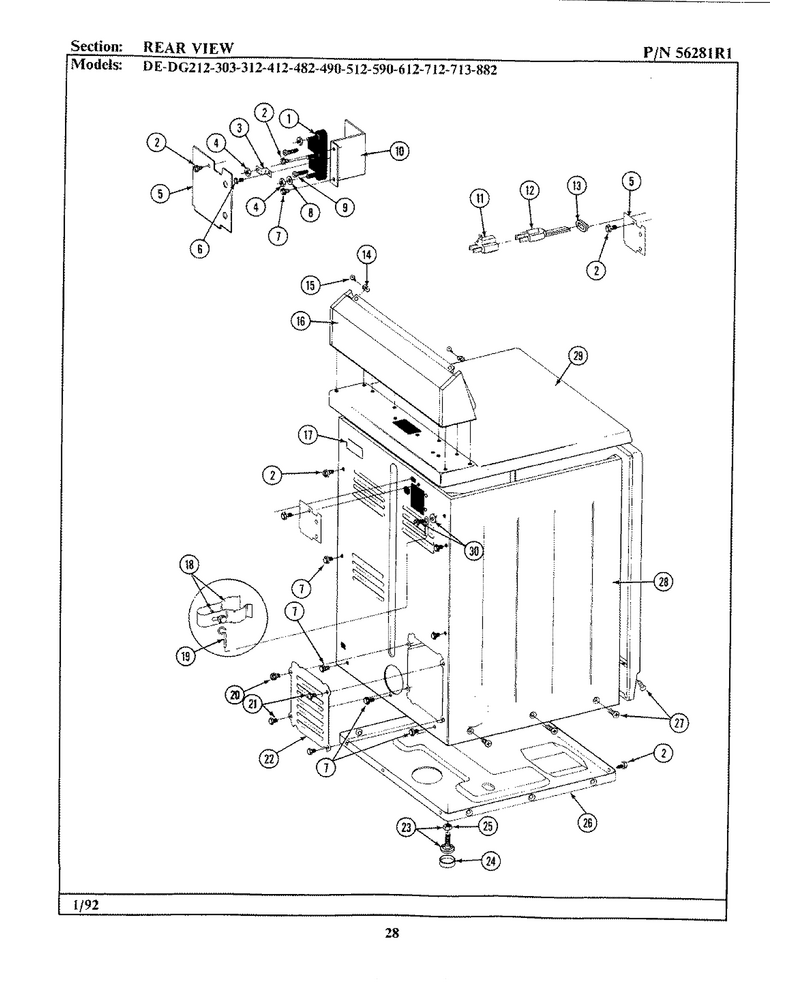

07 - Rear View

...
...
1
Block, Terminal WPL-400008
...
2
Screw WPL-WPY313561
...
3
Strap, Ground WPL-Y312184
...
4
Nut WPL-WP112432
...
5
Cover, Terminal WPL-Y312905
...
6
Screw WPL-WP489483
...
7
Screw WPL-WP1163839
...
8
Washer- Te WPL-WPY311270
...
9
Screw WPL-W11164114
...
10
Bracket, Terminal Block WPL-Y312904
...
14
Fastener,cntrl Pnl To Console WPL-215075
...
15
Screw, No.8 X 9/16 Ctsk WPL-210932
...
16
Console (wht) WPL-Y305193
...
17
Label, Electrical Instruction WPL-214519
...
18
Clamp, Ground (w/screw) WPL-301548
...
19
Wire WPL-WP311155
...
20
Screw WPL-WP90767
...
21
Screw WPL-WP90767
...
22
Cover, Access WPL-Y312951
...
23
Feet-Lvlng WPL-W10176519
...
24
Foot- Rubb WPL-WPY314137
...
25
Nut WPL-WP62739
...
26
Base Assy. WPL-Y303361
...
27
Screw, Cabinet WPL-213007
...
28
Cabinet-White WPL-305302
...
29
Top Cover Assy WPL-307104
...
30
Screw WPL-W10850756

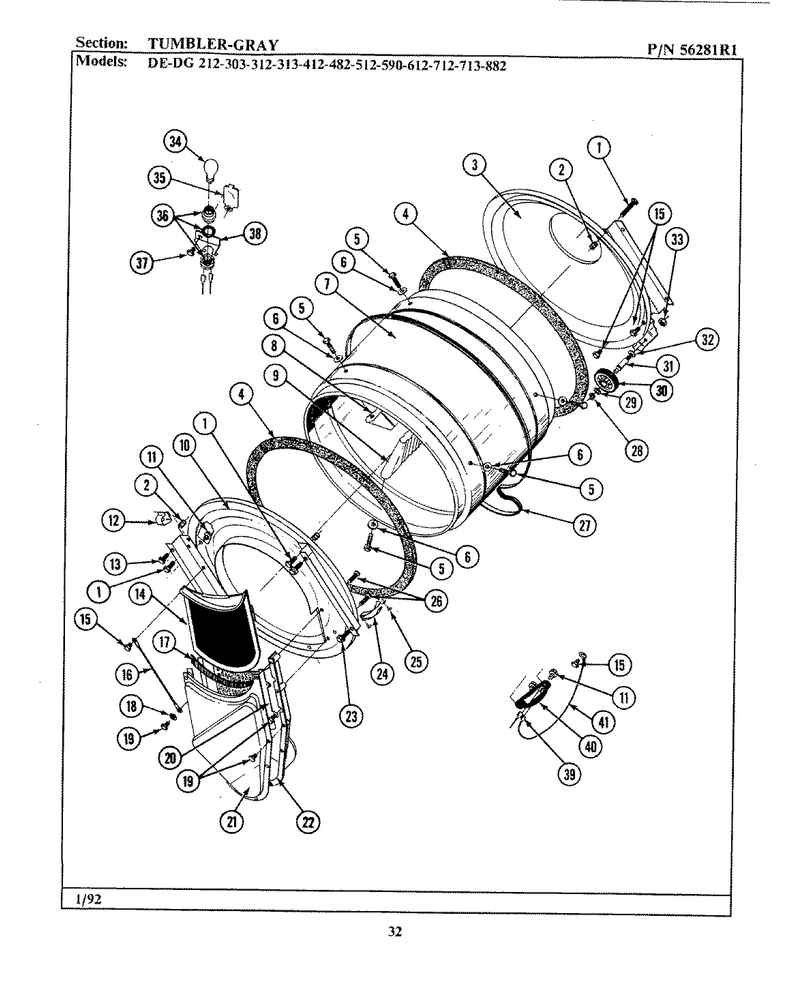

09 - Tumbler-Gray

...
...
1
Screw WPL-313764
...
2
Cover, Thread WPL-313915
...
3
Back, Tumbler (w/seal) WPL-33001106
...
4
Seal- Tumb WPL-WP33313541
...
5
Screw WPL-WPY310759
...
6
Washer WPL-WP314158
...
7
Tumbler WPL-305187
...
8
Tumbler Baffle - Short WPL-314154
...
9
Baffle, Tall WPL-33001004
...
10
Front- Tum WPL-33001231
...
12
Clip, Wire Harness WPL-Y310376
...
13
Screw WPL-WPY313561
...
14
Screen WPL-WP33001003
...
15
Screw WPL-WP90767
...
16
Wire, Ground WPL-205810
...
17
Lint Seal WPL-Y313796
...
18
Washer WPL-310557
...
19
Screw WPL-WPW10116751
...
20
Guide For Lint Screen WPL-Y313795
...
21
Outlet Duct - Outer Half WPL-Y312964
...
22
Outlet Duct & Grid WPL-306657
...
23
Screw WPL-WP1163839
...
24
Tumbler Bearing Kit WPL-306508
...
25
Rivet WPL-WP210720
...
26
Screw WPL-WP33002917
...
27
Belt WPL-WPY312959
...
28
Ring-Retnr WPL-WP9703438
...
29
Washer WPL-WP312535
...
30
Drum Roller/washer Assy. WPL-12001541
...
31
Shaft WPL-WP6-3129480
...
32
Washer WPL-WP312535
...
33
Nut- Hex WPL-WP33001443

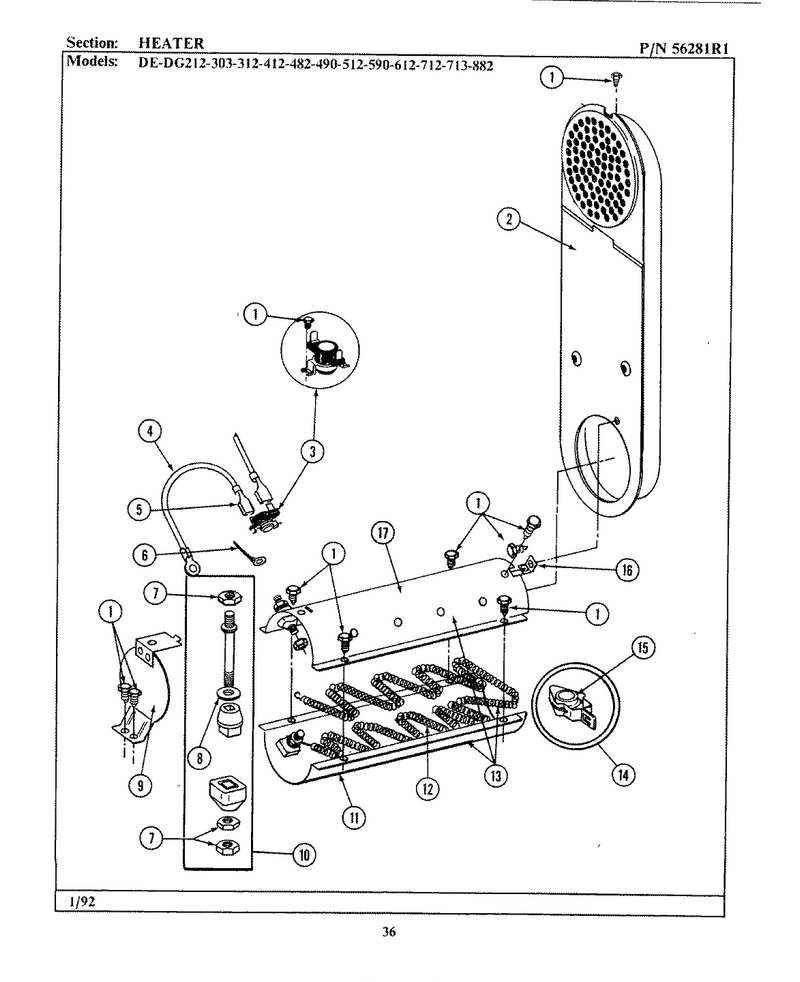

04 - Heater

...
...
1
Screw WPL-WP90767
...
2
Inlet Duct Assembly - De WPL-Y303362
...
3
Hi-Limit T WPL-WP303896
...
4
Harns-Wire WPL-WPY304693
...
5
Wire Terminal WPL-210745
...
6
Light-Ind WPL-241982
...
7
Nut WPL-WP112432
...
8
Washer- 7 WPL-WP311093
...
9
Heater Shield WPL-304124
...
10
Terminal Insulator Assembly WPL-Y304596
...
11
Heater Chamber, Bottom WPL-Y313576
...
12
Element WPL-W10116793
...
13
Heater Asy WPL-WPY303404
...
14
Clip And I WPL-WPY303881
...
15
Insulator For Heater Elemen WPL-Y313270
...
16
Retainer, Heater Chamber WPL-Y312890
...
17
Heater Chamber, Top WPL-Y313575

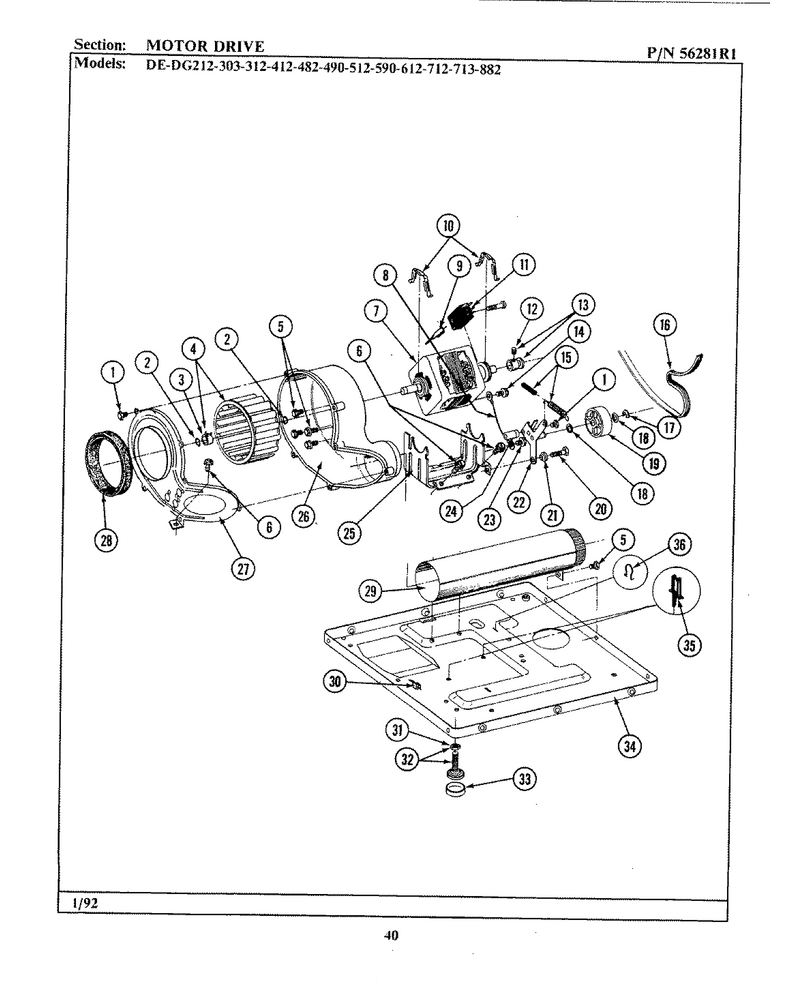

05 - Motor Drive

...
...
1
Screw WPL-WPW10116751
...
2
Ring-Retnr WPL-WP9703438
...
3
Clamp WPL-WP312967
...
4
Blower Wheel Assembly & Clamp WPL-Y303836
...
5
Screw WPL-WP1163839
...
6
Screw WPL-WPY313561
...
7
Motor-Drve WPL-W10410999
...
8
Wire, Ground WPL-901220
...
9
Light-Ind WPL-241982
...
10
Clip- Moto WPL-WPY015825
...
11
Switch, Motor Start-Prod. WPL-306207
...
12
Set Screw, Pulley WPL-Y053241
...
13
Pulley, Motor (w/set Screw) WPL-Y305185
...
14
Screw WPL-WP488234
...
15
Idler Spring Assembly WPL-Y303945
...
16
Belt WPL-WPY312959
...
17
Ring-E WPL-WP354987
...
18
Washer WPL-WPY312527
...
19
Pulley WPL-WP6-3037050
...
20
Screw WPL-WPY014874
...
21
Sleeve WPL-WP315772
...
22
Idler Arm WPL-WP6-3033630
...
23
Screw WPL-WP90767
...
24
Spacer WPL-WPW10116756
...
25
Support, Motor WPL-312897
...
26
Housing, Blower WPL-Y312893
...
27
Cover For Blower----Na WPL-Y312895
...
28
Seal- Blow WPL-WPY312901
...
29
Exhaust Duct Assy. WPL-Y303442
...
30
Clip, Wire Harness WPL-Y310376
...
31
Nut WPL-WP62739
...
32
Feet-Lvlng WPL-W10176519
...
33
Foot- Rubb WPL-WPY314137
...
34
Base Assy. WPL-Y303361
...
35
Retainer- WPL-W10116752
...
36
Spring, Wire Harness WPL-410490

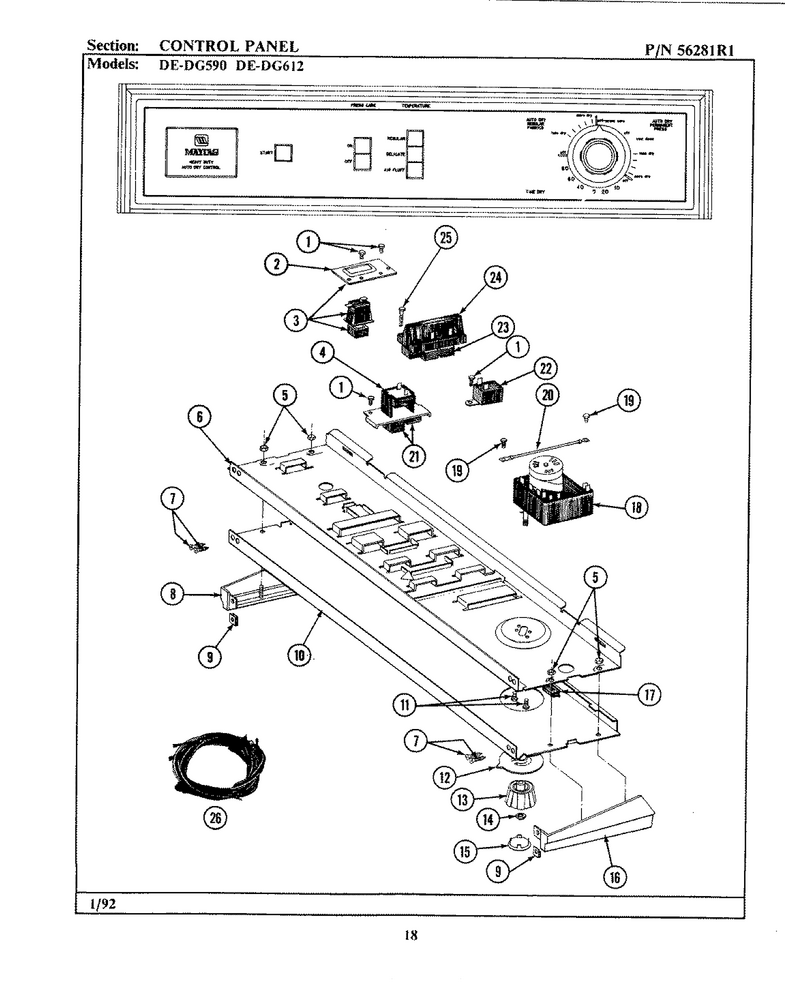

01 - Control Panel

...
...
1
Screw WPL-WPW10139210
...
2
Bracket For Start Switch WPL-314177
...
3
Switch- Pu WPL-WP306533
...
4
Dryness-Press Care Switch WPL-305950
...
5
Palnut, End Cap WPL-214872
...
6
Back Up Plate WPL-314184
...
7
Screw, No.8 X 9/16 Ctsk WPL-210932
...
8
End Cap F/control Panel-Lh WPL-214815
...
9
Fastener, End Cap WPL-214894
...
10
Control Panel WPL-306385
...
11
Screw WPL-WP488234
...
12
25v,30v,50 WPL-WFR314422
...
13
Ad-25,50 T WPL-WFR314421
...
14
Nut, 1/4-28 X WPL-W10155650
...
15
Cap For Knob WPL-215164
...
16
End Cap F/control Panel-Rh WPL-214816
...
17
Pad, Control Panel WPL-214897
...
18
Timer WPL-305207
...
19
Screw WPL-WP90767
...
20
Grnd.wire,supp.plte To Top Cvr WPL-204807
...
21
Button For Switch WPL-215210
...
22
Buzzer-Adj WPL-WP694419
...
23
Button For Switch WPL-215211
...
24
Temperature Switch WPL-305958
...
25
Screw WPL-WP67006908
...
26
Main Wire Harness WPL-306431

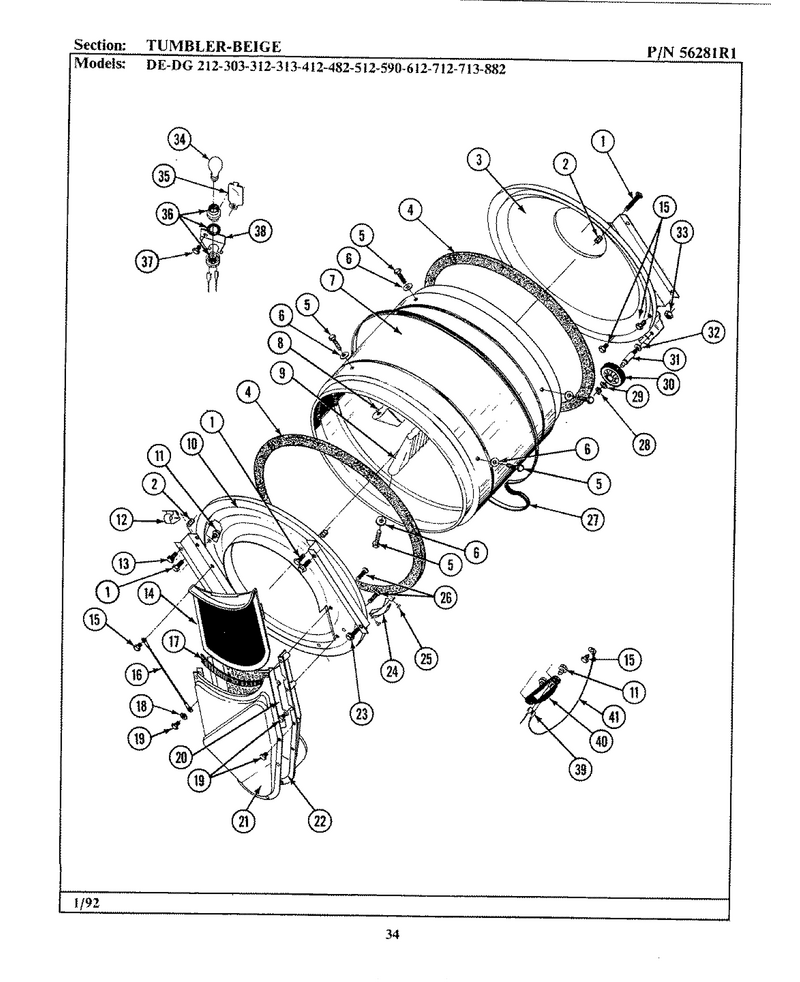

08 - Tumbler-Beige

...
...
1
Screw WPL-313764
...
2
Cover, Thread WPL-313915
...
3
Back, Tumbler (w/seal) WPL-33001106
...
4
Seal- Tumb WPL-WP314820
...
5
Screw WPL-WPY310759
...
6
Washer WPL-WP314158
...
7
Dryer Tumbler, W/o Baffles WPL-33001108
...
8
Baffle (short) WPL-314803
...
9
Baffle, Tall WPL-33001004
...
10
Tumbler Front----Na WPL-306670
...
12
Clip, Wire Harness WPL-Y310376
...
13
Screw WPL-WPY313561
...
14
Screen WPL-WP33001003
...
15
Screw WPL-WP90767
...
16
Wire, Ground WPL-205810
...
17
Lint Seal WPL-Y313796
...
18
Washer WPL-310557
...
19
Screw WPL-WPW10116751
...
20
Guide For Lint Screen WPL-Y313795
...
21
Outlet Duct - Outer Half WPL-Y312964
...
22
Outlet Duct & Grid WPL-306657
...
23
Screw WPL-WP1163839
...
24
Tumbler Bearing Kit WPL-306508
...
25
Rivet WPL-WP210720
...
26
Screw WPL-WP33002917
...
27
Belt WPL-WPY312959
...
28
Ring-Retnr WPL-WP9703438
...
29
Washer WPL-WP312535
...
30
Drum Roller/washer Assy. WPL-12001541
...
31
Shaft WPL-WP6-3129480
...
32
Washer WPL-WP312535
...
33
Nut- Hex WPL-WP33001443
