Maytag DE410

Model: DE410

Save Part Not Listed?
product name

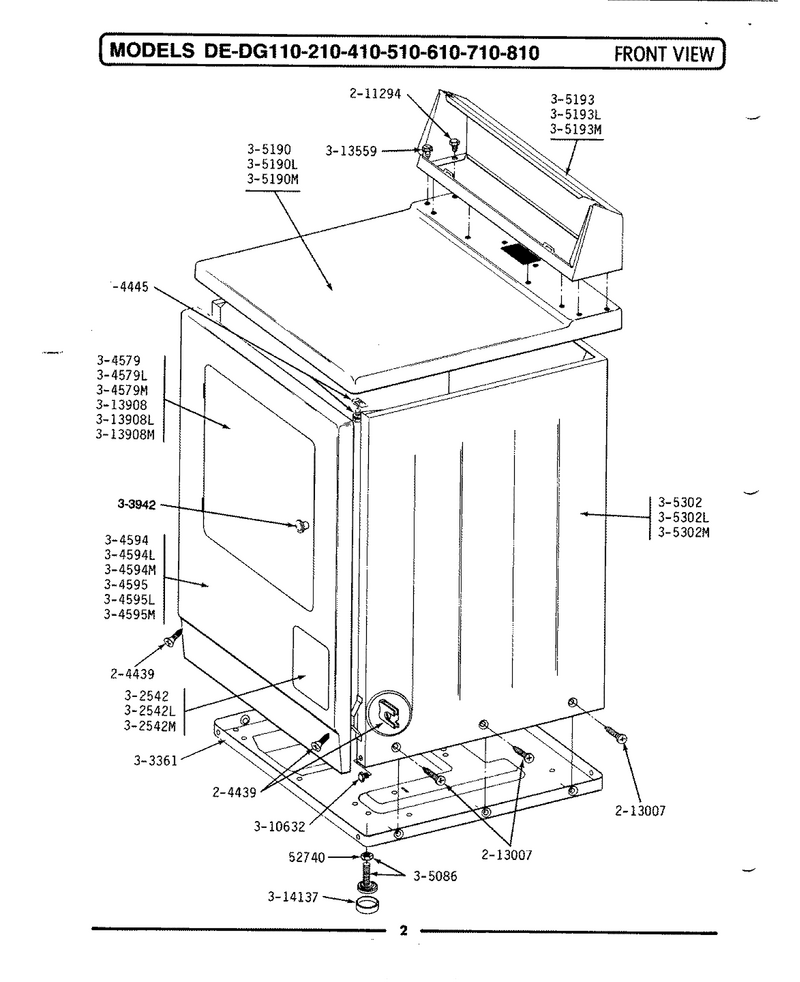

03 - Front View

...
...
1
Nut WPL-WP62739
...
2
Screw & Fstner Assy(frt.panel) WPL-204439
...
3
Screw & Fastener Asy. WPL-204445
...
4
Screw WPL-WP90767
...
5
Screw, Cabinet WPL-213007
...
6
Access Door-White WPL-302542
...
7
Access Door-Almond WPL-302542L
...
8
Access Door-Harvest Wheat WPL-302542M
...
9
Base Assy. WPL-Y303361
...
10
Door WPL-Y306668
...
13
Baskt-Ware WPL-3368309
...
14
Front Panel-Almond WPL-304594L
...
15
Front Panel-Harvest Wheat WPL-304594M
...
16
Dishrack WPL-W11169039
...
19
Feet-Lvlng WPL-W10176519
...
20
Top Cover Assy WPL-307104
...
23
Console (wht) WPL-Y305193
...
26
Cabinet-White WPL-305302
...
29
Knob And Screw WPL-303942
...
30
Screw WPL-WP1163839
...
31
Screw WPL-WP90767
...
32
Door Panel-White WPL-Y313908
...
35
Foot- Rubb WPL-WPY314137

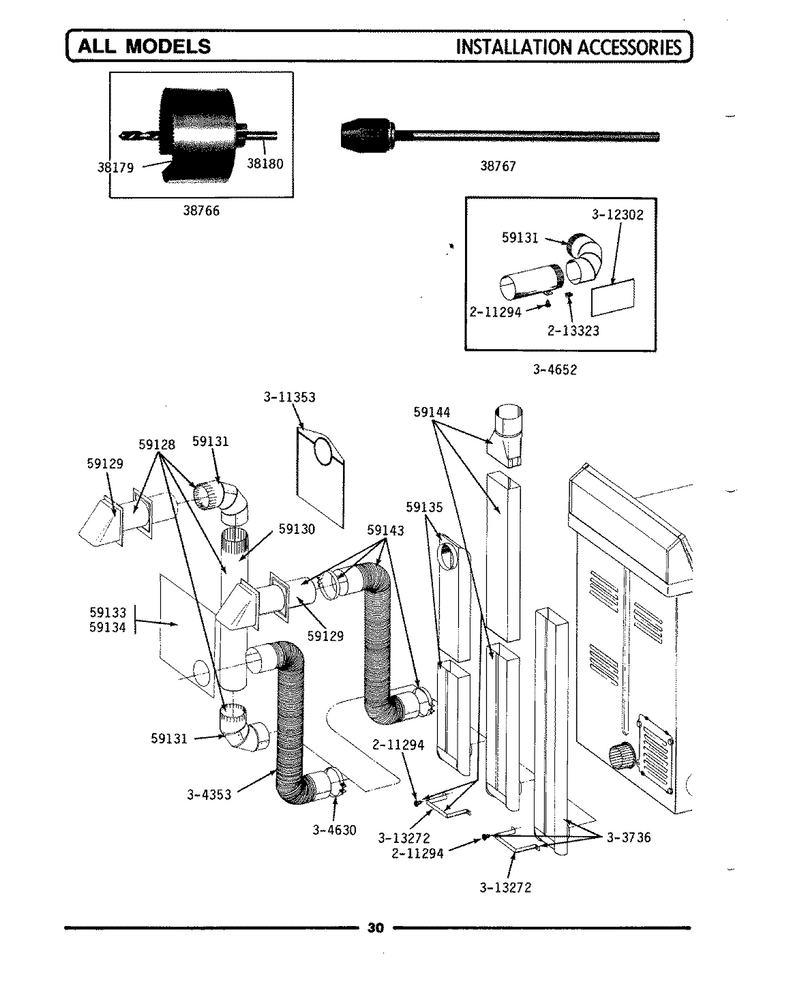

05 - Installation Accessories

...
...
1
Blade, Saw WPL-038179
...
2
Replacement Drill WPL-038180
...
3
Hole Saw W/drill Bit WPL-038766
...
4
Extension Chuck, Drill WPL-038767
...
5
Standard 4`` Vent Kit WPL-Y059128
...
6
Accessory Parts, Dryer Vent - Hardware & Misc Cap (external Venting, 4" W Opening, Heavy-Duty Rigid Metal & 10 1/2" L Pi WPL-4396007RW
...
7
Pipe, Venting WPL-Y059130
...
8
Elbow, Venting (4``) WPL-Y059131
...
9
Aluminum Window 4x12x18 WPL-059133
...
10
Plate, Alum. Window (15``x20``) WPL-Y059134
...
11
Vent Duct Assy. WPL-Y059135
...
12
Flexible Vent Kit WPL-Y059143
...
13
Rectangular Vent Kit WPL-059144
...
14
Screw WPL-WP90767
...
15
Fastener, Exhaust Duct Kit WPL-213323
...
16
Exhaust Deflector Kit WPL-303736
...
17
Accessory Parts, Dryer Vent - Flex Pipe Systems 6' (one End With Snap-Lock Male Fitting And Other End With Snap-Lock Fem WPL-4396010RP
...
18
Clamp, Flexible Duct WPL-Y304630
...
19
Exhaust Duct Kit WPL-Y304652
...
20
Bag, Lint (dacron) WPL-311353
...
21
Insulation, Exhaust Duct Kit WPL-312302
...
22
Bracket, Exhaust Deflector WPL-313272

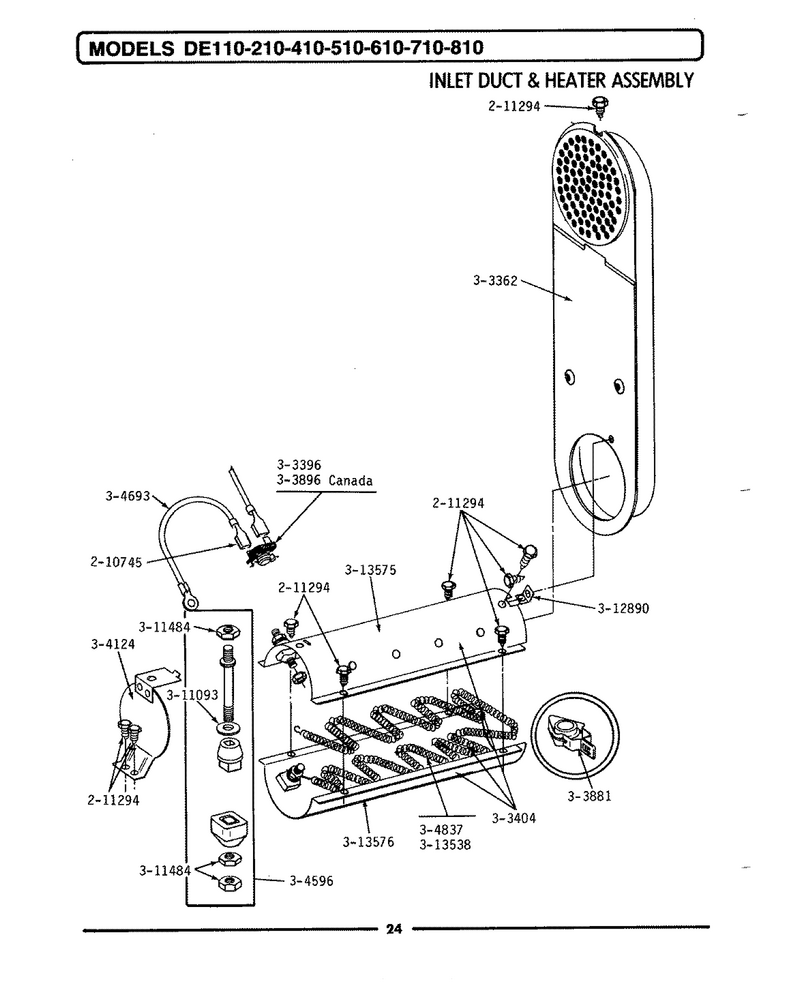

04 - Inlet Duct & Heater Assembly

...
...
1
Wire Terminal WPL-210745
...
2
Screw WPL-WP90767
...
3
Inlet Duct Assembly - De WPL-Y303362
...
4
Thrmst-Fix WPL-WP303396
...
5
Heater Asy WPL-WPY303404
...
6
Clip And I WPL-WPY303881
...
7
Hi-Limit T WPL-WP303896
...
8
Heater Shield WPL-304124
...
9
Terminal Insulator Assembly WPL-Y304596
...
10
Harns-Wire WPL-WPY304693
...
11
Element WPL-W10116793
...
12
Washer- 7 WPL-WP311093
...
13
Nut WPL-WP112432
...
14
Retainer, Heater Chamber WPL-Y312890
...
15
Heater Chamber, Bottom WPL-Y313576
...
16
Heater Chamber, Top WPL-Y313575

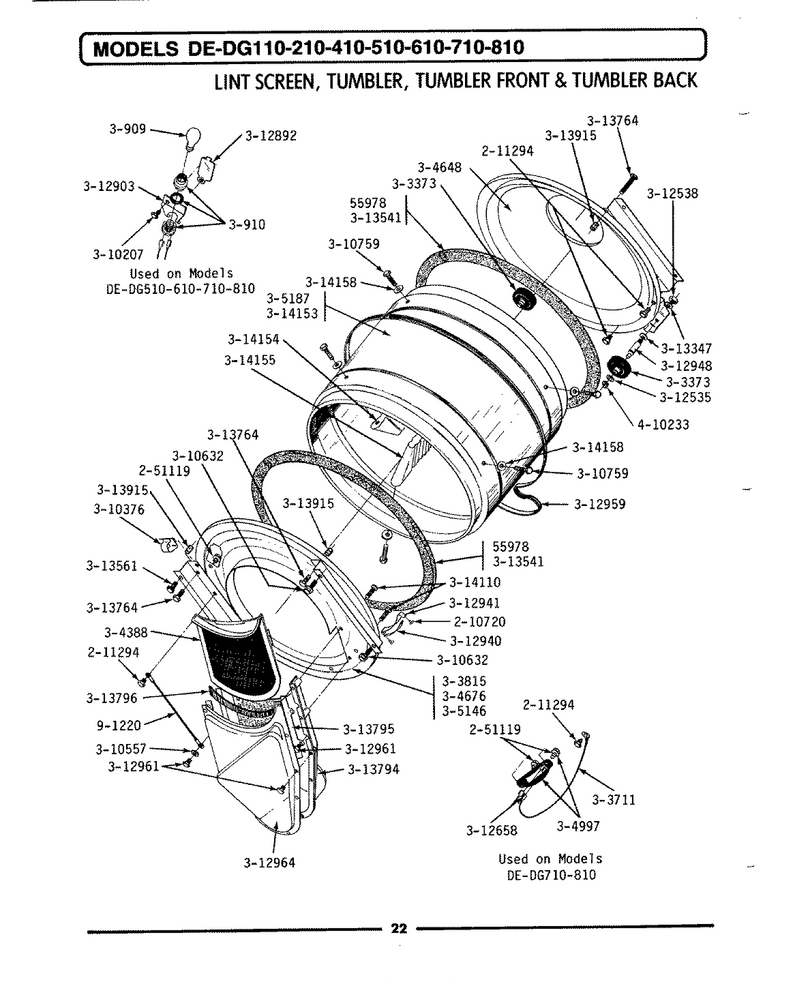

06 - Lint Screen, Tumbler (front & Back)

...
...
1
Rubber Adh WPL-WPY055978
...
2
Rivet WPL-WP210720
...
3
Screw WPL-WP90767
...
4
Screw WPL-WP3177991
...
5
Light Bulb WPL-8009
...
6
Receptacle WPL-300910
...
7
Drum Roller/washer Assy. WPL-12001541
...
8
Sensor Ground Wire WPL-Y303711
...
9
Front- Tum WPL-33001231
...
10
Screen WPL-WP33001003
...
11
Back, Tumbler (w/seal) WPL-33001106
...
12
Tumbler Front Assembly WPL-Y304676
...
13
Sensor Assembly With Screws WPL-304997
...
14
Tumbler Front Assembly WPL-306708
...
15
Tumbler WPL-305187
...
16
Screw, No.6 X 1/4 Inch WPL-310207
...
17
Clip, Wire Harness WPL-Y310376
...
18
Washer WPL-310557
...
19
Screw WPL-WP1163839
...
20
Screw WPL-WPY310759
...
21
Washer WPL-WP312535
...
22
Nut- Hex WPL-WP33001443
...
23
Receptacle, Sensor Ground Wire WPL-Y312658
...
24
Lens WPL-Y312892
...
25
Lamp Bracket WPL-312903
...
26
Pad WPL-WP312940
...
27
Tumbler Bearing Kit WPL-306508
...
28
Shaft WPL-WP6-3129480
...
29
Belt WPL-WPY312959
...
30
Screw WPL-WPW10116751
...
31
Outlet Duct - Outer Half WPL-Y312964
...
32
Washer WPL-WP312535
...
33
Seal- Tumb WPL-WP33313541
...
34
Screw WPL-WPY313561
...
35
Screw WPL-313764
...
36
Outlet Duct & Grid WPL-306657
...
37
Guide For Lint Screen WPL-Y313795
...
38
Lint Seal WPL-Y313796
...
39
Cover, Thread WPL-313915
...
40
Screw WPL-WP33002917
...
41
Dryer Tumbler, W/o Baffles WPL-33001108
...
42
Tumbler Baffle - Short WPL-314154
...
43
Baffle, Tall WPL-33001004
...
44
Washer WPL-WP314158
...
45
Ring-Retnr WPL-WP9703438
...
46
Wire, Ground WPL-901220

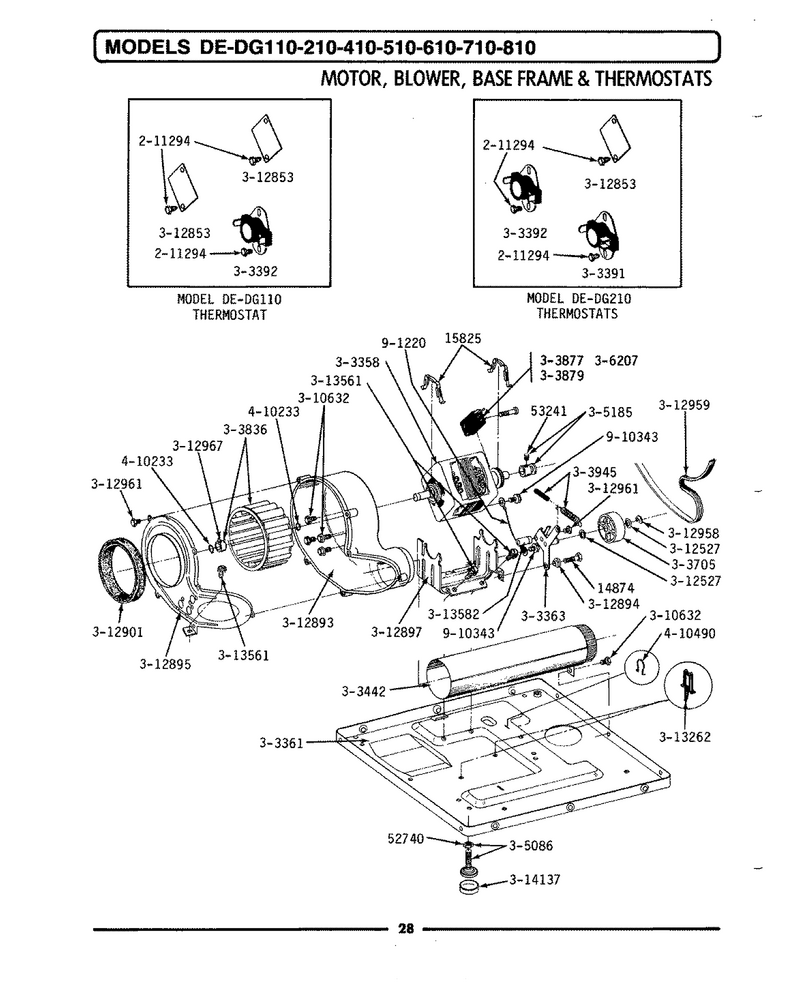

07 - Motor, Blower, Base Frame & Thermostats

...
...
1
Screw WPL-WPY014874
...
2
Clip- Moto WPL-WPY015825
...
3
Nut WPL-WP62739
...
4
Set Screw, Pulley WPL-Y053241
...
5
Screw WPL-WP90767
...
6
Motor-Drve WPL-W10410999
...
7
Base Assy. WPL-Y303361
...
8
Idler Arm WPL-WP6-3033630
...
9
Thermostat WPL-WP33303391
...
10
Thrmst-Fix WPL-WP694674
...
11
Cool-Down Thermostat WPL-Y303394
...
12
Exhaust Duct Assy. WPL-Y303442
...
13
Pulley WPL-WP6-3037050
...
14
Blower Wheel Assembly & Clamp WPL-Y303836
...
15
Switch, Motor WPL-Y303877
...
16
Switch, Motor Start-Prod. WPL-Y303879
...
17
Idler Spring Assembly WPL-Y303945
...
18
Cycling Th WPL-WPY304474
...
19
Cycling Th WPL-WPY304475
...
20
Feet-Lvlng WPL-W10176519
...
21
Pulley, Motor (w/set Screw) WPL-Y305185
...
22
Screw WPL-WP1163839
...
23
Switch, Motor Start-Prod. WPL-306207
...
24
Washer WPL-WPY312527
...
25
Cover For Thermostat Openin WPL-Y312853
...
26
Housing, Blower WPL-Y312893
...
27
Sleeve WPL-WP315772
...
28
Cover For Blower----Na WPL-Y312895
...
29
Support, Motor WPL-312897
...
30
Seal- Blow WPL-WPY312901
...
31
Ring-E WPL-WP354987
...
32
Belt WPL-WPY312959
...
33
Screw WPL-WPW10116751
...
34
Clamp WPL-WP312967
...
35
Retainer- WPL-W10116752
...
36
Screw WPL-WPY313561
...
37
Spacer WPL-WPW10116756
...
38
Foot- Rubb WPL-WPY314137
...
39
Ring-Retnr WPL-WP9703438
...
40
Spring, Wire Harness WPL-410490
...
41
Wire, Ground WPL-901220
...
42
Screw WPL-WP488234

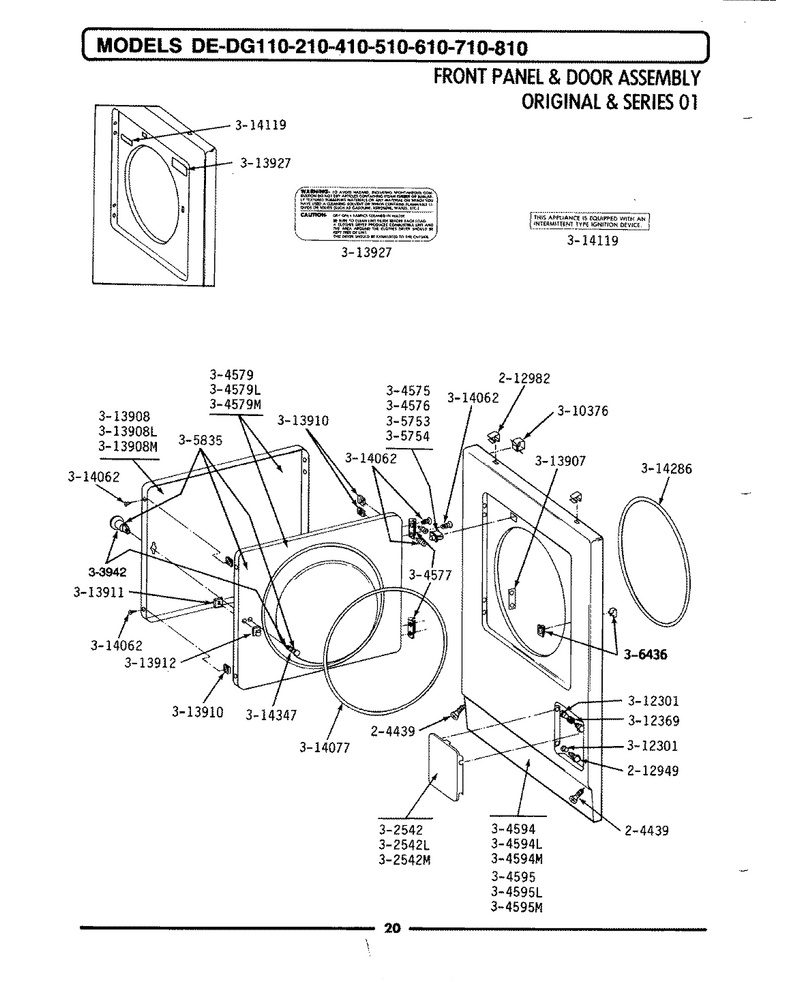

02 - Front Panel & Door Assembly

...
...
1
Screw & Fstner Assy(frt.panel) WPL-204439
...
2
Screw WPL-212949
...
3
Fastener- WPL-WP22001650
...
4
Access Door-White WPL-302542
...
5
Access Door-Almond WPL-302542L
...
6
Access Door-Harvest Wheat WPL-302542M
...
7
Switch-Dor WPL-W10169313
...
8
Switch-Dor WPL-W10169313
...
9
Door Hinge WPL-Y304577
...
10
Door Latch Kit WPL-306436
...
11
Door WPL-Y306668
...
14
Baskt-Ware WPL-3368309
...
15
Front Panel-Almond WPL-304594L
...
16
Front Panel-Harvest Wheat WPL-304594M
...
17
Dishrack WPL-W11169039
...
20
Switch-Dor WPL-W10169313
...
21
Switch-Dor WPL-W10169313
...
22
Inner Door With Knob & Scre WPL-305835
...
23
Knob And Screw WPL-303942
...
24
Clip, Wire Harness WPL-Y310376
...
25
High Voltage Lead, Gray 6-3/4`` (2) WPL-313113
...
26
Sleeve-Access Panel Stud WPL-312369
...
27
Twin Fastener WPL-Y313907
...
28
Door Panel-White WPL-Y313908
...
31
Clip, Door Liner To Outer Pnl WPL-Y313910
...
32
Door Strike Retainer WPL-Y313911
...
33
Door Latch Kit WPL-306436
...
34
Instruction Label WPL-Y313927
...
35
Screw WPL-Y314062
...
36
Door Seal WPL-314077
...
37
Gas Ignition Label WPL-314119
...
38
Seal For Front Panel WPL-314286
...
39
Screw WPL-WP400021-1

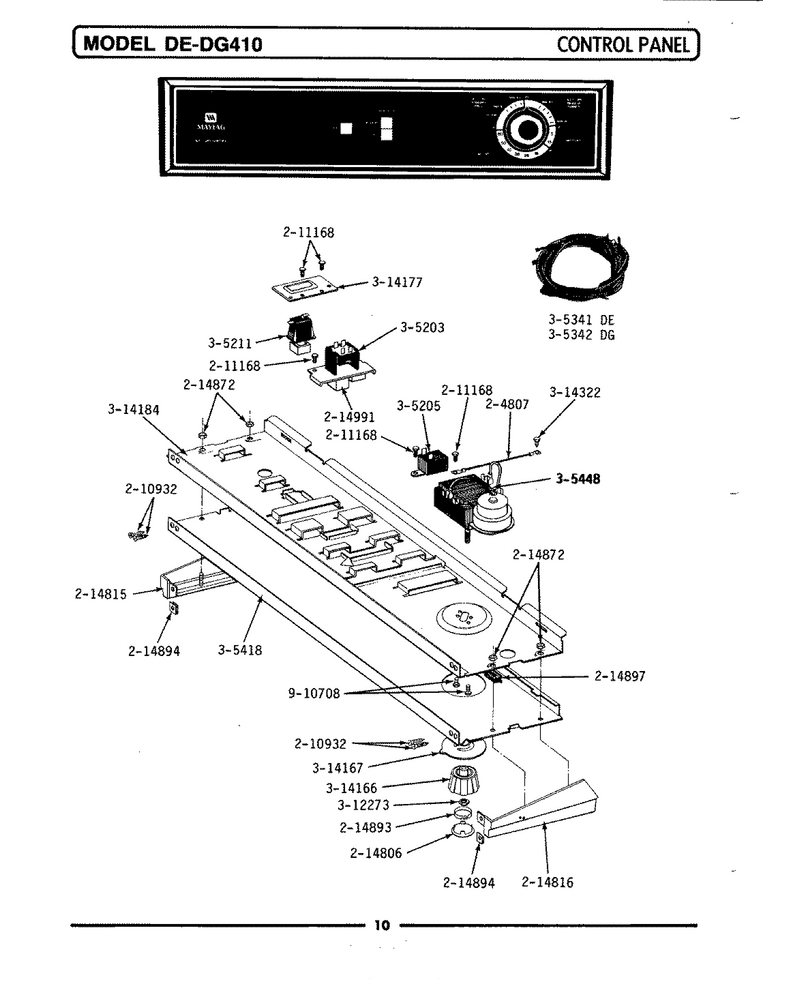

01 - Control Panel

...
...
1
Grnd.wire,supp.plte To Top Cvr WPL-204807
...
2
Screw, No.8 X 9/16 Ctsk WPL-210932
...
3
Screw WPL-WPW10139210
...
4
Cap For Timer Knob WPL-214806
...
5
End Cap F/control Panel-Lh WPL-214815
...
6
End Cap F/control Panel-Rh WPL-214816
...
7
Palnut, End Cap WPL-214872
...
8
Detent Ring F/timer Knob Ca WPL-214893
...
9
Fastener, End Cap WPL-214894
...
10
Pad, Control Panel WPL-214897
...
11
Button For Switch WPL-214991
...
12
Temperature Selector Switch WPL-305203
...
13
Buzzer-Adj WPL-WP694419
...
14
Push To Start Switch WPL-305211
...
15
Timer WPL-WP305448
...
16
Main Wire Harness WPL-305341
...
17
Main Wire Harness WPL-305342
...
18
Control Panel WPL-305418
...
19
Nut, 1/4-28 X WPL-W10155650
...
20
Knob For Timer WPL-Y314166
...
21
Timer Dial Indicator WPL-314167
...
22
Bracket For Start Switch WPL-314177
...
23
Back Up Plate WPL-314184
...
24
Screw, No.8-32 X 3/8 Inch WPL-Y314322
...
25
Screw WPL-WP488234

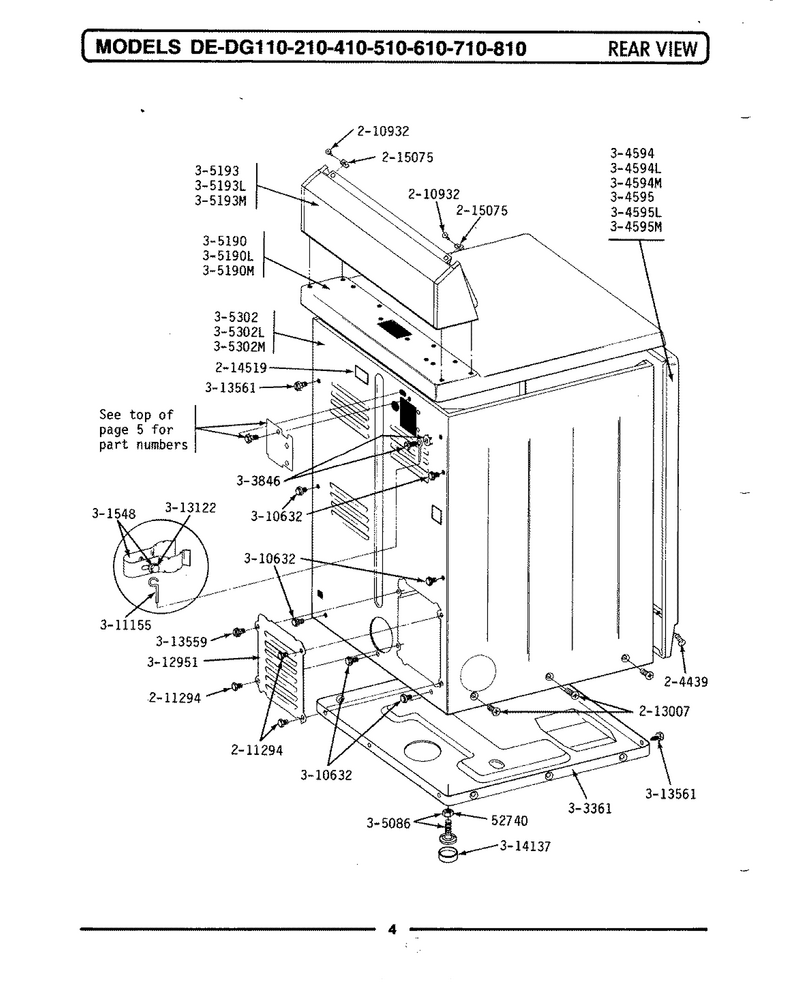

08 - Rear View

...
...
1
Nut WPL-WP62739
...
2
Converter WPL-Y201808
...
3
Screw & Fstner Assy(frt.panel) WPL-204439
...
4
Screw, No.8 X 9/16 Ctsk WPL-210932
...
5
Screw WPL-WP90767
...
6
Grommet, Cord WPL-211881
...
7
Screw, Cabinet WPL-213007
...
8
Label, Electrical Instruction WPL-214519
...
9
Fastener,cntrl Pnl To Console WPL-215075
...
10
Clamp, Ground (w/screw) WPL-301548
...
11
Power Cord WPL-302521
...
12
Base Assy. WPL-Y303361
...
13
Screw WPL-W10850756
...
14
Baskt-Ware WPL-3368309
...
15
Front Panel-Almond WPL-304594L
...
16
Front Panel-Harvest Wheat WPL-304594M
...
17
Dishrack WPL-W11169039
...
20
Feet-Lvlng WPL-W10176519
...
21
Top Cover Assy WPL-307104
...
24
Console (wht) WPL-Y305193
...
27
Cabinet-White WPL-305302
...
30
Screw WPL-WP1163839
...
31
Wire WPL-WP311155
...
32
Washer- Te WPL-WPY311270
...
33
Screw WPL-WP489483
...
34
Nut WPL-WP112432
...
35
Strap, Ground WPL-Y312184
...
36
Screw WPL-W11164114
...
37
Bracket, Terminal Block WPL-Y312904
...
38
Cover, Terminal WPL-Y312905
...
39
Cover, Access WPL-Y312951
...
40
Screw - Baffle To Tumbler WPL-313122
...
41
Screw WPL-WP90767
...
42
Screw WPL-WPY313561
...
43
Foot- Rubb WPL-WPY314137
...
44
Block, Terminal WPL-400008
