Maytag CWE9000BDE

Model: CWE9000BDE

Save Part Not Listed?
product name

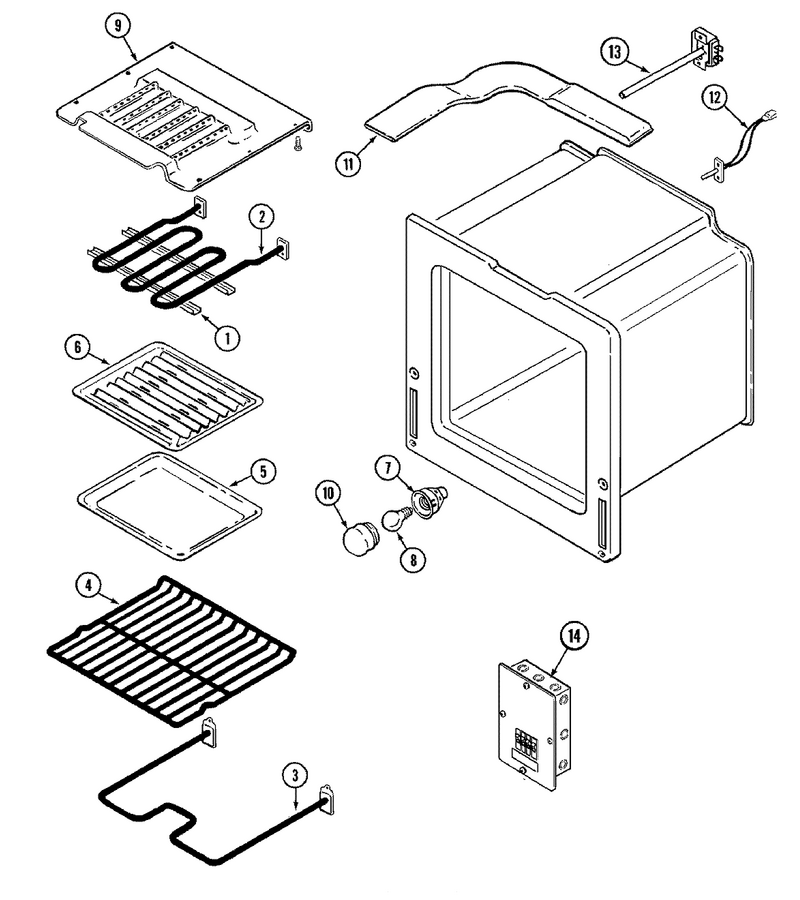

05 - Oven

...
...
1
Screw WPL-7101P345-60
...
2
Element, Broil WPL-Y04000072
...
3
Element- B WPL-WP74003020
...
4
Rack-Oven WPL-WPW10282492
...
5
Pan, Broil WPL-Y3401F02019
...
6
Insert WPL-WP3413F018-19
...
7
Lamp-Asm WPL-WP7407P182-60
...
8
Light Bulb WPL-8009
...
9
Baffle. Broil WPL-3601F202-45
...
10
Lens-Light WPL-WP9781049
...
11
Tube, Vent WPL-7506P125-60
...
12
Oven Sensor Replacement (long) WPL-12001656
...
13
Not Required Part Or See Note WPL-W10124350
...
14
Box, Breaker WPL-8028P003-60

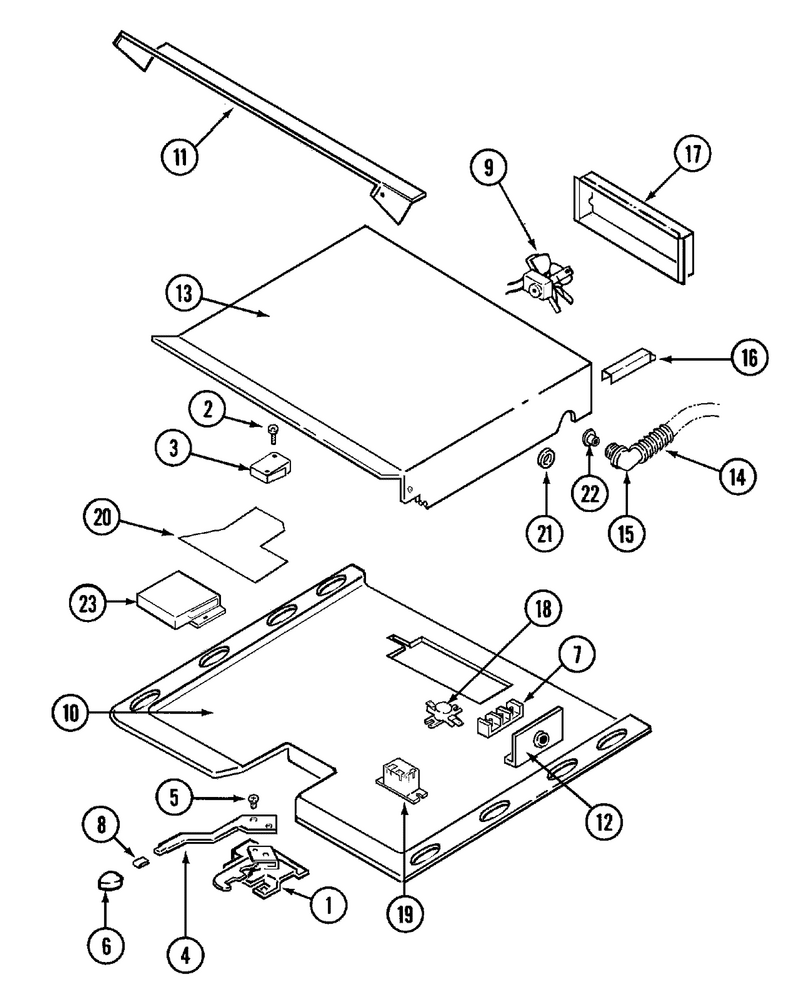

04 - Internal Controls

...
...
1
Latch Assy. WPL-8002P025-60
...
2
Screw, Switch WPL-7101P330-60
...
3
Switch, Door Latch----Na WPL-7403P325-60
...
4
Lever, Door Latch WPL-74001725
...
5
Screw WPL-WP4159193
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Block-Term WPL-WPW10245259
...
8
Not Required Part Or See Note WPL-W10124350
...
9
+ Fan- As WPL-W10127321
...
10
Retainer, Top Insulation WPL-74001793
...
11
Cover, Fan Housing WPL-4005F431-51
...
12
Plate, Conduit Tubing WPL-3605F174-51
...
13
Housing, Fan WPL-4001F092-51
...
14
Tubing, Conduit (canada) WPL-7434P010-60
...
15
Connector, Conduit WPL-7417P005-60
...
16
Raceway, Wire WPL-3830F008-51
...
17
Cover, Fan WPL-4005F262-51
...
18
Screw WPL-WP59002061
...
19
Relay WPL-7428P023-60
...
20
Insulation, Fiberboard WPL-7003P051-60
...
21
Washer WPL-7109P002-60
...
22
Grommet WPL-8008P017-60
...
23
Cover WPL-4005F428-80

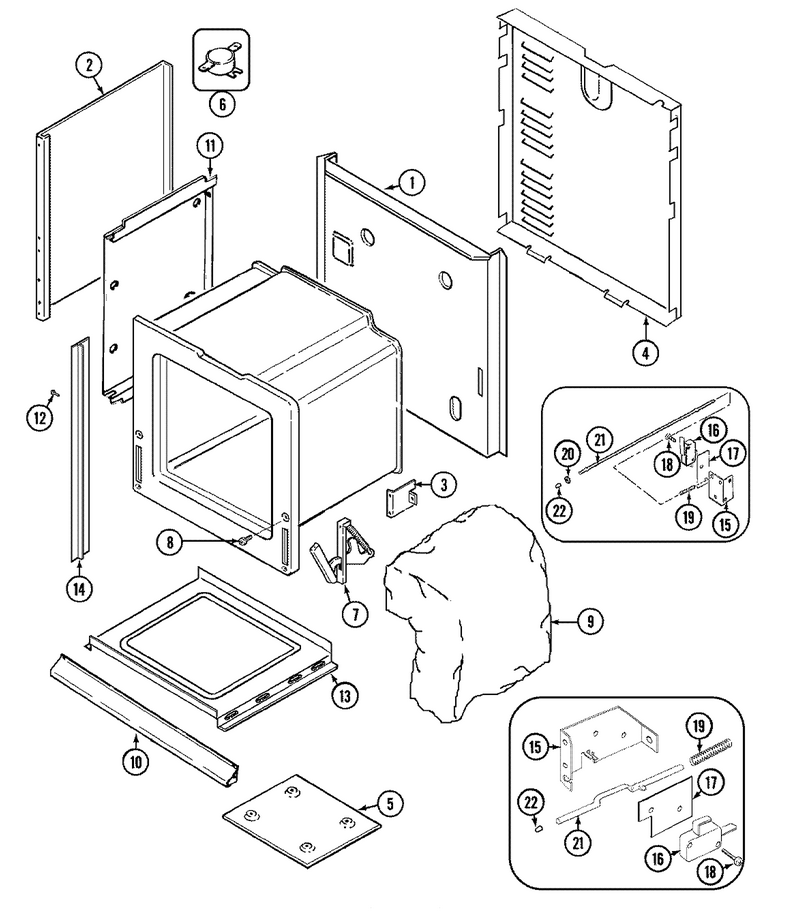

01 - Body

...
...
1
Back, Main WPL-4002F169-51
...
2
Panel, Side WPL-2618F082-51
...
3
Support,oven Rear WPL-3807F400-51
...
4
Cover, Rear WPL-4005F434-51
...
5
Shield, Heat WPL-3604F189-51
...
6
Switch- Hi WPL-WP7403P316-60
...
7
Hinge----Na WPL-7106P050-60
...
8
Screw WPL-WP4159193
...
9
Insulation, Wrap WPL-4804F029-60
...
10
Shield, Lower Vent (wht) WPL-3604F181-71
...
11
Retainer, Insulation (side) WPL-3804F108-51
...
12
Spacer, Mtg. Adapter (wht) WPL-74001393
...
13
Bottom, Main WPL-4011F217-51
...
14
Trim, Side (right) White WPL-7750P064-60
...
15
Bracket, Light Switch WPL-3801F354-51
...
16
Switch, Door Light WPL-74001628
...
17
Insulator, Door Switch WPL-74001626
...
18
Screw, Switch WPL-7101P330-60
...
19
Spring, Door Switch WPL-74001629
...
20
Washer WPL-7109P020-60
...
21
Rod, Door Light Switch WPL-74003562
...
22
Bumper WPL-8003P012-60

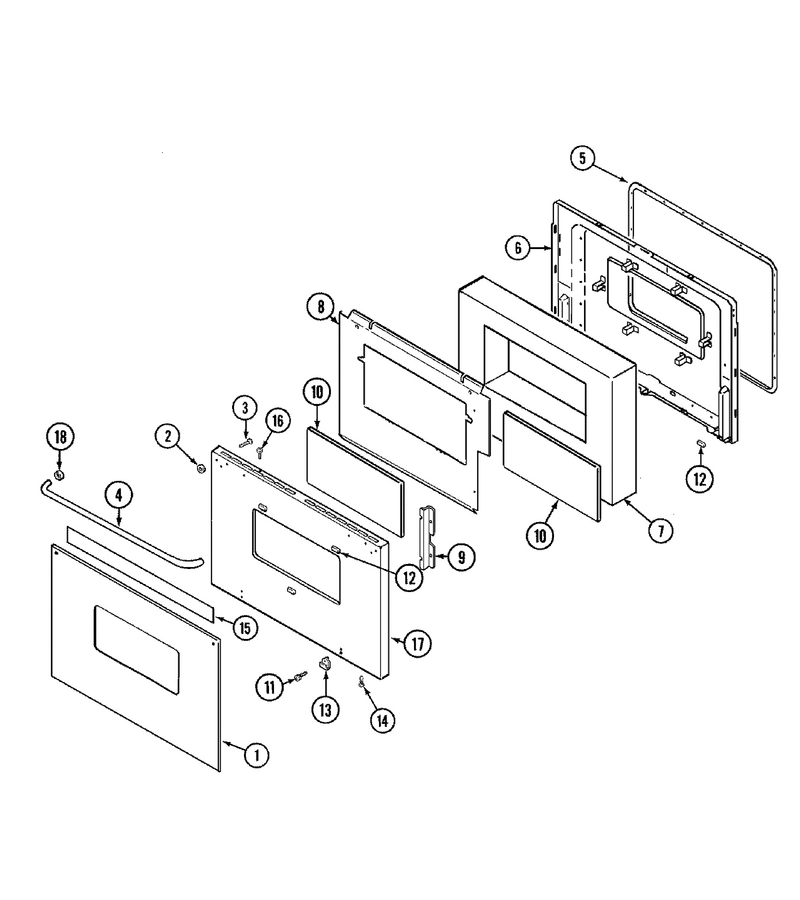

03 - Door (cwe9000bdx Ser. Pre. 18)

...
...
1
Glass, Door (wht) WPL-7902P370-60
...
2
Spacer, Door Glass (blk) WPL-74003986
...
3
Screw, Handle WPL-7101P325-60
...
4
Handle, Door (wht) WPL-7701P131-60
...
5
Gaskt-Door WPL-WPW10162384
...
6
Lining, Door WPL-2402W209-19
...
7
Insulation, Door WPL-74001842
...
8
Screw WPL-W11233072
...
9
Screw WPL-W11233072
...
10
Glass, Inner WPL-74001841
...
11
Screw WPL-WP98008544
...
12
Spacer, Rubber WPL-8010P085-60
...
13
Clip, Glass (wht) WPL-7112P094-60
...
14
Screw WPL-W11233072
...
15
Tape, Foil (3`` Wide) WPL-8270P090-60
...
16
Screw WPL-WP98008544
...
17
Panel, Door (wht) WPL-2401F123-71
...
18
Spacer, Hnld WPL-8010P091-60

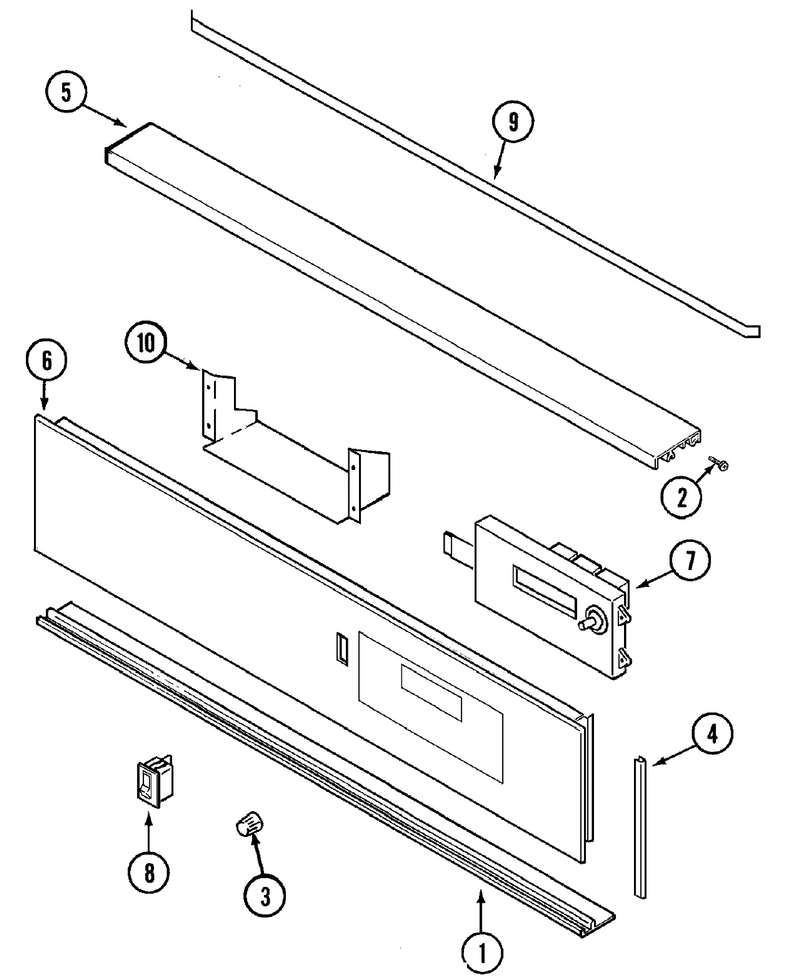

02 - Control Panel

...
...
NI
Harness, Oven Sensor/lock WPL-5170P171-60
...
1
Trim, Vent (chr) WPL-7756P099-60
...
2
Screw WPL-W11233072
...
3
Knob- Cloc WPL-WP7711P492-60
...
4
Trim, Control Panel (wht) WPL-7720P164-60
...
5
Trim, Top (white) WPL-7756P076-60
...
6
Panel, Control (wht) WPL-7721P040-60
...
7
Clock WPL-7601P225-60
...
8
Switch, Rocker (wht) WPL-7403P200-60
...
9
Extrusion, Filler Trim WPL-7752P004-60
...
10
Shield, Clock Insulation WPL-7003P048-60
