Maytag CSE900

Model: CSE900

Save Part Not Listed?
product name

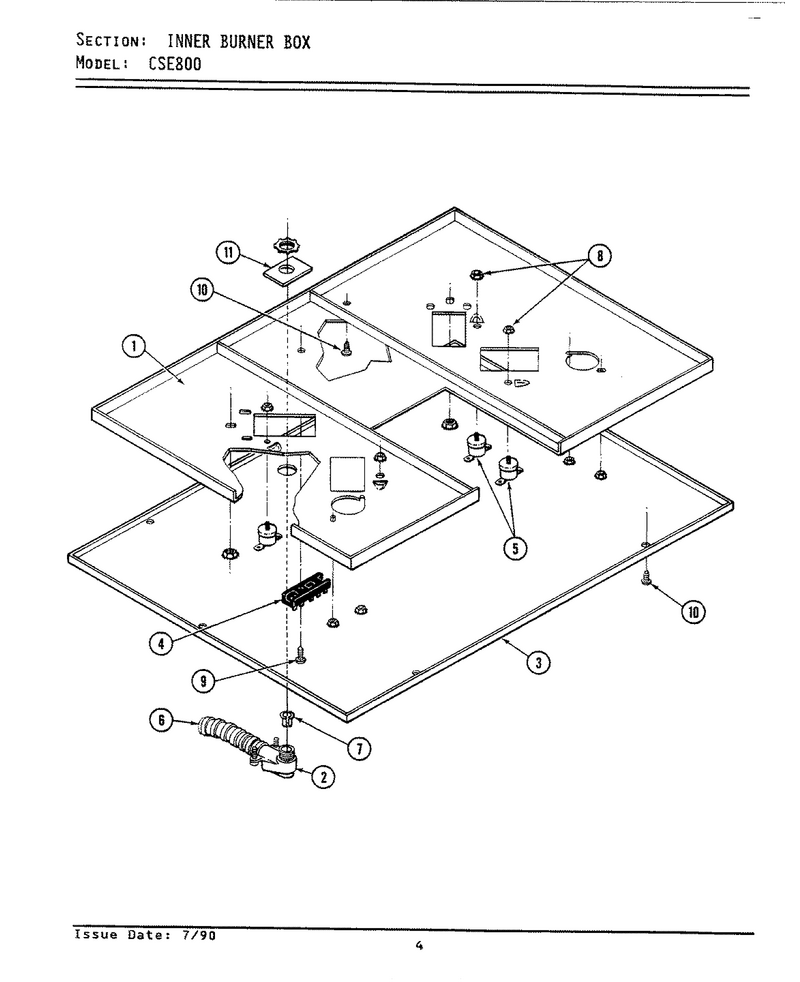

01 - Top Assembly

...
...
1
Baffle, Ceramic Top WPL-3601F164-80
...
2
Baffle, Heat----Na WPL-3601F173-51
...
3
Bottom, Burner Box WPL-4011F136-45
...
4
Bottom, Burner Box-Sides WPL-4016F023-45
...
5
Bracket, Light Indicator WPL-3801F188-45
...
6
Elmnt-Surf WPL-W10823707
...
7
Elmnt-Surf WPL-W10823704
...
8
Frame, Main Top WPL-7746P023-60
...
9
Cleaner, Cooktop WPL-W10355051
...
10
Grommet WPL-8008P033-60
...
11
Knob, Switch WPL-7711P438-60
...
12
Light, Indicator (hot Surface) WPL-7407P074-60
...
13
Plate, Switch Mounting WPL-3605F143-45
...
14
Retainer, Main Top Glass WPL-3804F092-45
...
15
Screw WPL-WP74004005
...
16
Screw WPL-WP7101P126-60
...
17
Support, Ceramic Element WPL-3807F326-80
...
18
Support, Element WPL-8004P015-60
...
19
Switch-Inf WPL-W11122008
...
20
Connector, Right Ang WPL-7417P004-60
...
21
Wires, Conduit WPL-5130A014-60
...
22
Sleeve, Tube WPL-8018P001-60
...
23
Wires, Loose WPL-5125A327-60
