Maytag CSE400

Model: CSE400

Save Part Not Listed?
product name

Popular Parts

Popular Parts

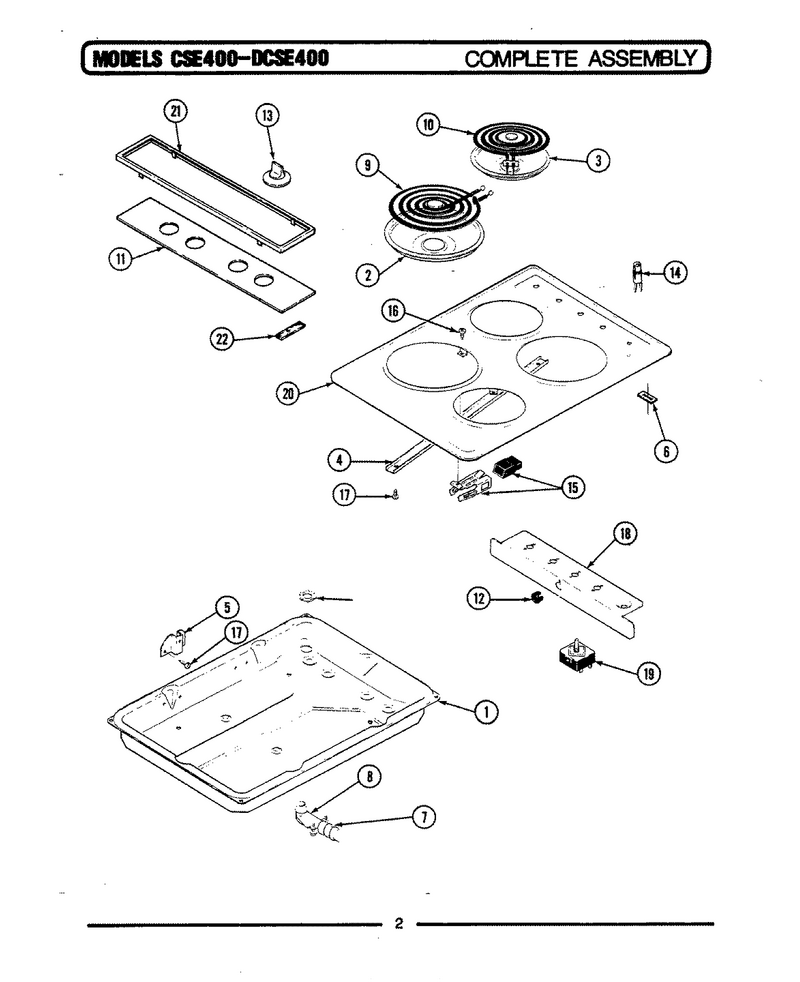

01 - Top Assembly

...
...
1
Bottom, Burner Box WPL-561160
...
2
Bowl-Drip WPL-WPW10196405
...
3
Bowl-Drip WPL-W10196406RW
...
4
Brace, Top WPL-561149
...
5
Bracket, Top Support WPL-561153
...
6
Clip, Push-On WPL-7112P076-60
...
7
Conduit Assy, Flex WPL-5700A214-60
...
8
Connector, Right Ang WPL-7417P004-60
...
9
Elmnt-Surf WPL-WP3191454
...
10
Elmnt-Surf WPL-WP660532
...
11
Glass, Control WPL-56-1155
...
12
Grommet, Nylon WPL-551386
...
13
Knob, Element Switch WPL-7737P022-60
...
14
Light, Signal WPL-561156
...
15
Receptacle, Surface Element WPL-561158
...
16
Screw WPL-WP74004005
...
17
Screw WPL-WP4159193
...
18
Shield, Switch Wiring WPL-561154
...
19
Switch-Inf WPL-W10900107
...
20
Top, Main Almond WPL-561151L
...
21
Trim, Control Panel WPL-560955
...
22
Seal, Glass Spacer WPL-561047
