Maytag 7MMVW7230LW0

Model: 7MMVW7230LW0

Save Part Not Listed?
product name

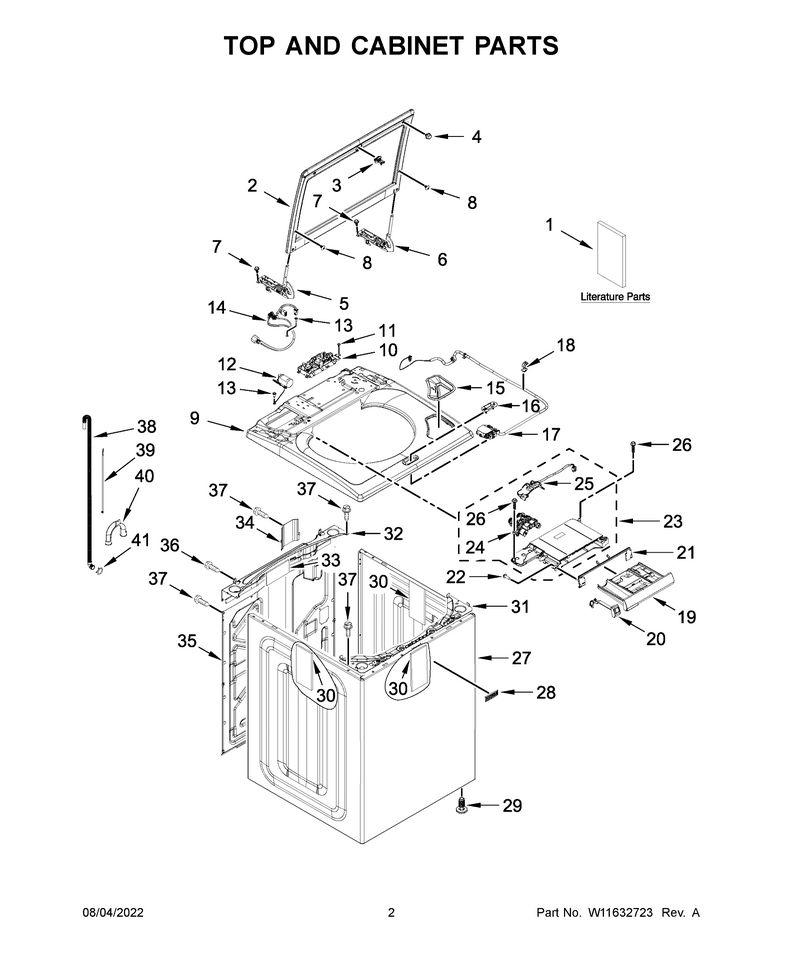

02 - Top And Cabinet Parts

...
...
1
Installation Instructions WPL-W11496272
...
1A
Quick Reference Guide WPL-W11445525
...
1B
Installation Instructions WPL-W11496272
...
1C
Tech Sheet WPL-W11197745
...
1D
Wiring Diagram WPL-W11250102
...
1E
Owners Manual WPL-W11524021
...
2
Assembly, Lid (Glass) (Tempest Grey) WPL-W11247975
...
3
Strike WPL-W11457841
...
4
Bumper WPL-W11398707
...
5
Hinge WPL-W11551369
...
6
Hinge WPL-W11551376
...
7
Screw WPL-WP489128
...
8
Bolt WPL-W11679612
...
9
Top WPL-W11423769
...
9A
Top WPL-W11423768
...
10
Cntrl-Elec WPL-W11419171
...
11
Screw WPL-WP693995
...
12
Filter WPL-W11614635
...
13
Screw WPL-W10846509
...
14
Cord-Power WPL-W11551294
...
15
Bezel, Bleach Dispenser (White) WPL-W11175757
...
15A
Bezel, Bleach Dispenser (Grey) WPL-W11175760
...
16
Bezel WPL-W11545554
...
16A
Bezel WPL-W11559688
...
17
Latch WPL-W11700916
...
18
Clip WPL-WP90016
...
19
Dispenser WPL-W11573771
...
19A
Drawer WPL-W11611449
...
20
Switch WPL-W11174419
...
20A
Switch WPL-W11662334
...
21
Assembly, Dispenser Bezel (White) WPL-W11375988
...
21A
Assembly, Dispenser Bezel (Grey) WPL-W11375989
...
22
Screw WPL-WP9740848
...
23
Drawer WPL-W11400157
...
24
Valve WPL-W11165546
...
25
Harns-Wire WPL-W11676811
...
26
Screw WPL-WPW10109200
...
27
Cabinet (White) WPL-W10677265
...
27A
Cabinet (Chrome Shadow) WPL-W10677266
...
28
Nameplate WPL-WPW10612925
...
29
Feet-Lvlng WPL-WPW10687506
...
30
Absorber WPL-W11197416
...
31
Channel, Top Front WPL-W11381327
...
31A
Channel, Top Front WPL-W11381327
...
32
Brace WPL-W11712680
...
33
Absorber WPL-WP8564458
...
34
Cover, Harness WPL-W10676061
...
35
Panel, Rear WPL-W11417171
...
36
Screw WPL-W11568617
...
37
Screw WPL-W11685943
...
38
Tie-Wire WPL-WPW10339879
...
39
Hose WPL-W11244231
...
40
Retainer WPL-WPW10280024
...
41
Clamp WPL-WP356138

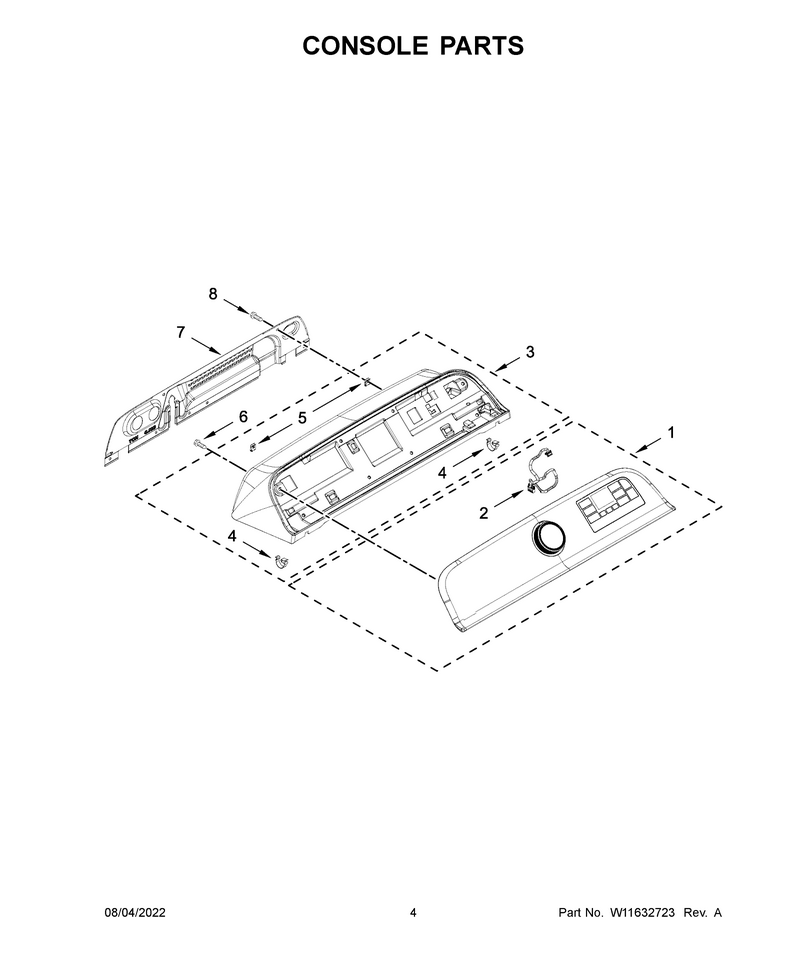

03 - Console Parts

...
...
1
Panel-Ui WPL-W11553990
...
2
Harns-Wire WPL-W11596129
...
3
Console WPL-W11569437
...
3A
Console WPL-W11519741
...
4
Clip WPL-WP8312709
...
5
Nut WPL-W11213336
...
6
Screw WPL-W11311945
...
7
Panel, Console Rear WPL-W11129559
...
8
Screw WPL-W11685943

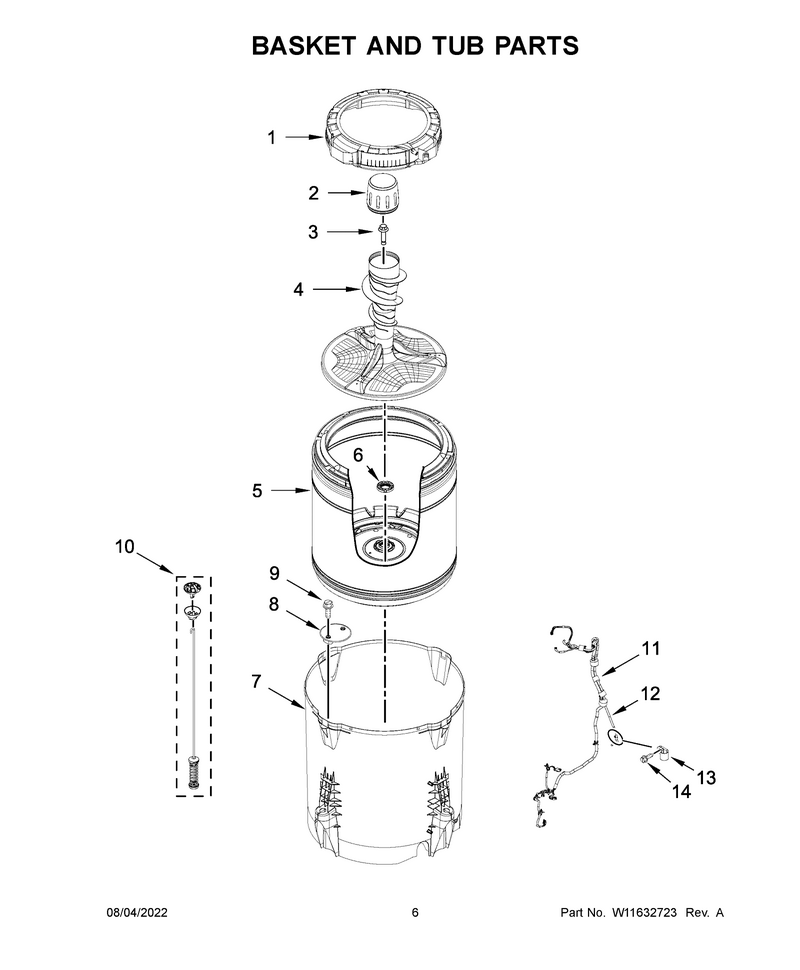

04 - Basket And Tub Parts

...
...
1
Ring-Tub WPL-W11590590
...
2
Cap WPL-W11611671
...
3
Screw WPL-W10752187
...
4
Agitator WPL-W11550891
...
5
Basket Assembly WPL-W11178227
...
6
Nut-Spaner WPL-W11551646
...
7
Tub WPL-W11219115
...
8
Filter WPL-W11568797
...
9
Screw WPL-WP8533928
...
10
Suspension WPL-W11400156
...
11
Harns-Wire WPL-W11568984
...
12
Hose WPL-WP353244
...
13
Clamp, Cable WPL-W10005430
...
14
Screw WPL-WPW10238319

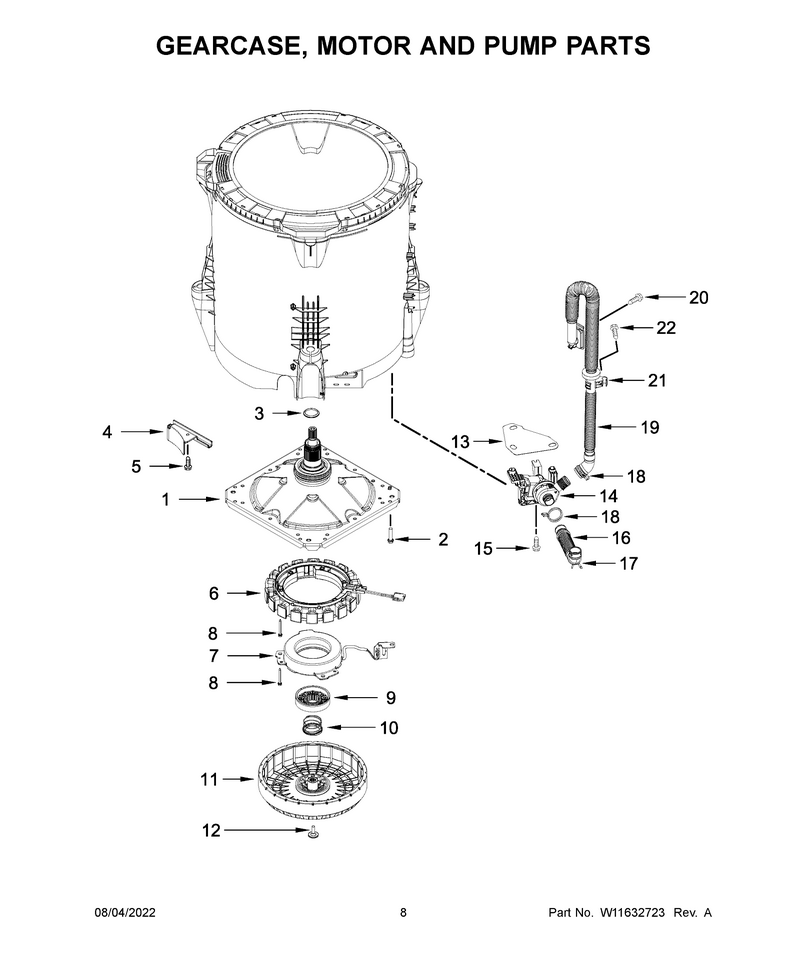

05 - Gearcase, Motor And Pump Parts

...
...
1
Gearcase WPL-W11449841
...
2
Screw WPL-WPW10249633
...
3
Washer WPL-W11553312
...
4
Harness Shield - Motor WPL-W10673062
...
5
Screw WPL-W10846509
...
6
Stator WPL-W11195971
...
7
Clutch WPL-W10754448
...
8
Screw WPL-W11027980
...
9
Slider WPL-W10734521
...
10
Slider WPL-W10734521
...
11
Rotor WPL-W11260238
...
12
Screw WPL-W10752189
...
13
Shield, Heat WPL-W10894129
...
14
Pump-Water WPL-W11396717
...
15
Screw WPL-WPW10004910
...
16
Hose WPL-W10802689
...
17
Clamp WPL-WP285655
...
18
Clamp WPL-WP285655
...
19
Hose WPL-W11553446
...
20
Screw WPL-WP9740848
...
21
Clip, Hose WPL-W10652932
...
22
Screw WPL-WPW10109200

...
...
NI
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
