Maytag 5GRS315NHM00

Model: 5GRS315NHM00

Save Part Not Listed?
product name

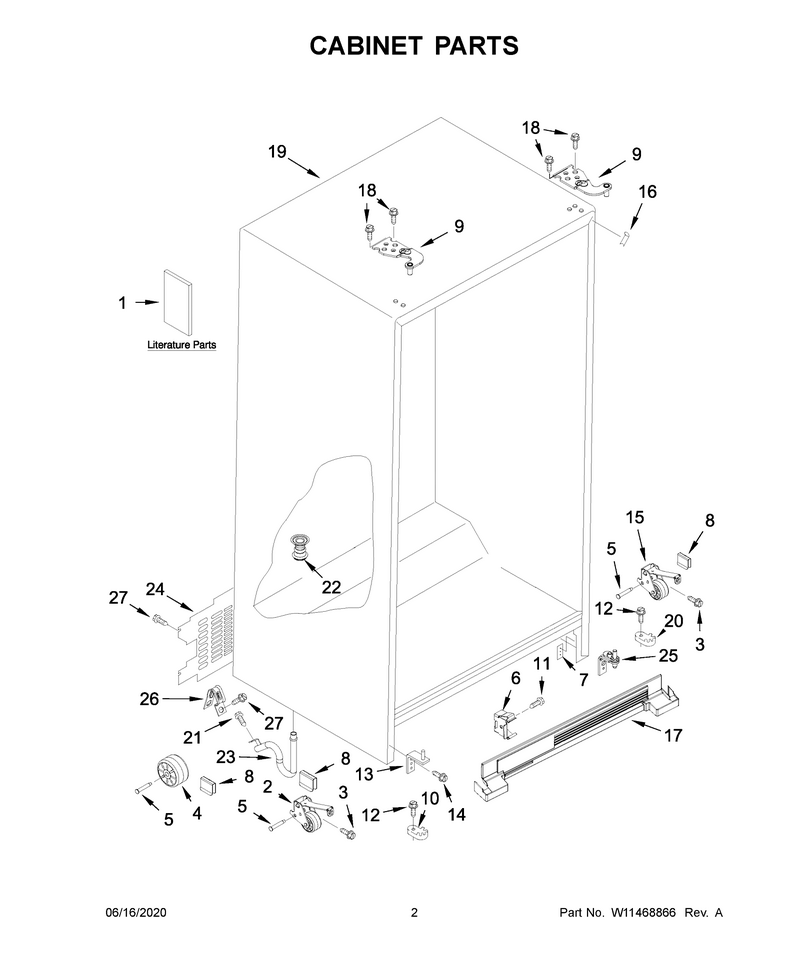

02 - Cabinet Parts

...
...
1
Use And Care Guide WPL-W11335015
...
1A
Tech Sheet WPL-W11443740
...
1B
Energy Guide WPL-W11447263
...
2
Roller-Cab WPL-WPW10304660
...
3
Screw WPL-W11544561
...
4
Roller-Cab WPL-WPW10475495
...
5
Axle WPL-W11594405
...
6
Clip WPL-WP2155013
...
7
Plate, Screw (Refrigerator) WPL-W11036715
...
7A
Plate, Screw (Freezer) WPL-W10904380
...
8
Axle WPL-W11594405
...
9
Hinge-Door WPL-W11505709
...
9A
Hinge-Door WPL-W11505710
...
10
Cam-Door WPL-W11679635
...
11
Screw WPL-WP489128
...
12
Screw WPL-WP489483
...
13
Hinge-Door WPL-W11687636
...
14
Screw WPL-WP489497
...
15
Roller-Cab WPL-WPW10304659
...
16
Filler, Wrapper (Grey) WPL-W11219642
...
17
Grille WPL-W11282561
...
18
Assembly, Precooler Formed WPL-SCREW
...
19
Following Parts Not Illustrated WPL-N/P
...
20
Cam-Door WPL-W11398787
...
21
Screw WPL-WP489464
...
22
Fitting WPL-W11566763
...
23
Trivet WPL-W11512417
...
24
Assembly, Cover WPL-W11613261
...
25
Hinge-Door WPL-W11399415
...
26
Clamp, Power Cord WPL-549193
...
27
Screw WPL-WPW10141645

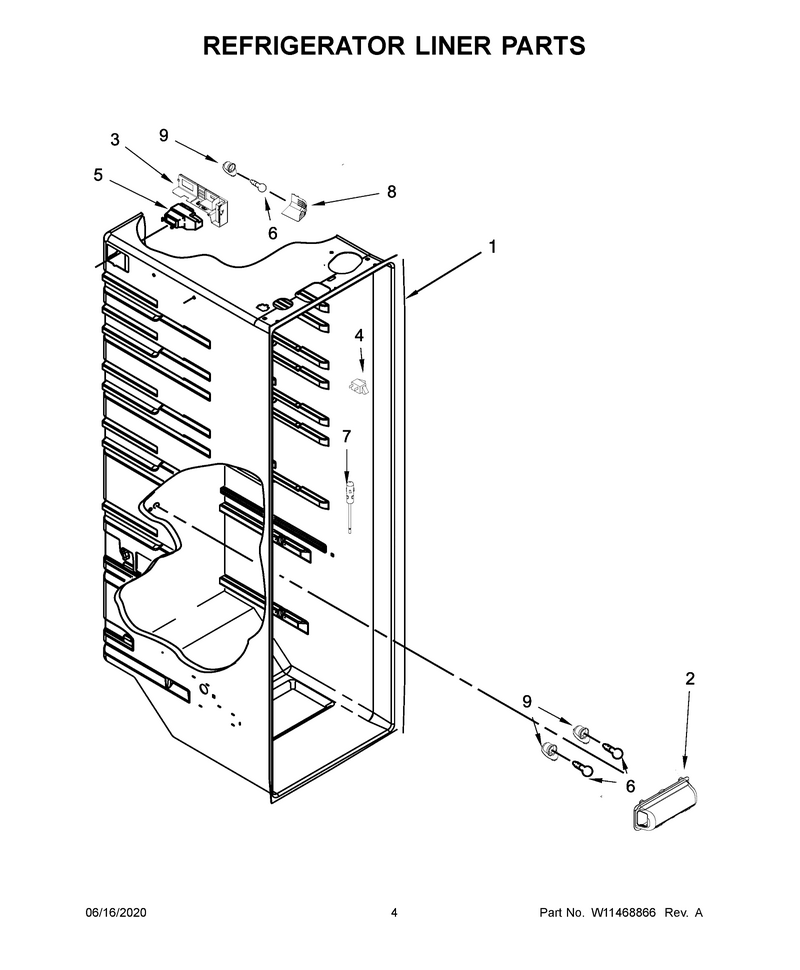

03 - Refrigerator Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Lens-Light WPL-W11239891
...
3
Cover, Air Diffuser WPL-W11048608
...
4
Switch WPL-W11384469
...
5
Diffuser WPL-W11645127
...
6
Bulb, Light WPL-W10716219
...
7
Thermistor WPL-WPW10384183
...
8
Cover, Light WPL-W10900030
...
9
Socket WPL-W11447232

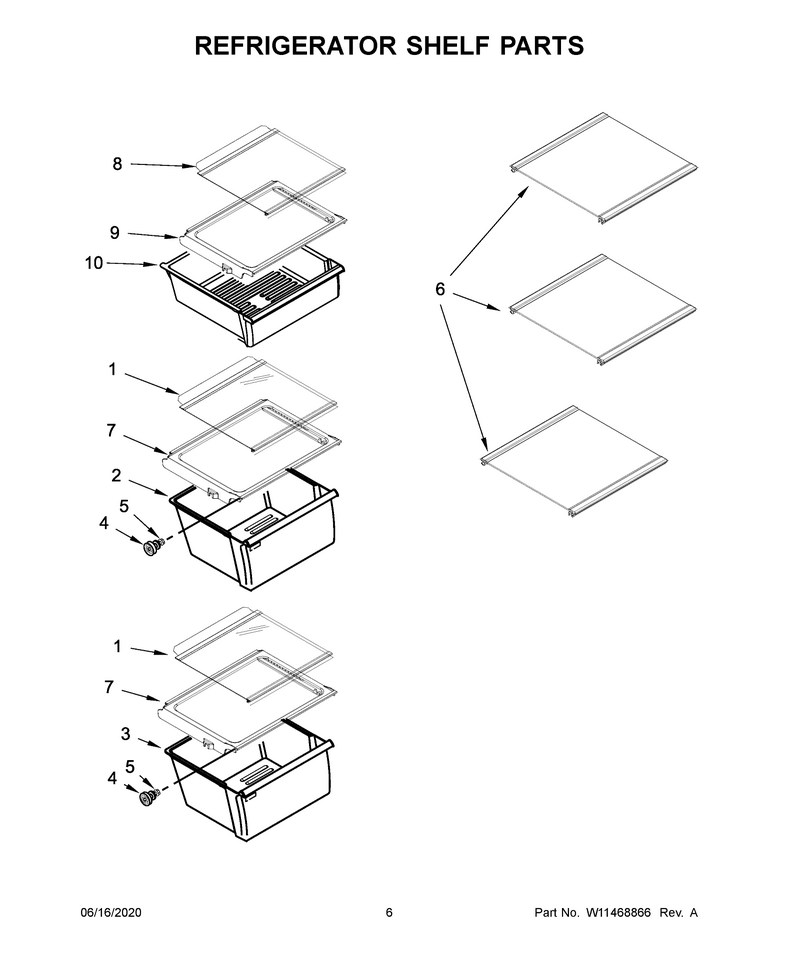

04 - Refrigerator Shelf Parts

...
...
1
Shelf-Glas WPL-W11697465
...
2
Cover WPL-W11162443
...
3
Pan-Meat WPL-W11162446
...
4
Stud-Shelf WPL-W11223328
...
5
Screw WPL-WP3-24004-109
...
6
Shelf-Glas WPL-W11188040
...
7
Holder WPL-W11368751
...
8
Shelf-Glas WPL-W11449889
...
9
Holder WPL-W11371713
...
10
Pan-Snack WPL-W11162448

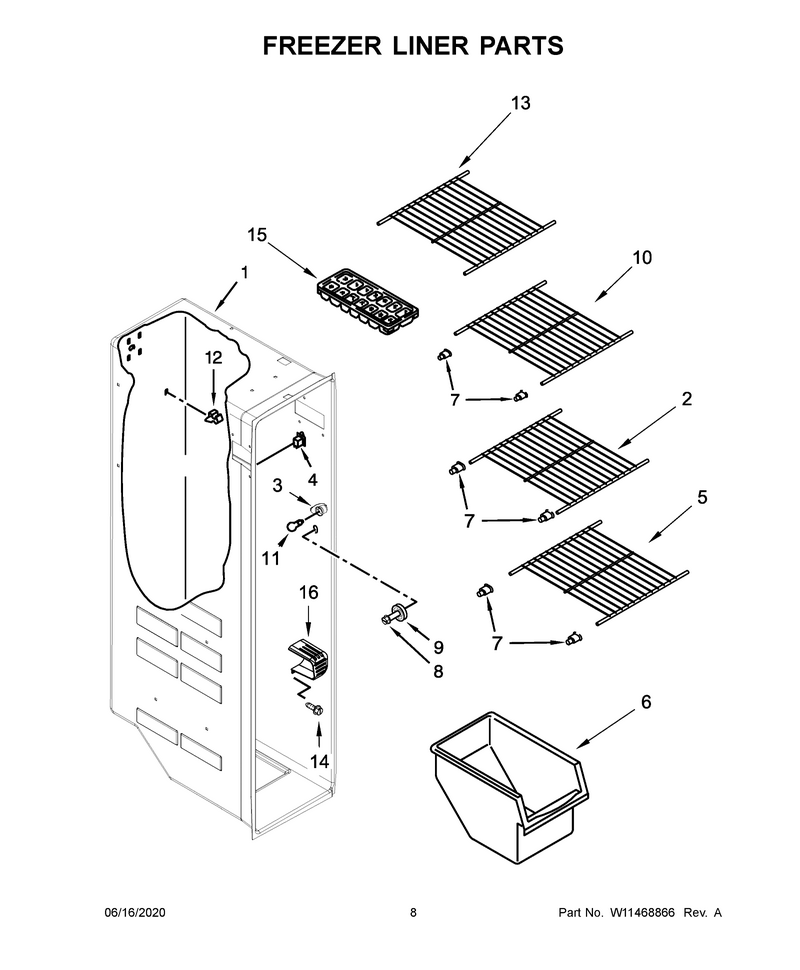

05 - Freezer Liner Parts

...
...
1
Following Parts Not Illustrated WPL-N/P
...
2
Shelf-Wire WPL-WPW10318948
...
3
Socket WPL-W11606038
...
4
Switch WPL-W11396033
...
5
Shelf-Wire WPL-WPW10318947
...
6
Bin-Freezr WPL-W11577967
...
7
Cup WPL-WPW10130299
...
8
Screw WPL-WP3-24004-109
...
9
Stud-Shelf WPL-W11223328
...
10
Shelf-Wire WPL-WPW10318961
...
11
Bulb, Light WPL-W10716219
...
12
Clip-Air, Duct WPL-2215823
...
13
Shelf, Wire WPL-W10318945
...
14
Screw 8-18 X 5/8 WPL-W10142289
...
15
Tray WPL-WP841180A
...
16
Lens-Light WPL-W11298978

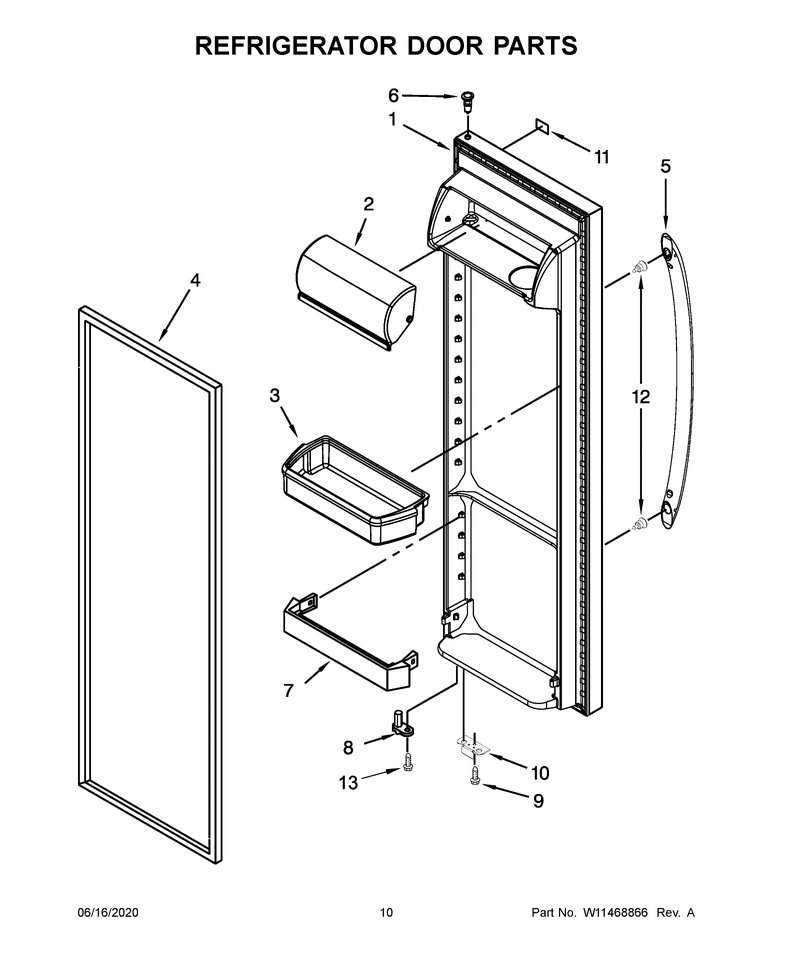

06 - Refrigerator Door Parts

...
...
1
Dor-Fip WPL-LW11110269
...
2
Door-Comp WPL-WP2256101
...
3
Bin-Cntlvr WPL-WPW10269173
...
4
Gasket-Fip WPL-WPW10136734
...
5
Handle WPL-W10879677
...
6
Thimble WPL-WP2182181
...
7
Trim-Door WPL-WP2309941
...
8
Cam-Door WPL-W11397972
...
9
Screw WPL-WP489483
...
10
Bracket WPL-W11557261
...
11
Nameplate WPL-WPW10612926
...
12
Screw WPL-WPW10661886
...
13
Screw WPL-WPW10142283

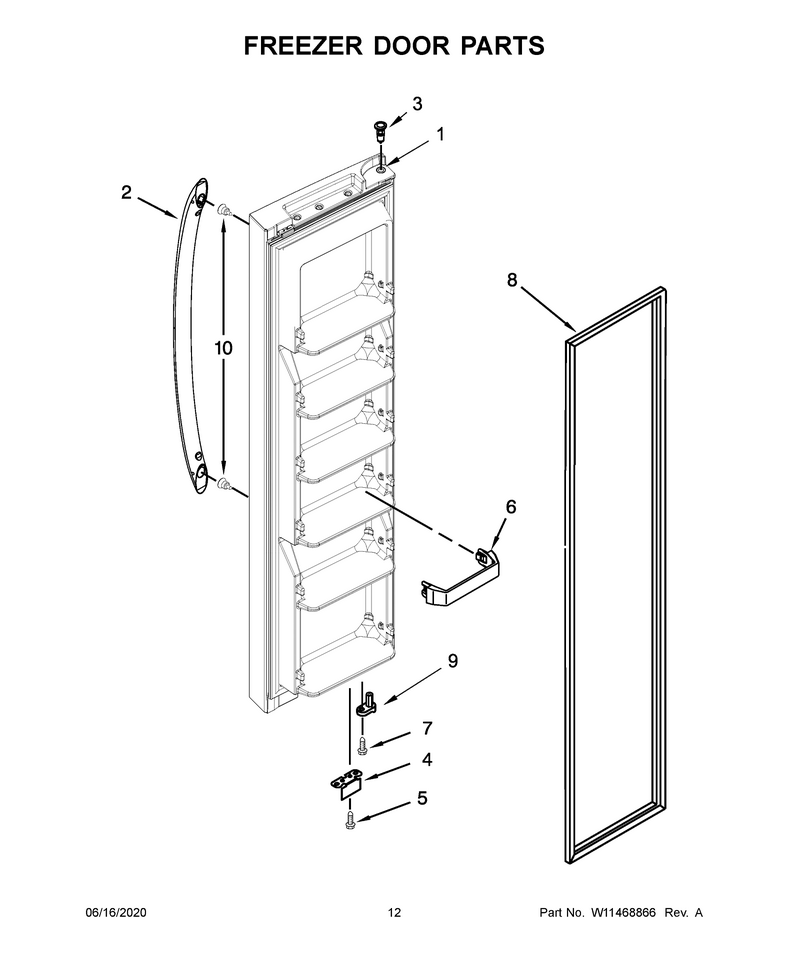

07 - Freezer Door Parts

...
...
1
Dor-Fip WPL-W11475223
...
2
Handle WPL-W10879677
...
3
Thimble WPL-WP2182181
...
4
Bracket WPL-W11557261
...
5
Screw WPL-WPW10296816
...
6
Trim-Door WPL-WP2171157
...
7
Screw WPL-WPW10296804
...
8
Gasket-Fip WPL-W10136735
...
9
Cam-Door WPL-W11661926
...
10
Screw WPL-WPW10661886

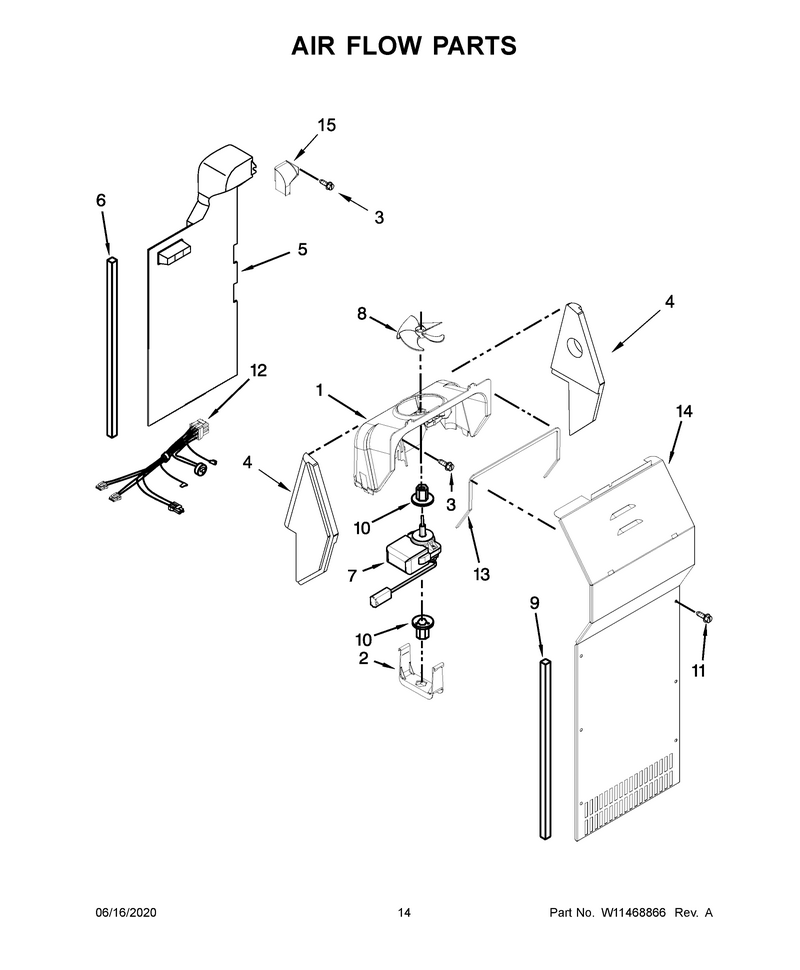

08 - Air Flow Parts

...
...
1
Fan-Scroll WPL-W11263195
...
2
Retainer WPL-W11700295
...
3
Screw WPL-WP489478
...
4
Support Kit (Contains Right And Left) WPL-4388358
...
4A
Support Kit (Contains Right And Left) WPL-4388358
...
5
Duct-Air WPL-W11755719
...
6
Gasket WPL-4388500
...
7
Motor-Evap WPL-WP2321275
...
8
Blade-Fan WPL-WP2169142
...
9
Gasket WPL-WP2304241
...
10
Grommet WPL-WP2176759
...
11
Screw WPL-WP693995
...
12
Harness, Evaporator Fan (Includes Thermal Fuse) WPL-W11208468
...
13
Gasket WPL-WP2155789
...
14
Cover-Evap WPL-WPW10463013
...
15
Scoop, Air Assembly WPL-W10803597

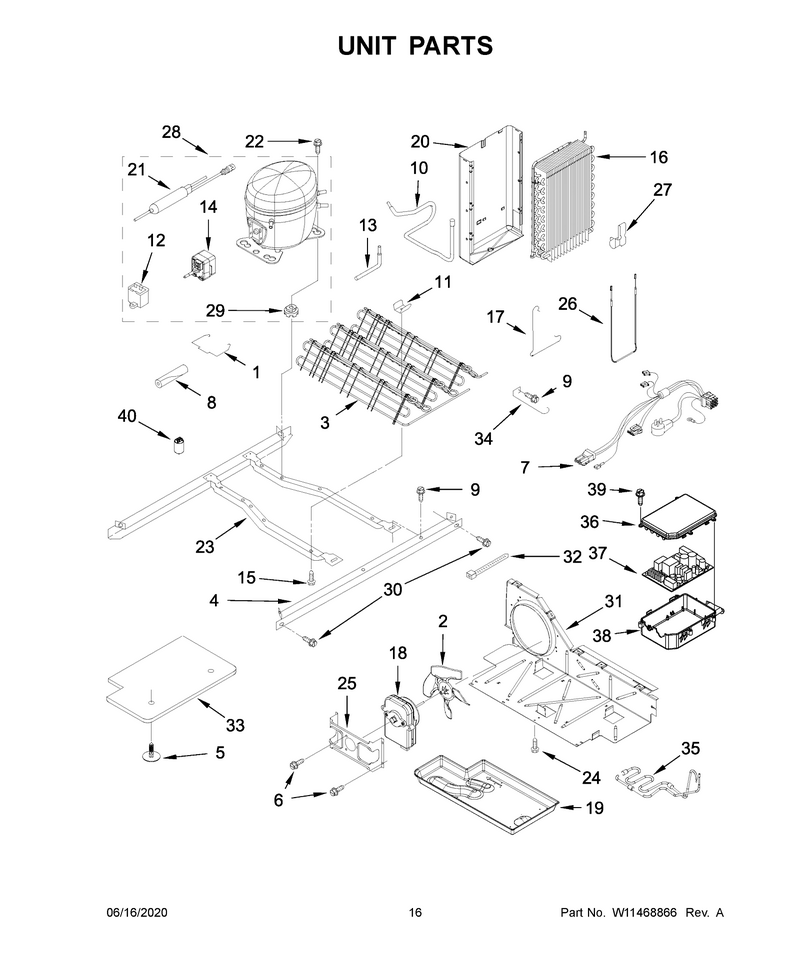

09 - Unit Parts

...
...
NI
Following Parts Not Illustrated WPL-N/P
...
1
Strap, Bale WPL-2302129
...
2
Blade-Fan WPL-W11458267
...
3
Condenser WPL-W11632924
...
4
Rail, Unit Mounting WPL-W10900442
...
5
Clip WPL-489396
...
6
Screw WPL-WP8533993
...
7
Harness, Unit (Includes Power Cord) WPL-W11327502
...
8
Sleeve WPL-W11751592
...
9
Screw WPL-WP489427
...
10
Tube, Suction WPL-W10745337
...
11
Clip WPL-W10683556
...
12
Capacitor WPL-2321245
...
13
Tube WPL-W10858105
...
14
Device, Start WPL-W10796753
...
15
Screw WPL-W11544659
...
16
Evaporator WPL-WP2188823
...
17
Clip WPL-WP2161324
...
18
Motor-Cond WPL-W10837641
...
19
Tray-Evap WPL-W11164129
...
20
Assembly, Heat Shield And Drain Pan WPL-W10194475
...
21
Drier-Uv WPL-WPW10143759
...
22
Screw WPL-W11661574
...
23
Frame, Unit Mounting WPL-W10900445
...
24
Screw WPL-WP489464
...
25
Bracket WPL-WP2181929
...
26
Heater WPL-WPW10123653
...
27
Clip WPL-WP2161324
...
28
Compressor (Includes Items 9, 10, 19, & 25) (Also Order 876765 Tube Kit) WPL-W10183407
...
29
Grommet, Compressor WPL-W10836504
...
30
Bolt WPL-489340
...
31
Baffle, Air WPL-W10896764
...
32
Tie-Wire WPL-WPW10339879
...
33
Assembly, Unit Cover (Bottom) WPL-W10897560
...
34
Guard, Fan WPL-1110663
...
35
Tube WPL-W11678305
...
36
Cover, Control WPL-W11407236
...
37
Cntrl-Elec WPL-W11604765
...
38
Box, Control WPL-2323186
...
39
Screw WPL-WPW10171469
...
40
Filter, Emi WPL-W10738041

...
...
NI
Paint, Touch-Up (1/2oz. Black) WPL-72032
