Maytag 4KMVWC430JW2

Model: 4KMVWC430JW2

Save Part Not Listed?
product name

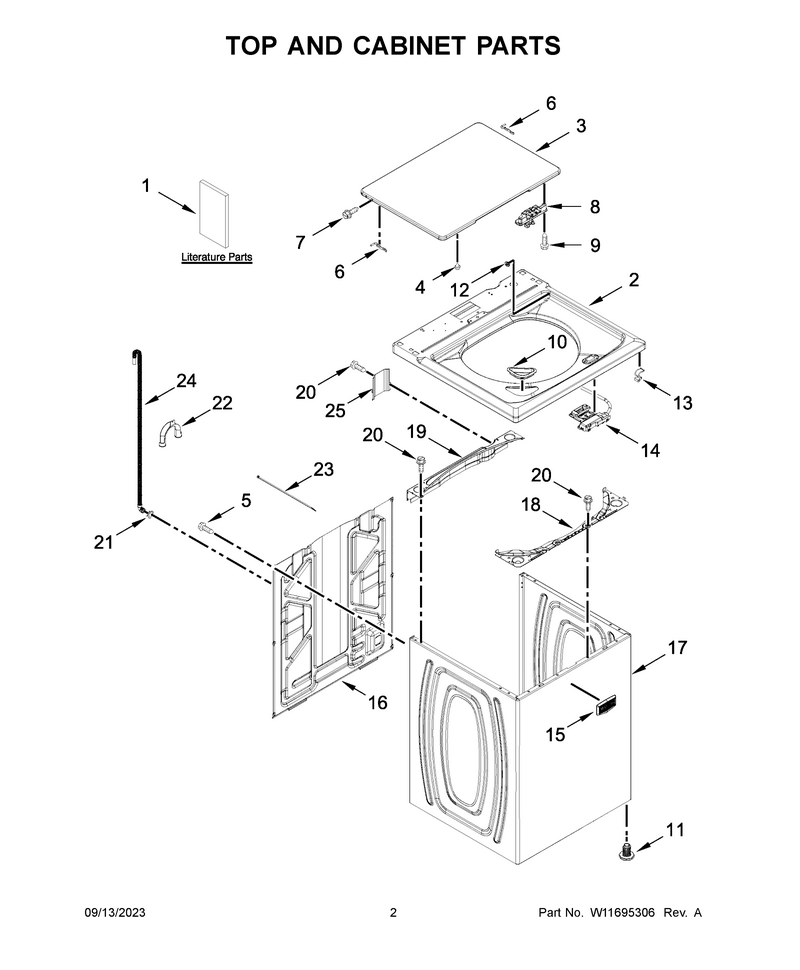

02 - Top And Cabinet Parts

...
...
1
Use And Care Guide WPL-W11603133
...
1C
Energy Guide WPL-W11643781
...
1A
Instructions, Installation WPL-W11372860
...
1B
Quick Start Guide WPL-W11590297
...
2
Top WPL-W11210992
...
3
Lid WPL-W10860912
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
6A
Hinge WPL-WP54583
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Feet-Lvlng WPL-W11213957
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11399614
...
15
Nameplate WPL-WPW10612925
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Clamp WPL-WP356138
...
22
Retainer WPL-WPW10280024
...
23
Tie-Wire WPL-WPW10339879
...
24
Hose WPL-W11244231
...
25
Cover, Harness WPL-W10676061

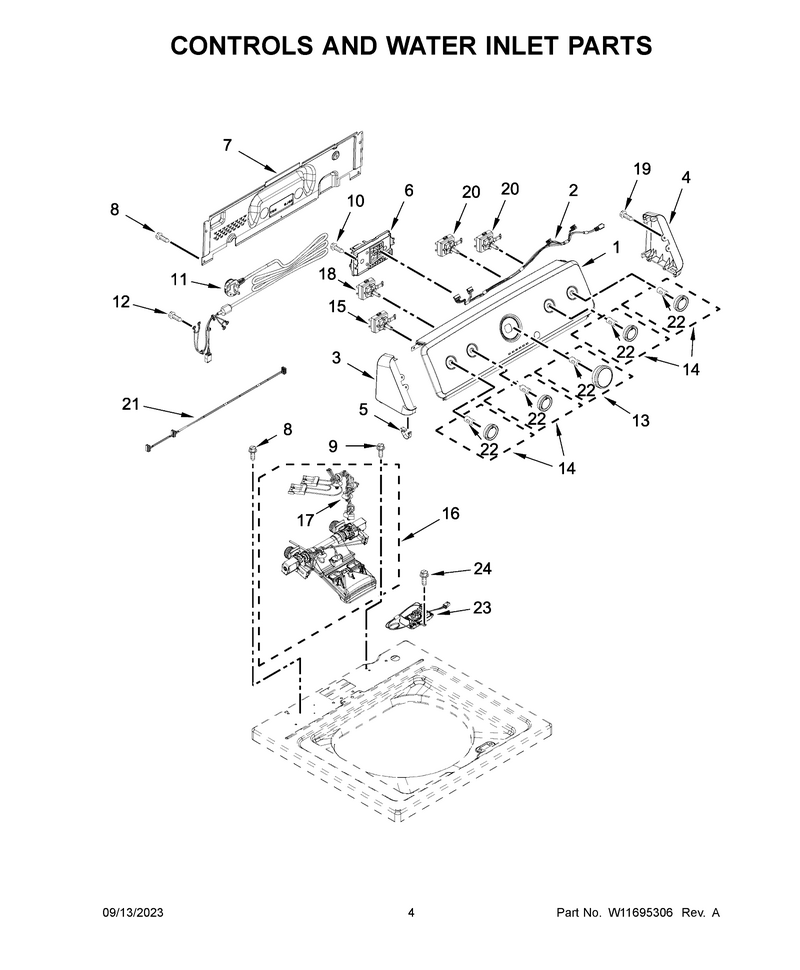

03 - Controls And Water Inlet Parts

...
...
1
Panel-Cntl WPL-W11027113
...
2
Harness, Upper WPL-W10694685
...
3
End Cap (Left) (White) WPL-W10193826
...
4
End Cap (Right) (White) WPL-W10193823
...
5
Clip WPL-WP8312709
...
6
Cntrl-Elec WPL-W11667054
...
7
Panel-Rear WPL-WPW10461159
...
8
Screw WPL-W11685943
...
9
Screw WPL-WPW10213953
...
10
Screw WPL-WP90767
...
11
Cord, Power WPL-W11369863
...
12
Screw WPL-W10846509
...
13
Knob WPL-WPW10558463
...
14
Knob WPL-WPW10562155
...
15
Switch-Cyc WPL-WPW10285517
...
16
Valve WPL-W11038628
...
17
Harness, Valve WPL-W10917060
...
18
Switch-Cyc WPL-WPW10285512
...
19
Screw WPL-W11693756
...
20
Switch-Cyc WPL-WPW10285511
...
21
Harness, Jumper WPL-W10694669
...
22
Clip WPL-WP688805
...
23
Filter WPL-W11660637
...
24
Screw WPL-W11568617

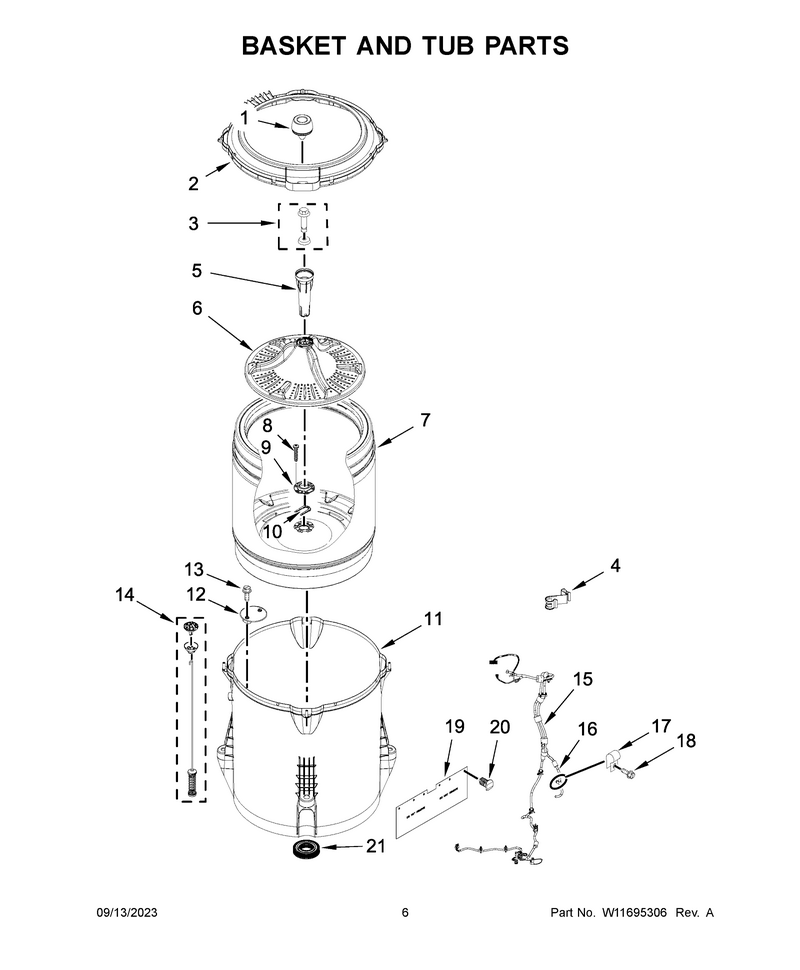

04 - Basket And Tub Parts

...
...
1
Dispenser WPL-W11024702
...
2
Ring-Tub WPL-W11550886
...
3
Screw WPL-W11223765
...
4
Clip WPL-W11755726
...
5
Agitator WPL-W10836692
...
6
Washplate WPL-W10919191
...
7
Basket Assembly WPL-W11172199
...
8
Screw WPL-WP8533953
...
9
Hub WPL-W10528947
...
10
Retainer WPL-W11385424
...
11
Tub-Outer WPL-W10371566
...
12
Filter WPL-WPW10215093
...
13
Screw WPL-WP8533928
...
14
Suspension WPL-W11217817
...
15
Harness, Lower WPL-W11369989
...
16
Hose WPL-WP353244
...
17
Clamp, Cable WPL-W10005430
...
18
Screw WPL-WPW10109200
...
19
Shield, Splash WPL-W10339098
...
20
Retainer, Push-In WPL-W10429200
...
21
Seal-Tub WPL-W10324647

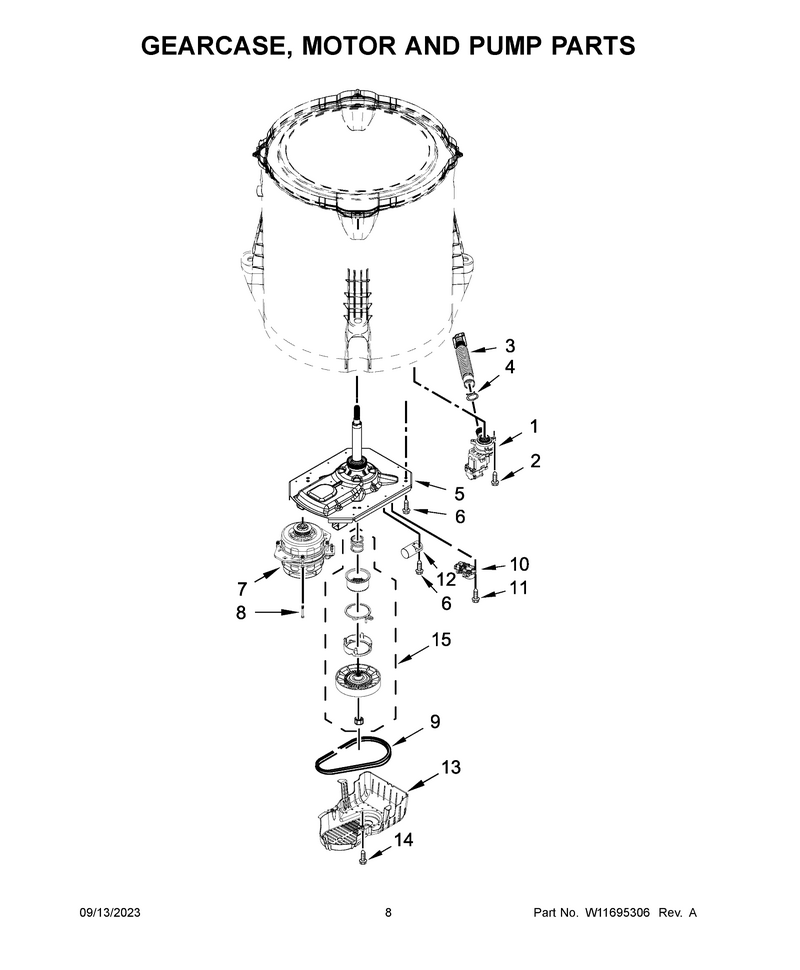

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-WPW10297344
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454372
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W11039789
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11239857
...
10
Actuator WPL-W11511138
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11168653
...
13
Shield WPL-W11409708
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

...
...
NI
Accessory Parts, Hose Screen (Package Of 2) WPL-285452A
