Maytag 4KMER7600AW3

Model: 4KMER7600AW3

Save Part Not Listed?
product name

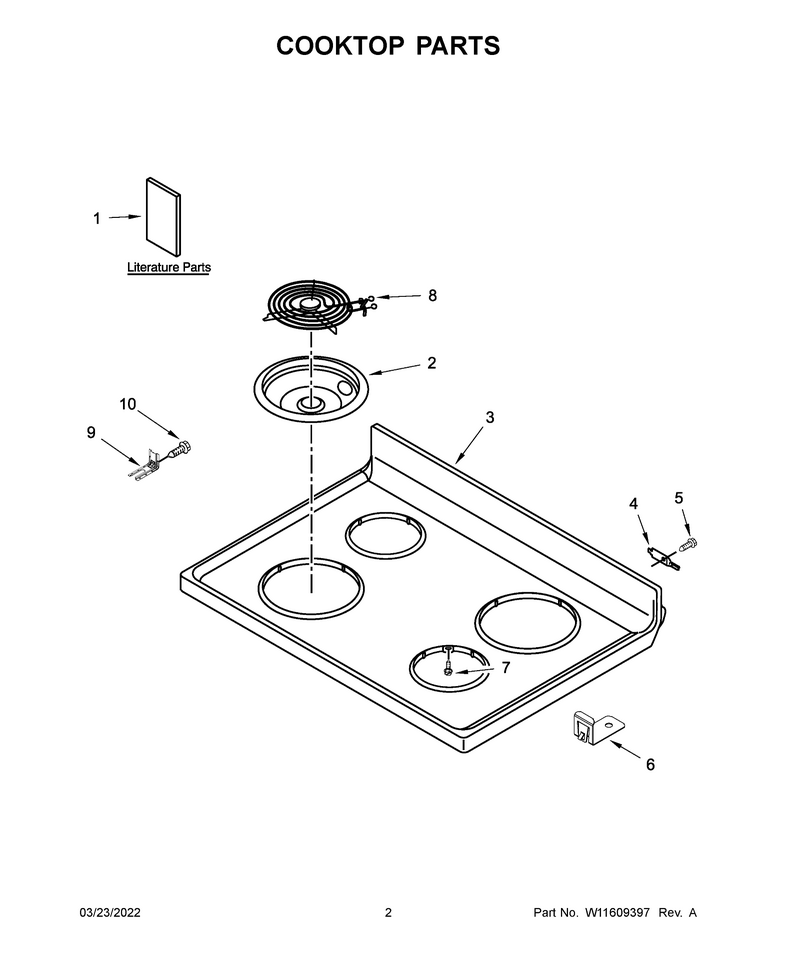

02 - Cooktop Parts

...
...
NI
Harns-Wire WPL-W11396691
...
1A
Instructions, Installation (Arabic) WPL-W11035119
...
1
Instructions, Installation (English) WPL-W11034224
...
1E
Tech Sheet (Arabic) WPL-W10464421
...
1D
Tech Sheet (English) WPL-W10394783
...
1B
Use And Care Guide (English) WPL-W10916032
...
1C
Use And Care Guide (Arabic) WPL-W10916033
...
2
Bowl-Drip WPL-WPW10196406
...
2A
Bowl-Drip WPL-WPW10196405
...
3
Cooktop WPL-8195532
...
4
Pin-Cooktp WPL-WP3195060
...
5
Screw WPL-W11233072
...
6
Clip, Cooktop WPL-W10626011
...
7
Screw WPL-WP3196154
...
8A
Elmnt-Surf WPL-W11161939
...
8
Elmnt-Surf WPL-W11168414
...
9
Anchor-Tip WPL-W11447673
...
10
Anchor-Tip WPL-WP7101P485-60

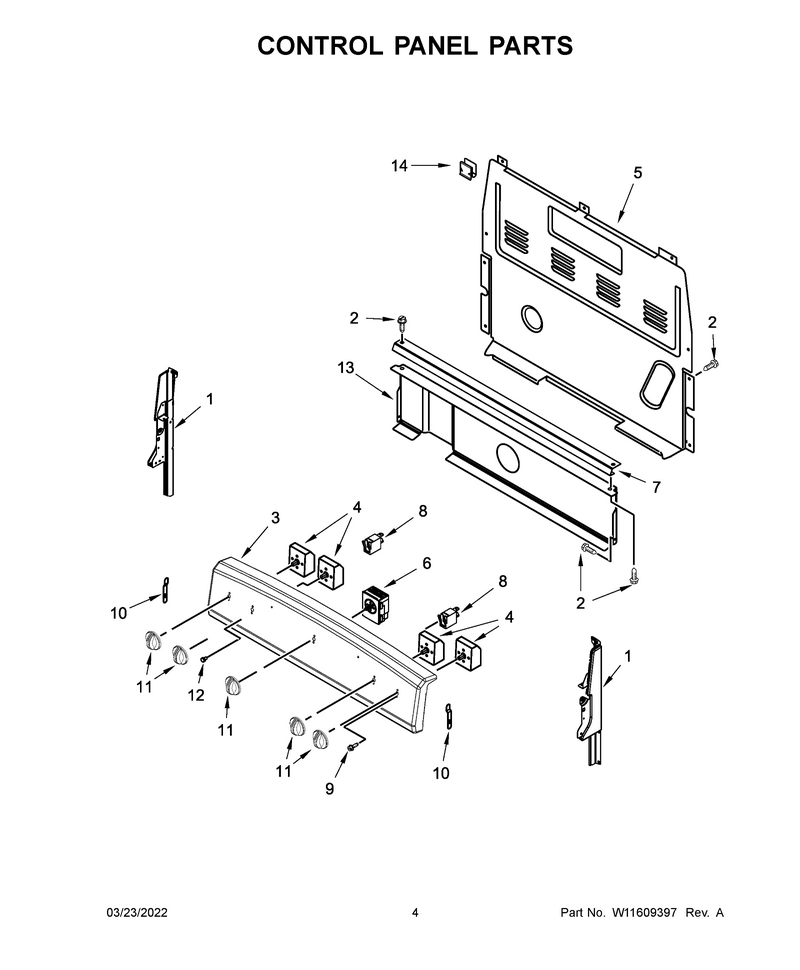

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219365
...
1A
Endcap-Pnl WPL-W11219370
...
2
Screw WPL-W11233072
...
3
Panl-Cntrl WPL-W11280094
...
4
Switch-Inf WPL-WP3149404
...
4A
Switch-Inf WPL-WP3148953
...
5
Cover-Rear WPL-WP8272473
...
6
Swtch-Oven WPL-WPW10466758
...
7
Bracket, Console Mounting WPL-W10525121
...
8
Light-Ind WPL-WP8523266
...
9
Screw WPL-WP3400882
...
10
Clip, Spring WPL-3196200
...
11
Knob WPL-WPW10211371
...
12
Lens-Light WPL-WP3196068
...
13
Shield, Heat WPL-W10134247
...
14
Clip WPL-WP8273564

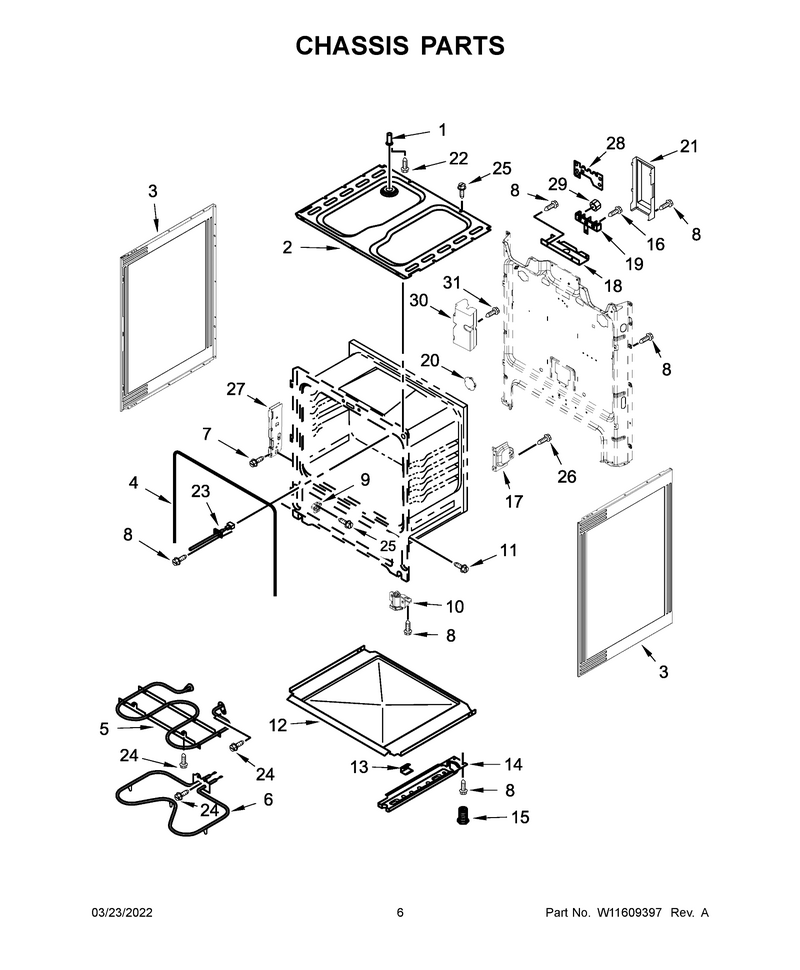

04 - Chassis Parts

...
...
NI
Connector WPL-WPW10281322
...
1
Tube-Vent WPL-W11253586
...
2
Box-Burner WPL-W11699791
...
3
Panel-Side WPL-WPW10575396
...
4
Gaskt-Door WPL-W11542153
...
5
Elmnt-Brol WPL-W10856603
...
6
Elmnt-Bake WPL-W11182108
...
7
Screw WPL-W10777162
...
8
Screw WPL-W11233072
...
9
Glide-Drwr WPL-W10807823
...
10
Foot-Level WPL-WPW10341186
...
11
Screw WPL-WPW10067840
...
12
Retainer WPL-WP8054068
...
13
Clip, Panel WPL-W10137382
...
14
Rail-Base WPL-WPW10306546
...
14A
Rail-Base WPL-WPW10306546
...
15
Foot-Level WPL-WPW10058460
...
16
Screw WPL-WP3400016
...
17
Clip, Oven Support WPL-W10404688
...
18
Brkt-Srvce WPL-W11728255
...
19
Block-Term WPL-WPW10245259
...
20
Covr-Acess WPL-W11262937
...
21
Cover-Blck WPL-WPW10326122
...
22
Screw WPL-WP3196567
...
23
Sensor WPL-WPW10181986
...
24
Screw WPL-WP3196174
...
25
Screw WPL-WP3196175
...
26
Screw WPL-WP3196557
...
27
Hinge-Recv WPL-W10647259
...
28
Suppressor, Transient WPL-W10451176
...
29
Nut WPL-WP3400029
...
30
Anchor-Tip WPL-W11135752
...
31
Screw-Torx WPL-W11135756

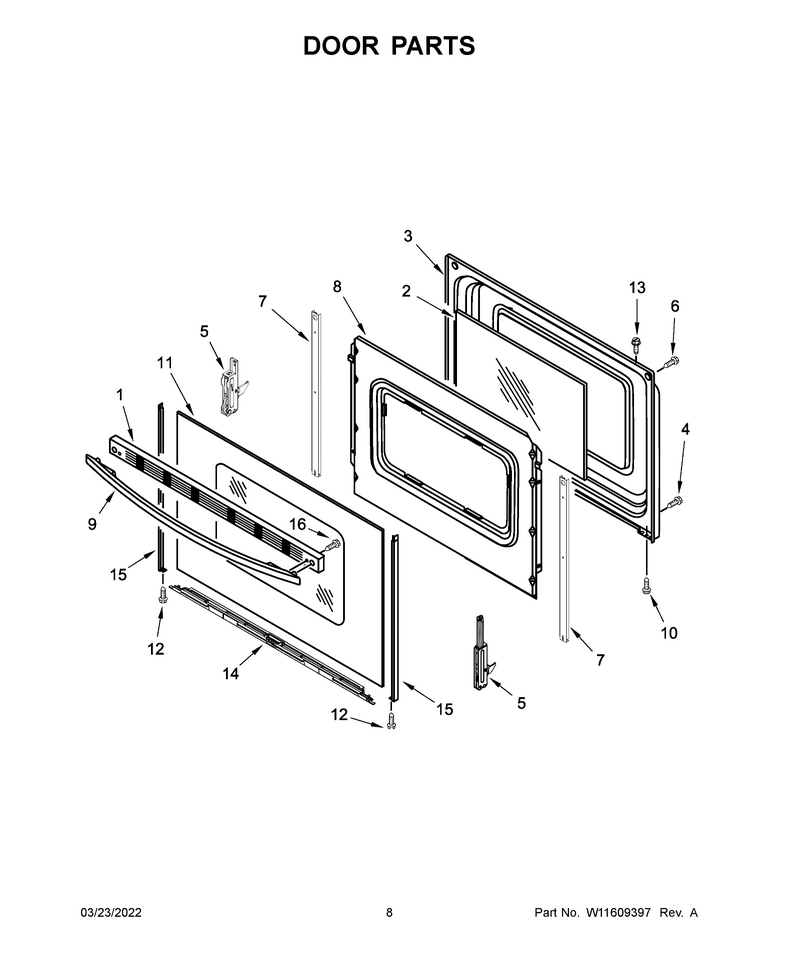

05 - Door Parts

...
...
1
Trim-Vent WPL-W10817433
...
2
Glass-Door WPL-W11399628
...
3
Liner-Door WPL-WP9761344
...
4
Screw WPL-W10777162
...
5A
Hinge-Door WPL-WPW10299227
...
5
Hinge-Door WPL-WPW10299225
...
6
Screw WPL-WPW10200660
...
7
Brkt-Suprt WPL-W11502236
...
8
Retainer WPL-W11685635
...
9
Handle, Door (White) WPL-W10323581
...
10
Screw WPL-WP355214
...
11
Glass-Door WPL-WPW10118454
...
12
Screw WPL-WP3196175
...
13
Screw WPL-WPW10031790
...
14
Trim-Door WPL-W11594186
...
15
Trim-Door WPL-WP8523166
...
15A
Trim-Door WPL-WP8523172
...
16
Screw WPL-W10817436

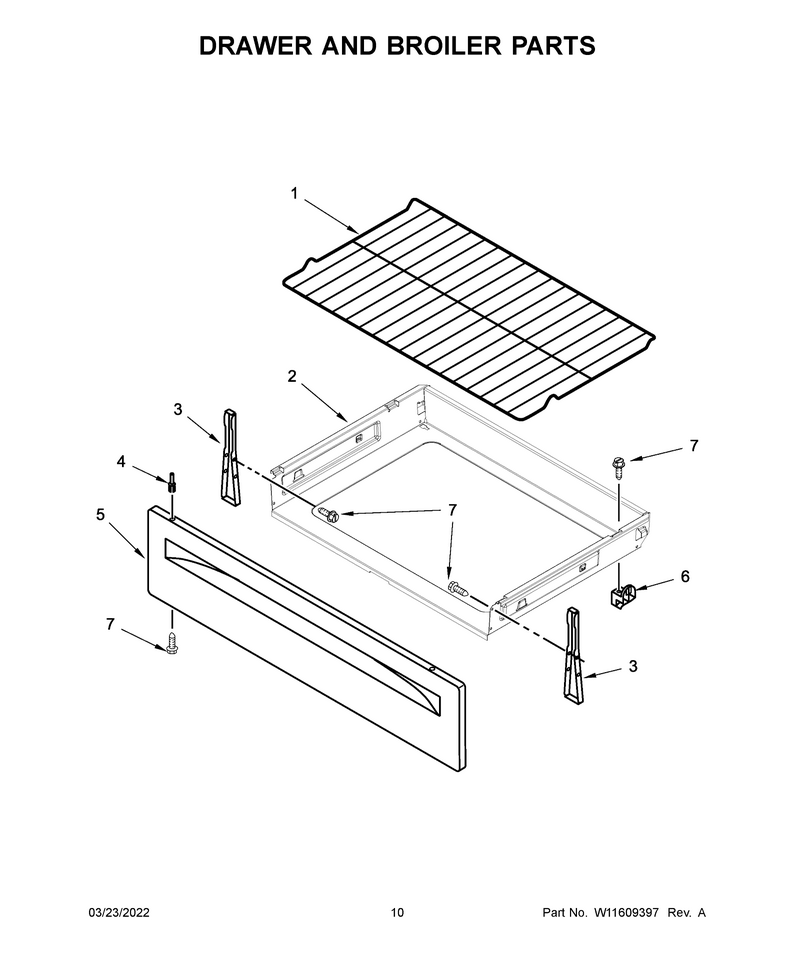

06 - Drawer And Broiler Parts

...
...
1
Rack-Oven WPL-W11520287
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-WPW10462912
...
4
Rivet WPL-WP3196814
...
5
Panel-Drwr WPL-W11219377
...
6
Glide-Drwr WPL-W10807828
...
7
Screw WPL-WP3196175

...
...
NI
Accessories, Rack, Broiler Pan And Roasting WPL-W10123240
