Maytag 3LMVWC315FW1

Model: 3LMVWC315FW1

Save Part Not Listed?
product name

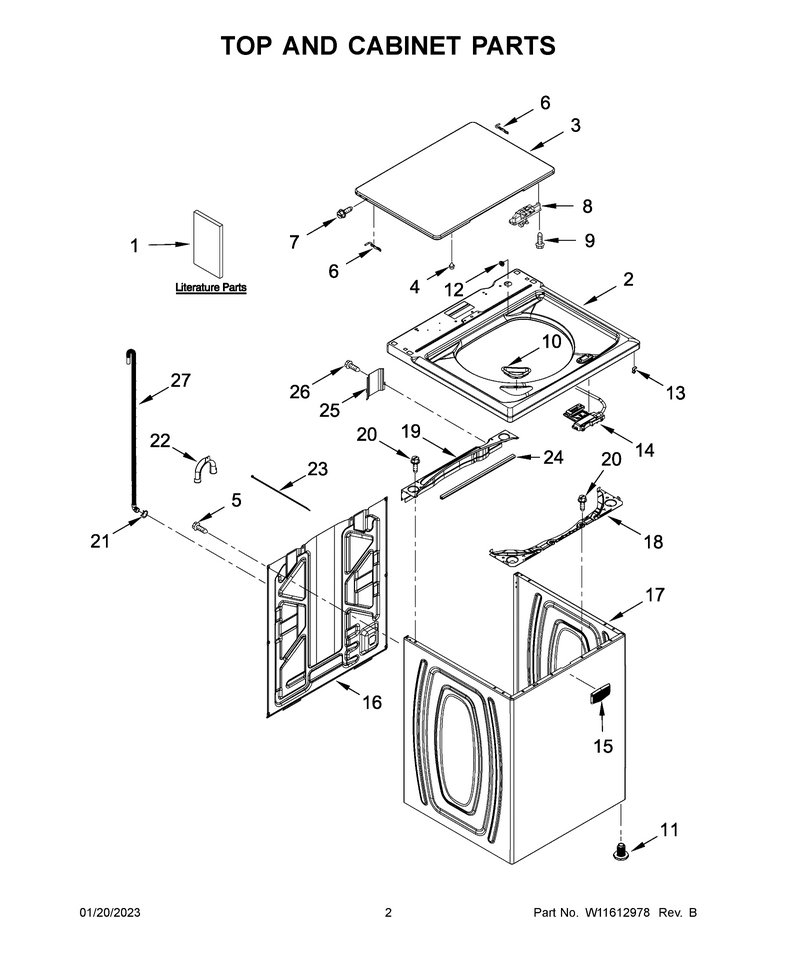

02 - Top And Cabinet Parts

...
...
1
Tech Sheet WPL-W10845896
...
1B
Owners Manual WPL-W10849502
...
1A
Installation Instructions WPL-W10849505
...
2
Top WPL-W11026446
...
3
Lid WPL-WPW10338625
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Feet-Lvlng WPL-W11735636
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W10919224
...
15
Nameplate WPL-WPW10612925
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Clamp WPL-WP356138
...
22
Retainer WPL-WPW10280024
...
23
Tie-Wire WPL-WPW10339879
...
24
Brace-Guard, Cabinet Rear Top WPL-W10521454
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W10846509
...
27
Hose WPL-W11244231

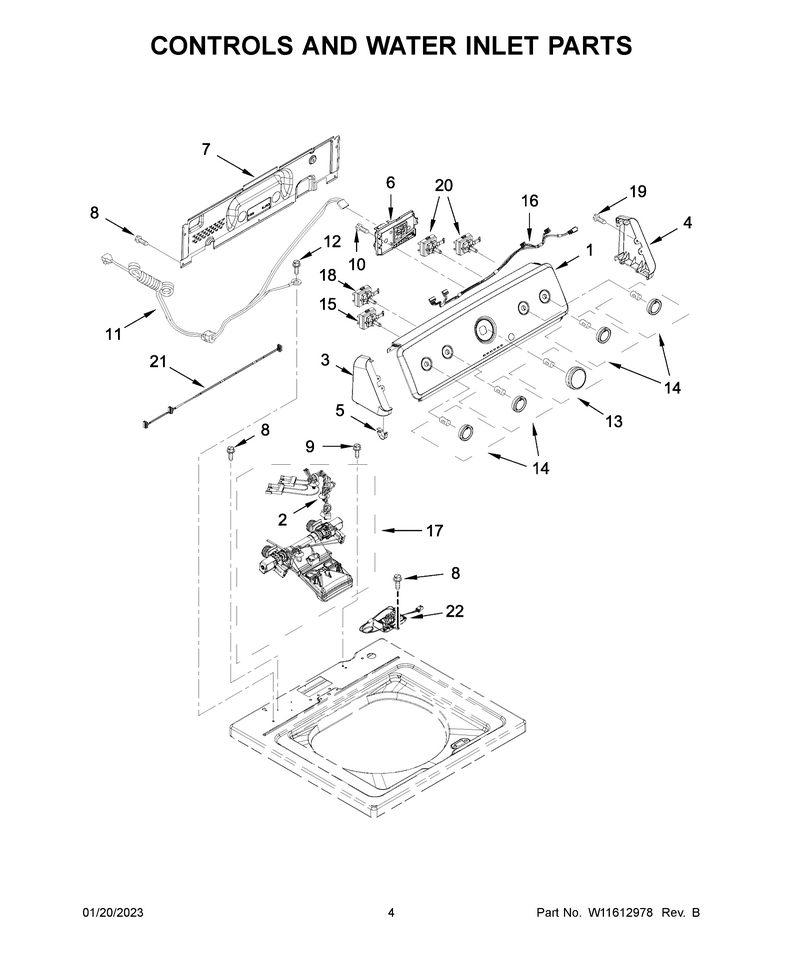

03 - Controls And Water Inlet Parts

...
...
NI
Harns-Wire WPL-W11752087
...
1
Panel-Cntl WPL-W11099688
...
2
Harness, Valve WPL-W10917060
...
3
End Cap (Left) (White) WPL-W10193826
...
4
End Cap (Right) (White) WPL-W10193823
...
5
Clip WPL-WP8312709
...
6
Cntrl-Elec WPL-W11608064
...
7
Panel-Rear WPL-WPW10461159
...
8
Screw WPL-W11568617
...
9
Screw WPL-WPW10213953
...
10
Screw WPL-WP90767
...
11
Power Cord, Universal WPL-W10834290
...
12
Screw WPL-W10846509
...
13
Knob WPL-WPW10558463
...
14
Knob WPL-WPW10562155
...
15
Switch-Cyc WPL-WPW10285517
...
16
Harness, Upper WPL-W10694685
...
17
Valve WPL-W11038628
...
18
Switch-Cyc WPL-WPW10285512
...
19
Screw WPL-W11693756
...
20
Switch-Cyc WPL-WPW10285511
...
21
Harness, Upper WPL-W10694682
...
22
Filter WPL-W11660637

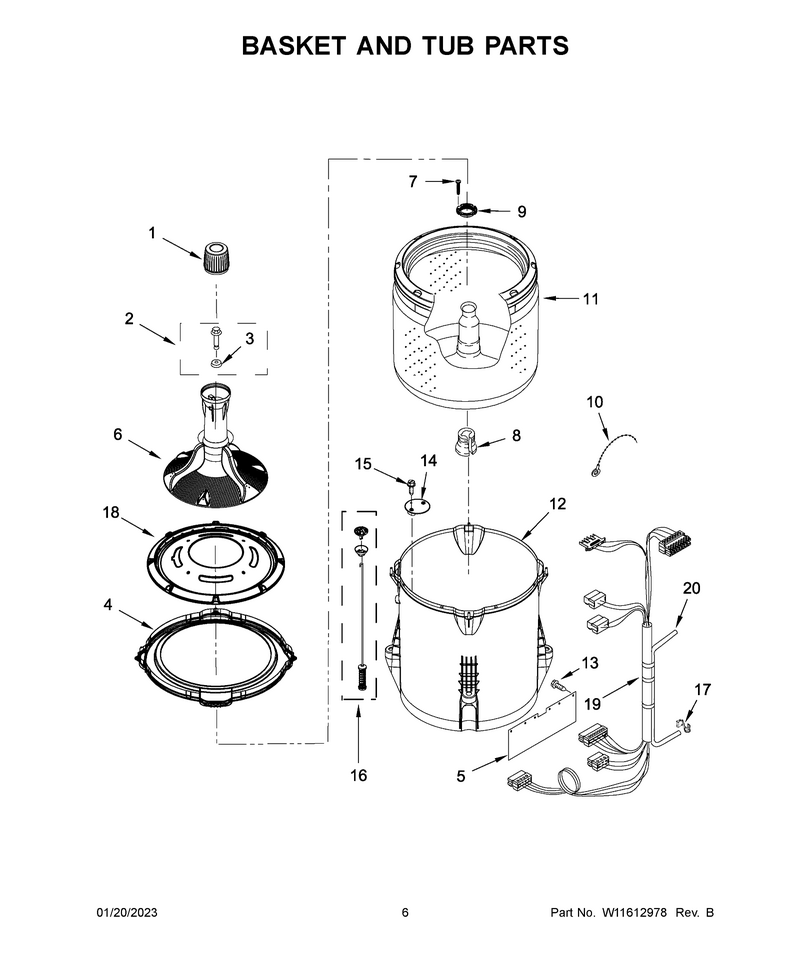

04 - Basket And Tub Parts

...
...
1
Dispenser, Fabric Softener WPL-W10863011
...
2
Screw WPL-W10772621
...
3
Washer WPL-WP3949550
...
4
Ring-Tub WPL-WPW10531289
...
5
Shield, Splash WPL-W10339098
...
6
Agitator WPL-W11447102
...
7
Screw WPL-WP8533953
...
8
Block WPL-WP389140
...
9
Nut-Spaner WPL-WP21366
...
10
Cable Tie WPL-W10339680
...
11
Basket Assembly WPL-W10554251
...
12
Tub-Outer WPL-W10371566
...
13
Retainer, Push-In WPL-W10429200
...
14
Filter WPL-WPW10215093
...
15
Screw WPL-WP8533928
...
16
Suspension WPL-W10780045
...
17
Clip WPL-W11755726
...
18
Shield WPL-W11085570
...
19
Harness, Lower WPL-W11388374
...
20
Hose WPL-WP353244

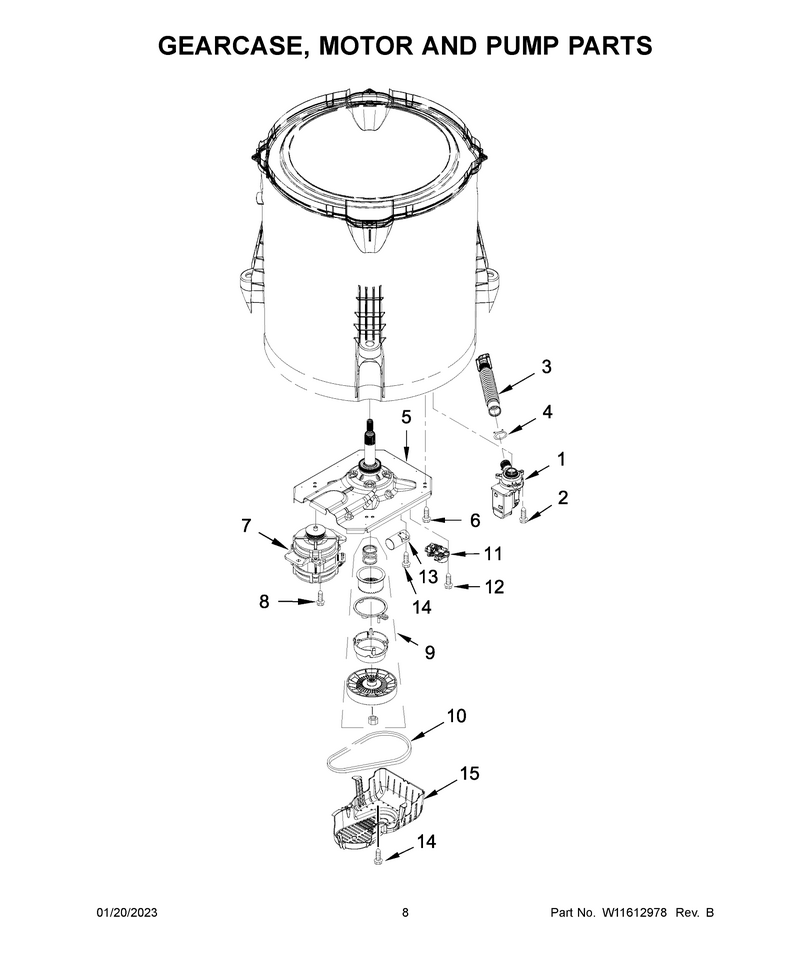

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-WPW10292579
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454741
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W11039788
...
8
Screw WPL-W11685857
...
9
Splutch Kit (50 Hz) WPL-W10759993
...
10
Belt WPL-WPW10006388
...
11
Actuator WPL-W11511138
...
12
Screw WPL-W11596033
...
13
Capacitor WPL-W11205047
...
14
Screw WPL-W11573574
...
15
Shield WPL-WPW10427633

...
...
NI
Accessory Parts, Hose Screen (Package Of 2) WPL-285452A
