Maytag 2765W0A

Model: 2765W0A

Save Part Not Listed?
product name

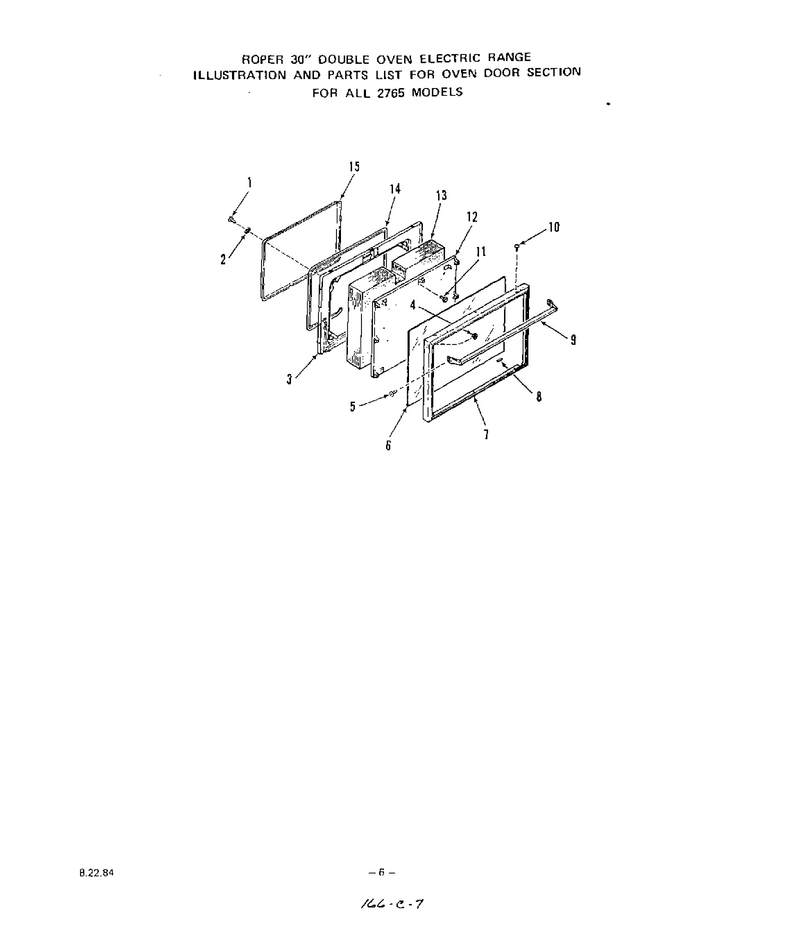

06 - Oven Door

...
...
1
Screw 10-32 X 1/2`` WPL-102376
...
2
Washer WPL-21067
...
3
Lining-Oven Door WPL-325951
...
4
Keps Nut 8-32 (4 Req) WPL-239764
...
5
Screw 8-32x1/2`` (4 Req) WPL-319447
...
6
Glass-Oven Door WPL-320736
...
7
Frame-Oven Door WPL-326001
...
8
Cushion WPL-112370
...
9
Handle WPL-303342
...
10
Screw-10-32x1/2`` WPL-316849
...
11
Screw 10-16x7/16`` WPL-327320
...
12
Retainer-Insulation WPL-325987
...
13
Insulation WPL-326000
...
14
Gasket WPL-292244
...
15
Plug-Oven Door Lining WPL-326179

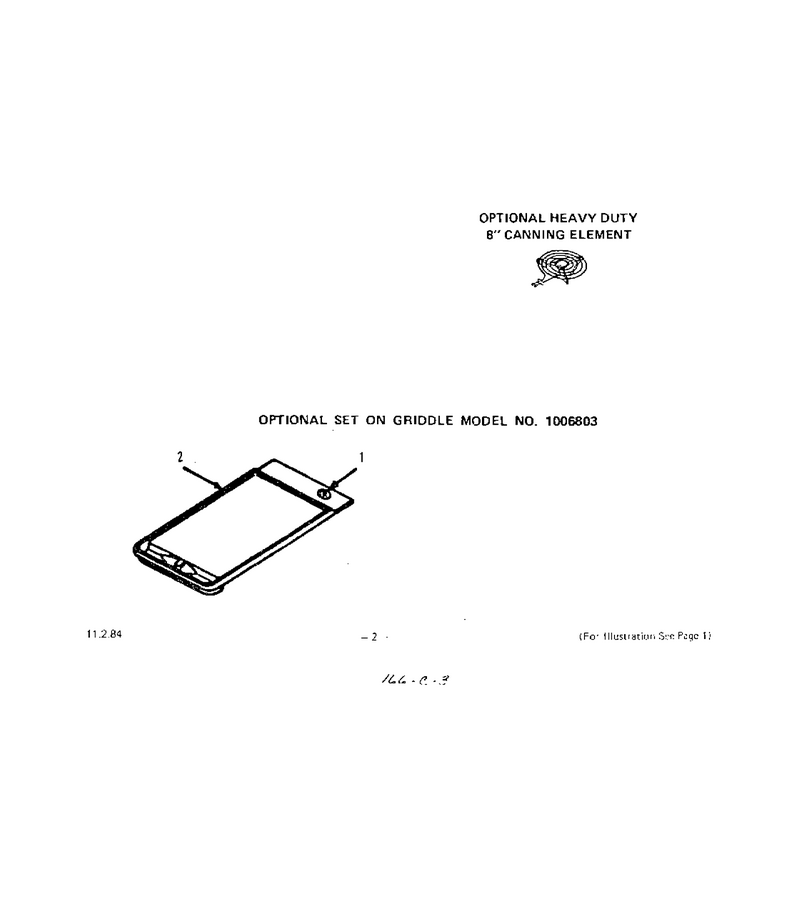

03 - Heavy Duty Canning Element , Grid

...
...
1
Thermometer WPL-87996
...
2
Set-On Griddle WPL-236766

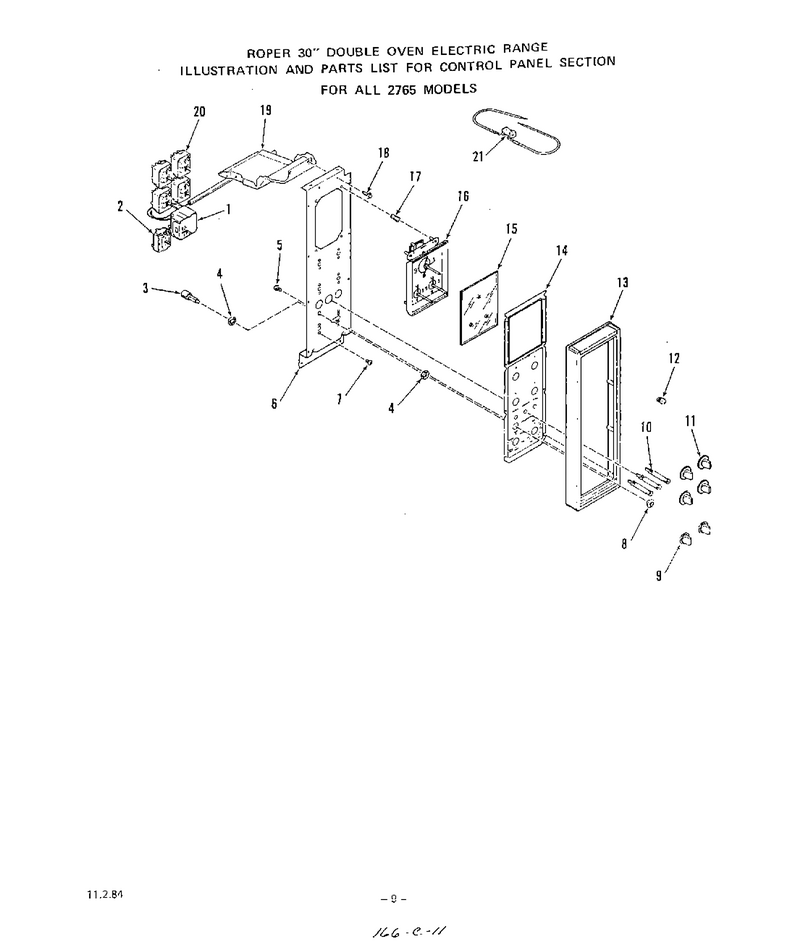

08 - Control Panel

...
...
1
Thermostat WPL-326492
...
2
Selector Switch WPL-327163
...
3
Push Switch - Oven Light WPL-307573
...
4
Pal Nut 3/8-27 WPL-236129
...
5
Screw 4-24x1/4`` WPL-315617
...
6
Mounting Panel-Controls WPL-325709
...
7
Screw 8-32x3/16`` WPL-78565
...
8
Trim Nut WPL-321667
...
9
Knob-Selector Switch & Thermostat WPL-325363
...
10
Indicator Light (3 Req) WPL-325875
...
11
Knob-Infinite Control (4 Req) WPL-325364
...
12
Knob-Clock (Start & Stop Time) (3) WPL-10-9225
...
13
Control Panel Trim (Included W/key 14) WPL---
...
14
Control Curtain (Inc`s. 13) WPL-329563
...
15
Lens-Clock WPL-325365
...
16
Clock W/1 Hr. Timer WPL-325362
...
17
Tubular Clip (4 Req.) WPL-293577
...
18
Screw 6-32x1/4`` WPL-293121
...
19
Barrier Intrusion WPL-326354
...
20
Infinite Control (4 Req) WPL-320944
...
21
Wire Lead W/resistor WPL-328094

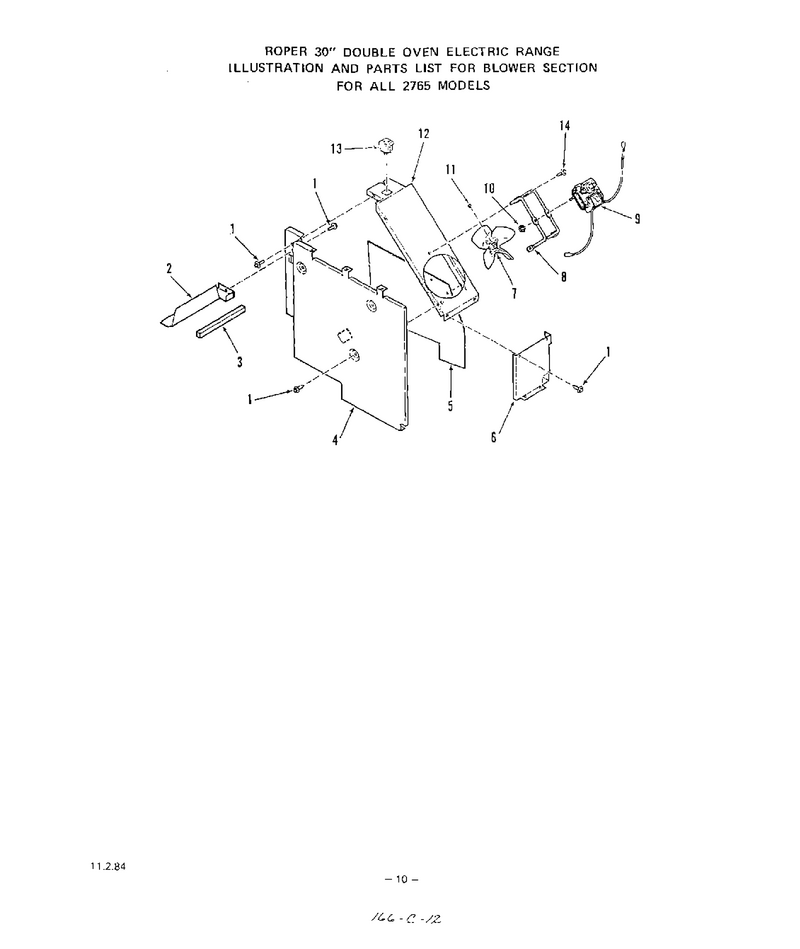

09 - Blower

...
...
1
Nut WPL-WP112432
...
2
Baffle - Airway WPL-325743
...
3
Foam Strip WPL-305016
...
4
Side - Compartment WPL-325380
...
5
Air Duct WPL-325723
...
6
Front - Blower Mounting Plate WPL-326281
...
7
Fan Blade WPL-326280
...
8
Support-Blower Motor WPL-327321
...
9
Motor - Blower WPL-326278
...
10
Keps Nut 6-32 WPL-236313
...
11
Set Screw 10-32 WPL-70286
...
12
Mounting Plate - Blower WPL-325382
...
13
Convenience Outlet (Without Wire Leads) (1 Req) WPL-109180
...
14
Main Top WPL-324342

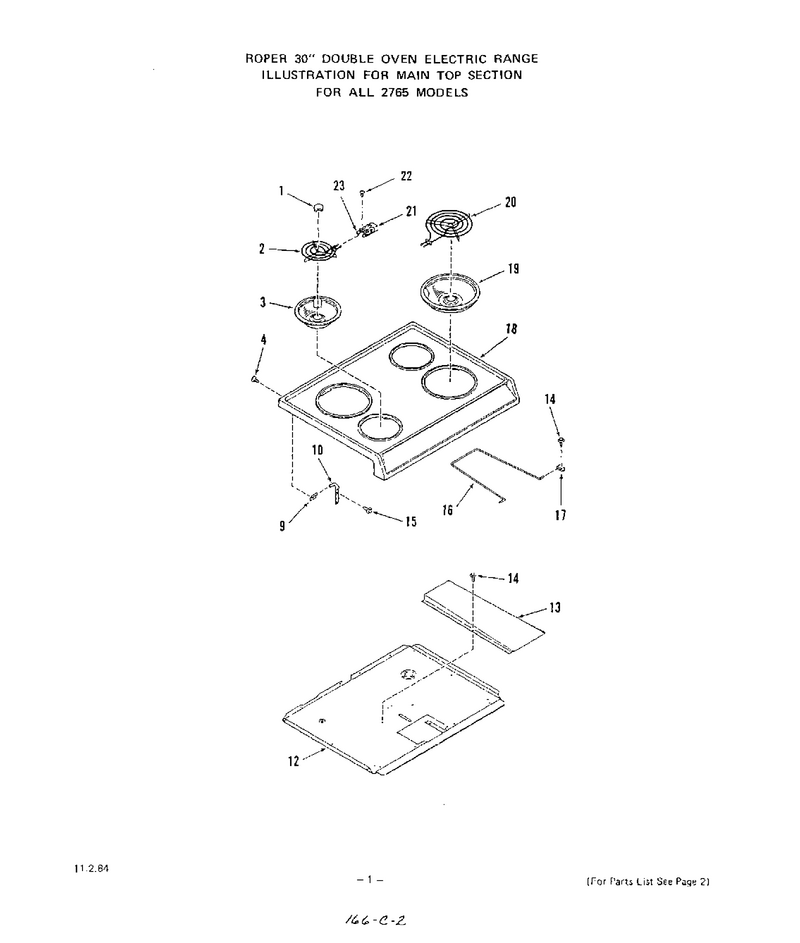

02 - Main Top

...
...
1
Medallion (4 Req) WPL-318586
...
2
6`` Surface Unit (240 Volt-208 Volt) Lt. Front & Rt. Rear WPL-325507
...
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL-296481
...
4
Screw 10abx1/2`` WPL-326974
...
9
Bracket-Main Top Hinge (2 Req) WPL-320931
...
10
Hinge-Main Top (Right) WPL-320921
...
12
Burner Box Bottom WPL-326064
...
13
Cover-Lock Rod WPL-308830
...
14
Screw 10-16x7/16`` WPL-327320
...
15
Screw 10-32 X 3/4`` WPL-321162
...
16
Support Rod-Main Top WPL-284164
...
17
Clip (2 Req) WPL-285945
...
18
Main Top (Chrome) WPL-327356
...
19
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL-304969
...
20
8`` Surface Unit (240 Volt-208 Volt) Rt. Front & Lt. Rear WPL-325503
...
21
Terminal Block W/wire Lead (4 Req) WPL-318960
...
22
Screw 7-32x5/16`` WPL-299632
...
23
Bracket-Terminal Block (4 Req) WPL-318872

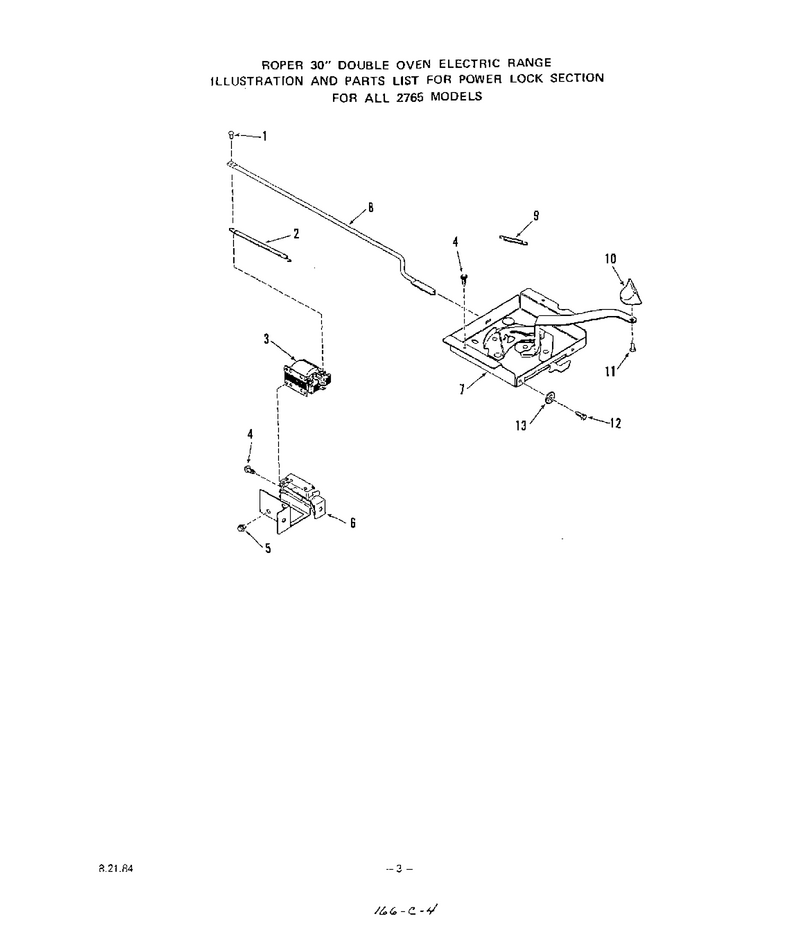

04 - Power Lock

...
...
1
Stud WPL-326412
...
2
Spring-Solenoid WPL-326413
...
3
Solenoid Only WPL-327003
...
4
Screw 10-16x7/16`` WPL-327320
...
5
Mounting Screw WPL-319433
...
6
Bracket W/switch WPL-327034
...
7
Oven Door Lock Assm. (Inc. Key 9) WPL-326877
...
8
Rod-Oven Door Lock WPL-308829
...
9
Spring-Lock Handle WPL-299599
...
10
Knob-Oven Door Lock Handle WPL-323363
...
11
Screw 6-32x15/32`` WPL-313768
...
12
Screw 10-16x7/16`` WPL-327320
...
13
Washer WPL-21067

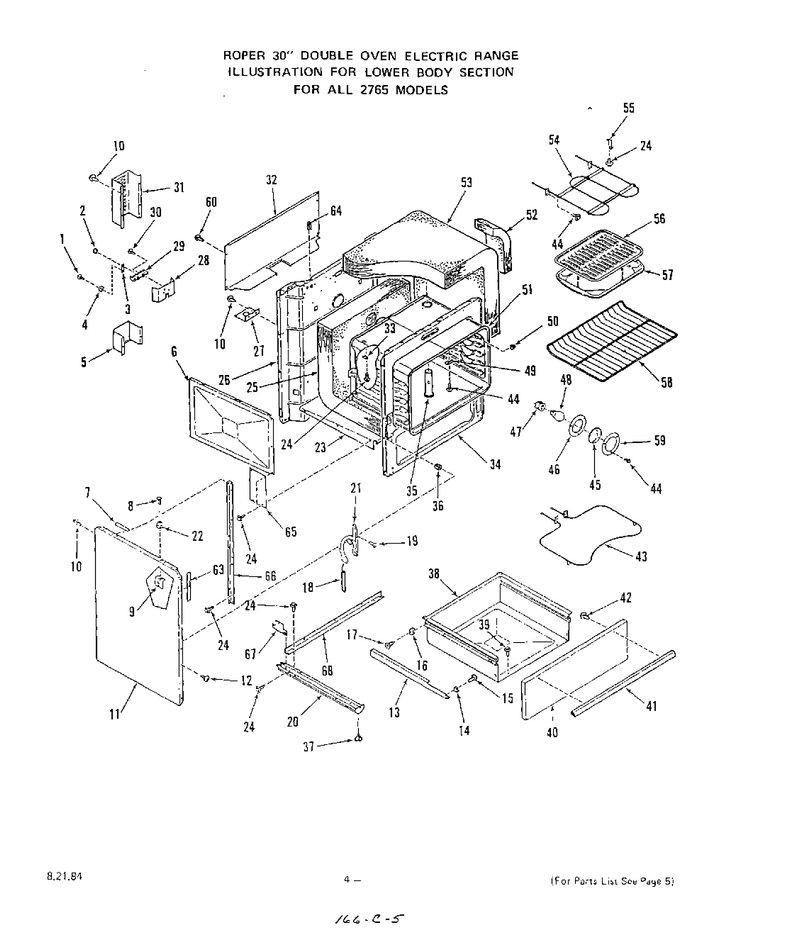

05 - Lower Body

...
...
1
Screw 10-32x7/16`` WPL-313191
...
2
Hex Nut 10-32 WPL-97816
...
3
Ground Strap WPL-327255
...
4
Washer WPL-299425
...
5
Wire Shield-Lower WPL-327258
...
6
Retainer-Insulation (Lt. Or Rt.) WPL-324188
...
7
Spacer-Main Top (Lt. Or Rt.) WPL-326914
...
8
Screw 6-32x7/8`` WPL-107551
...
9
Bracket-Body Side (Lt. Or Rt.) WPL-326516
...
10
Screw 10-16x7/16`` WPL-327320
...
11
Body Side (Lt. Or Rt.) (Black) WPL-326102
...
12
Screw 8abx5/8`` WPL-314124
...
13
Support-Storage Drawer (Lt. Or Rt.) WPL-311441
...
14
Slide Block-Front (Lt. Or Rt.) WPL-281914
...
15
Screw 10-32x17/32`` WPL-295849
...
16
Slide Block-Rear (Lt. Or Rt.) WPL-281913
...
17
Screw 8 - 32 X 3/8`` WPL-102563
...
18
Spring-Oven Door (Lt. Or Rt.) WPL-326964
...
19
New Instal WPL-WFR112013
...
20
Base W/leg Levelers (Lt. Or Rt.) WPL-327020
...
21
Hinge-Oven Door (Left) WPL-326013
...
22
Strike-Main Top (Lt. Or Rt.) WPL-326513
...
23
Insulation Retainer-Bottom WPL-313281
...
24
Screw 10-16x7/16`` WPL-327320
...
25
Insulation-Oven Bottom & Back (1 Piece) WPL-308861
...
26
Main Back WPL-326350
...
27
Range Service Mounting Plate WPL-327259
...
28
Insulator-Service Cord WPL-327242
...
29
Junction Block WPL-290105
...
30
Screw 10-32x1`` WPL-313190
...
31
Wire Shield-Upper WPL-327235
...
32
Wire Shield WPL-327389
...
33
Plate-Thermostat Bulb Cover WPL-237762
...
34
Front Frame WPL-327409
...
35
Vent Tube WPL-308822
...
36
Receptacle WPL-330031
...
37
Leg Leveler (4 Req) WPL-326125
...
38
Storage Drawer WPL-296150
...
39
Screw 10-32x7/16`` WPL-316365
...
40
Front Panel-Storage Drawer (Almond) WPL-326077
...
41
Handle WPL-292240
...
42
Screw 10 - 32 X 7/16`` WPL-295850
...
43
Bake Element WPL-325883
...
44
Screw 10-16x7/16`` WPL-327320
...
45
Lens-Oven Lamp WPL-114989
...
46
Gasket-Lens WPL-229371
...
47
Holder-Oven Lamp WPL-87883
...
48
Oven Lamp Bulb WPL-111257
...
49
Cover WPL-304835
...
50
Retainer-Thermostat Bulb (2 Req) WPL-238052
...
51
Oven Body WPL-325766
...
52
Insulation (Rt. Or Lt.) WPL-316951
...
53
Insulation-Oven Top & Sides (1 Piece) WPL-308860
...
54
Broiler Element WPL-326938
...
55
Support-Broiler Element (2 Req) WPL-324808
...
56
Broiler Pan Grid WPL-326297
...
57
Broiler Pan WPL-326300
...
58
Oven Rack (2 Req) WPL-326069
...
59
Retainer-Oven Light Lens WPL-229372
...
60
Nut WPL-WP112432
...
63
Stiffener-Body Side (Lt. Or Rt.) WPL-327378
...
64
Clip-Capillary Tube WPL-327649
...
65
Shield-Hinge (Lt. Or Rt.) WPL-324305
...
66
Support-Body Side (Lt. Or Rt.) WPL-327035
...
67
Bracket-Support & Base (Left) WPL-327022
...
68
Strap-Main Back & Base WPL-327026

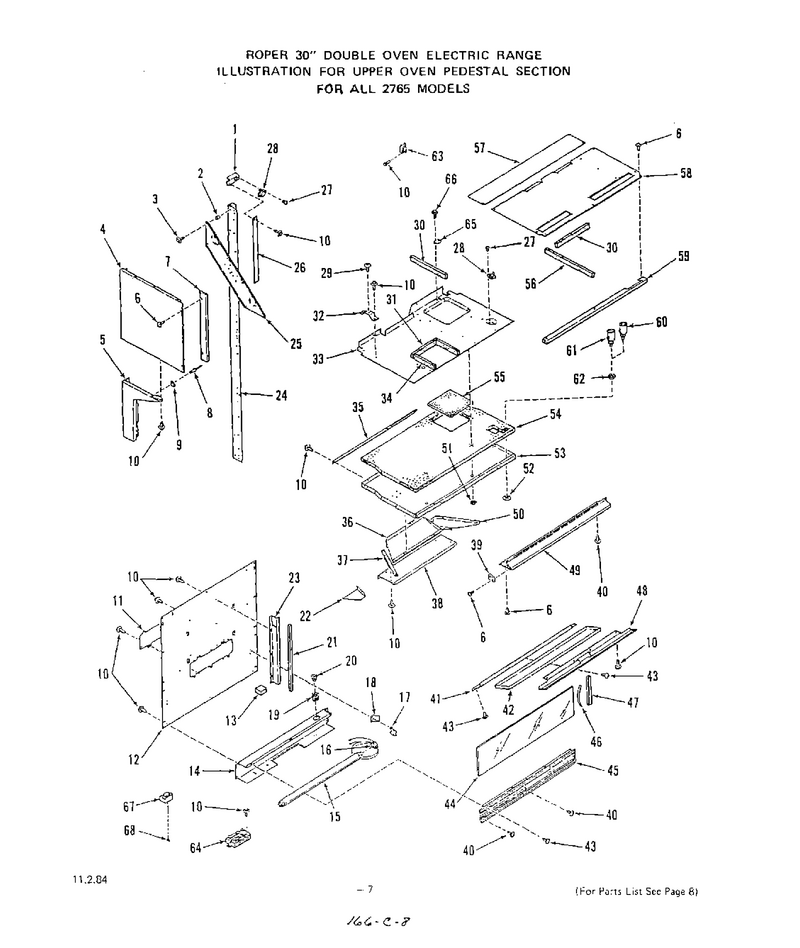

07 - Upper Oven Pedestal

...
...
1
Box - Auxiliary Thermostat WPL-326303
...
2
Spacer (4 Req) WPL-325308
...
3
Screw 10-32x1`` WPL-313190
...
4
Upper Oven Body Side (Platinum - Left) WPL-328211
...
5
Pedestal-Upper Oven (White - Right) WPL-325283
...
6
Screw 6-20x3/8`` (Black Finish) WPL-329382
...
7
Side Trim (Right) WPL-325330
...
8
Pop Rivet WPL-101523
...
9
Retainer-Lt. Or Rt. WPL-285523
...
10
Nut WPL-WP112432
...
11
Cover Plate WPL-322992
...
12
Wire Cover - Upper Oven WPL-325773
...
13
Foam Strip-(2 Req) WPL-326696
...
14
Wire Cover-Fluorescent Lamp WPL-329068
...
15
Fluorescent Lamp (20 W - 24``) WPL-71734
...
16
Holder-Fluorescent Lamp (Left) WPL-327790
...
17
Bracket-Fluorescent Lamp (Rt. Or Lt.) WPL-324746
...
18
Shield-Wire WPL-321107
...
19
Fuse Holder WPL-277608
...
20
Fuse-15 Amp. WPL-106208
...
21
Foam Strip (Left-Airway Side) WPL-326697
...
22
End - Vent (Right) WPL-322935
...
23
Airway - Side (Left) WPL-325726
...
24
Support-Upper Oven (Right) WPL-327030
...
25
Brace-Cabinet Side (Lt. Or Rt.) WPL-325388
...
26
Cover - Wire Support WPL-326417
...
27
Screw 4-40x1/4`` WPL-230710
...
28
Auxiliary Thermostat WPL-325401
...
29
Screw 10-32x1/2`` WPL-239114
...
30
Foam Strip WPL-324504
...
31
Foam Strip WPL-328020
...
32
Support-Microwave (4 Req) WPL-328492
...
33
Knob WPL-WP330190
...
34
Foam Strip-Lt. Or Rt. WPL-328021
...
35
Stiffener WPL-325301
...
36
Baffle - Vent WPL-322937
...
37
Vent Side-Left WPL-322949
...
38
Bottom-Vent WPL-320261
...
39
End Cap (Right) WPL-325338
...
40
Screw 10-32x7/16`` WPL-316365
...
41
Upper Retainer-Lamp Glass (Toast) WPL-328222
...
42
Cover-Vent (Toast) WPL-328321
...
43
Screw 6-20x3/8`` WPL-329382
...
44
Lamp Glass WPL-329852
...
45
Lower Retainer-Lamp Glass WPL-324307
...
46
Spring - Lamp Glass End Trim (Lt Or Rt) WPL-286327
...
47
End Trim - Lamp Glass (Lt Or Rt) WPL-299979
...
48
Trim-Filter (Black) WPL-327639
...
49
Lower Trim WPL-325471
...
50
Vent Side-Rt. WPL-320257
...
51
Plug Button (2 Req) WPL-288197
...
52
Knurled Nut (2 Req) WPL-87403
...
53
Oven Cabinet Bottom WPL-327797
...
54
Insulation-Cabinet Bottom WPL-327799
...
55
Insulation WPL-326031
...
56
Foam Strip WPL-325029
...
57
Rear Cover-Oven Top (White) WPL-320476
...
58
Oven Top Cover (Black) WPL-327640
...
59
Top Trim WPL-325328
...
60
Push Switch-Fluorescent Lamp WPL-307060
...
61
Push Switch (Oven Lamp) WPL-306333
...
62
Pal Nut 3/8-27 (2 Req) WPL-236129
...
63
Ballast WPL-98186
...
64
Oven Relay WPL-239802
...
65
Cover Plate WPL-237762
...
66
Screw 10 - 32 X 17/32`` WPL-102428
...
67
Fixed Input Control WPL-293428
...
68
Screw 8-32x3/16`` WPL-78565
