Mastercraft 31AE983I515 (1998) Snow Thrower

Model: 31AE983I515 (1998)

Save Part Not Listed?
product name

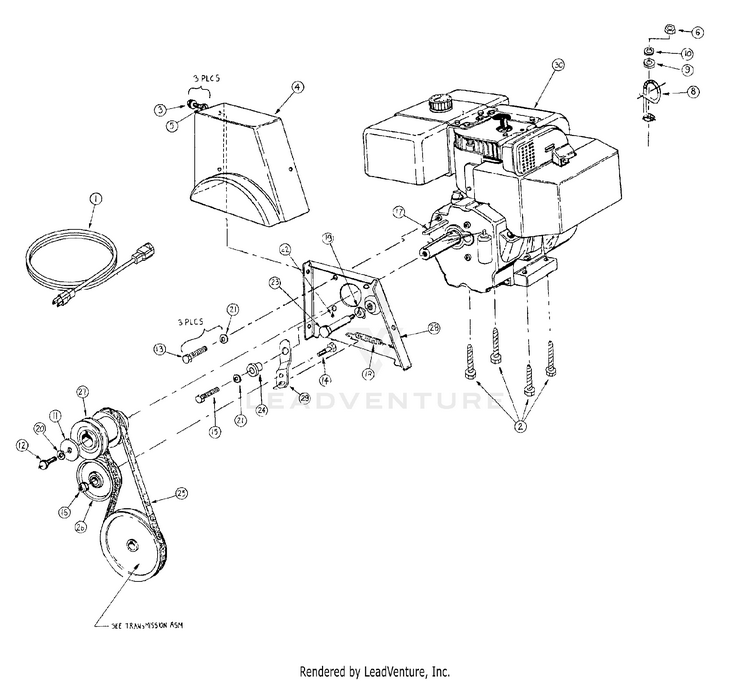

Belt Drive

...
...
1
3-Prong Extension Cord MTD-929-0071B
...
2
Hex L-wash Tt Scr 3/8-16 x 1.25 MTD-710-0502A
...
3
Hwhd 5/16-18 x 1/2 Thd Roll Zn MTD-710-0607
...
4
Belt Cover - Pierced MTD-731-0321-1
...
5
Fl-wash .344 ID x .625 OD x .063 MTD-736-0264
...
6
HEX NUT MTD-712-3006
...
8
Cable Control Wire MTD-732-0705
...
9
Fl-Wash .28 ID x .74 OD x .063 MTD-736-0173
...
10
L-Wash. 1/4" I.D. MTD-936-0329
...
11
FLAT WASHER .395ID 1 MTD-07386
...
12
Scr Hex Cap 3/8-24 x 1. Gd 8 MTD-710-0191
...
13
Scr Hex Cap 5/16-24 x .62 Gd 5 MTD-710-0237
...
14
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
15
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
16
Hex Ins L-nut 3/8 - 24 MTD-712-0116
...
17
Square Key 1/4 x 1.5 MTD-714-0118
...
18
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
19
L-wash 3/8 MTD-736-0169
...
20
Lock Washer 3/8 Heavy MTD-736-0217
...
21
Bell Wash .345 ID x .88 OD x .060 MTD-736-0242
...
22
Grease - Sunaplex 781 - 1/10 MTD-737-0157
...
23
Shoulder Scr .498 Dia x 3.0 Lg MTD-738-0215A
...
24
Shldr Spcr .50 Dia x .14 Shldr MTD-748-0234
...
25
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
26
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
27
Dbl Engine Pulley 3.25 & 2.75 MTD-756-0241B
...
28
BELT COVER BRACKET (POWDER BLACK) MTD-684-0123A-0637
...
29
DRIVE IDLER BRACKET MTD-784-5726
...
30
Engine MTD-NA

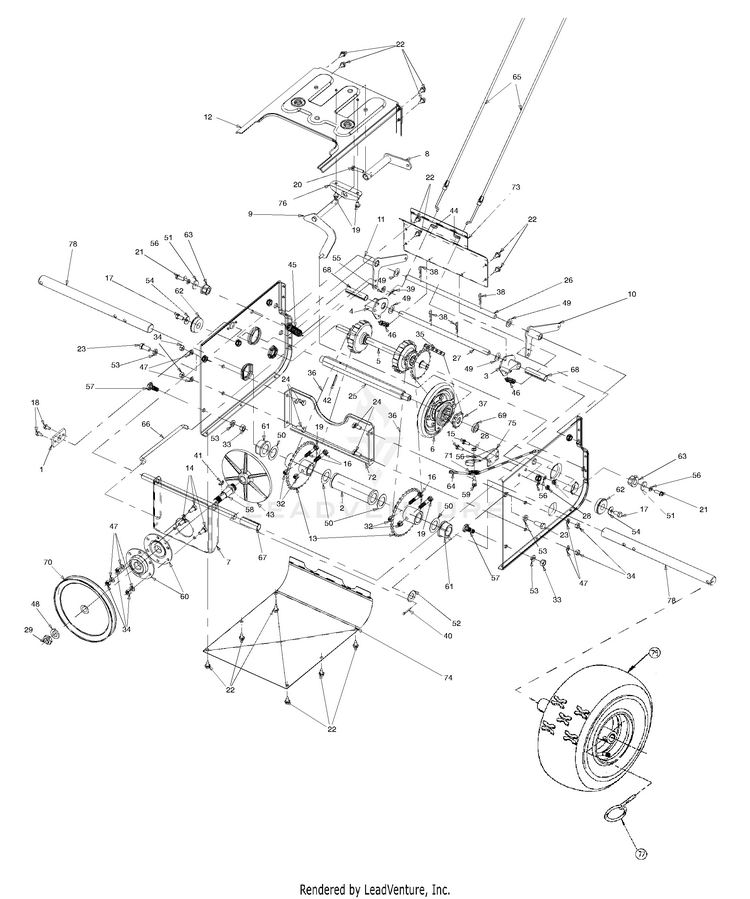

Drive

...
...
1
BRACKET-PIVOT AXLE MTD-05523
...
2
SLEEVE BUSHING ASSEMBLY MTD-918-0278
...
3
LEFT DRIVE DOGG ASSEMBLY MTD-918-0279A
...
4
Dogg Assy-Rgt D MTD-918-0280A
...
5
Shaft Assembly, Steering MTD-918-0282E
...
6
FRICTION WHEEL ASSEMBLY MTD-918-0296B
...
xx
FRICTION WHEEL ASSEMBLY Not Shown; For 618-0296 Wheel Assembly MTD-918-0296B
...
7
SUPPORT ASSEMBLY (POWDER BLACK) MTD-684-0115-0637
...
8
ARM ASSEMBLY-SHIFT MTD-684-0116
...
9
Shft Asm Rod MTD-684-0117
...
10
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
11
ACTUATOR BRACKET (POWDER BLACK) MTD-684-0119B-0637
...
12
FRAME ASSEMBLY MTD-684-0120
...
13
32T SPROCKET ASSEMBLY MTD-684-0122
...
14
Hex Scr 5/16-18 x .75 MTD-710-0118
...
15
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
16
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
17
Hhcs 5/16-18 x .625 Gr5 Lock MTD-710-0538
...
18
Scr TT 1/4-20 x .5 Hxindwsh MTD-710-0599
...
19
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
20
Scr Hexwash 1/4-20 x 1.25 MTD-710-0809
...
21
Scr Tt Cl 1/4-20 .75 Hxindwsh MTD-710-0875
...
22
Scr Ab 1/4-14 .625 Hxindwsh MTD-710-0896
...
23
Hhcs 3/8-16 x .880 Gr5 Std MTD-710-3001
...
24
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
25
HEX DRIVE SHAFT MTD-711-1191
...
26
ACTUATOR SHAFT MTD-711-1193
...
27
DRIVE ACTUATOR SHAFT MTD-711-1194
...
28
Hex Nut 1/4-28 MTD-712-0138
...
29
HEX NUT MTD-712-0221
...
32
Hex Ins L-nut 5/16-18 MTD-712-0429
...
33
Hex Nut 3/8-16 MTD-712-0798
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
#41 Chain 1/2 Pitch x 36 L MTD-713-0284
...
36
#420 Chain 1/2 Pitch x 40 L MTD-713-0286
...
37
Spkt 10t #41 x .500 MTD-713-0413
...
38
Internal Cot-pin 1/2 Dia MTD-714-0101
...
39
Intern Cot-pin 5/16 Dia MTD-714-0104
...
40
Cotter Pin 1/8 Dia x 1 MTD-714-0115
...
41
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
42
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
43
Plate, Drive MTD-917-0302
...
44
Plug 5/8 Snap-in MTD-726-0345
...
45
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
46
Spring MTD-932-0209
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
Lock Washer 5/8 MTD-736-0158
...
49
Wash Fl .531 ID x .930 OD x .05 MTD-736-0160
...
50
Wash Fl 1.03 ID x 1.62 OD MTD-736-0163
...
51
Wash Flt 1/4 ID x .930 OD x .12 MTD-736-0176
...
52
Wash Flt .640 ID x 1.24 OD x .06 MTD-736-0187
...
53
Lock Washer 3/8 Heavy MTD-736-0217
...
54
Bell Wash .345 ID x .88 OD MTD-736-0242
...
55
FLAT WASHER MTD-736-0275
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
58
Drive Plate Spindle MTD-738-0279
...
59
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
60
BEARING HOUSING ASSEMBLY MTD-741-0163A
...
61
Flange Bearing w/ Flats MTD-941-0170
...
62
BALL BEARING MTD-941-0563
...
63
HEX FLANGE BEARING MTD-941-0597
...
64
Auger Cable MTD-946-0951A
...
65
Steering Cable MTD-746-0949A
...
66
DRIVE CLUTCH ROD MTD-747-0973
...
67
SPACER-SPLIT .64X. MTD-750-1097
...
68
SPLIT SPACER MTD-750-0903B
...
69
Spacer MTD-950-0997
...
70
1/2 V-pulley .62 ID x 7.5 MTD-756-0344
...
71
Cable Guide Roller MTD-756-0625
...
72
FRAME SUPPORT MTD-784-0377-0637
...
73
UPPER FRAME COVER MTD-784-0379
...
74
LOWER FRAME COVER MTD-784-0380
...
75
AUGER CABLE GUIDE MTD-784-0384-0637
...
76
Shift Bracket Frame MTD-784-5590
...
77
Klik Pin Assy Danuse MTD-714-0151A
...
78
AXLE-1.0"OD x 14.1 MTD-738-0975
...
79
WHEEL ASSEMBLY 16 x 6 MTD-734-1593A

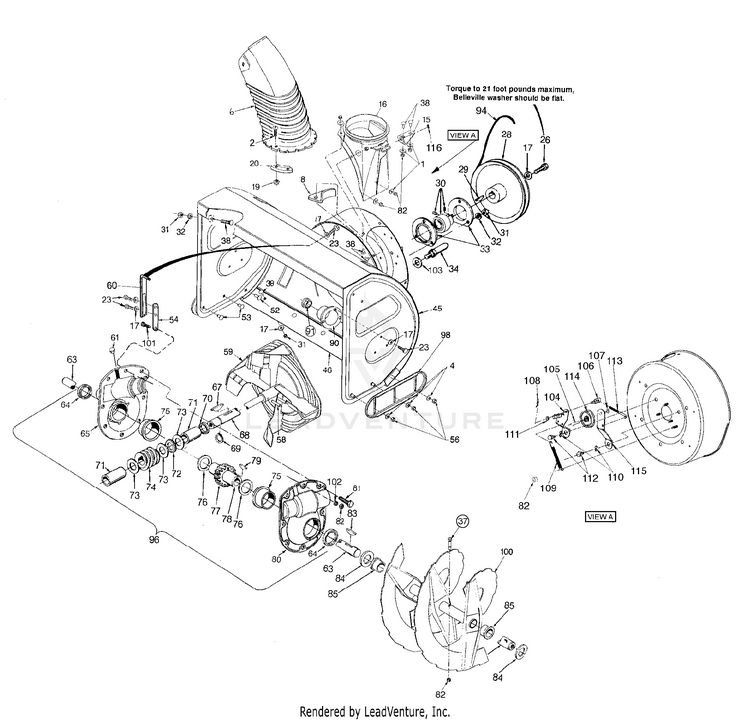

General Assembly

...
...
1
Fl-Wash. .344" I.D. MTD-736-0159
...
2
Truss. Hd. Mach. Scr. 1/4-20 x .75 MTD-710-3015
...
4
Belleville washer MTD-736-0105
...
6
6 Lower Chute Remote Tilt MTD-731-0903E
...
8
CHUTE BRACKET MTD-784-5711-0637
...
15
Chute Bracket MTD-784-5123-0637
...
16
Chute Adapter MTD-731-1696B
...
17
Bell. Washer .345 ID x .88 OD x .06 MTD-736-0242
...
19
Hex Cent. L-Nut 1/4-20 w/ Flange MTD-912-3027
...
20
Chute Flange Keeper MTD-731-0851A
...
23
Hex Wash HD Self-Tap Scr 5/16-18 x .75 MTD-710-1260A
...
26
SCREW 5/16-18 x .750 MTD-710-1880
...
28
1/2 V-Pulley .875 ID x 10.12 OD MTD-756-0243
...
29
Key MTD-714-0126
...
30
Self-Aligning Bearing .875 ID MTD-941-0185
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
L-Wash 5/16 ID MTD-936-0119
...
33
Bearing Housing MTD-05244B
...
34
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
37
Shear Bolt 5/16-18 x 1.75 MTD-710-0891
...
38
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
45
33" AUGER HOUSING MTD-684-0093B
...
46
Shave Plate 33" MTD-784-5714B-0637
...
52
Carriage Bolt 3/8-16 x 1.00 Gr. 5 MTD-710-3168
...
53
Carriage Bolt 3/8-16 x .75" Lg. MTD-710-0389
...
54
Gear Housing Support Plate 1 x 3/16 MTD-784-5710-0637
...
56
Hex Jam Nut 3/8-16 MTD-712-0798
...
58
SPRING PIN SPIR 5/16 DIA X 1.7 MTD-715-0118
...
59
IMPELLER ASSEMBLY(POWDER BLACK) MTD-684-0090B-0637
...
60
Gear housing Support Bracket 1 x 3/16 MTD-784-5076-0637
...
61
Barbed Plug MTD-721-0325
...
63
SPIRAL AXLE MTD-738-0491
...
64
Oil Seal 1.50 ID Garlock (76 x 6223) MTD-921-0146
...
65
GEAR HOUSING ASSEMBLY (RH) MTD-918-0246
...
67
Key MTD-714-0126
...
68
Auger Drive Shaft MTD-711-1133
...
69
Snap Ring for .875 dia. shaft MTD-716-0111
...
70
Oil Seal for .875 ID (76 x 6133) MTD-921-0145
...
71
Sleeve Bearing .875 ID MTD-941-0217
...
72
Thrust Bearing .88 ID x 1.44 OD x .078 MTD-741-0184
...
73
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
74
Worm Gear LH Double Thread MTD-917-0299
...
75
Flange Brg. 1.5 ID x 1.75 OD x .80 MTD-741-0670
...
76
FLAT WASHER MTD-736-0266
...
77
Worm Gear LH Double Thread (Bronze) MTD-917-1425
...
78
Worm Gear Shaft MTD-738-0275
...
79
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
80
Gear Housing Half LH MTD-918-0247
...
81
Hex Flange Scr. 5/16-18 x .75 MTD-710-1260A
...
82
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
83
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
84
Flat Washer MTD-736-0250
...
85
Flange Bearing MTD-741-0494
...
90
Housing bearing 1.5 Dbl D MTD-05845C-0637
...
91
Flange Bearing w/ Flats MTD-941-0170
...
94
V-Belt 1/2 x 44 LG MTD-954-0222A
...
96
AUGER GEARBOX ASSEMBLY MTD-618-0436
...
98
Reversible Skid Shoe MTD-784-5697
...
100
SPIRAL ASSEMBLY (RH) MTD-705-5210A-0637
...
100
33" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04195-0637
...
100
30" SPIRAL ASSEMBLY (RH) MTD-684-04192
...
100
30" SPIRAL ASSEMBLY (LH) MTD-684-04193
...
101
Hex Scr 5/16-18 x 1.25 MTD-710-0528
...
102
5/16 Sprg Wash MTD-936-0271
...
103
L-Wash. 3/8" I.D. MTD-736-0169
...
104
Brkt Ass'y Brkt MTD-918-0281A
...
105
Scr Hex Cap 3/8-24 x 1.5 GRD 5 MTD-710-0459A
...
106
Adjustment Ferrule MTD-911-0677
...
107
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
108
Hairpin Clip MTD-714-0104
...
109
Spr Extn .470 dia x 4.75 Lg MTD-732-0858
...
110
Wave Washer .66 ID x .88 OD MTD-736-0174
...
111
FLAT WASHER MTD-736-0275
...
112
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
113
AUGER IDLER ROD MTD-747-0980A
...
114
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
115
Brkt Idlr Auger MTD-784-0385D
...
116
Plastic Bushing .380 ID MTD-941-0475

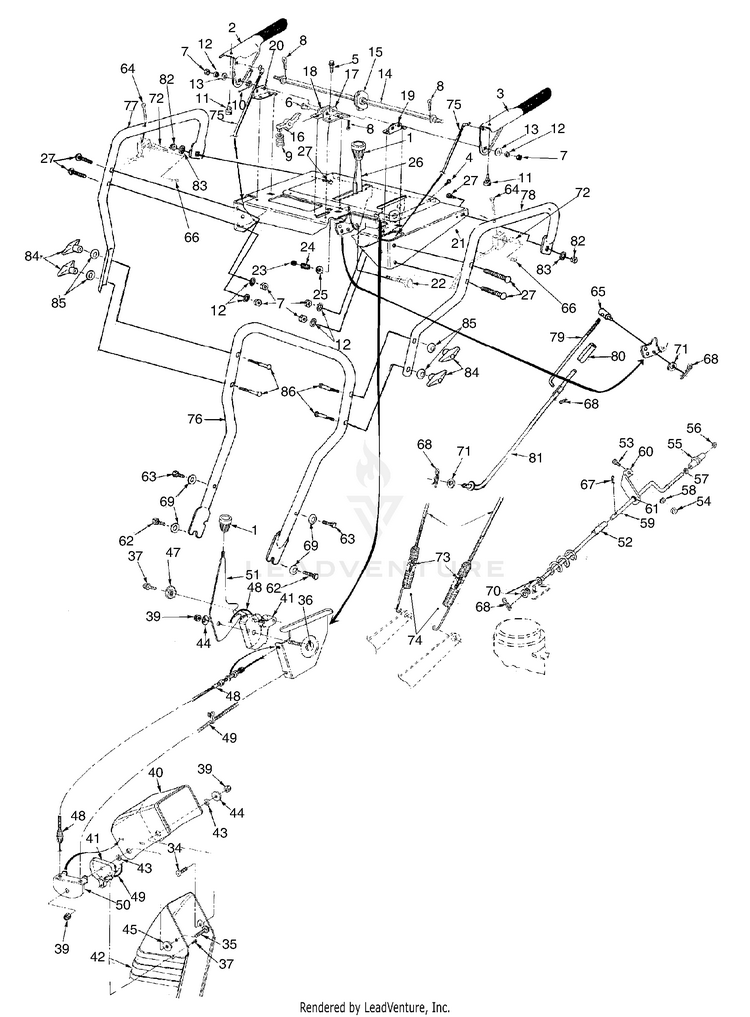

Handle Assembly

...
...
1
Knob MTD-920-0232
...
2
CLUTCH HANDLE(RH) MTD-705-5218
...
3
CLUTCH HANDLE(LH) MTD-705-5219
...
4
Pan Head B-tapp Scr #10 x .5 MTD-710-0351
...
5
Hwhd Sf-tap Scr 1/4-20 x 1/2 Zn MTD-710-0599
...
6
Clevis Pin .31 Dia x 1.0 MTD-711-0653
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Cot-pin 3/32 Dia x 1.0 MTD-714-0111
...
9
Comp Spring .36 Dia x 1.0 Lg MTD-732-0145
...
10
Spring Torsion .44 ID MTD-732-0746
...
11
Rubber Bumper .63 Dia MTD-735-0199A
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Wsher Spcl. .345 Sq. x .72 OD MTD-736-0509
...
14
Cam Rod MTD-747-0877
...
15
Clutch Lock Cam MTD-748-0362
...
16
Handle Lock Pawl MTD-948-0363
...
17
HANDLE BRACKET (LH) MTD-784-5679-0637
...
18
Brkt., Handle Support - RH MTD-784-5680-0637
...
19
Supt Brkt 3/8 Lh MTD-784-5681
...
20
Brkt., Handle Support - RH MTD-784-5682-0637
...
21
HANDLE PANEL ASSEMBLY MTD-684-0102A
...
22
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
23
Hex Ins L-nut 3/8-24 MTD-712-0116
...
24
Compression Spring .39 ID x .88 MTD-732-0193
...
25
Bell Wash .40 ID x .88 OD x .06 MTD-736-0105
...
26
KIT-SHIFT HANDLE:S MTD-753-05395
...
27
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
34
Carriage Bolt 5/16-18 x 1.00 MTD-710-0276
...
35
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
36
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
37
HWHD B Tapp Scr 1/4 x 5/8 Zn MTD-710-0896
...
39
Hex Ins L-nut 5/16-18 MTD-712-0429
...
40
Chute, Upper, 6.0 MTD-731-0846C
...
41
Cbl. Guide, Chute Tilt MTD-731-1313C
...
42
Chute, Lower MTD-731-0903E
...
43
CHUTE PIVOT SPACER MTD-931-1319
...
44
Fl-wash .344 ID x .88 OD x .063 MTD-736-0159
...
45
Flt Wshr .344 x 1.125 x .125 MTD-736-0231
...
47
SPECIAL WASHER MTD-736-0506A
...
48
CABLE-CHUTE MTD-946-0902
...
49
CABLE W/CLIP-CHUTE MTD-946-0903
...
50
Cable Bracket Chute Tilt MTD-784-5594
...
51
Handle, Chute Tilt MTD-784-5604A-0637
...
52
CHUTE CRANK ASSEMBLY(POWDER BLACK) MTD-684-0053B-0637
...
53
Hex Scr 1/4-20 x .75 Lg Gd5 MTD-710-3015
...
54
HEX NUT 1/4-20 MTD-912-0287
...
55
Chute Crank Knob Countersink MTD-720-0201A
...
56
Push Cap 3/8" Rod MTD-726-0100
...
57
Fl-Wash. MTD-936-0117
...
58
SPRING WASHER BELL MTD-736-0270
...
59
Rod, Chute Crank MTD-747-0624-0637
...
60
Bracket, Chute Crank MTD-705-5266-0637
...
61
BUSHING .380 ID MTD-941-0475
...
62
Hex Scr 3/8-16 x .75 MTD-710-0216
...
63
Hex Scr 3/8-16 x 1.75 MTD-710-0347
...
64
Scr Oval C/sunk #10-24 x 1.75 MTD-710-1625
...
65
Engagement Ferru MTD-911-0677
...
66
FLAT WELD NUT MTD-712-0127
...
67
Internal Cot-pin 1/2 Dia MTD-714-0101
...
68
Inter Cot-pin 5/16 Dia MTD-714-0104
...
69
Bell Wash .4 ID x .88 OD x .06 MTD-736-0105
...
70
Fl-wash .406 ID x .74 OD x .063 MTD-736-0185
...
71
FLAT WASHER MTD-736-0275
...
72
Cable Assembly, Trigger MTD-746-0950A
...
73
Hex Ins L-nut 1/4-20 MTD-712-0324
...
74
Extension Spring MTD-732-0184
...
75
DRIVE CLUTCH CABLE MTD-746P0952
...
76
LOWER HANDLE MTD-749-0991
...
77
Handle Upper Rh MTD-749-0990A
...
78
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-0989A-0637
...
79
Upper Shift Rod 5/16 x 10.57 MTD-747-0997
...
80
Rod-Clutch Lock MTD-950-0963
...
81
Rod, Lower Shift MTD-747-0983A
...
82
HEX NUT 1/4-20 MTD-912-0287
...
83
SPRING WASHER BELL MTD-736-0270
...
84
Wingnut MTD-720-0284
...
85
Bell Wash .345 ID x .88 OD x .060 MTD-736-0242
...
86
Carriage Bolt 5/16 -18 x 2.5 MTD-710-0572

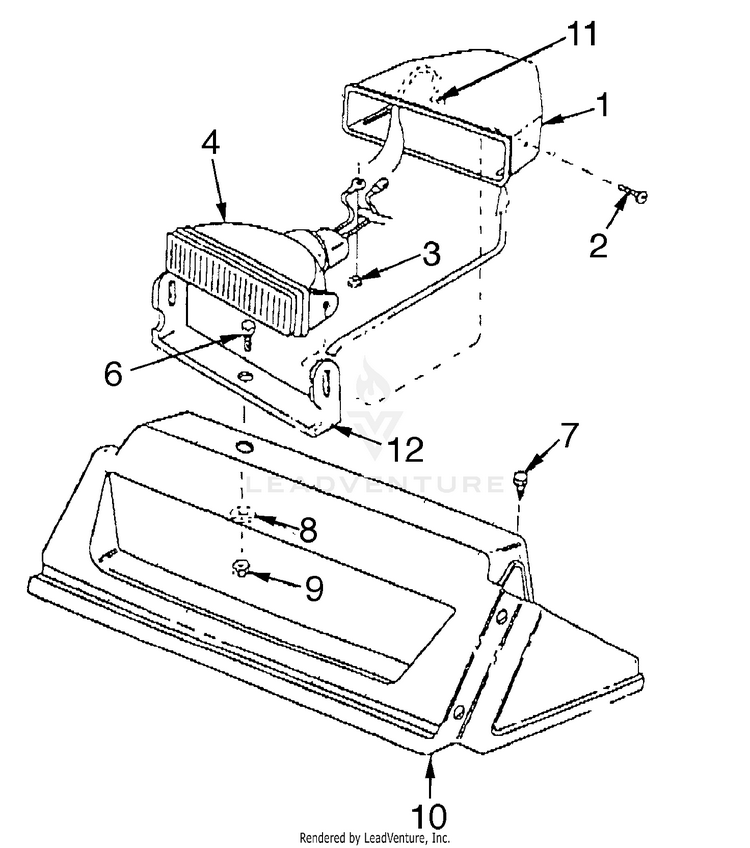

Headlight Assembly

...
...
1
Halogen Lamp Housing MTD-731-1364
...
2
Phillips Pan Head Screw M 4 x 16 MTD-710-1240
...
3
Hex Sems Nut 1/4-20 MTD-712-0271
...
4
LAMP W/LENS ASSEMBLY MTD-925-1669P
...
xx
Halogen Light Harness MTD-929-0059
...
xx
Lamp MTD-925-1658
...
6
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
7
Pan Head B-Tapp Screw #10 MTD-710-0351
...
8
Fl-Wash .344 ID x .88 OD MTD-736-0159
...
9
Hex Ins L-Nut 5/16-18 MTD-712-0429
...
10
HANDLE PANEL MTD-731-0061
...
11
GROMMET MTD-735-0225
...
12
LAMP MOUNT BRACKET MTD-705-5217
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
