Mastercraft 31AE642E515 (1998) Snow Thrower

Model: 31AE642E515 (1998)

Save Part Not Listed?
product name

Belt Drive

...
...
1
BRACKET-IDLR- MTD-05896A
...
2
3-Prong Extension Cord MTD-929-0071B
...
3
Screw MTD-710-0627
...
4
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
5
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
6
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
7
Screw MTD-710-0696
...
8
Screw MTD-710-0627
...
9
Screw MTD-710-0896
...
10
Nut, Hex MTD-712-0181
...
11
Belt Cover MTD-731-1324
...
12
Extension Spring MTD-932-0710
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Washer-Bell MTD-736-0242
...
15
Washer-Flat MTD-736-0247
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Washer-Bell MTD-736-0331
...
18
Washer-Flat MTD-736-0505
...
19
Shoulder Spacer MTD-748-0234
...
20
Adapter Pulley MTD-948-0360
...
21
V - Belt MTD-954-0346
...
22
BELT: 3V X 35.00 LG MTD-954-0430C
...
23
Idler, Flat MTD-756-0313
...
24
Pulley, Half MTD-756-0569
...
25
Pulley-Auger MTD-756-0967
...
26
HALF PULLEY MTD-756-0986
...
27
HALF PULLEY MTD-956-0987
...
28
Starter MTD-390-987
...
29
Engine MTD-NA

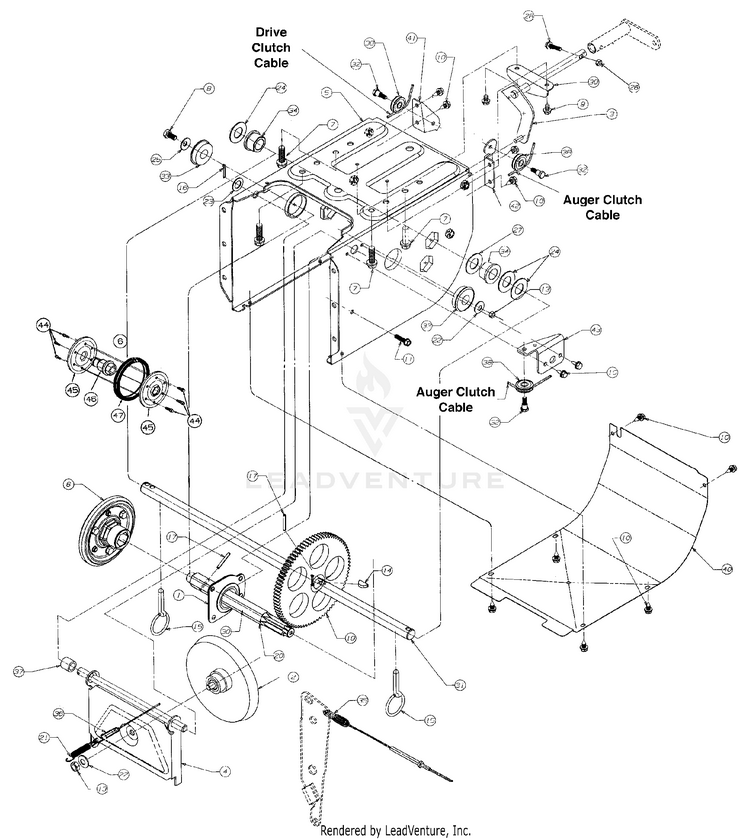

Drive

...
...
1
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063
...
2
Friction Wheel Disc Ass'y. MTD-956-0012A
...
3
SHIFT ROD ASSEMBLY MTD-684-04243
...
4
BRACKET ASSEMBLY MTD-984-0021-0637
...
5
FRAME MTD-684-0030
...
6
Wheel Assembly Friction MTD-984-0042C
...
7
Hex Self-Tap Screw MTD-710-0654A
...
8
Hex Hd. Cap Screw MTD-710-0538
...
9
Scr., Hex Wash. Hd. MTD-710-0599
...
10
Hex Self-Tap Scr. MTD-710-0896
...
11
Screw, Hex MTD-710-0788
...
13
Nut, Hex MTD-712-0711
...
14
Key MTD-714-0126
...
15
Click Pin MTD-714-0143A
...
16
Pin, Cotter MTD-714-0474
...
17
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
19
Gear MTD-717-1445
...
20
7-Tooth Shaft MTD-917-04094
...
21
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
22
Washer, Bell MTD-736-0105
...
23
Flat Washer MTD-736-0160
...
24
Washer, Flat MTD-736-0188
...
25
Washer, Bell MTD-736-0242
...
26
Nut MTD-712-0324
...
27
Flat Washer MTD-736-0351
...
28
Screw MTD-710-0809
...
30
UNKNOWN MTD-NA
...
31
Axle .750 x 22.2 (13" Wheels) MTD-738-0869
...
31
AXLE .750X24.5 (16" Wheels) MTD-738-0830
...
32
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
33
BALL BEARING MTD-941-0563
...
34
Hex Flange Brg. .752" I.D. MTD-941-0598
...
35
Cable-Auger Clutch MTD-946-0897
...
36
Cable-Drive Clutch MTD-946-0898
...
37
Spacer MTD-748-0190
...
38
Roller, Cable MTD-756-0625
...
39
Frame, Shift Bracket MTD-784-5590
...
40
FRAME COVER MTD-784-5638A
...
41
DRIVE GUIDE BRACKET MTD-784-5688
...
42
AUGER GUIDE BRACKET MTD-784-5687
...
43
GUIDE BRACKET MTD-784-5689A-0637
...
44
Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
45
Friction Plate MTD-784-5617
...
46
Wheel Assembly Friction MTD-984-0042C
...
47
Rubber Only MTD-935-0243B

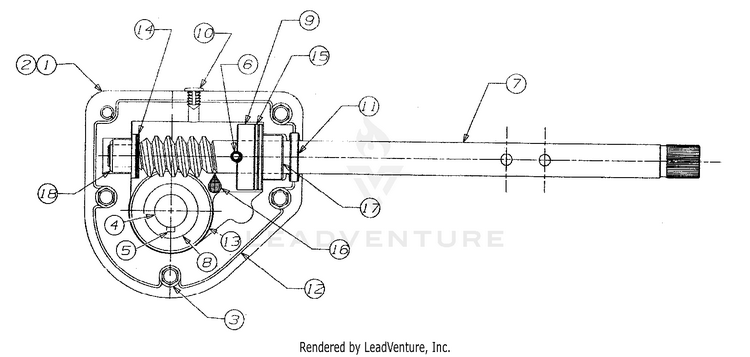

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Screw MTD-710-0642
...
4
24"AUGER SHAFT MTD-711-0908A
...
xx
26"AUGER SHAFT MTD-711-0909A
...
xx
Axle, Spiral 30" MTD-711-1024A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Pin-Spiral MTD-715-0143
...
7
IMPELLER SHAFT MTD-717P0526
...
8
WORM GEAR 20T MTD-917-04861
...
9
Collar-Thrust MTD-718-0186
...
10
Plug MTD-721-0325
...
11
Seal-Oil MTD-721-0327
...
12
Locktite 5699 MTD-721-0328
...
13
Washer-Flat MTD-736-0351
...
14
Washer-Flat MTD-736-0369
...
15
Washer-Flat MTD-736-0445
...
16
Grease MTD-737-0168A
...
17
Bearing-Flange MTD-741-0662
...
18
Bearing-Flange MTD-741-0663
...
xx
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 30" MTD-918-0417B

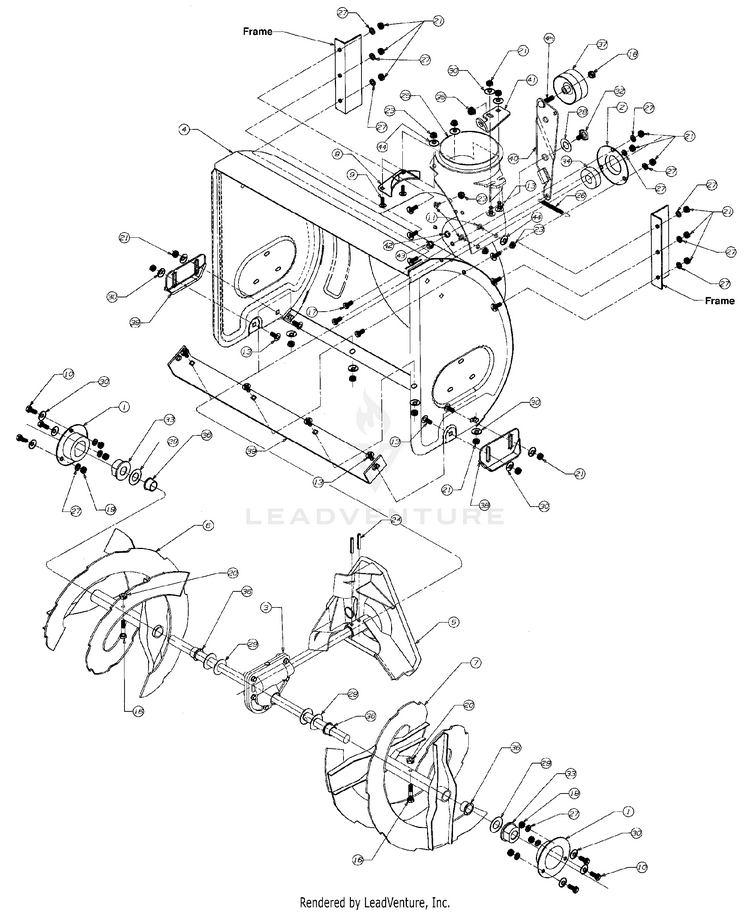

General Assembly

...
...
1
Bearing Housing MTD-784-5618A-0637
...
2
Bearing Housing MTD-05931A
...
3
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
xx
Gear Assembly: Auger 26" MTD-918-0415B
...
xx
Gear Assembly: Auger 30" MTD-918-0417B
...
4
24" HOUSING ASSEMBLY MTD-684-0039D
...
xx
26" HOUSING ASSEMBLY MTD-684-0040D
...
xx
30" HOUSING ASSEMBLY MTD-684-0055
...
5
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
6
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) MTD-684-04180-0637
...
xx
Spiral Assembly: RH 26" MTD-684-04182-0637
...
xx
Spiral Assembly: RH 30" MTD-684-04186-0637
...
7
Spiral 24" LH MTD-684-04181-0637
...
xx
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
xx
30" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04187-0637
...
8
Reinforcement, Chute MTD-705-5226
...
9
Bolt, Carriage MTD-710-0134
...
10
Screw, Hex MTD-710-0451
...
11
Screw, Carriage MTD-710-0134
...
13
Screw, Carriage MTD-710-0451
...
16
Bolt, Shear MTD-710-0890A
...
17
UNKNOWN MTD-NA
...
18
Hex Lock Nut MTD-712-0116
...
19
UNKNOWN MTD-NA
...
20
Nut, Hex Lock MTD-712-0429
...
21
HEX NUT 5/16-18 MTD-712-3010
...
23
Nut, Lock, Hex, Flanged MTD-712-0324
...
24
Spring Pin MTD-715-0114
...
25
Adapter Chute MTD-731-1379D
...
26
Ext. Spring 3.6" Lg. MTD-932-0611
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
Washer,Wave MTD-736-0174
...
29
Wash.Flat, MTD-736-0188
...
30
Washer, Bell MTD-736-0242
...
32
Screw, Shoulder MTD-738-0281
...
33
Hex Flange Bearing MTD-941-0245
...
34
Flange Ball Bearing MTD-941-0309
...
35
BUSHING .380 ID MTD-941-0475
...
36
FLANGE BUSHING MTD-741-0493C
...
37
Idler, Flat MTD-756-0178
...
38
Shoe, Slide MTD-784-5580
...
39
Shave Plate 24" MTD-790-00120-0637
...
xx
Shave Plate: Auger 26" MTD-790-00121-0637
...
xx
Shave Plate: Auger 30" MTD-790-00119-0637
...
40
Auger Idler Brkt. MTD-984-0064-0637
...
41
Chute Crank Bracket MTD-784-5647-0637
...
42
Lock Washer MTD-736-0169
...
43
Hex Nut MTD-712-0798
...
44
Flat Washer MTD-736-04633
...
45
Screw. HHCS MTD-710-04595

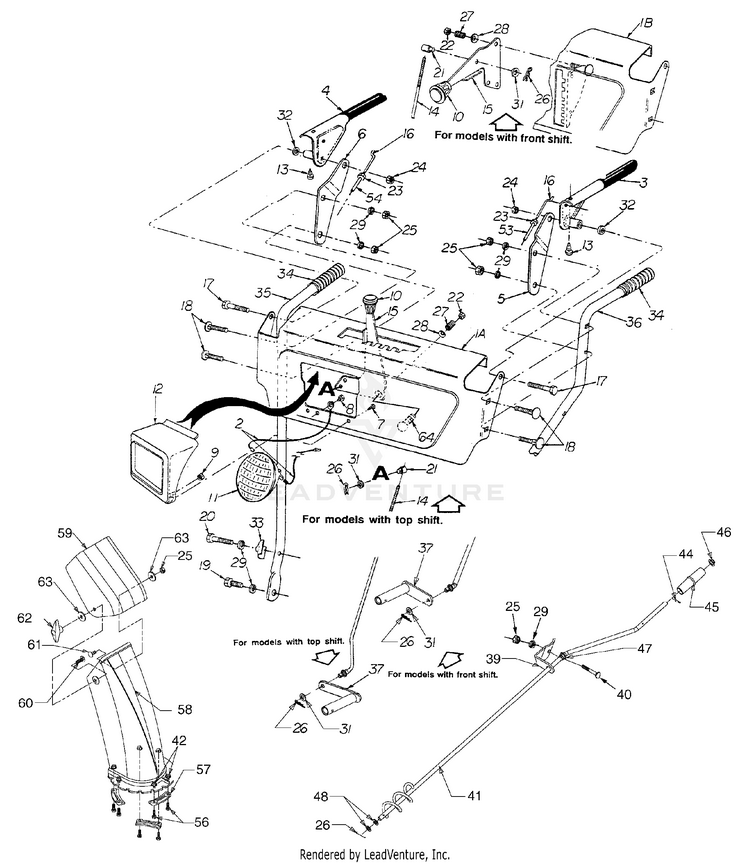

Handle & Chute

...
...
1A
CONTROL PANEL ASSEMBLY Model 642, 662 MTD-684-0105
...
1B
HANDLE PANEL ASSEMBLY Model 614, 644, 664 MTD-684-0106
...
2
LIGHT HARNESS ASSEMBLY Model 642, 662 MTD-929-0058B
...
3
CLUTCH LEVER (LH) MTD-705-5233A
...
4
CLUTCH LEVER (RH) MTD-705-5234A
...
5
PANEL SUPPORT BRACKET (LH) MTD-705-5275
...
6
PANEL SUPPORT BRACKET (RH) MTD-705-5274
...
7
Truss Mach.Tap Scr. #10-.50 Model 642, 662 MTD-710-0779A
...
8
Hex B-Tap Scr. 1/4-14 x .625 Lg. Model 642, 662 MTD-710-0896
...
9
SELF TAPP NUT Model 642, 662 MTD-712-0415
...
10
Knob MTD-920-0232
...
11
HEADLIGHT Model 642, 662 MTD-925-1300
...
12
HEAD LIGHT BEZEL Model 642, 662 MTD-731-1317
...
13
Rubber Bumper MTD-735-0199A
...
14
SHIFT ASSEMBLY ROD MTD-747-0921
...
15
KIT-SHIFT HANDLE:S MTD-753-05395
...
16
Cable "Z" Fitting MTD-946-0778
...
17
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
18
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
19
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
20
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
21
Engagement Ferru MTD-911-0677
...
22
Hex Nut 3/8-24 MTD-712-0116
...
23
Hex Nut 10-24 MTD-712-0121
...
24
Hex L-Nut 5/16-18 MTD-712-0429
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
Int. Cotter Pin 5/16 Dia. MTD-714-0104
...
27
Comp. Spring 38 ID x .88 Lg. MTD-732-0193
...
28
Bell-Wash. .400 ID x .88 OD x .06 MTD-736-0105
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
Flat Washer .34 ID x .63 OD MTD-736-0264
...
32
SPACER MTD-750-1032
...
33
Handle Tab MTD-984-5599
...
34
Grip MTD-720-0274
...
35
HANDLE (RH) MTD-749-0910C-0637
...
36
HANDLE (LH) MTD-749-0911A
...
37
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
39
BRACKET MTD-784-5678
...
40
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
41
Chute Crank Ass'y MTD-984-0022
...
42
LOCK NUT 1/4 MTD-912-3027
...
44
Rolled Pin, 1/8 x .63 MTD-915-0138
...
45
Knob-Chute Crank MTD-720-0201A
...
46
Cap Speed Nut 3/8" Rod MTD-726-0100
...
47
BUSHING .380 ID MTD-941-0475
...
48
Flat Washer .385 ID x .62 OD x .06 MTD-736-0185
...
53
Cable-Auger Clutch MTD-946-0897
...
54
Cable-Drive Clutch MTD-946-0898
...
?55
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
56
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) MTD-710-3015
...
57
Chute Keeper MTD-731-0851A
...
58
Lower Chute MTD-731-1300E
...
59
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
60
Carriage Bolt 5/16-18 x 1" Lg. MTD-710-0276
...
61
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
62
Knob MTD-720-0284
...
63
Washer - 5/16 MTD-736-0159
...
64
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

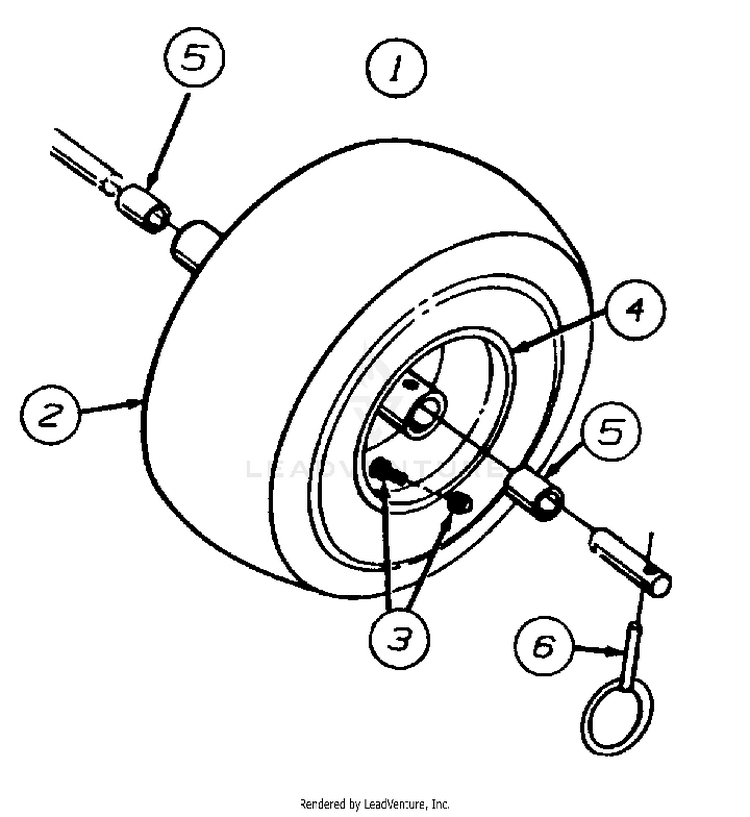

Wheel Assembly

...
...
1
WHEEL ASSEMBLY 13 x 5 MTD-734-1714
...
xx
WHEEL ASSEMBLY 16 x 6.5 MTD-734-1712
...
2
TIRE-SNOW HOG 13X5 TIRE-CODE MTD-734-1527
...
xx
TIRE-SNOW HOG-16X6 MTD-734-1525
...
3
TUBELESS VALVE MTD-934-0255
...
4
RIM ASSEMBLY 6.0 x 3.25 MTD-734-1713
...
xx
WHEEL RIM 8.0 x 5.38 x 7.30 MTD-734-1711
...
5
Sleeve Bearing .752" I.D. MTD-941-0401
...
6
Click Pin MTD-714-0143A
