Mastercraft 13AL470F054 (1997) Lawn Tractor

Model: 13AL470F054 (1997)

Back To Assemblies

Save Part Not Listed?
product name

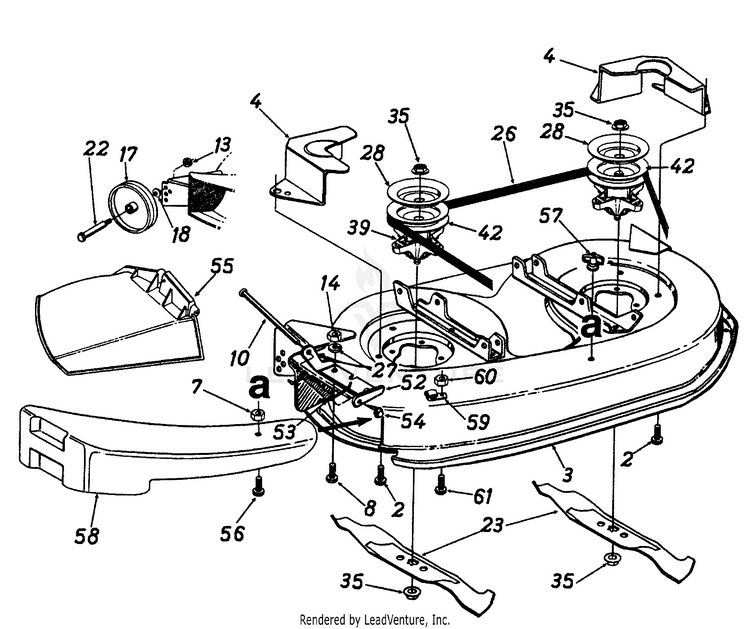

Deck Assembly (star blade)

...
...
2
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
3
38" DECK ASSEMBLY W/WHEEL BRACKET MTD-983-0119A
...
xx
DECK ASSEMBLY-COMPLETE38" (For service only) MTD-813-04244
...
4
DECK BELT COVER MTD-783-0343A
...
7
Hex Lock Nut 1/4-20 Thd. MTD-712-0291
...
8
Hex Bolt 1/4-20 x .62" MTD-710-0258
...
10
Hinge Pin MTD-911-0792
...
13
Hex Top Lock Nut 3/8-16 Thd. MTD-712-0181
...
14
HEX NUT MTD-712-3006
...
17
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
18
Bell Washer 0.40" I.D. x .88" O.D. MTD-736-0105
...
22
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
23
3 in 1 Blade MTD-942-0610A
...
26
V-Belt MTD-954-0329A
...
27
SPRING WASHER BELL MTD-736-0270
...
28
BRAKE DISC BRACKET MTD-783-0342A
...
35
HEX NUT MTD-712-0417A
...
39
Blade Spdl Ass'y. (Includes ref. 28, 35, 42) MTD-918-0138C
...
42
5" Dia. Deck Pulley MTD-756-0969
...
52
Hinge Mtg. Brkt. MTD-703-1693A
...
53
Torsion Spring MTD-732-0602A
...
54
PUSH NUT MTD-726-0106
...
55
CHUTE ASSEMBLY (Includes ref. 10, 52, 53, 54, 55) MTD-631-05229
...
56
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
57
WING NUT 1/4-20 MTD-712-3087
...
58
MULCH KIT- 38/42" MTD-OEM-190-116
...
59
Retainer Hook Bracket MTD-96606
...
60
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
61
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
