Mastercraft 13AL470F054 (1997) Lawn Tractor

Model: 13AL470F054 (1997)

Back To Assemblies

Save Part Not Listed?
product name

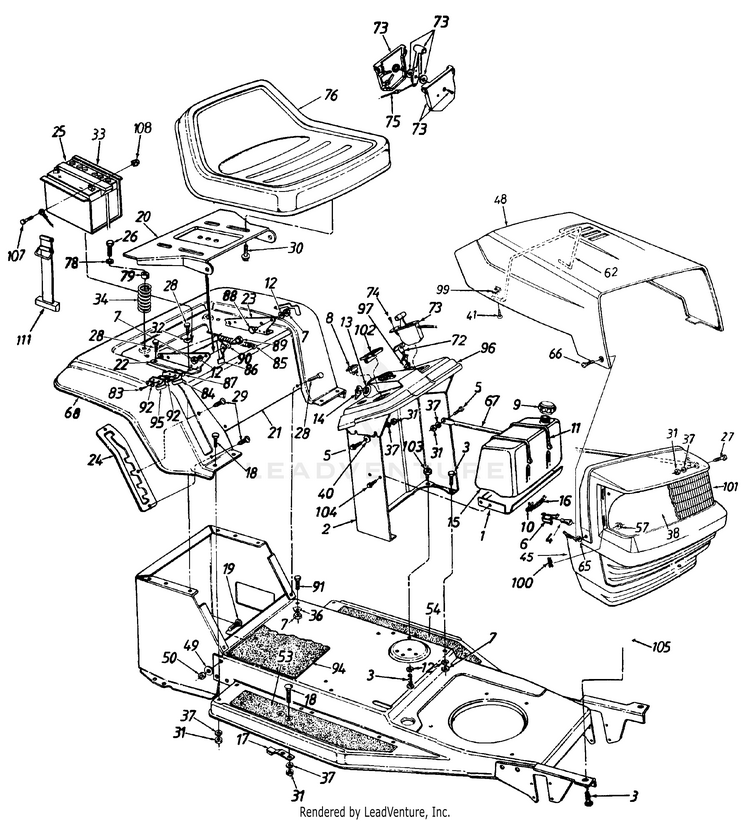

Seat/Battery/Fender/Dash Panel/Fuel Tank

...
...
1
BRACKET-TANK SUPPORT MTD-17932-0637
...
2
PEDESTAL MTD-17933A
...
3
Hex Bolt 5/16-18 x .75" Lg. New Part For faster service obtain standard nuts, bolts and washers locally, order and size given here. MTD-710-3025
...
4
Bulb MTD-925-0963
...
5
Hex Bolt 1/4 x .62" Lg. MTD-710-0258
...
6
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
7
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally, order and size given here. MTD-712-3010
...
8
Light Switch (Optional) MTD-925-0634
...
9
TANK CAP MTD-751-0603B
...
10
Hose Clamp MTD-726-0205
...
11
Cable Tie MTD-726-0230
...
12
Lock Washer 1/4" I.D. New Part For faster service obtain standard nuts, bolts and washers locally, order and size given here. MTD-736-0222
...
13
Ignition Switch MTD-925-0267B
...
14
Key MTD-925-0201
...
15
FUEL TANK 1.36 GAL MTD-751-0555D
...
16
FUEL HOSE 1/4-24" MTD-751-22813-24
...
17
BLADE BRAKE ASSEMBLY MTD-961-0194A
...
18
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
19
SCREW 3/8-24 x .80 MTD-710-0793
...
20
SEAT PIVOT BRACKET New Part MTD-783-0039A
...
21
FENDER-400 SERIES MTD-783-0354
...
22
SEAT HINGE SUPPORT BRKT. (RH) MTD-17704
...
23
SEAT HINGE SUPPORT BRKT. (LH) MTD-17703
...
24
BRACKET-DECK INDEX MTD-17553
...
25
BATTERY New Part MTD-925-1707D
...
xx
BATTERY MTD-925-1707D
...
26
Hex Self-Tap Screw 5/6-18 1.25" Lg. MTD-710-0817
...
27
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
28
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
29
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
30
Hex Self-Tap Scr. 3/8-16 x .62" Lg.(Gr. 5) MTD-710-0870
...
31
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally, order and size given here. MTD-912-0287
...
32
External Lock Washer 5/16" I.D. MTD-736-0607
...
33
BATTERY TRAY MTD-783-0349
...
34
COMPRESSION SPRING MTD-732-0588
...
36
Bell-Washer 5/16" I.D. MTD-736-0242
...
37
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally, order and size given here. MTD-936-0329
...
38
LABEL-REFLECTIVE MTD-777X40318
...
40
SPRING WASHER BELL MTD-736-0270
...
41
Screw MTD-710-0589
...
45
GRILLE-10 STYLE MTD-931-1097G
...
48
HOOD-STY O W/LOUVERS For model (450 & 470) MTD-783-0250
...
xx
HOOD For model (451 & 471) MTD-17941
...
49
Lock Washer 3/8" I.D.H.D. MTD-736-0217
...
50
Hex Lock Nut 3/8-24 Thd. MTD-712-0241
...
53
Foot Pad - R.H. New Part MTD-725-0308C
...
54
Foot Pad - L.H. New Part MTD-725-0309C
...
57
Locknut MTD-912-3027
...
62
HOOD SPRING MTD-732-0704
...
65
Washer MTD-736-0342
...
66
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
67
GRILLE SUPPORT MTD-749-0914
...
68
Trim Strip 81" Lg. MTD-731-0511-81
...
72
Choke Control 23" MTD-946-0616A
...
73
Throttle Control Box MTD-831-0823A
...
74
Truss AB-Tap Scr. #10 x .5" MTD-710-0779A
...
75
Throttle Control Wire 18.5" MTD-946-0638
...
xx
Throttle Control Wire 18.5" MTD-946-0638
...
76
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
xx
SEAT MTD-957-0360A
...
xx
SEAT-V-550 4 BOLT MTD-757-0348A
...
xx
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
78
Flat Washer .344" I.D. x .88" O.D. MTD-736-0159
...
79
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
83
Hex Tap Scr. #8 x .5" Lg. MTD-710-0227
...
84
Safety Switch (Inner) MTD-725-1439
...
85
Extension Spring MTD-932-0581B
...
86
BRACKET-SEAT LIFT MTD-17239C
...
87
Insulator Boss Plate MTD-726-0278
...
88
Shoulder Bolt MTD-938-0155
...
89
Shld. Bolt .437" Dia. x .268" Lg. MTD-738-0296
...
90
Spr. Wash. 7/16" I.D. MTD-936-0141
...
91
Screw, 5/16-18 x .625 MTD-710-0604A
...
92
Insulator Plate MTD-726-0279
...
94
PAD-CENTER FOOT (Optional) MTD-723-0423
...
95
Outer Seat Spring Switch MTD-925-1303
...
96
DASH PANEL MTD-731-1228
...
xx
DASH PANEL MTD-731-1502
...
97
CLIP-CHOKE RETAINER MTD-17782
...
99
U-TYPE SPEED NUT MTD-926-0130
...
100
Hairpin Clip MTD-714-0104
...
101
Lens MTD-931-1099A
...
xx
Lens MTD-931-1099A
...
102
Ammeter (Optional) MTD-925-0925
...
103
Hex Jam Nut 5/16-18 Thd. MTD-712-3007
...
104
Hex Washer Hd. Tap Scr. 1/4-20 x .5". MTD-710-0599
...
105
U-Nut 5/16-18 Thd. MTD-726-0211
...
?106
Ext. Lock Washer 1/4" I.D. MTD-736-0222
...
107
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
108
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
111
BATTERY STRAP MTD-723-0444
...
?112
Battery Cap MTD-725-0689
