Mark Master 125-284-065 (1985) Self-Propelled Mower

Model: 125-284-065 (1985)

Save Part Not Listed?
product name

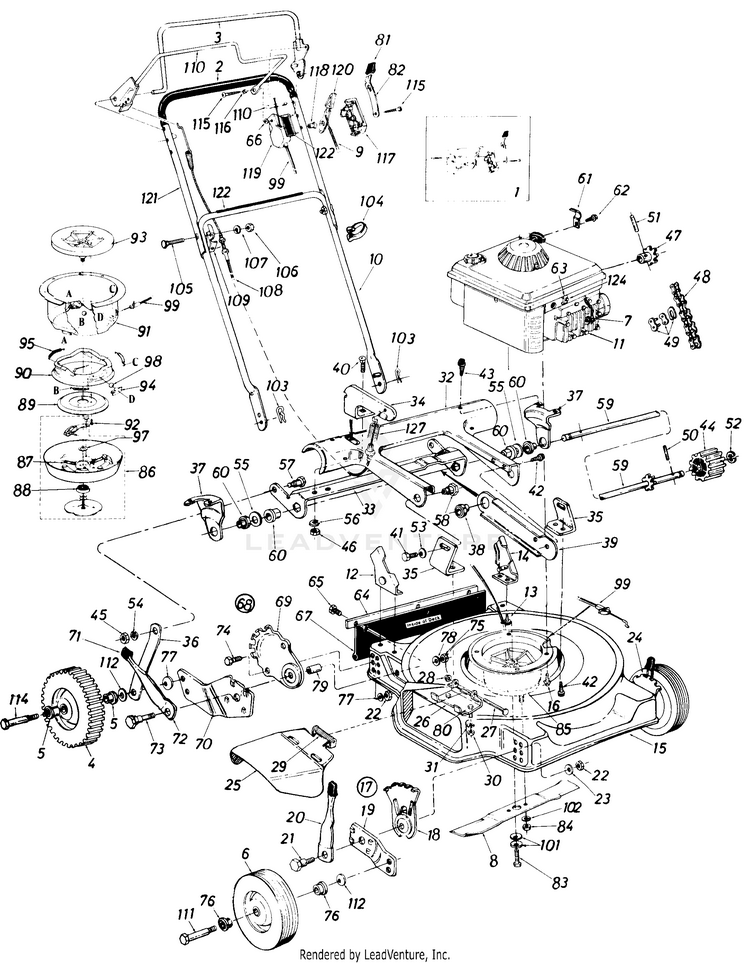

Rotary Mower

...
...
1
KIT-THROTTLE MTD-753-0361
...
2
Grip MTD-718-0145
...
3
BAIL (LH) MTD-731-0609
...
4
ASS'Y. COMP. (GEAR TREAD) MTD-734-1026
...
5
BALL BEARING MTD-941-0180
...
6
Front Wheel Ass'y.-Comp. 8 x 1.75 MTD-NA
...
xx
FRONT WHEEL-SMOOTH TREAD MTD-734-0843
...
xx
8" REAR WHEEL ASS'Y. (STEEL WHEEL) MTD-734-0894
...
xx
WHEEL ASSEMBLY W/TIRE-8 x 1.75 TL MTD-734-0661
...
xx
FRONT WHEEL ASS'Y. COMP. 8 x 1.75 MTD-734-0845
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0645
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-0643
...
7
INSULATOR-SPARK PLUG MTD-735-0639
...
8
22" BLADE MTD-742-0222
...
9
Throttle Wire 55" Lg. MTD-946-0671A
...
10
Lower Handle MTD-749-0928A-0637
...
11
Engine MTD-NA
...
12
BRACKET ASSY-HDLE MTD-12936
...
13
Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603
...
14
BRACKET AS MTD-12935
...
15
22" DECK ASS'Y MTD-14999
...
16
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
17
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
18
Height Adjustment Plate MTD-787-01290A
...
19
Pivot Bar MTD-15262B
...
20
Front Spring Lever MTD-94832
...
xx
Front Spring Lever MTD-94832
...
xx
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
21
Shoulder Bolt .50" Dia. MTD-738-0507B
...
22
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
23
BELL WASHER MTD-936-0356
...
24
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
25
CHUTE DEFLECTOR MTD-931-1034B
...
26
ADAPTER PLATE MTD-11130
...
27
PIVOT PIN MTD-711-0555
...
28
PUSH NUT MTD-726-0106
...
29
TORSION SPRING MTD-732-0253
...
30
HEX NUT 1/4-20 MTD-912-0287
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
32
COVER-PINI MTD-16319
...
33
CAM MTD-16332
...
34
Engagement Arm MTD-16318
...
35
BRACKET-PIVOT LH MTD-14759
...
36
LINK MTD-14760
...
37
BRACKET-AX MTD-14757
...
38
BALL BEARING MTD-941-0180
...
39
Brg. Support MTD-14777
...
40
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
41
Hex Bolt 3/8-16 x .50" Lg. MTD-710-0168
...
42
Hex "B"-Tap Scr. 1/4 x .38" MTD-710-0352
...
43
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
44
DRIVE PINION MTD-931-0393
...
45
HEX NUT 5/16-18 MTD-712-3010
...
46
HEX NUT 1/4-20 MTD-912-0287
...
47
SPROCKET-10T MTD-713-0308
...
48
#48 CHAIN 1/2 PITCH x 50 LINKS MTD-913-0311
...
49
#48 MASTER LINK MTD-713-0116
...
50
Roll Pin 3/16 x 1.25" MTD-915-0246
...
51
SPRING PIN MTD-715-0247
...
52
E-RING FOR .500 MTD-916-0104
...
53
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
54
Lock Wash. 5/16" I.D. MTD-936-0119
...
55
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
Shoulder Bolt MTD-938-0155
...
58
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
59
PINION SHAFT MTD-738-0530
...
60
BALL BEARING MTD-941-0484
...
61
CABLE CLAMP MTD-12894
...
62
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
63
CLAMP-CONDUIT MTD-751-0369
...
64
RETAINER STRIP MTD-14846
...
65
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
66
Fl-Wash. .203 I.D. x .406 O.D. MTD-736-0931
...
67
FLAP ASSEMBLY MTD-731-1029
...
68
ADJUSTER A MTD-14762
...
xx
Rear Height Adj. Ass'y. Comp.-L.H. (Not Shown) MTD-14763
...
69
Index Plate MTD-14764C
...
70
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON (Not Shown) MTD-14766
...
71
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
72
SPRING LEVER MTD-732-0417A
...
73
SHOULDER SCREW MTD-738-0528
...
74
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
75
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
76
Front Wheel Bearing MTD-NA
...
xx
Plastic Bearing MTD-741-0262
...
xx
FORTIFLEX BEARING MTD-741-0267
...
xx
BALL BEARING MTD-941-0484
...
xx
Spacer Bearing MTD-750-0434
...
77
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
78
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
79
SPACER MTD-950-0503
...
80
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
81
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
82
SPRING-LOCKOUT MTD-732-0401
...
83
Hex Bolt 3/8-24 x 2.00" Lg. (Grade 8) MTD-710-0818
...
84
Hex Nut 3/8-24 Thd. MTD-712-0241
...
85
BLADE BRAKE CLUTCH COMP. MTD-717-0487
...
86
CLUTCH BLADE HOUSING ASS'Y. MTD-14300
...
87
SPRING MTD-732-0396
...
88
BALL BEARING MTD-941-0600
...
89
CLUTCH CONE MTD-14304
...
90
Brake Cup Cone MTD-14305
...
91
HOUSING-CL MTD-14307
...
92
Hex Tap L-Scr. 1/4-20 x .75" MTD-710-0875
...
93
ADAPTER-FAN MTD-719-0256
...
94
BALL-BLOCK MTD-731-0520
...
95
EXTENSION SPRING MTD-732-0397
...
97
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
98
STEEL BALL MTD-741-0326
...
99
CABLE-CLUTCH MTD-746-0402
...
xx
LOCKING PIN MTD-731-0607
...
101
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
102
L-Wash. 3/8" I.D.* MTD-736-0169
...
103
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
104
CABLE TIE MTD-726-0192
...
105
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
106
HEX NUT 5/16-18 MTD-712-3010
...
107
Lock Wash. 5/16" I.D. MTD-936-0119
...
108
Clutch Cable w/Spring MTD-746-0549
...
109
CABLE BRACKET MOUNTING MTD-16309A
...
110
HANDLE ASSEMBLY MTD-16391
...
111
Shld. Bolt .448 Dia. x 1.450 MTD-738-0102
...
112
Fl-Wash. .531" I.D. x .98n MTD-736-0192
...
114
SHOULDER SCREW .498 MTD-738-0144
...
115
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
116
SPACER MTD-750-0649
...
117
CONTROL PANEL HALF MTD-731-0523
...
118
CONROL DISC PIN MTD-731-0524
...
119
CLUTCH PANEL HALF MTD-731-0526
...
120
Throttle Control Lever MTD-931-0972
...
121
UPPER HANDLE MTD-749-0536
...
xx
UPPER HANDLE MTD-749-0538
...
122
CONTROL LABEL MTD-777-5166
...
124
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. MTD-710-0227
...
127
Compression Spring MTD-932-0306A
...
xx
Hardware Pack MTD-8284-000-5
