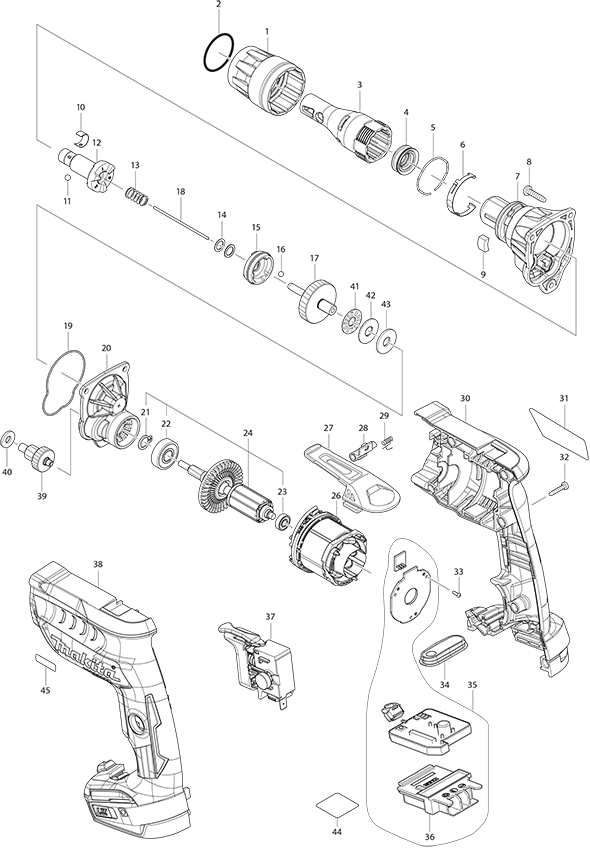

Makita XSF04R Cordless Screwdriver

Model: XSF04R

Save Part Not Listed?
product name

Makita XSF04R

...
...
A04
Magnetic Bit Holder 6.35-76 MK-784812-6
...
A03
+Bit 2-25 MK-784211-B
...
A02
Hook MK-346449-3
...
A01
+ Truss Head Screw M4X12 MK-266622-8
...
xxx
Hex. Locking Nut M4-7 MK-252126-6
...
xxx
Rubber Pin 6 MK-263005-3
...
xxx
Oil Seal 11 MK-213796-6
...
xxx
Ballbearing 685Zz MK-210003-8
...
001
Lock Ring MK-455591-0
...
002
Seal Ring 30 MK-424235-3
...
003
Locator L Complete MK-158876-0
...
004
Dust Seal Sleeve MK-424665-8
...
005
Ring Spring 30 MK-234348-0
...
006
Leaf Spring MK-232245-4
...
007
Gear Housing Complete MK-144156-0
...
008
Tapping Screw 4X18 MK-265995-6
...
009
Rubber Plate MK-423413-2
...
010
Leaf Spring MK-232050-9
...
011
Steel Ball 3.5 MK-216001-0
...
012
Spindle 125S Complete MK-144159-4
...
013
Compresseion Spring 8 MK-234121-8
...
014
Flat Washer 8 MK-267202-3
...
015
Clutch Cam 125S MK-223181-5
...
016
Steel Ball 4 MK-216008-6
...
017
Gear Complete MK-144160-9
...
018
Rod 2 MK-256342-2
...
019
Seal Ring MK-424928-2
...
020
Gear Housing Cover Complete MK-144161-7
...
021
Retaining Ring S-9 MK-961005-4
...
022
Ball Bearing 609Ddw MK-211491-2
...
023
Ball Bearing 695Ddw MK-210039-7
...
024
Rotor Ass'Y MK-519424-4
...
026
Stator MK-629135-4
...
027
Hook MK-162272-6
...
028
Lever Complete MK-142908-3
...
029
Torsion Spring 3 MK-233619-2
...
030
Housing Set MK-183F17-5
...
031
Xsf04 Name Plate MK-852V19-5
...
032
Tapping Screw Bind Pt 3X16 MK-266130-9
...
033
Tapping Screw Pt 2X6 MK-266490-9
...
034
Switch Plate Complete MK-144162-5
...
035
Controller Complete MK-620616-1
...
036
Terminal MK-643860-3
...
037
Switch C3Jw-4B-2L MK-650733-3
...
038
Housing Set MK-183F17-5
...
039
Gear Complete 9-23 MK-221478-6
...
040
Flat Washer 6 MK-267100-1
...
041
Thrust Needle Gauge 821 MK-216415-3
...
042
Washer 821 MK-216212-7
...
043
Urethane Washer 8 MK-261111-8
...
044
Xsf04 Serial No. Label MK-852V26-8
...
045
2500Rpm Indication Label MK-810W86-2
