Makita XRJ06PT Recipro Saw

Model: XRJ06PT

Save Part Not Listed?
product name

Makita XRJ06PT

...
...
A06
Dc18Rd Two Port Fast Charger MK-DC18RD
...
A05
Battery Bl1840B Set (197268-8) MK-BL1840B
...
xxx
Latch MK-162271-8
...
A03
Plastic Tool Case MK-821670-0
...
A01
Recipro Saw Blade MK-194502-7
...
xxx
Rubber Pin 6 MK-263005-3
...
xxx
X Ring 14 MK-213174-0
...
xxx
Oil Seal 14 MK-213151-2
...
001
Protector MK-424763-8
...
002
Retaining Ring (Ext) 18 MK-257952-8
...
003
Driving Sleeve MK-310662-9
...
004
Shoulder Pin 5 MK-256569-4
...
005
Compression Spring 6 MK-234381-2
...
006
Guide Sleeve MK-331720-8
...
007
Pin 3 MK-268094-3
...
008
Pin 3 MK-256158-5
...
009
Driving Sleeve Guide MK-417791-0
...
010
Sleeve MK-418311-3
...
011
Push Plate MK-345214-7
...
012
Compression Spring 2 MK-233025-1
...
013
Torsion Spring 17 MK-231687-9
...
014
Rubber Ring MK-424762-0
...
015
Slider Guide Complete MK-144012-4
...
016
Slider MK-161376-1
...
017
Roller MK-310663-7
...
018
Pin 6 MK-268341-2
...
019
Roller MK-310663-7
...
020
Led Circuit MK-620434-7
...
021
Hex. Socket Head Bolt M4X12 MK-922117-8
...
022
Rod Guide R MK-346936-2
...
023
Gear Housing R Complete MK-143362-4
...
024
Pan Head Screw M4X16 MK-911128-8
...
025
Shoulder Pin 6-8 MK-256567-8
...
026
Hex. Socket Head Bolt M4X8 MK-922107-1
...
027
Flat Washer 4 MK-267491-0
...
028
Gear Complete MK-143359-3
...
029
Flat Washer 54 MK-267490-2
...
030
Seal Ring MK-424764-6
...
031
Hex. Socket Head Bolt M4X12 MK-922117-8
...
032
Rod Guide L MK-346935-4
...
033
Square Nut M6 MK-252157-5
...
034
Insulation Cover A MK-424766-2
...
035
Shoe MK-161375-3
...
036
Hex.Socket Head Bolt M6X14 MK-265531-8
...
037
Countersunk Head Screw M4X10 MK-912112-6
...
038
Flat Washer 6 MK-253825-3
...
039
Gear Housing L Assembly MK-123509-6
...
040
Rotor Ass'Y MK-519391-3
...
041
Retaining Ring S-12 MK-961052-5
...
042
Ball Bearing 6201Ddw MK-210118-1
...
043
Flat Washer 12 MK-253744-3
...
044
Bearing Retainer 66 MK-285740-3
...
045
Ball Bearing 607Zz MK-210062-2
...
046
Pan Head Screw M4X16 MK-911128-8
...
047
Tapping Screw 4X45 MK-266069-6
...
048
Baffle Plate MK-456178-1
...
049
Stator MK-629180-9
...
050
Motor Housing MK-456179-9
...
051
Pan Head Screw M5X25 MK-911243-8
...
052
Change Button MK-456177-3
...
053
Switch C3Jw-6B-2 MK-650759-5
...
054
Controller A MK-620455-9
...
055
Terminal MK-644808-8
...
056
Handle Set MK-183C50-9
...
057
Tapping Screw 4X18 MK-266326-2
...
058
Xrj06 Name Plate MK-851P30-8
...
059
Caution Label MK-807Y38-4
...
060
Handle Set MK-183C50-9
...
067
Slider Assembly MK-123749-6
...
069
Felt 16X16 MK-424902-0
...
071
Hook Assembly MK-123456-1
...
072
Hook MK-281223-1
...
073
Sleeve 6 MK-262561-0
...
074
Compression Spring 7 MK-233455-6
...
075
Joint MK-319345-8
...
076
Spring Pin 3-12 MK-951057-3
...
077
Lock Sleeve MK-310661-1
...
078
Pan Head Screw M5X10 MK-911206-4
...
079
Square Nut M5 MK-264002-2
...
081
Rubber Pin 4 MK-263002-9

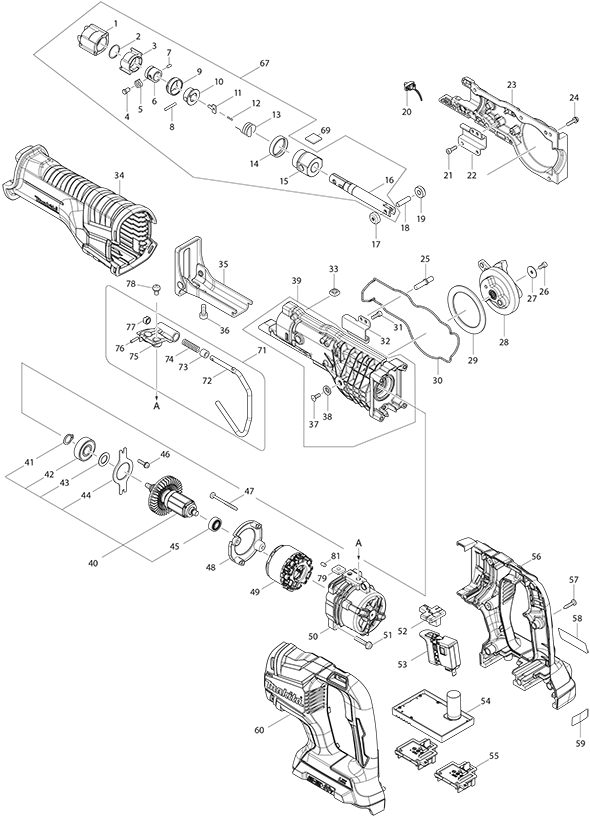

Schematic Image Zoomed
