Makita XRH06RBX Cordless Rotary Hammer

Model: XRH06RBX

Save Part Not Listed?

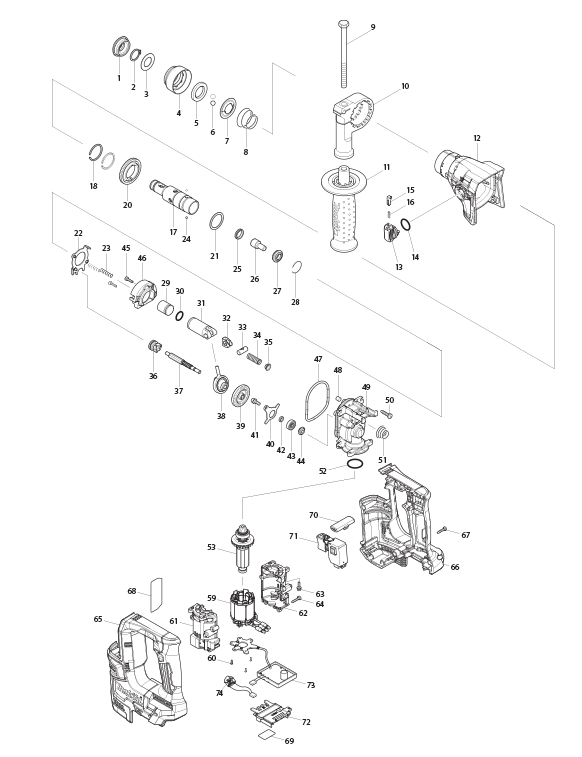

product name

Makita XRH06RBX

...
...
A09
Battery Bl1820B Set (197257-3) MK-BL1820B
...
A08
Dc18Rc Fast Charger MK-DC18RC
...
A07
Battery Cover MK-450128-8
...
A03
Tool Bag MK-832069-4
...
A01
Depth Gauge MK-415486-9
...
C40
Caution Label Includes #65 MK-812F90-5
...
C40
Caution Label Includes #66 MK-812F90-5
...
C30
Rubber Pin 6 MK-263005-3
...
C20
Rubber Ring 6 MK-262182-8
...
C10
Hex. Locking Nut M4-7 MK-252126-6
...
C10
Hex. Nut M8 MK-931402-8
...
C20
Oil Seal 25 MK-213788-5
...
C10
Ball Bearing 6805Llb MK-211375-4
...
001
Cap 34 MK-286037-3
...
002
Retaining Ring S-17 MK-961057-5
...
003
Flat Washer 17 MK-253377-4
...
004
Chuck Cover MK-457214-6
...
005
Ring 21 MK-257416-2
...
006
Steel Ball 7.0 MK-216022-2
...
007
Guide Washer MK-346177-0
...
008
Conical Comp. Spring 21-29 MK-232347-6
...
009
Hex. Bolt M8X120 MK-921923-8
...
010
Grip Base MK-417911-6
...
011
Grip 36 Complete MK-158057-6
...
012
Gear Housing Complete MK-144218-4
...
013
Change Lever Complete MK-161569-0
...
014
O Ring 17 MK-213278-8
...
015
Lock Button Complete MK-161568-2
...
016
Compression Spring 3 MK-232344-2
...
017
Tool Holder MK-326841-9
...
018
Retaining(Ext) Wr-25 MK-961135-1
...
020
Spur Gear 57 MK-221483-3
...
021
Flat Washer 24 MK-267175-0
...
022
Change Plate Complite MK-161570-5
...
023
Compression Spring 4 MK-233194-8
...
024
Steel Ball 3 MK-216019-1
...
025
X Ring 13 MK-213183-9
...
026
Impact Bolt MK-326843-5
...
027
Ring 10 MK-326842-7
...
028
Ring Spring 23 MK-232343-4
...
029
Striker MK-327007-4
...
030
O Ring 12 MK-213128-7
...
031
Piston Cylinder MK-319510-9
...
032
Guide Plate MK-347101-6
...
033
Piston Joint MK-326846-9
...
034
Compression Spring 8 MK-232346-8
...
035
Spring Guide MK-347102-4
...
036
Clutch Cam MK-326845-1
...
037
Spur Gear 8 MK-221482-5
...
038
Swash Bearing 6 MK-219026-3
...
039
Spiral Bevel Gear 37 MK-221481-7
...
040
Bearing Retainer MK-347100-8
...
041
Hex. Socket Head Bolt M4X12 MK-266273-7
...
042
Ring 5 MK-257415-4
...
043
Ball Bearing 625Zz MK-210065-6
...
044
Ring 5 MK-326847-7
...
045
Hex. Socket Head Bolt M3X12 MK-265910-0
...
046
Inner Support Complete MK-144219-2
...
047
O-Ring 60 MK-213092-2
...
048
Filter MK-443138-2
...
049
Inner Housing MK-319508-6
...
050
Tapping Screw 4X18 MK-265995-6
...
051
Conical Comp. Spring 8-19 MK-232345-0
...
052
O Ring 22.4 MK-213008-7
...
053
Rotor MK-619421-1
...
059
Stator MK-629283-9
...
060
Tapping Screw Pt 2X6 MK-266490-9
...
061
Motor Case Set Includes #62 MK-183G09-0
...
062
Motor Case Set Includes #61 MK-183G09-0
...
063
H. S. Head Bolt M3X12 With Wrm MK-251510-2
...
064
Tapping Screw Bind Pt 3X16 MK-266130-9
...
065
Housing Set MK-183H72-9
...
066
Housing Set MK-183H72-9
...
067
Tapping Screw Bind Pt 3X16 MK-266130-9
...
068
Xrh06 Name Plate MK-853R73-8
...
069
Xrh06 Serial No. Label MK-853R79-6
...
070
F/R Change Lever MK-457210-4
...
071
Switch C3Jw-2B MK-650689-0
...
072
Terminal MK-643874-2
...
073
Controller MK-620746-8
...
074
Led Circuit MK-620747-6
