Makita XRF02 Cordless Screwdriver

Model: XRF02

Save Part Not Listed?
product name

Makita XRF02

...
...
E01
Controller MK-620122-6
...
A03
+Bit 2-162L For Fr540D MK-B-10481
...
A02
Square Bit 2-162 MK-784645-9
...
A01
Hook MK-281217-6
...
xxx
Torsion Spring L MK-231697-6
...
xxx
Torsion Spring R MK-231696-8
...
xxx
Caution Label MK-802J50-9
...
xxx
Indication Label MK-816885-2
...
001
Cap MK-424043-2
...
002
Stopper Base 55 MK-345839-7
...
003
Guide Box Complete MK-140493-0
...
004
Guard MK-346269-5
...
005
Lever MK-345837-1
...
006
Compression Spring 2 MK-233211-4
...
007
Pin 6 MK-256451-7
...
008
Feeder Box MK-450107-6
...
009
Sleeve 5 MK-257685-5
...
010
Stopper MK-310062-3
...
011
Torsion Spring 4 MK-231636-6
...
012
Pin 3 MK-256158-5
...
013
Spur Gear 16 MK-226344-2
...
014
Ratchet Arm Complete MK-158374-4
...
015
Compression Spring 6 MK-233212-2
...
016
Boxcover Complete MK-158375-2
...
017
Tapping Screw 4X18 MK-265995-6
...
018
Dust Cover MK-162201-9
...
019
Wheel MK-416518-5
...
020
Plate MK-345838-9
...
021
Stopper MK-450111-5
...
022
Shoulder Flat Head Screw M MK-265177-0
...
023
Sleeve 4 MK-257764-9
...
024
Compression Spring 23 MK-234031-9
...
025
Casing Cover MK-450114-9
...
026
Casing 55 Complete MK-142688-1
...
027
Shifter Pin MK-310237-4
...
028
Insulation Sleeve MK-450110-7
...
029
Clamper MK-318181-9
...
030
Dial 42 MK-417056-0
...
031
O Ring 12 MK-213107-5
...
032
Flat Washer 6 MK-267201-5
...
033
Countersunk Head Screw M4X MK-912117-6
...
034
Steel Ball 3.5 MK-216001-0
...
035
Countersunk Head Screw M4X MK-912117-6
...
036
Thumb Screw M4X28 MK-265779-2
...
037
Casing 55 Assembly MK-126456-0
...
041
Screw Guide Set MK-188309-1
...
042
Tapping Screw 4X18 MK-265995-6
...
043
Housing Set MK-187478-5
...
044
Xrf02 Name Plate MK-850K04-6
...
045
Tapping Screw 4X18 MK-265995-6
...
046
Dust Cover MK-421467-3
...
047
Plane Bearing 14 MK-214172-7
...
048
O Ring 18 MK-213262-3
...
049
Steel Ball 3.5 MK-216001-0
...
050
Spindle A MK-324807-3
...
052
Sleeve 20 MK-421927-5
...
054
Flat Washer 25 MK-267331-2
...
055
Flat Washer 25 MK-267331-2
...
056
Compresseion Spring 25 MK-234017-3
...
057
Clutch Cam C MK-223169-5
...
058
Steel Ball 4 MK-216008-6
...
059
Helical Gear 48 MK-226670-9
...
060
Ball Bearing 608 MK-211034-0
...
061
Rubber Sleeve 10 MK-165115-1
...
062
Plane Bearing 5 MK-214017-9
...
063
Flat Washer 5 MK-253811-4
...
064
Gear Complete 18-44 MK-154937-4
...
065
Plane Bearing 5 MK-214017-9
...
066
O Ring 10 MK-213055-8
...
067
F/R Change Lever MK-419304-3
...
068
Switch Tg513Sba-2 MK-650670-1
...
069
Terminal MK-643860-3
...
071
Yoke Unit MK-638426-2
...
074
Armature MK-619216-2
...
076
Carbon Brush Cb-440 (195021-6) MK-CB440
...
077
Brush Holder Complete MK-638433-5
...
078
Rubber Pin 4 MK-263032-0
...
079
Front Cover MK-419307-7
...
080
Tapping Screw 4X18 MK-265995-6
...
082
Screw Guide Set MK-188309-1
...
083
Housing Set MK-187478-5
...
084
Flat Washer 26 MK-267332-0
...
088
Tapping Screw 4X18 MK-265995-6
...
089
Guide Attachment Set MK-188310-6
...
090
Guide Attachment Set MK-188310-6
...
091
Torsion Spring 4 MK-233567-5
...
092
Pin 2 MK-268188-4
...
093
Guide MK-310282-9
...
094
Feeder Box Ass'Y MK-125809-0

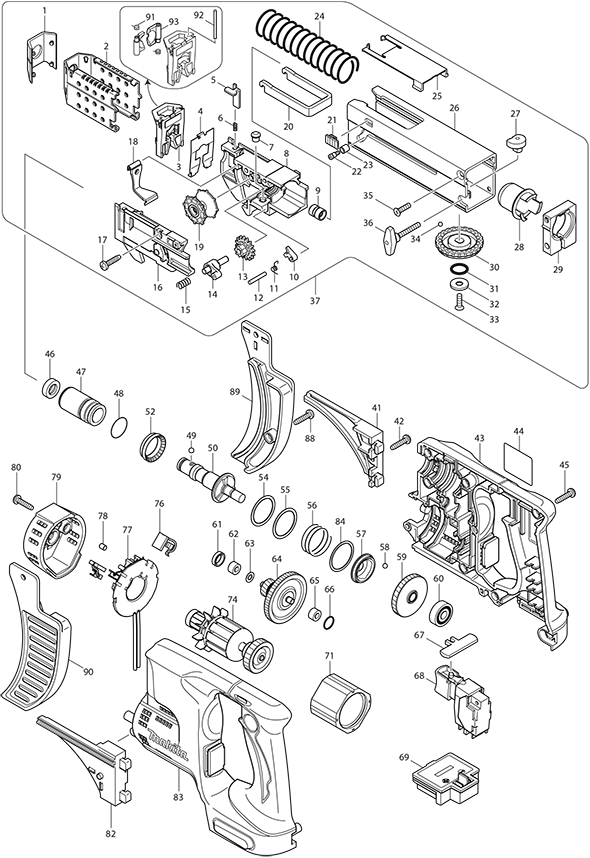

Schematic Image Zoomed
