Makita XOB03Z Sheet Finishing Sander

Model: XOB03Z

Save Part Not Listed?
product name

Makita XOB03Z

...
...
A04
Battery Protector MK-422807-8
...
A03
Abrasive Paper 93X228 #120 MK-A-31267
...
A02
Punch Plate MK-451271-6
...
A01
Dust Bag Complete MK-140115-2
...
xxx
O-Ring16 MK-213A05-9
...
xxx
Caution Label MK-8008C5-7
...
xxx
Rubber Pin 6 MK-263005-3
...
1
Tapping Screw 4X18 MK-265995-6
...
2
Front Grip Assembly MK-122A91-8
...
3
Rubber Pin 5 MK-263036-2
...
4
Pin 1.5 MK-268284-8
...
5
Cap Complete MK-140F99-0
...
6
Housing Set MK-183U24-8
...
7
Xob03 Serial No. Label MK-8111L1-1
...
8
Terminal MK-643874-2
...
9
Cushion MK-424517-3
...
10
Switch Plate Complete MK-141E90-5
...
11
Switch Unit MK-632K92-3
...
12
Housing Set MK-183U24-8
...
13
O Ring 19 MK-213315-8
...
14
Tapping Screw Pt 2X6 MK-266490-9
...
15
Stator MK-629491-2
...
16
Flat Head Screw M3X6 MK-652069-6
...
17
Controller MK-620G24-8
...
18
Ball Bearing 626Ddw MK-210022-4
...
19
Rotor Assy MK-519705-6
...
20
Ball Bearing 6200Ddw MK-211087-9
...
21
Fan 68 MK-240230-3
...
22
+ Flat Fillister Head Screw M5 MK-266511-7
...
23
O-Ring 6 MK-213045-1
...
24
Paper Clamp MK-346102-1
...
25
Pan Head Screw M4X20 MK-911136-9
...
26
Spring Guide MK-310300-3
...
27
Lever Complete MK-162279-2
...
28
Flat Washer 8 MK-267353-2
...
29
Sponge 7X105X3 MK-423469-5
...
30
O Ring 4 MK-213983-7
...
31
Sponge Sleeve 9 MK-424056-3
...
32
Foot MK-318151-8
...
33
Base MK-318484-1
...
34-1
Flat Washer 5 MK-253572-6
...
35
Hex. Lock Nut M5-8 MK-252103-8
...
36
Ball Bearing 6202Ddw MK-211228-7
...
37
Balancer MK-313395-5
...
38
Countersunk Head Screw M5X16 MK-912222-9
...
39
O Ring 53 MK-213656-2
...
40
Pad Complete MK-140441-9
...
41
Pan Head Screw M4X10 With W MK-911111-5
...
42
Xob03 Name Plate MK-8111K7-2
...
43
Earth Wire MK-327983-2

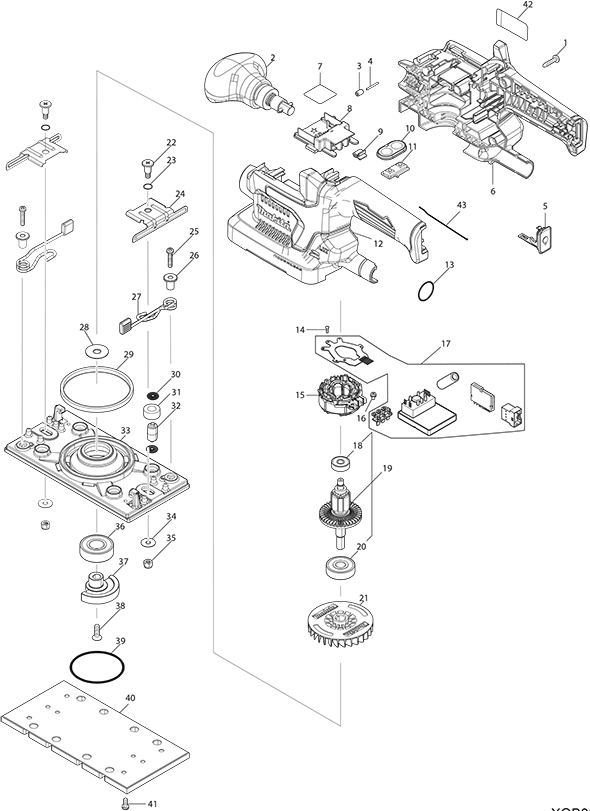

Schematic Image Zoomed
