Makita XOB02Z Sheet Finishing Sander

Model: XOB02Z

Save Part Not Listed?
product name

Makita XOB02Z

...
...
A06
Punch Plate MK-450066-4
...
xxx
Rubber Pin 6 MK-263005-3
...
xxx
Caution Label MK-8048G8-1
...
xxx
Dust Nozzle MK-416064-8
...
xxx
Receptacle MK-654086-2
...
xxx
Dust Bag Nozzle MK-416063-0
...
xxx
Ring 25 MK-257202-1
...
xxx
Dust Bag MK-166078-4
...
A05
Dust Bag Ass'Y MK-135222-4
...
A04
Abrasive Paper 114X140 Wa150Us MK-742511-6-1
...
A03
Abrasive Paper 114X140 Wa100Us MK-742510-8-1
...
A01
Abrasive Paper 114X140 Wa60 Us MK-742509-3-1
...
xxx
Hex. Nut M4 MK-252176-1
...
1
Tapping Screw 4X18 MK-265995-6
...
2
Housing Set MK-183V91-9
...
3
Controller Unit MK-632S80-8
...
4
Terminal MK-643874-2
...
5
Housing Set MK-183V91-9
...
6
Switch Unit MK-632K92-3
...
7
Switch Plate Complete MK-141B15-1
...
8
Ball Bearing 626Zz MK-210143-2
...
9
Spindle MK-327807-2
...
10
Ball Bearing 609Ddw MK-211491-2
...
11
Dc Motor MK-629B05-9
...
12
Motor Bracket MK-413619-0
...
13
Pan Head Screw M3X8 MK-265173-8
...
14
Pulley 7.5-15.5 MK-222200-4
...
15
Synchro Belt 6-108 MK-225105-7
...
16
Flat Washer 6 MK-253715-0
...
17
Retaining Ring S-6 MK-961002-0
...
18
Pulley 7.5-20.3 MK-222199-3
...
19
Fan 63 MK-240224-8
...
20
Fan Guide Assembly MK-122B40-1
...
23
Tapping Screw 4X18 MK-265995-6
...
24
O Ring 4 MK-213983-7
...
25
Sponge Sleeve 9 MK-424023-8
...
26
Foot MK-318151-8
...
28
Tapping Screw 4X12 MK-266020-6
...
29
Lever Complete MK-162259-8
...
30
Sponge 7X87X3 MK-424684-4
...
31
Base MK-413618-2
...
32
Ball Bearing 6001Ddw MK-211131-2
...
33
Balancer MK-313141-6
...
34
Countersunk Head Screw M4X12 MK-912117-6
...
35
Cap 36 MK-422711-1
...
36
Pad Complete Set MK-191Y25-6
...
37
Countersunk Head Screw M4X12 MK-912117-6
...
38
Xob02 Name Plate MK-8115U4-2
...
39
Xob02 Serial No. Label MK-8115U9-2

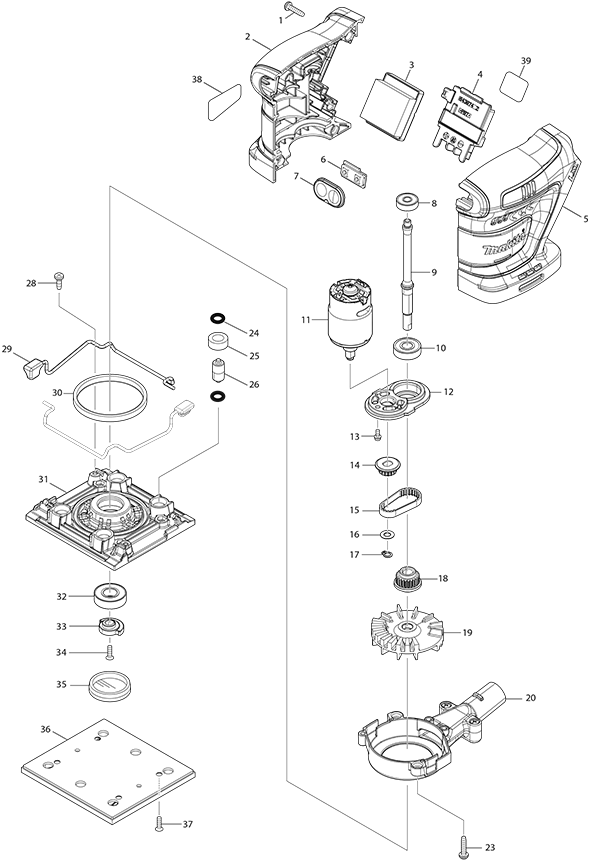

Schematic Image Zoomed
